JRready Deutsch Connector 12 Pin Connector Kits with Size 16 Solid Contacts(14-20AWG), ST6328-12 DT Series Waterproof Connector 12 Pin 5 Sets and Deutsch Pin Removal Tool DRK-RT1B with Mounting Clips

4.8 / 5

Available Options

DT-4Pin 5Pairs, ST6328-4 ₱2,792.00 Gray, DT-3Pin 5Pairs, ST6328-3 ₱2,392.00 DT-6Pin 5Pairs, ST6328-6 ₱3,518.00 DT-8Pin 5Pairs, ST6328-8 ₱4,278.00 DT-12Pin 5Pairs, ST6328-12 ₱5,364.00 DT-2Pin 5Pairs, ST6328-2 ₱2,123.00 DT-2Pin 8Pairs, ST6318-201 ₱3,021.00 DT-4Pin 8Pairs, ST6318-401 ₱4,417.00

₱5,364

+ ₱ 552

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2025-11-17 to 2025-11-24.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

DETAILS

Product ID:

237041

Copy Link

Identifier:

B09ZYDSKZY

Brand:

JRready

Model:

ST6328-12

Shipping Weight:

1.01 lbs

Manufacturer:

ST6328-12

Shipping Dimension:

8.39 x 5.91 x 2.05 inches

FEATURES

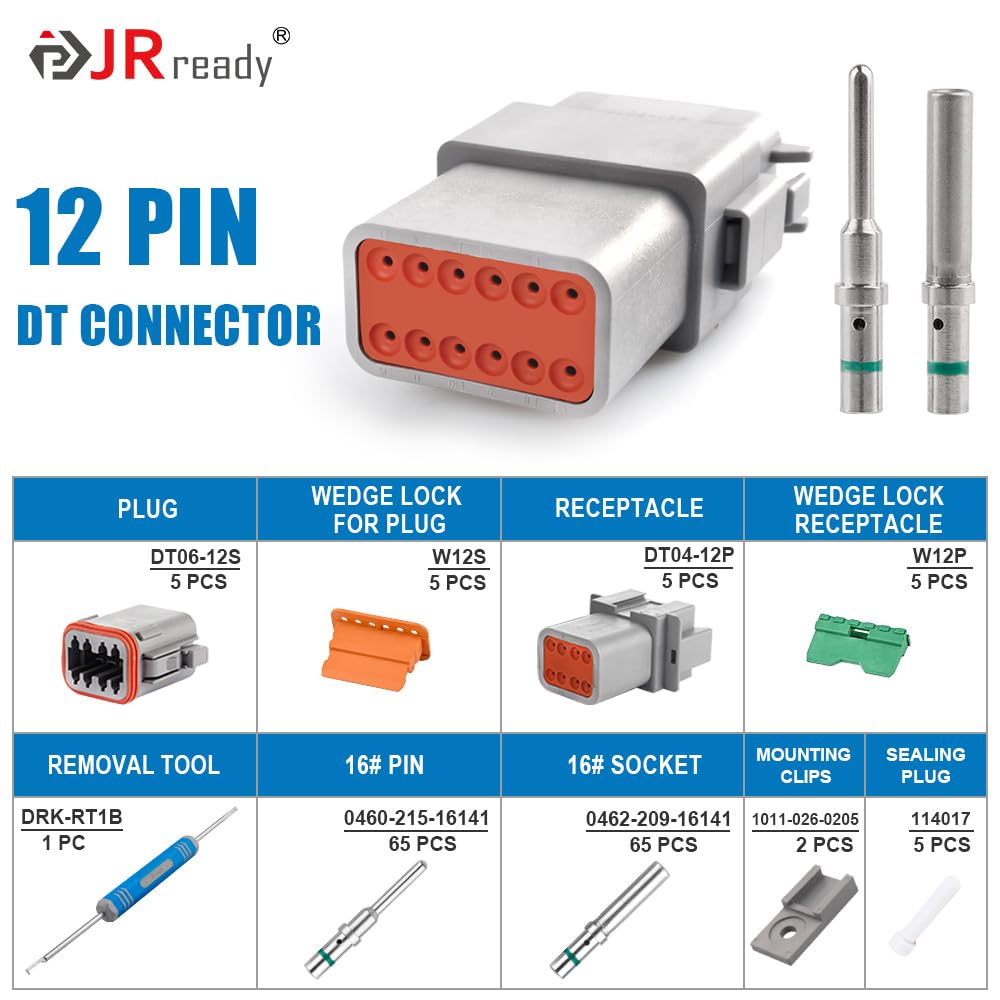

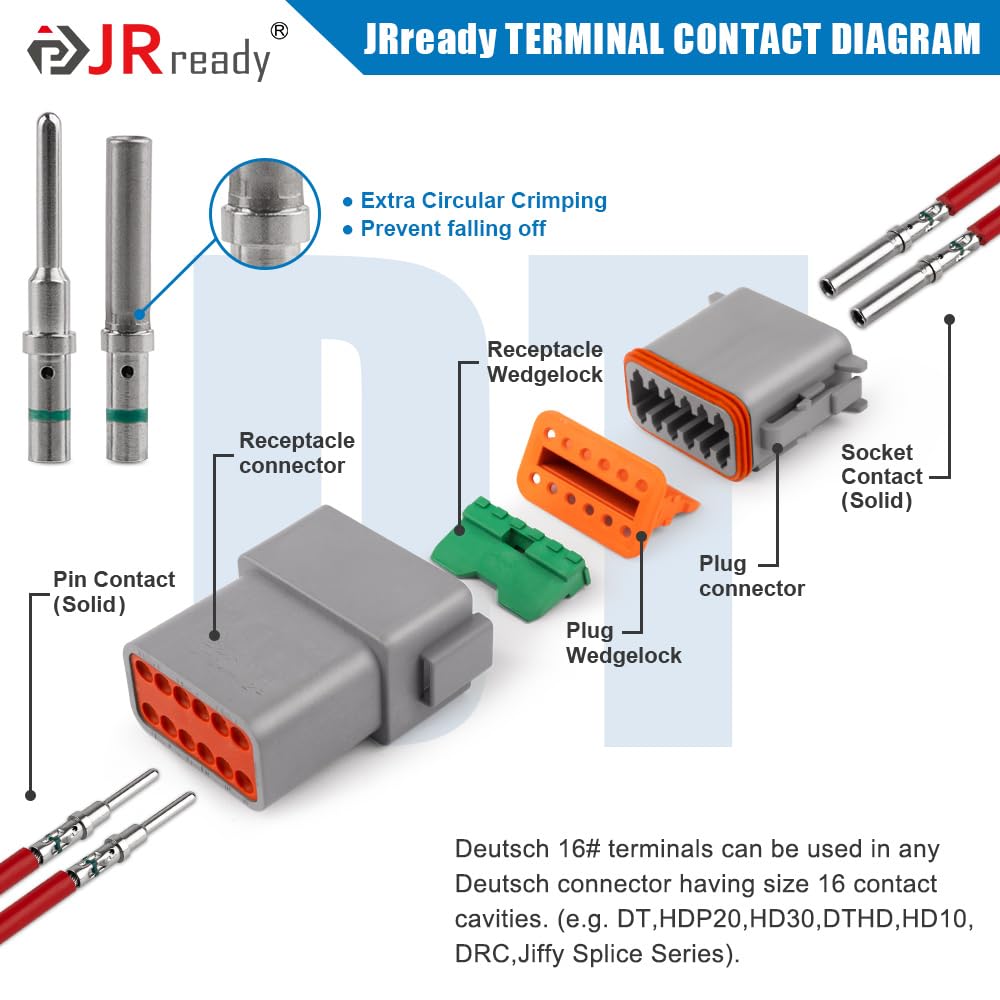

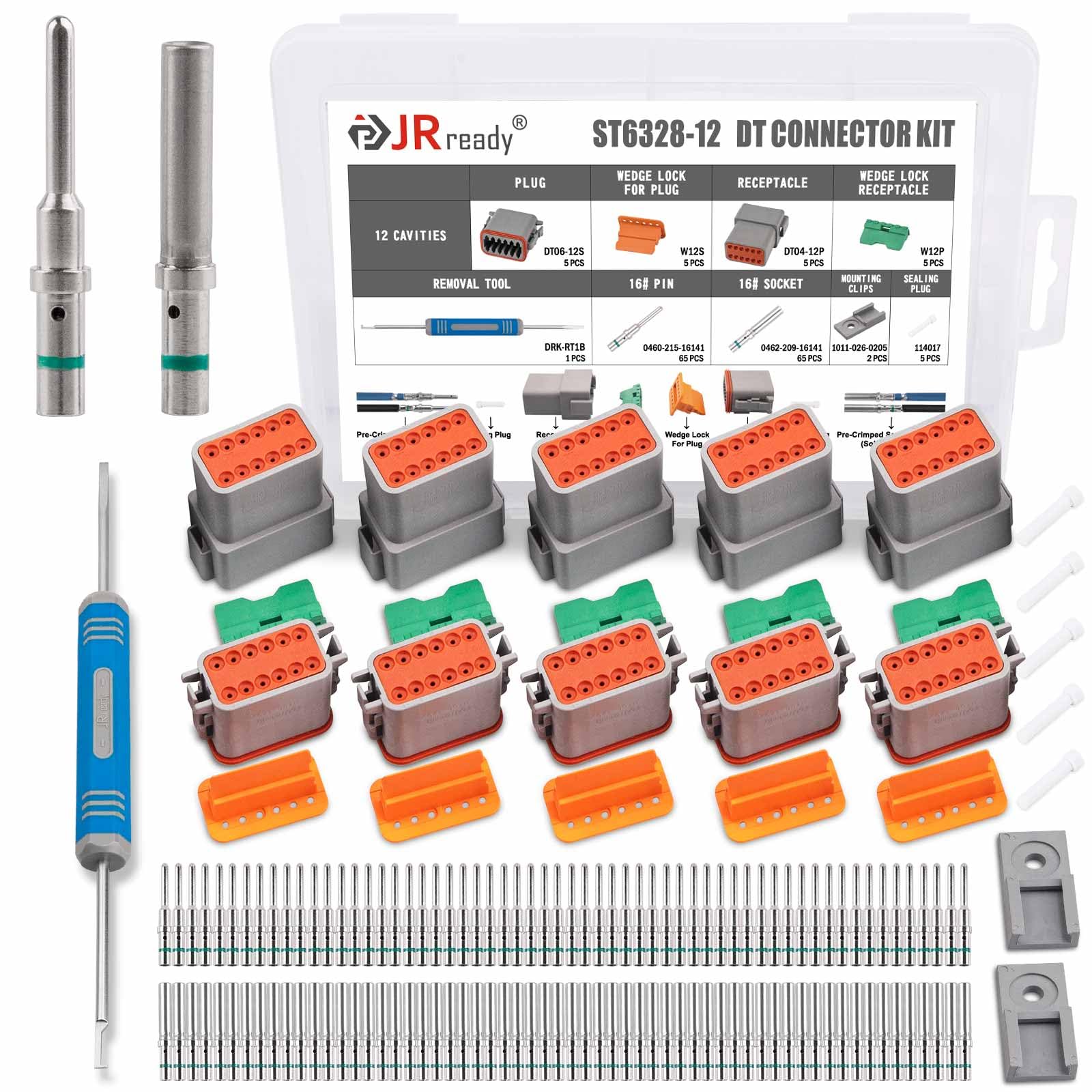

Deutsch DT Waterproof Connector 12 Pin Package Included: 65 pairs male and female solid contacts, 1 pc Deutsch connectors removal tool, 2 pcs mounting clips, 5 sets 12 pin DT connectors(5 pcs DT04-12P, 5 pcs DT06-12S, 5 pcs W12S orange wedgelock, 5 pcs W12P green wedgelock), 5 pcs seal plugs.

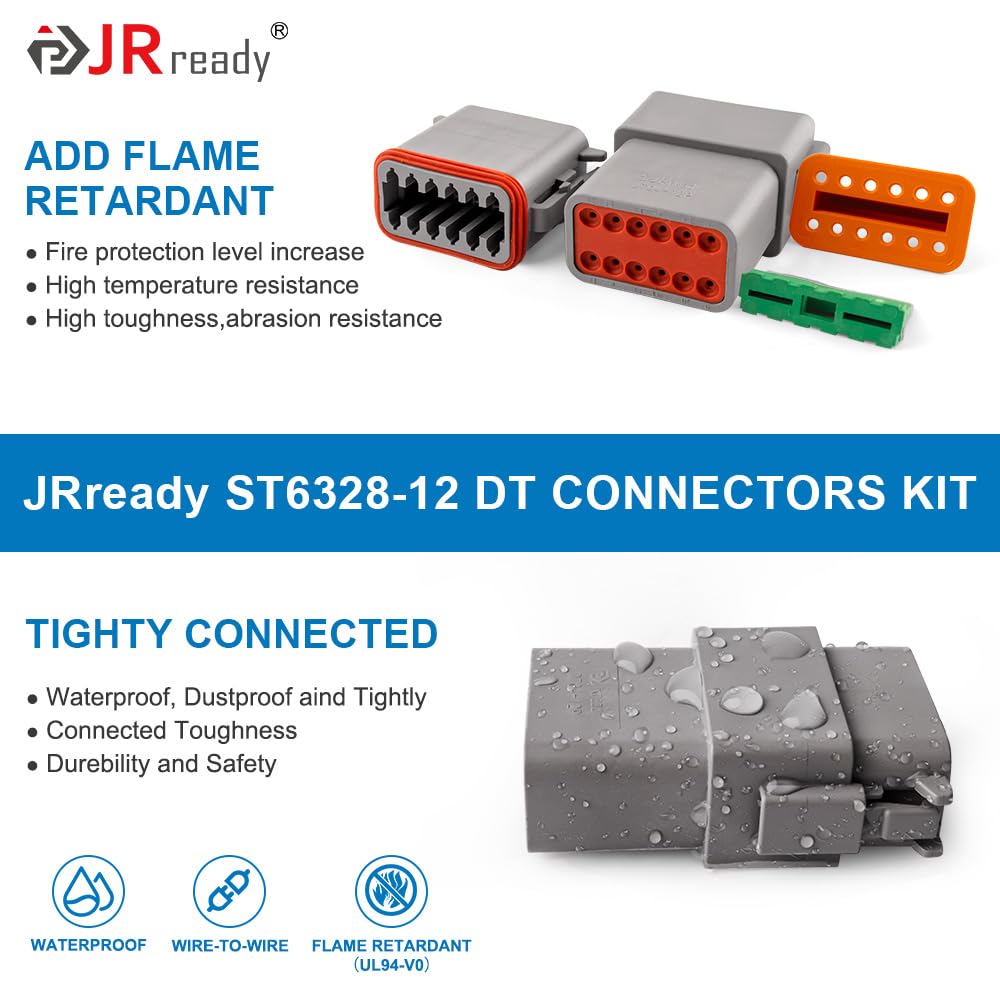

Deutsch 12 Pin Connector Material: PA66 nylon and copper(nickel plating), strong and water-resistant, appropriate for prolonged usage. The UL94-V0 rating for connector material(UL94 FLAME RATINGS) is met. NOTE: The product will have some smell due to the addition of flame retardants, which is a normal phenomenon.

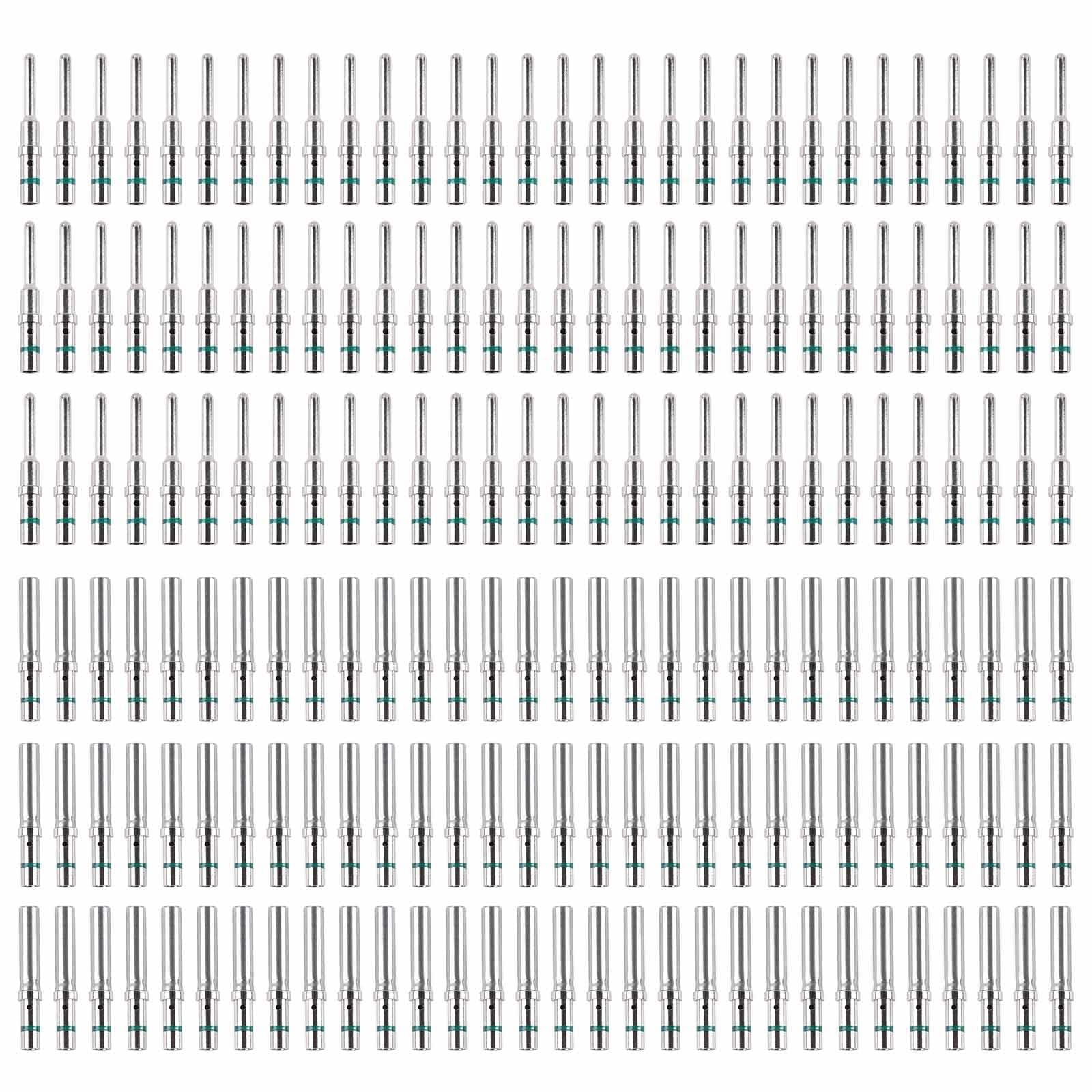

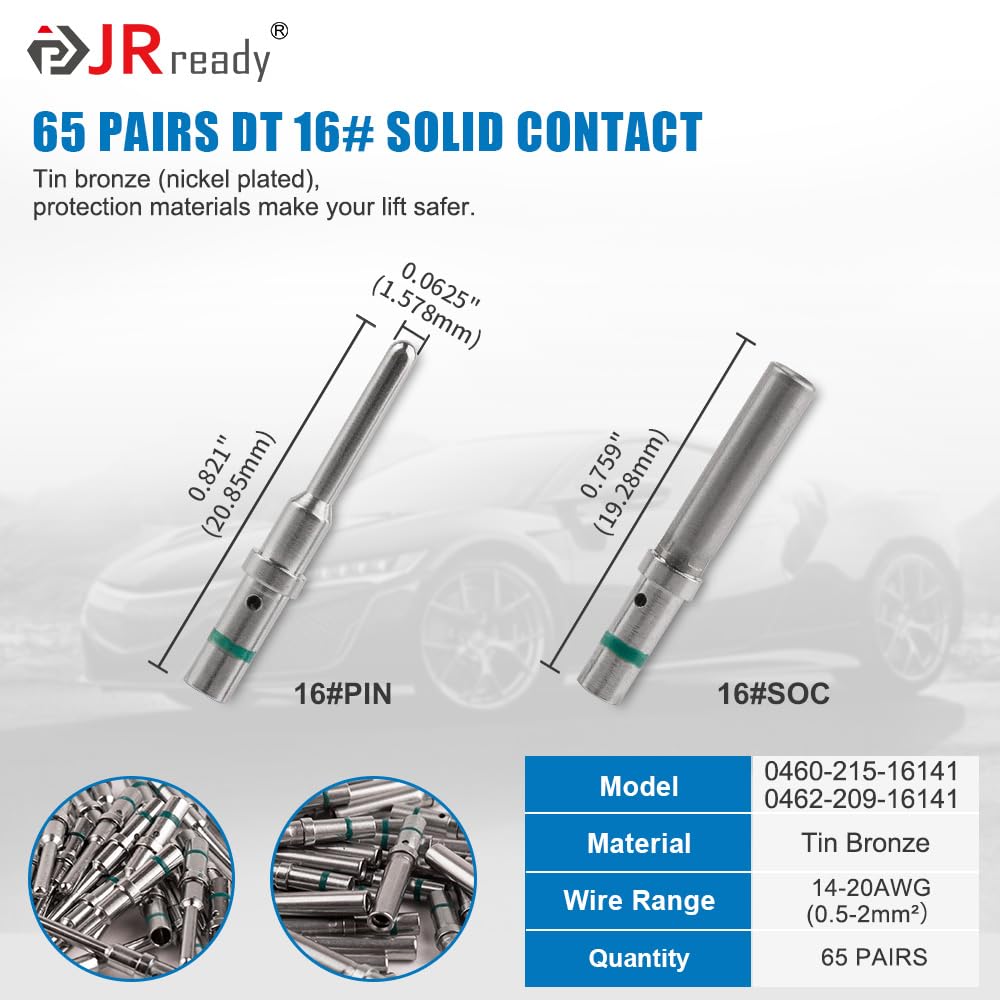

JRready Precise Solid Terminals: Each 13A(MAX), wire size range 14–20AWG, tinned copper(nickel plating and tinned copper end). Both crimping and soldering can be used to connect components, increasing solderability and reducing crimping resistance.

12 Pin DT Connector Versatility: JRready connectors offer reliability and performance widely used in truck, bus, off-highway, construction, agriculture, mining, emergency vehicles, forestry, recreational marine, motorcycle on the engine or transmission, under the hood, on engine controls, solenoid interfaces or in the cab.

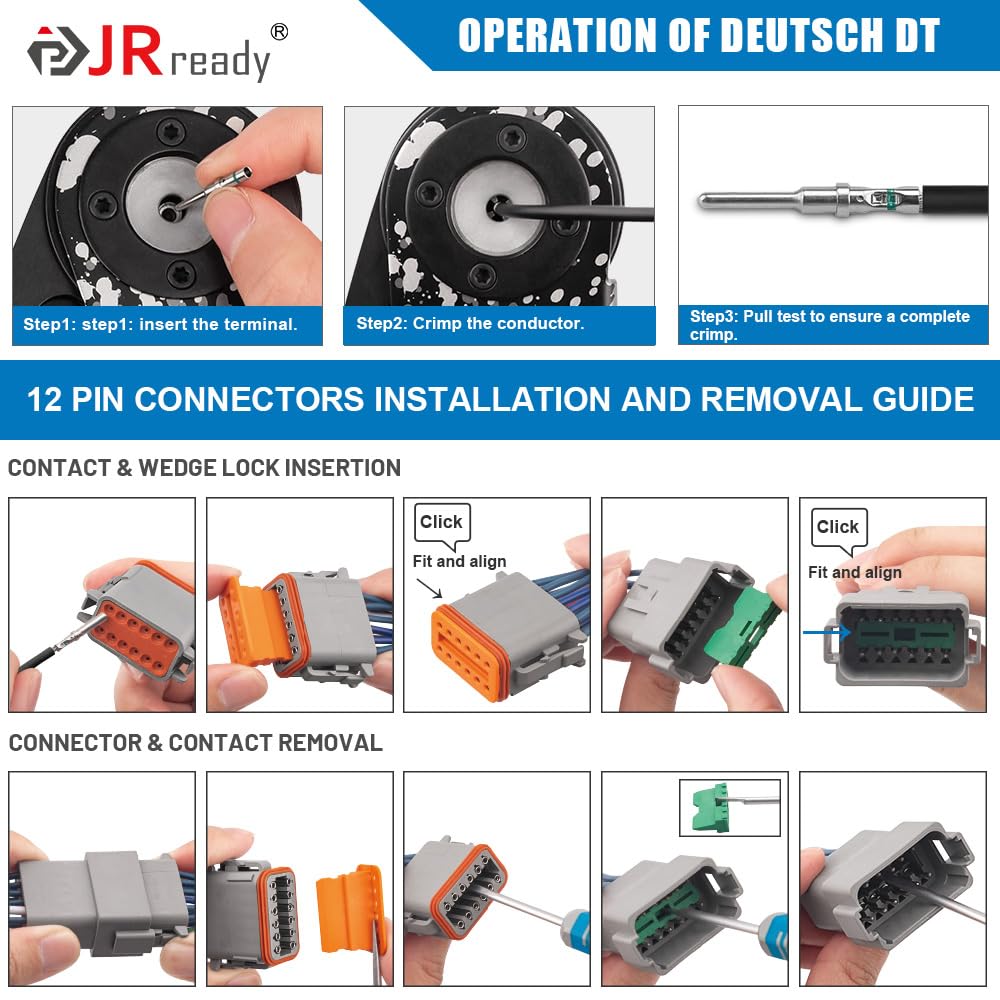

Applicable Crimping Tools: Recommended JRready ACT-DT1 Crimping Tool. This Deutsch crimping tool is suitable for crimping size 12#16# 20# turned pin/socket contacts.
