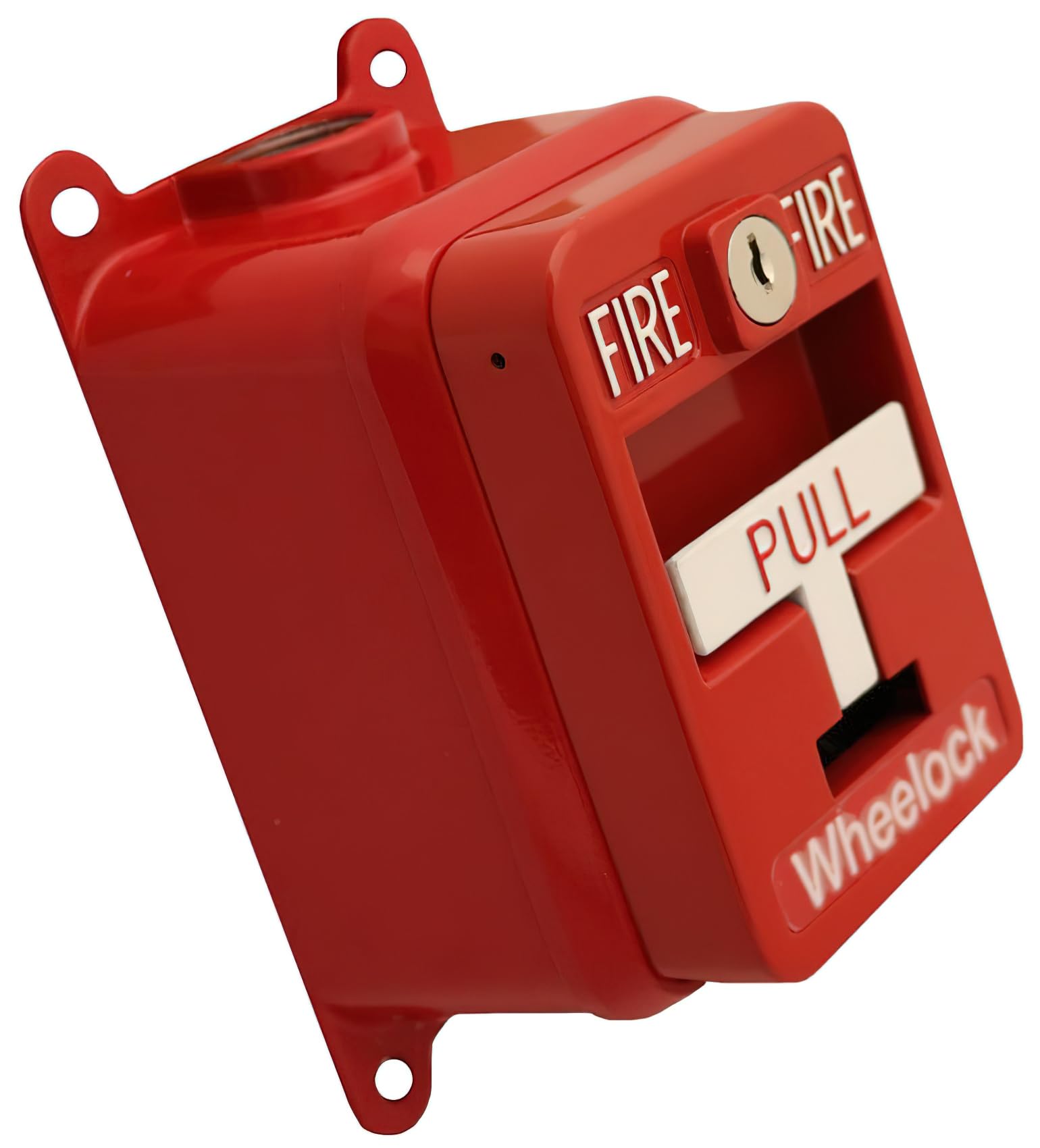

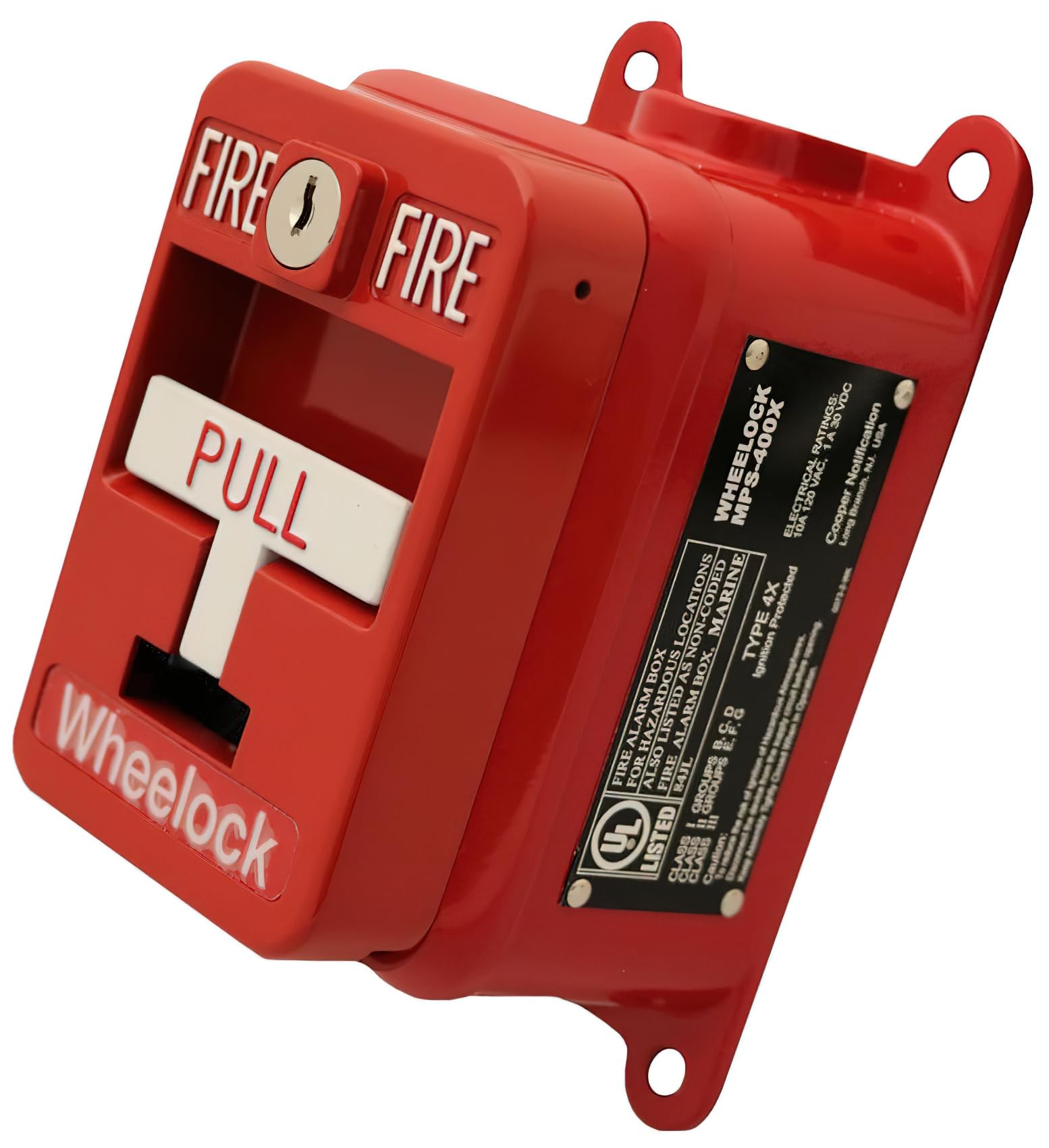

Wheelock MPS-400X Manual Pull Station, Red, Single Action, Explosion-proof, Key Reset, High-gloss Red Enamel Finish with Raised White Lettering, Indoor and Outdoor, Wall Mounting MPS non-coded manual pull stations are constructed of high-quality, die-cast metal for long-lasting performance and may be mounted on a single gang backbox. Available in either single or dual action configurations for indoor or outdoor use with SPST contacts and terminal strip connections. The normally open contact will close when the pull station is activated and is rated for 30 VDC @ 1 amp and/or 120 VAC @ 1 amp. The contacts are gold-plated to avoid the risk of corrosion. KEY FEATURES - Single action - Key reset - Terminal strip connections - Corrosion-resistant, gold-plated SPST contacts - Mounts on single gang backbox - Surface and weatherproof backboxes available - Plastic breakrod - High-gloss red enamel finish with raised white lettering - Approvals include: UL Standard, Factory Mutual (FM), California State Fire Marshal (CSFM) and New York City (MEA) SPECIFICATIONS - Mounting Method: Wall - Finish color: Red - Housing material: Die-cast metal - Voltage: 30 VDC @ 1 amp and/or 120 VAC @ 1 amp - Operating Temperature: -40°F to 150°F - Indoor/outdoor: Yes - Operation: Single action - Application: Weather resistant/Hazardous area signaling/Explosion-proof - Dimensions: 3.9"D x 6.5"H x 3.8"W - Weight: 5.8 lb
