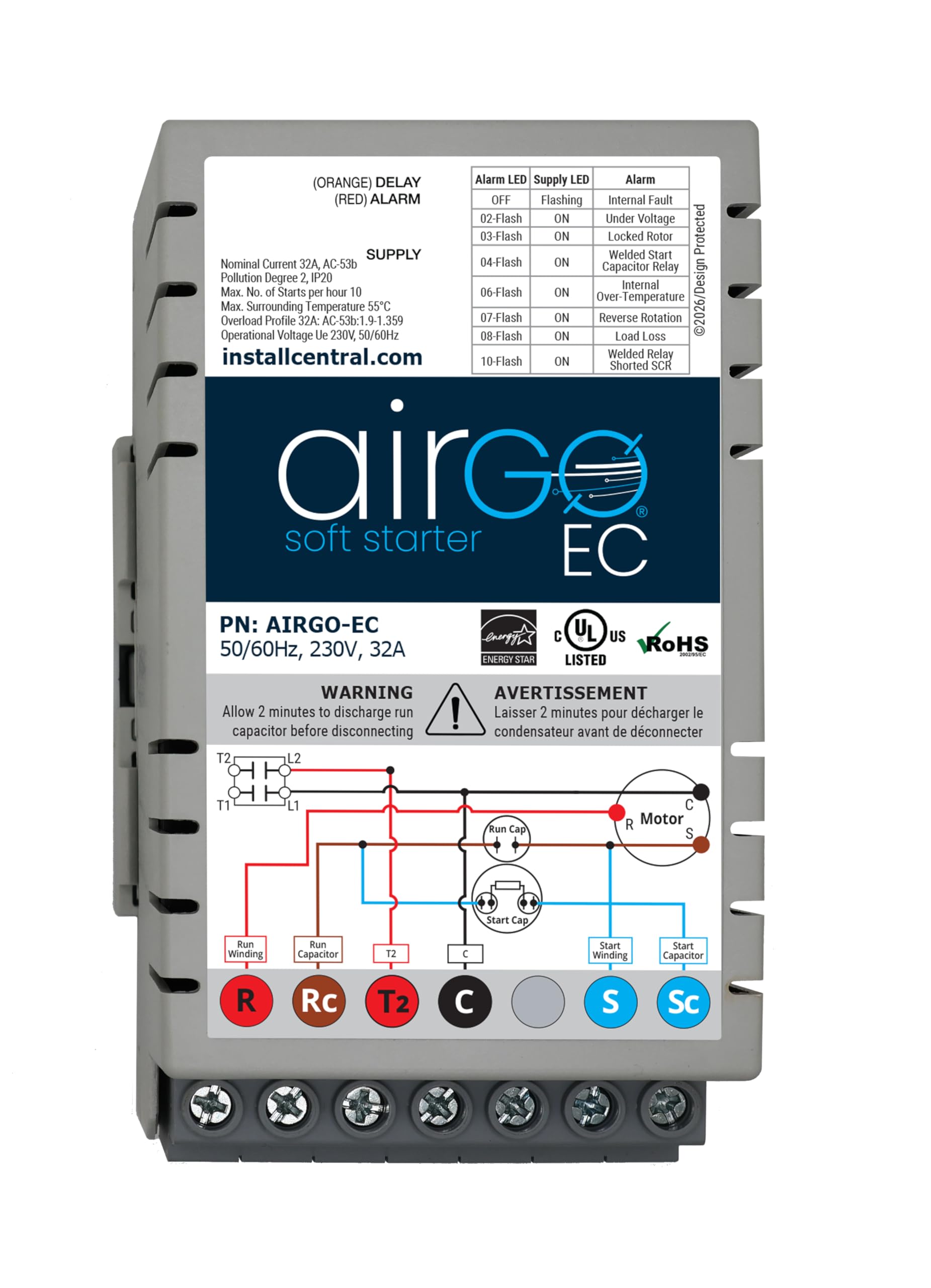

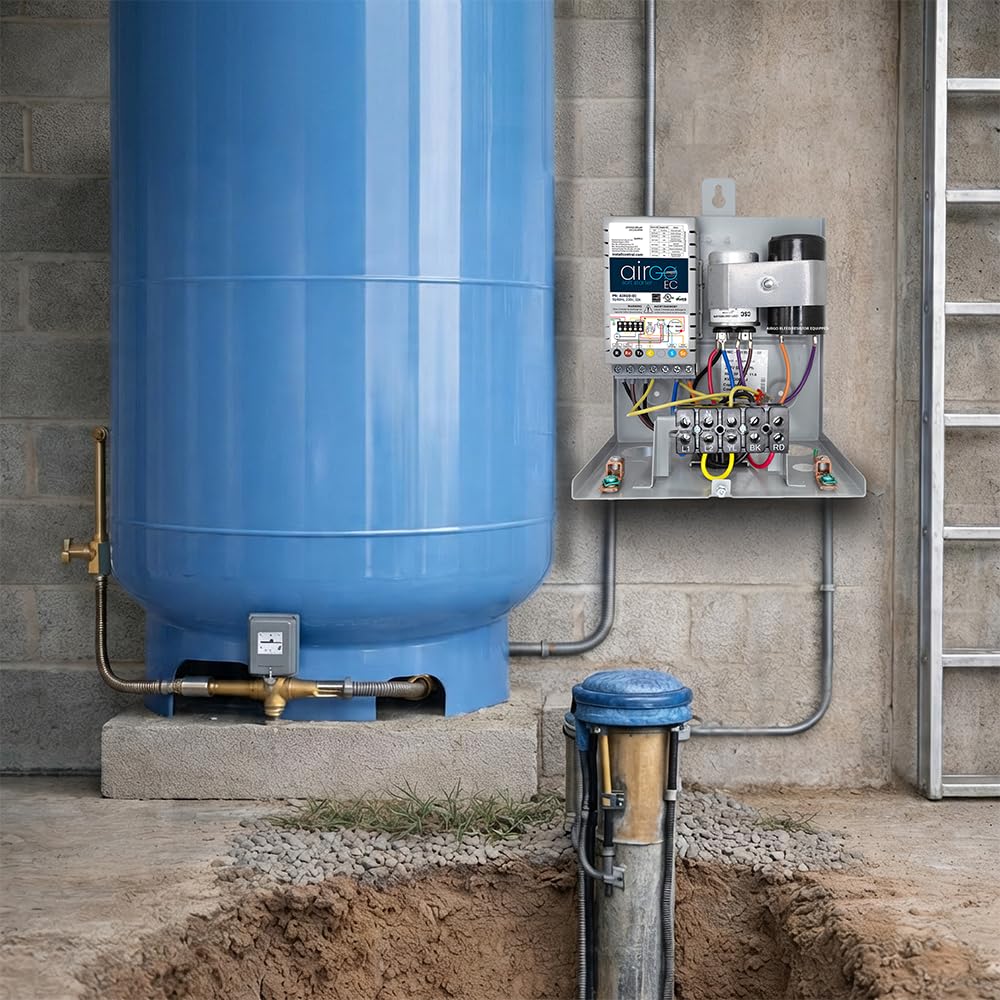

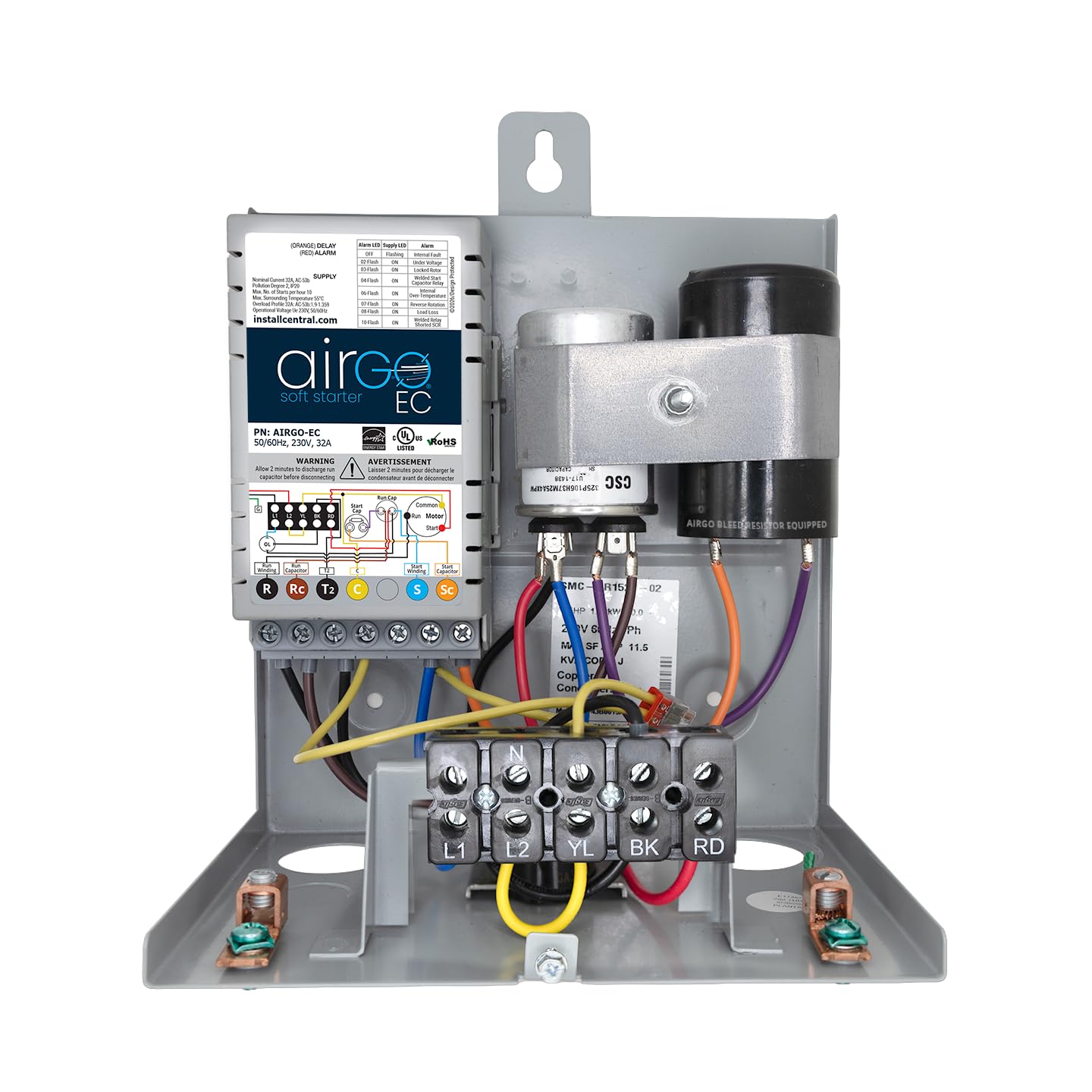

The AIRGO EC 32A Complete Package is a fully integrated soft start solution designed for 1 HP to 2 HP single-phase, 3-wire well pump systems. Pre-mounted inside a pump control box, it simplifies retrofit installations by eliminating the need to mount and configure separate soft start components in the field. The AIRGO EC limits motor starting current by up to 50 percent under typical conditions, helping reduce light flicker and startup stress on electrical systems. With an optimized ramp-up time of up to 600 milliseconds and intelligent starting capability, the unit adapts to varying load conditions to deliver consistent startup performance. An internal electromechanical bypass relay engages after startup, allowing efficient operation during normal run conditions. The system also includes integrated diagnostics for voltage dips, interruptions, and relay status, along with an anti-short cycling function to manage repeated starts. Designed for reliability and ease of use, the AIRGO EC requires no user adjustments and is rated for up to 10 starts per hour under evenly distributed conditions. This complete package provides a compact, all-in-one solution for residential, agricultural, irrigation, and light commercial well pump applications.
