【About Wirings】Five wires (plug) is for gear indicator; yellow wire is for storage battery; pink (or yellow) wire is for storage battery; black & red wire is for signal trigger;green wire is for grounding; blue & white is for trigger coil.

【Compatible with】 This 125cc engine motor is suitable for pit bike, dirt bike, buggy, pocket rocket, go-karts, atvs, track bikes, quad and so on. It fits for Atomik, for Pitpro, for TDR, for Xmoto, for Trooper, for Motox, for Trojan, for Blitz, for Raider, for Zongshen, for Chongqing, for Loncin, for Ducar and more.(For the reference)

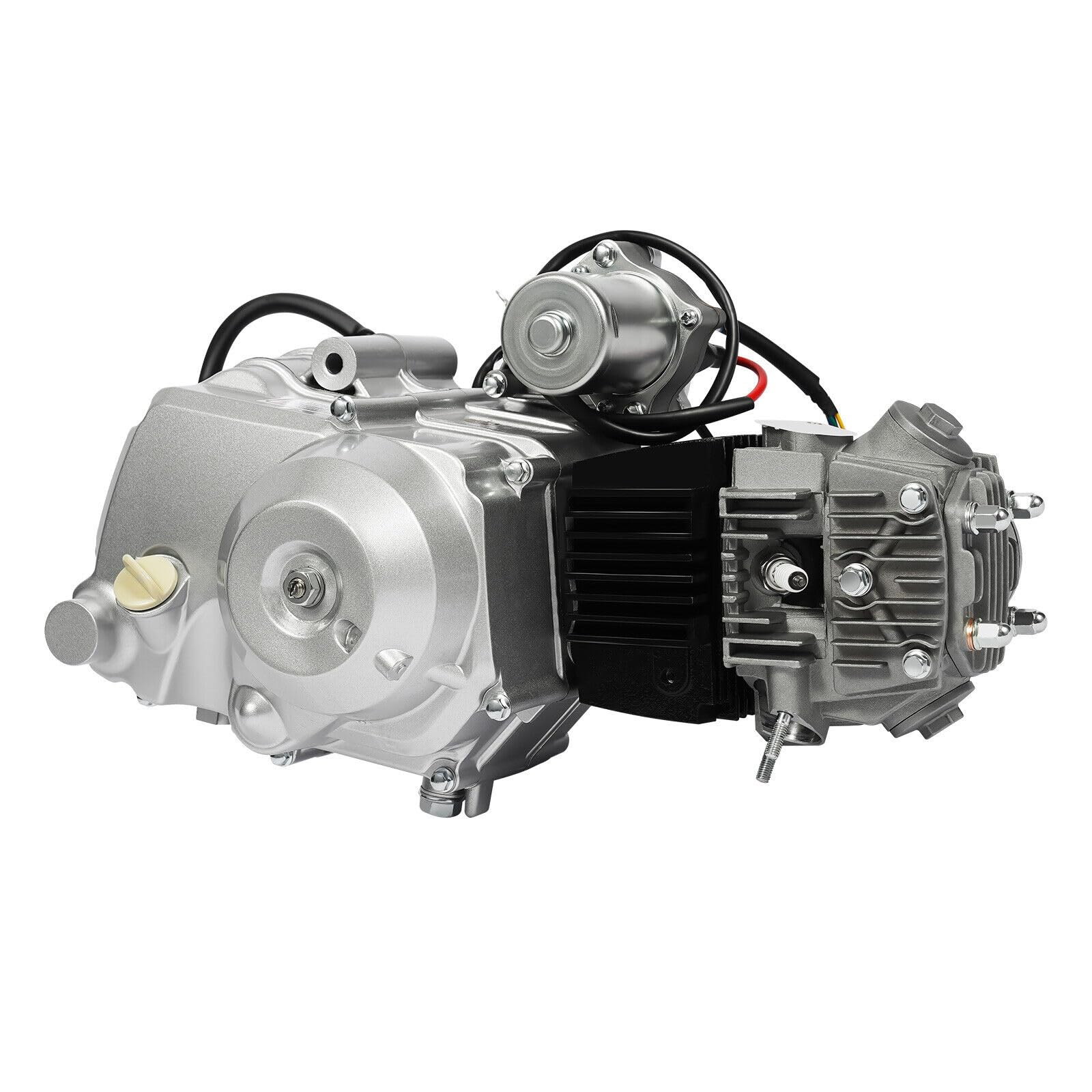

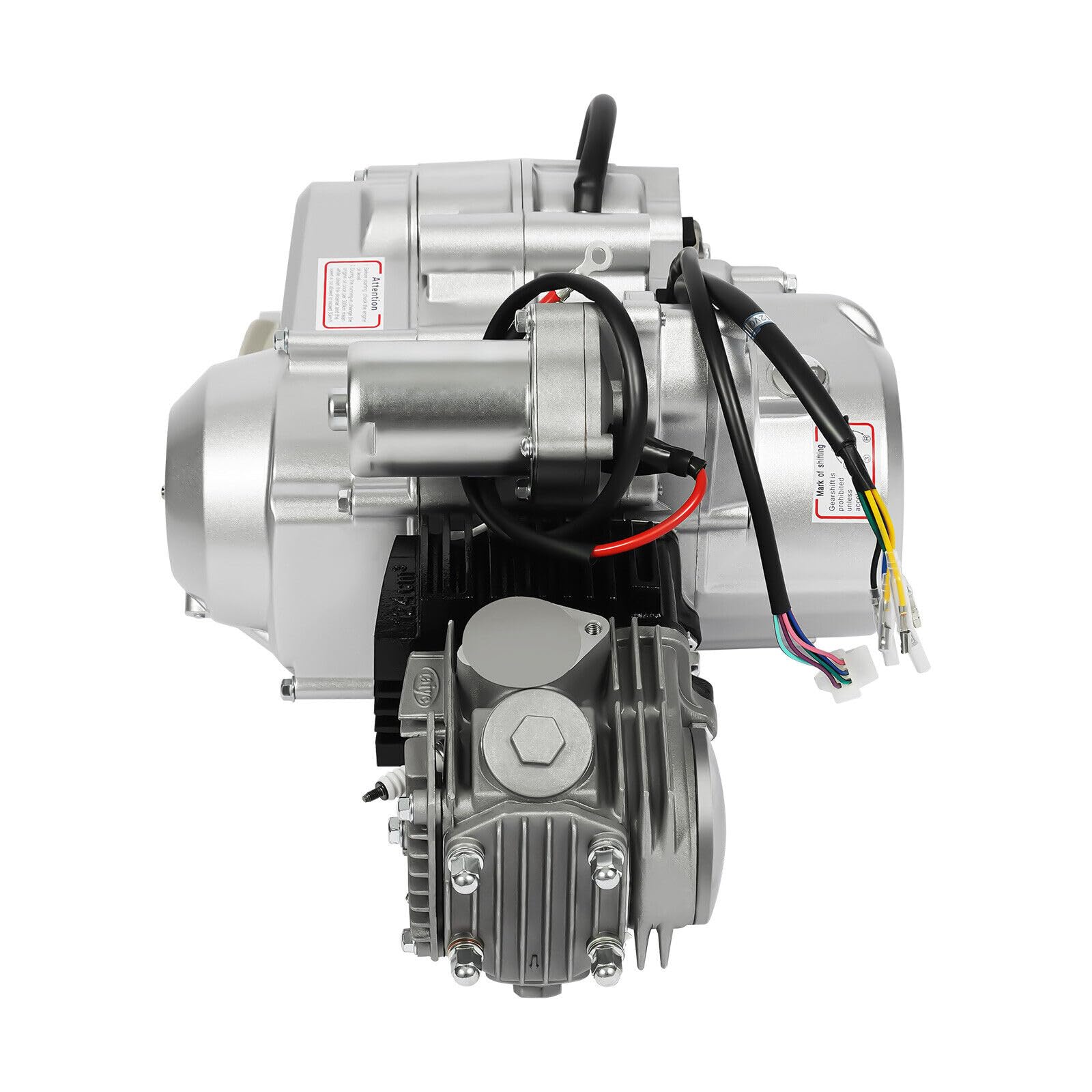

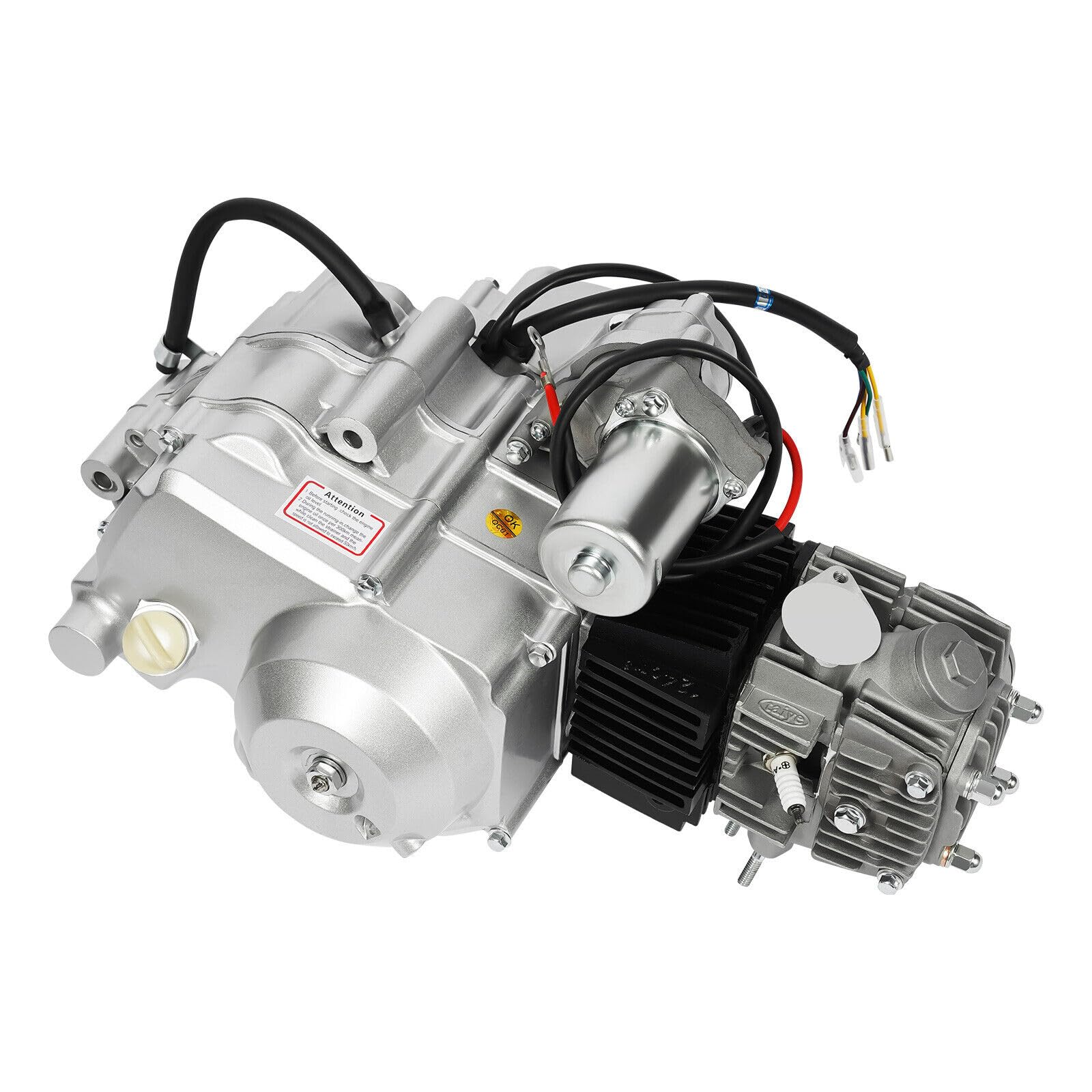

【Parameters 1】Engine Size: 125cc; Gear System: 3 Forward; Neutral; Reverse; Type: Horizontal, Single-Cylinder, 4-Stroke, Air-Cooled; Start Method: Electrical Start; Bore X Stroke: 52.4 × 55.5 Mm, 119.7 Ml; Top Engine Mount: 92mm; Bottom Engine Mount: 82mm

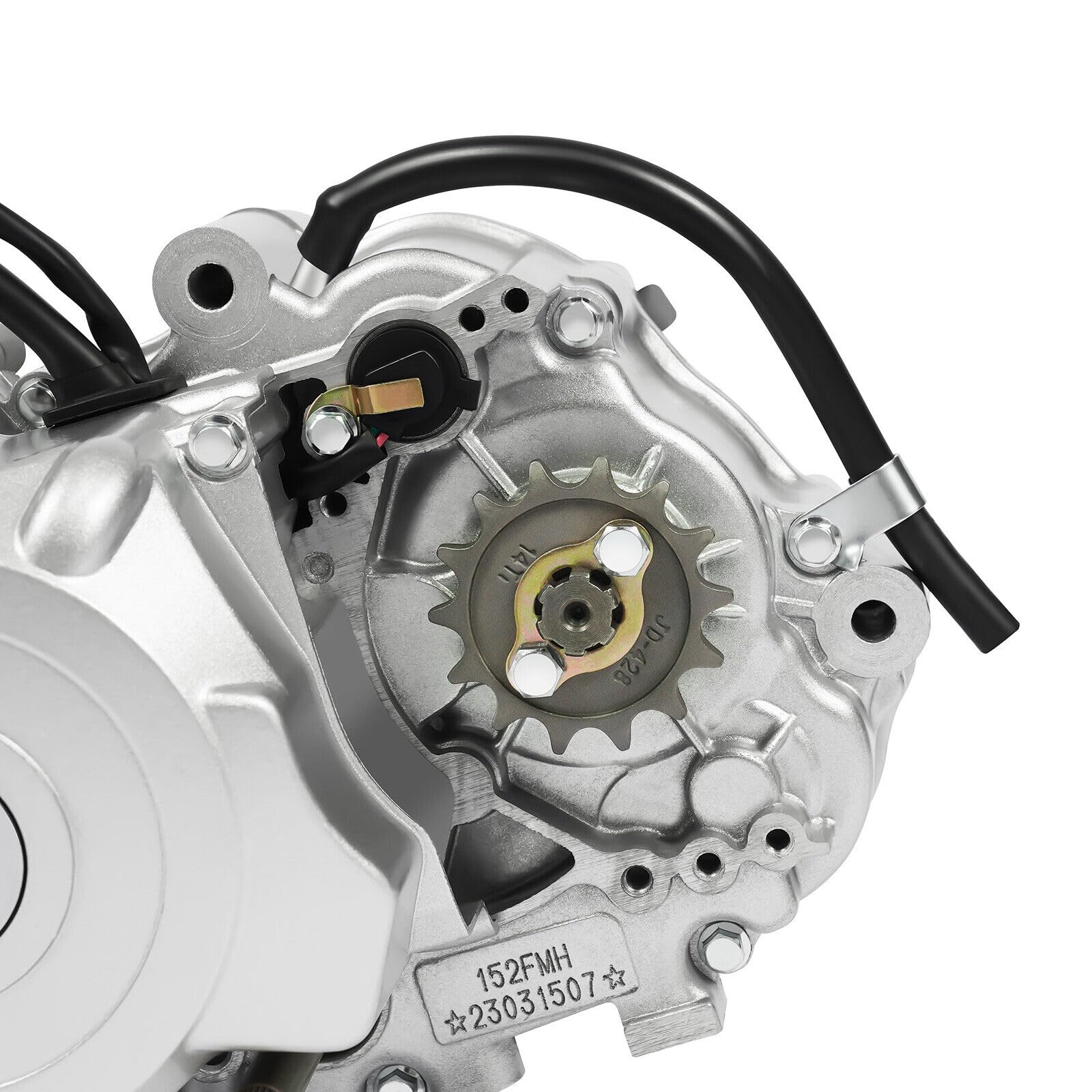

【Parameters 2】Idle speed: 1500 r/min±100r/min; Front sprocket: 428 - 14T; Ignition: CDI; Air Filter: 35mm; Carburetor: PZ19; Lubrication: Pressure/splash; Oil capacity: 900ml/0.23gal; Maximum torque/ rpm: 8.5 N.m/5000r/min±250 r/min

【Friendly Reminder】Please note that the machine contains test oil at the factory, but you still need to add engine oil before starting it. You need to add 4 tons of pure engine oil, and you do not need to change to other types of oil during the break-in period. The break-in period is generally around 20 days.
