COMPACT & FIXED - With dual bearings, the fan movement is more stable. Due to its compact shape, low starting wind speed, and large windward area, the wind turbine can generate electricity at lower wind speeds. It is ideally suited for boats, gazebos, cabins, as well as for green windmills, home and industrial energy supply.
SPECIFICATION - Controller System: Electromagnetism; Starting Wind Speed: 2.0-2.5m/s; Cut-in Wind Speed: 2.5m(98inch)/s; Rated Wind Speed: 14m/s; ax Instantaneous Wind Speed: ≤40m(1575inch)/s; The Instantaneous Maximum Wind Speed: ≤45m(1772inch)/s; Speed Regulation: Automatic; Rated Power: 400W; Max Power: 450W; Rated Voltage: 24V.

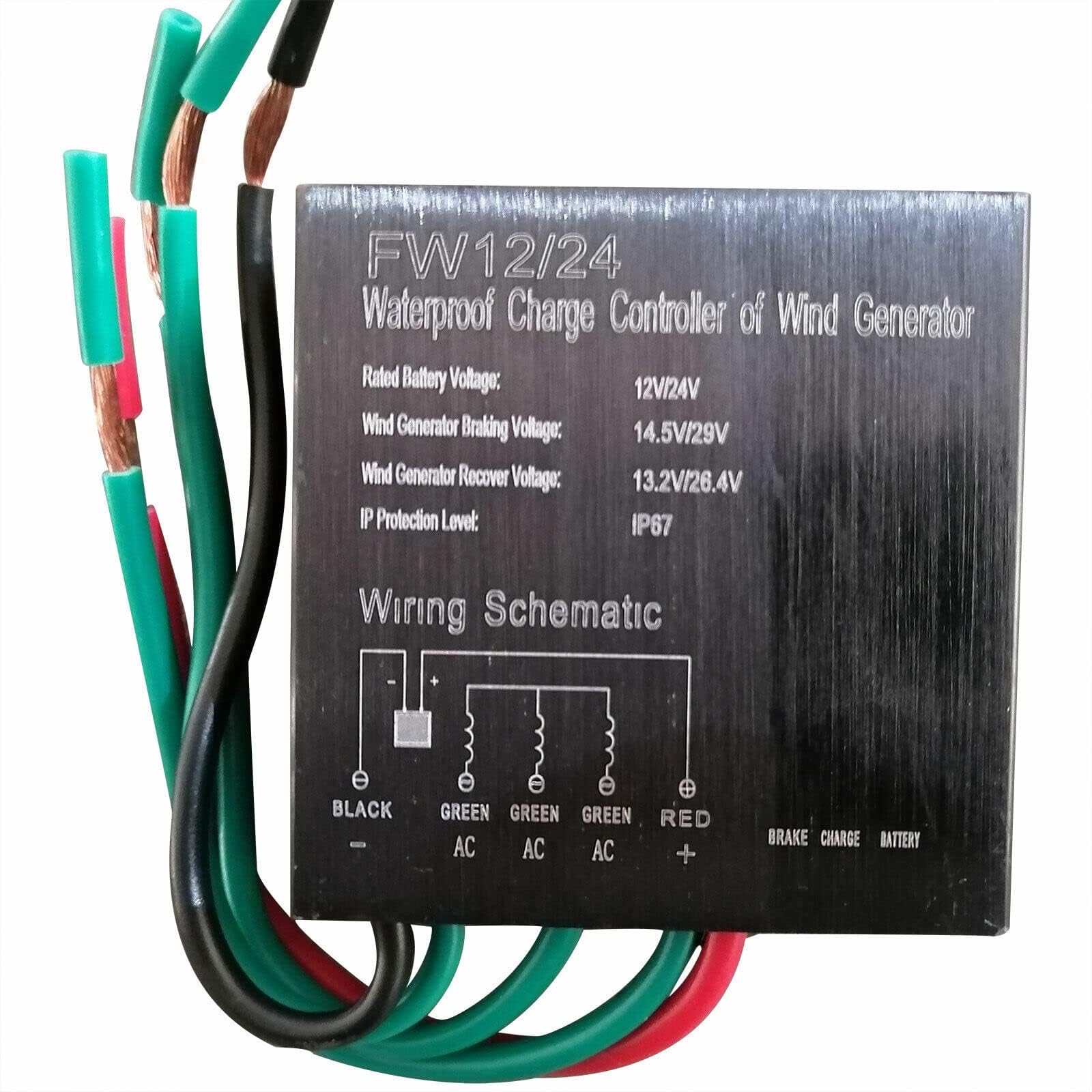

POWERFUL PERFORMANCE - Designed with three-phase AC PMG, it boasts low torque, high-power tracking intelligent microprocessor that can effectively regulating the current and voltage. Maximum RPM protection. When the wind turbine reaches the maximum speed of 300rpm, it will automatically brake.

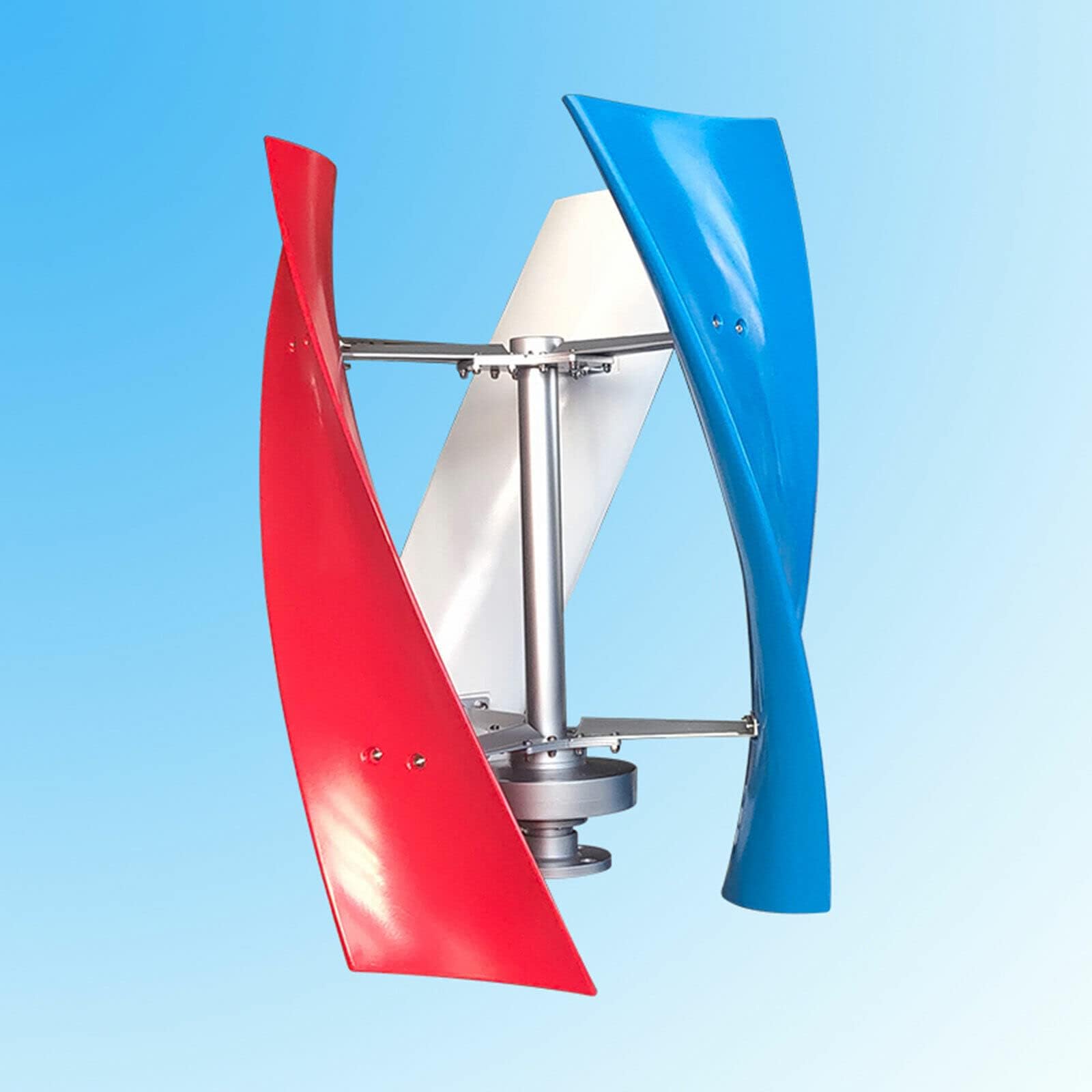

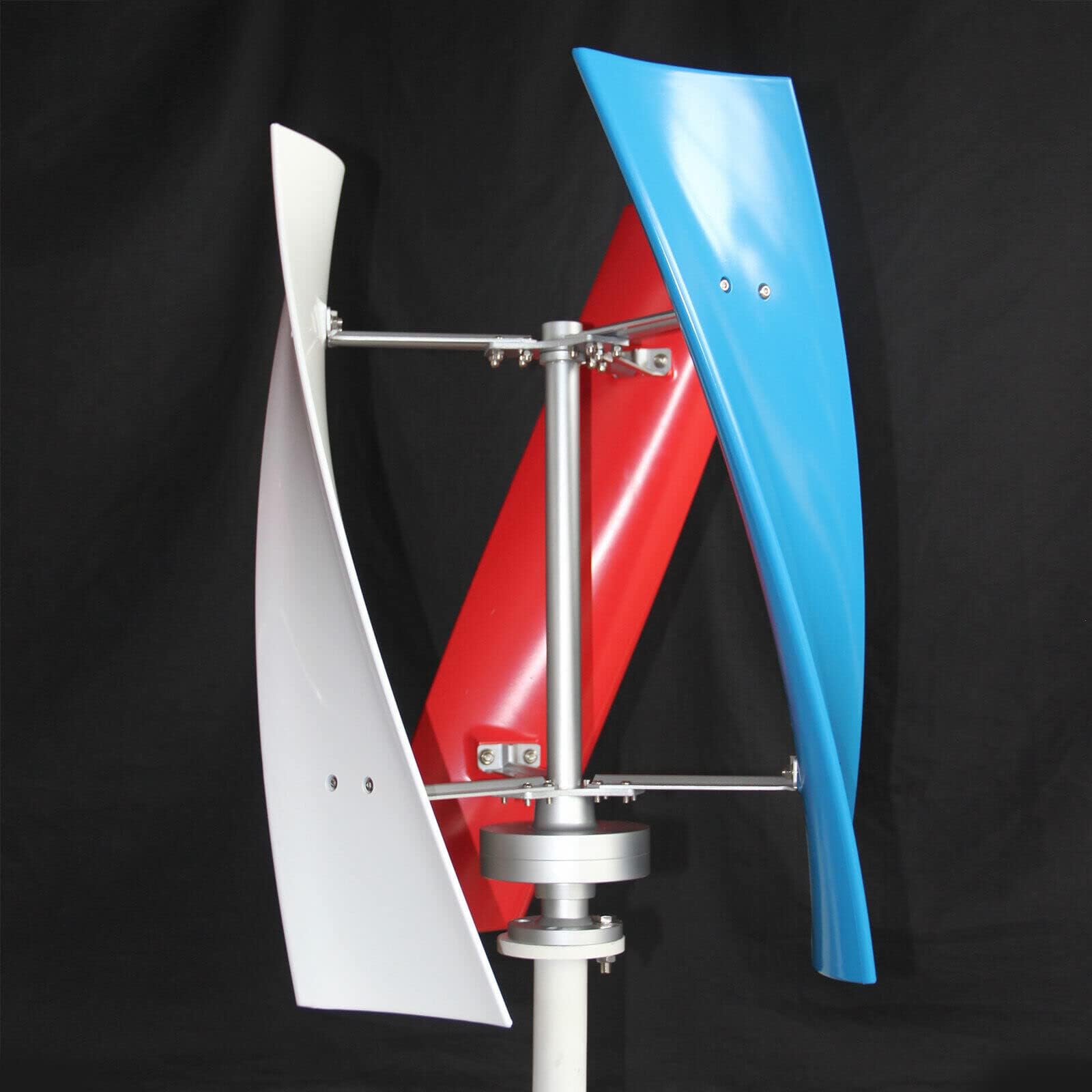

HIGH-QUALITY BLADES - The blade material is synthetically injection molded with high-strength FRP material. At the same time, the fashionable spiral blade is also designed with aerodynamics to make the rotor run smoothly, reliably and quietly.
STRONG WIND RESISTANCE - The horizontal rotation brings small wind pressure so that it can resist a super typhoon. Its starting wind speed is lower than other wind turbines, and the rising arc of power generation is gentle, so it can generate more power than others within a certain range.

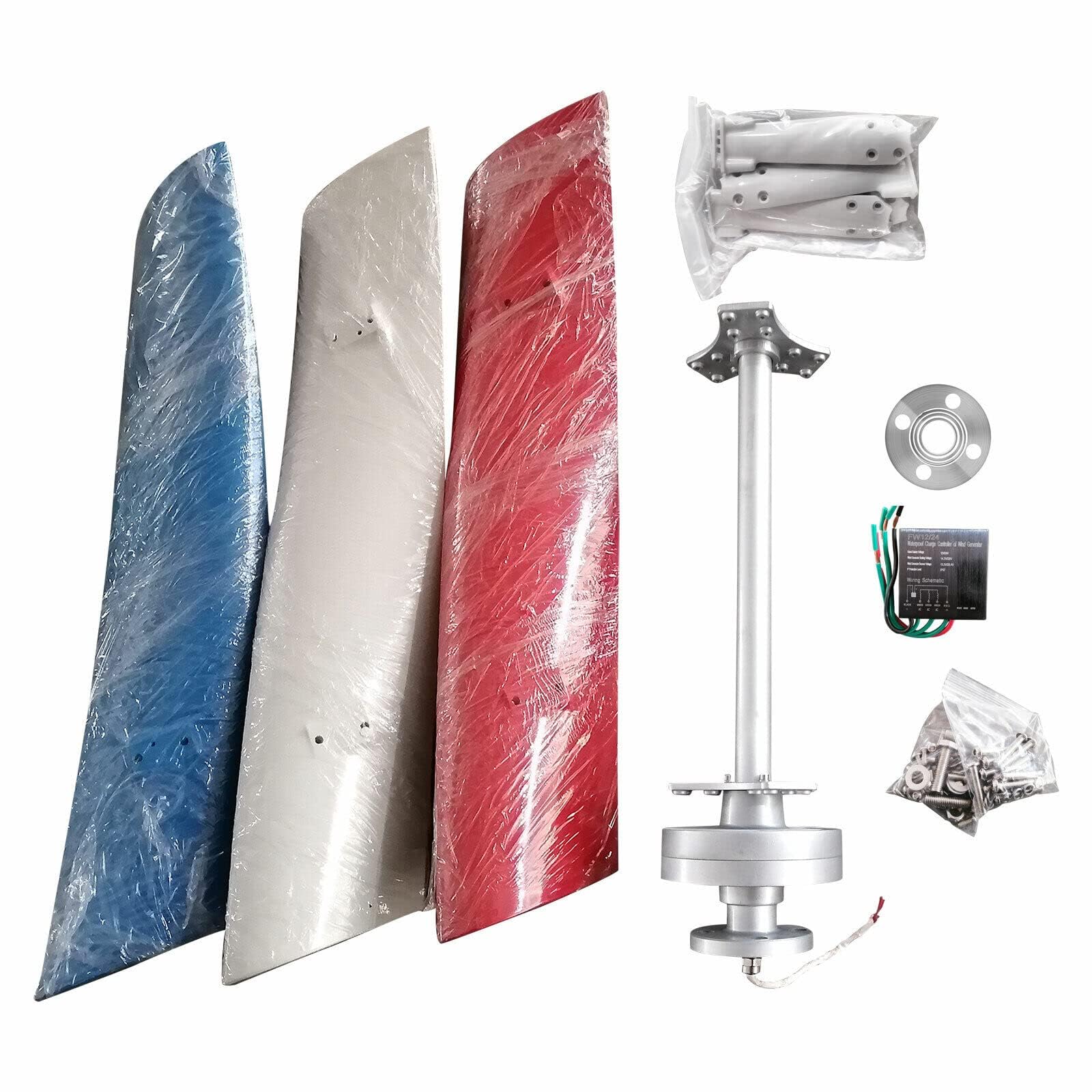

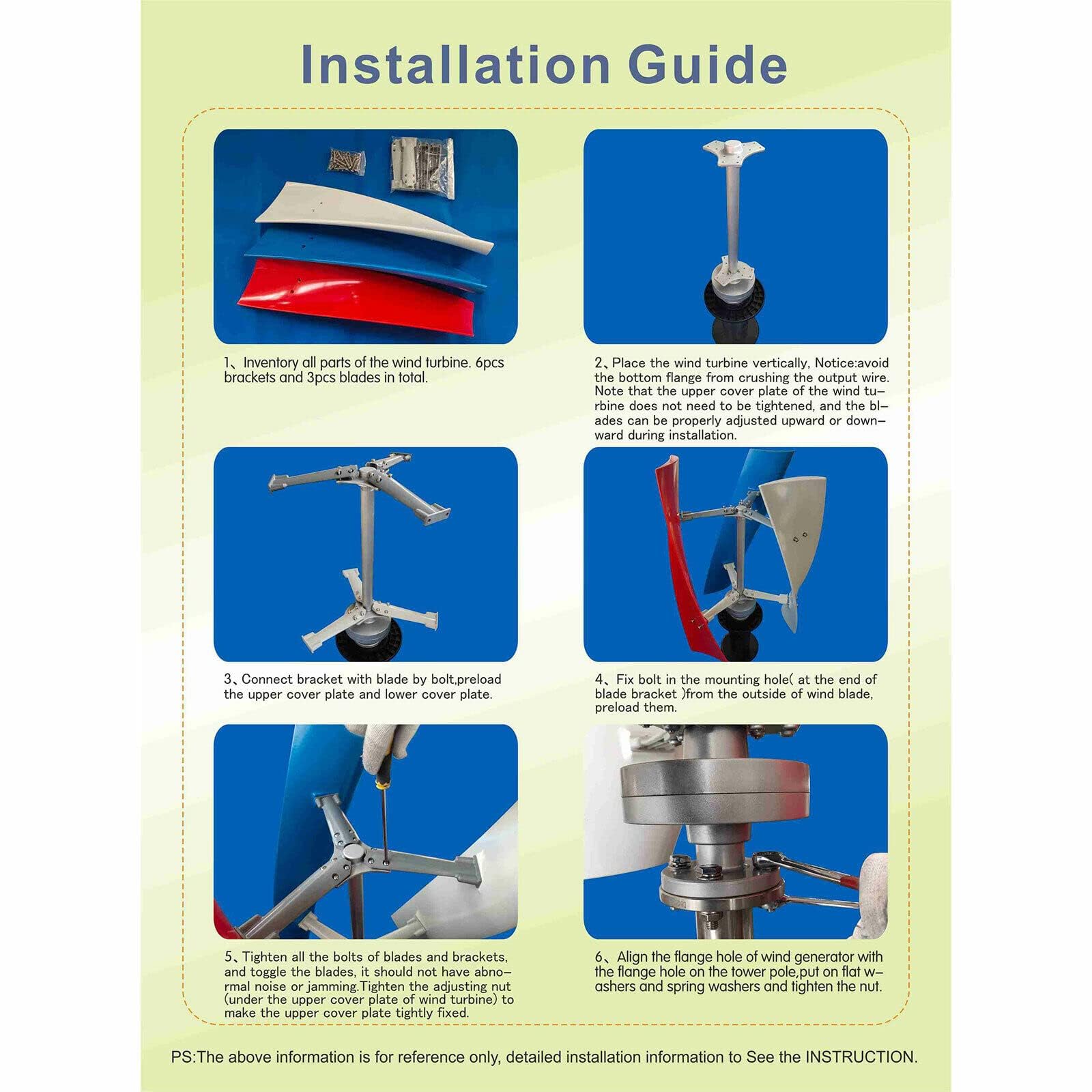

Installation 1. Check all the parts of the wind turbine, which includes 6 brackets and 3 blades in total. 2. Place the wind turbine vertically. 3. Connect brackets with blades by the bolt. Load the upper cover plate and lower cover plate. 4. Fix the bolt in the mounting hole (at the end of the bracket) from the outside of the wind blade. 5. Tighten all the bolts of blades and brackets, and toggle the blades. It should not have abnormal noise or jamming. Tighten the nut (under the upper cover plate of the wind turbine) to make the upper cover plate tightly fixed. 6. Align the flange hole of the wind turbine with the flange hole on the tower pole, put on flat washers and spring washers, and tighten the nut. Specification: Condition: New Controller System: Electromagnetism Starting Wind Speed: 2.0-2.5m/s Cut-in Wind Speed: 2.5m(98inch)/s Rated Wind Speed: 14m/s Max Instantaneous Wind Speed: ≤40m(1575inch)/s The Instantaneous Maximum Wind Speed: ≤45m(1772inch)/s Blades Quantity: 3 (with Different Colors) Diameter of Blades: 0.6m/24inch Blades Height: 0.8m/31inch Speed Regulation: Automatic Rated Power: 400W Max Power: 450W Generator Protection Grade: IP67 Work Environment Temperature: 25 to 45℃+ Product Assembly Weight: <10kg/22lbs Over-speed Protection: Electromagnetic Brake Blade Material: Glass Fiber Generator: Maglev Generator Service Life: 10-15 Years Rated Voltage: 24V Package Included: 1 x Wind Turbine 1 x Controller 3 x Blades (White, Red, Blue) 1 x Bag of Screws to Connect the Main Body 1 x Bag of Screws for Connecting the Bracket Blades
