FEATURES

DESCRIPTIONS

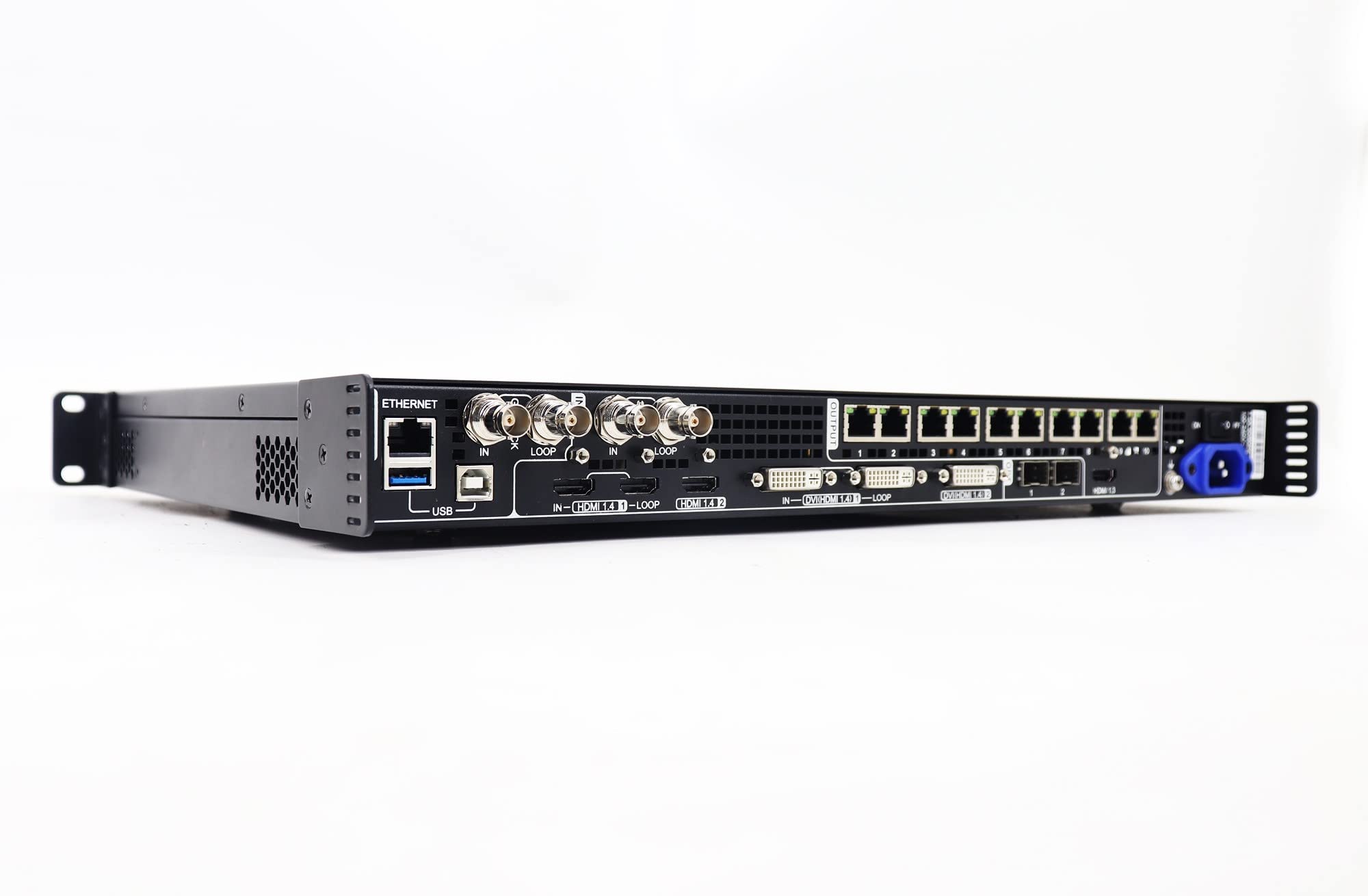

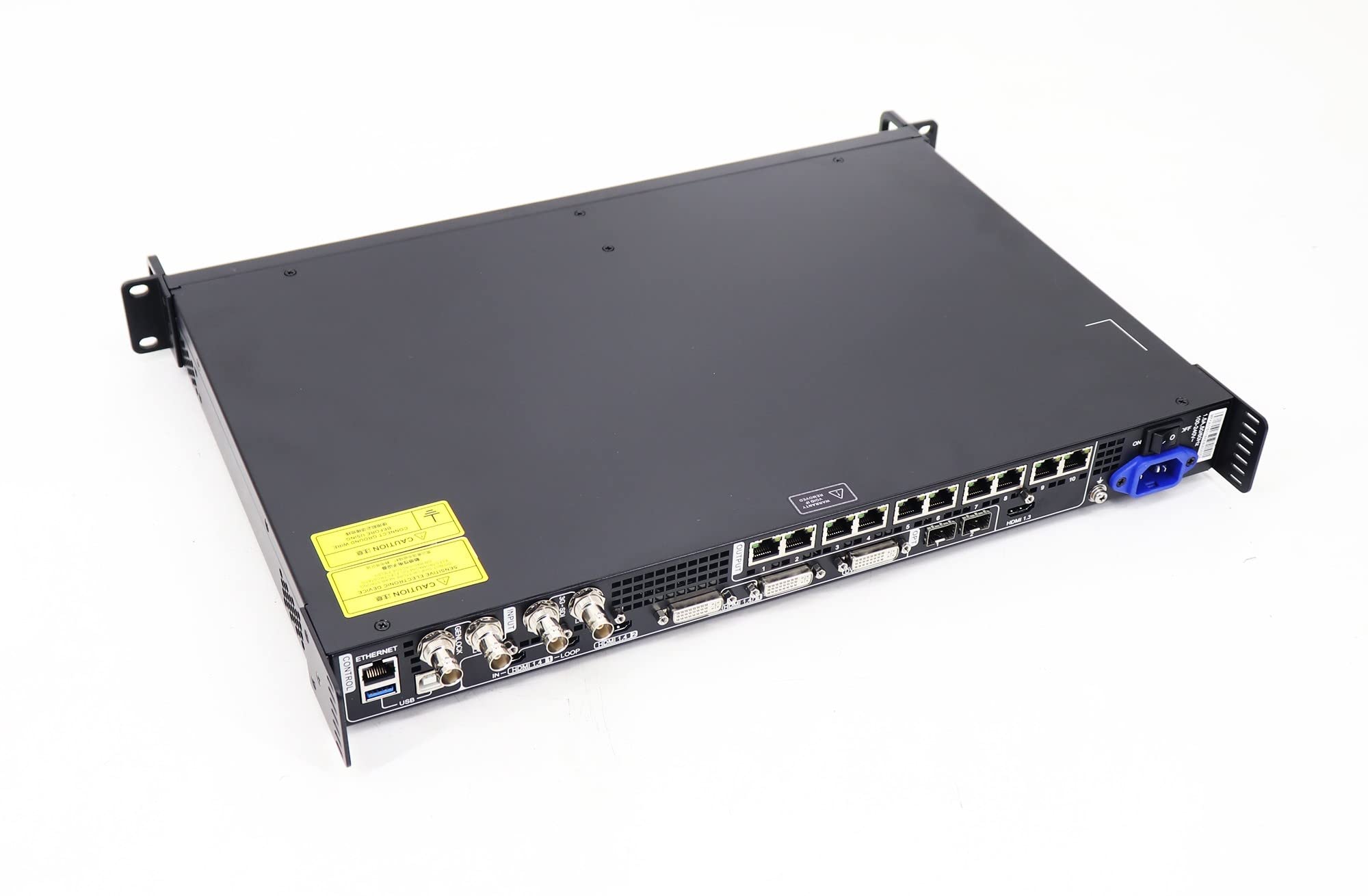

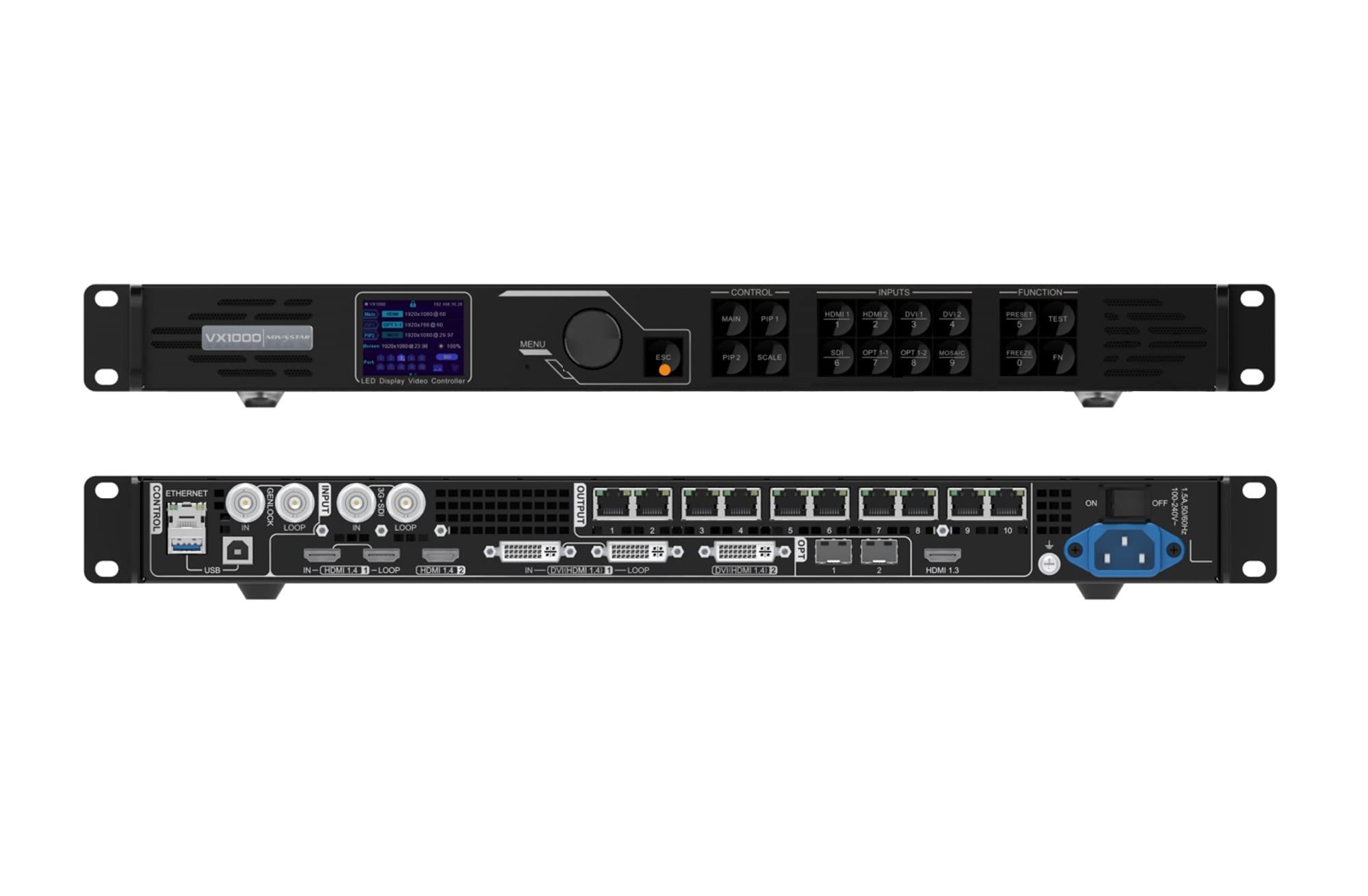

Novastar VX1000 With load: 6.5 megapixels, width 10240, height 8192 Layers: 3 x 4K1K layers Input Connector: 3G-SDI*1 HDMI1.4*2 DVI(HDMI 1.4)*2 OPT1 input*1 Output interface: Network port*10 HDMI 1.3*1 Optical interface: OPT*2 Control interface: Network port USB (input and output) Genlock (IN-LOOP) Other functions: spliceable, cascadable, customizable function keys, support scene saving and calling, picture quality adjustment. The VX1000 is NovaStar's new all-in-one controller that integrates video processing and video control into one box. It features 10 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX1000 unit can drive up to 6.5 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels, respectively, which is ideal for ultra-wide and ultra-high LED screen applications. The VX1000 is capable of receiving a variety of video signals and processing high-resolution 4K×1K@60Hz images. In addition, the device features stepless output scaling, low latency, 3D, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience. What's more, the VX1000 can work with NovaStar's supreme software NovaLCT and V-Can to greatly facilitate your in-field operations and control, such as screen configuration, Ethernet port backup settings, layer management, preset management and firmware update. Thanks to its powerful video processing and sending capabilities and other outstanding features, the VX1000 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch LED screens.
