DESCRIPTIONS

1964- GM Turbo 350, 700r4, 200r4 Transmission Lines - tubes 1/2-20 Fittings, 4'-2" of rubber hose and the 14" end tubes that most radiators and transmissions. Or for aftermarket transmission coolers. This is a transmission cooler line set. comes with the metal hard lines for the transmission ends bent with the correct 120 degree bends with 1/2-20 fittings and 5/16" tubing, and the radiator end with one straight for the lower port and the bent one for the upper again with 1/2-20 fittings on the one end and hose bead on the other end. Install these 4 pieces and then figure out how much hose is needed between and use the supplied crimp clips to connect the rubber transmission pressure hose to the metal hard line. The clamps can be crimped with side cutting pliers or a crimp tool. There is 4'-2" of specific transmission hose that is enough for % of applications. These are the details that separate the first place cars from the rest. Replacement for: ALL GM applications with T350, , 700r4, 200r4 transmissions 1964-77 , , , , 1970- , 1969-72 1967- , , 66-74 1970-78 / Trans / 1973-77 A-body , , , all Full Size Cars from 67- Any GM Car with the T- T-350, 700r4, 200r4 Transmission These are the details that separate the first place cars from the rest.

RELATED PRODUCTS

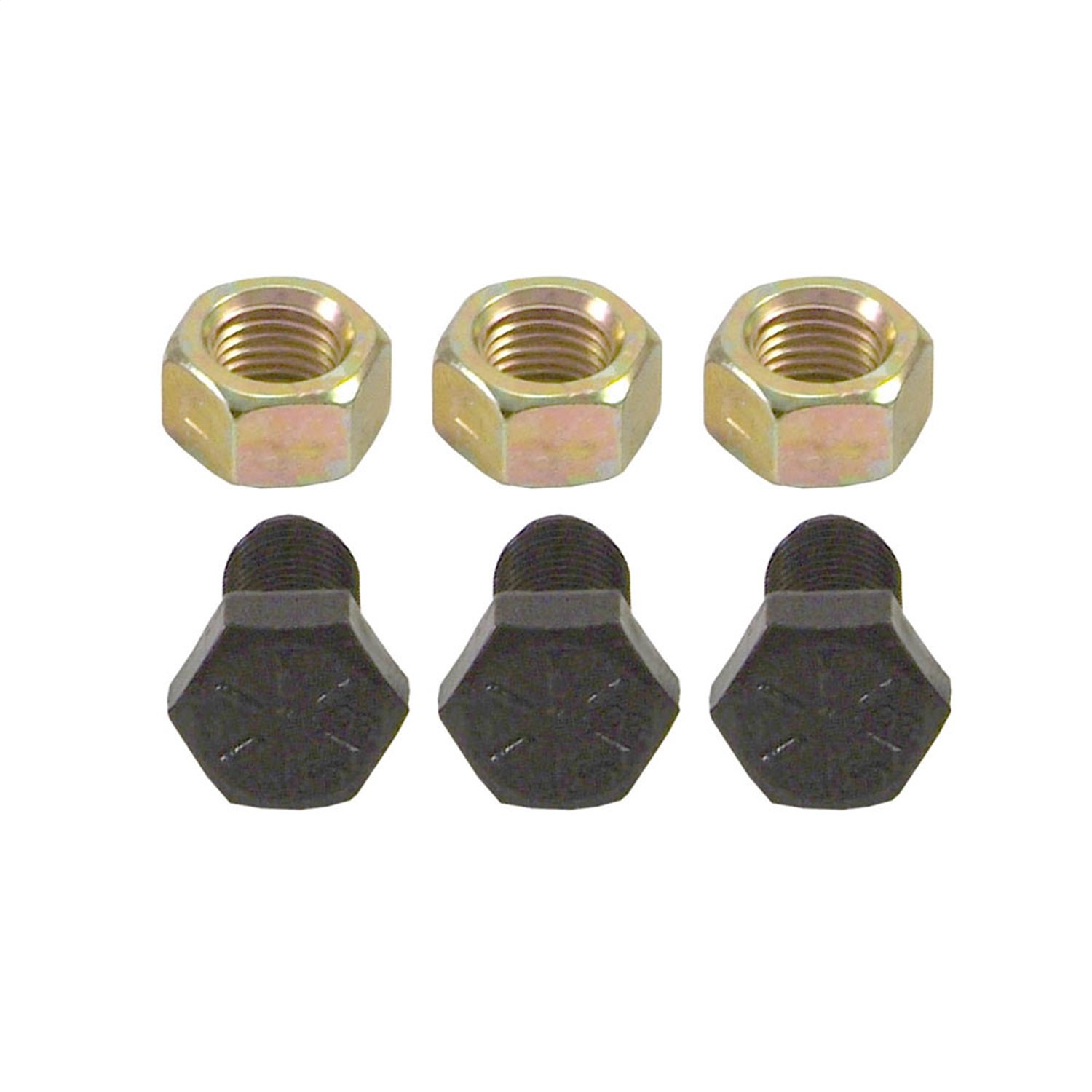

Spectre Performance 4697 Torque Converter Bolt , Black
