Waveshare SIM7000G NB-IoT/Cat-M/Edge/GPRS HAT, Compatible with Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH, GNSS Positioning, Global Band Support

Product ID:

161692

Identifier:

B09FPTGC5T

Brand:

waveshare

Model:

SIM7000G NB-IoT HAT (EN)

Shipping Weight:

0.38 lbs

Manufacturer:

Waveshare

Shipping Dimension:

5.28 x 3.9 x 1.77 inches

Share on Social Media

Share on Facebook

Share on X

Share on Instagram

Share on Tiktok

₱5,412

+ ₱ 252

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2026-05-24 to 2026-05-31.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

FEATURES

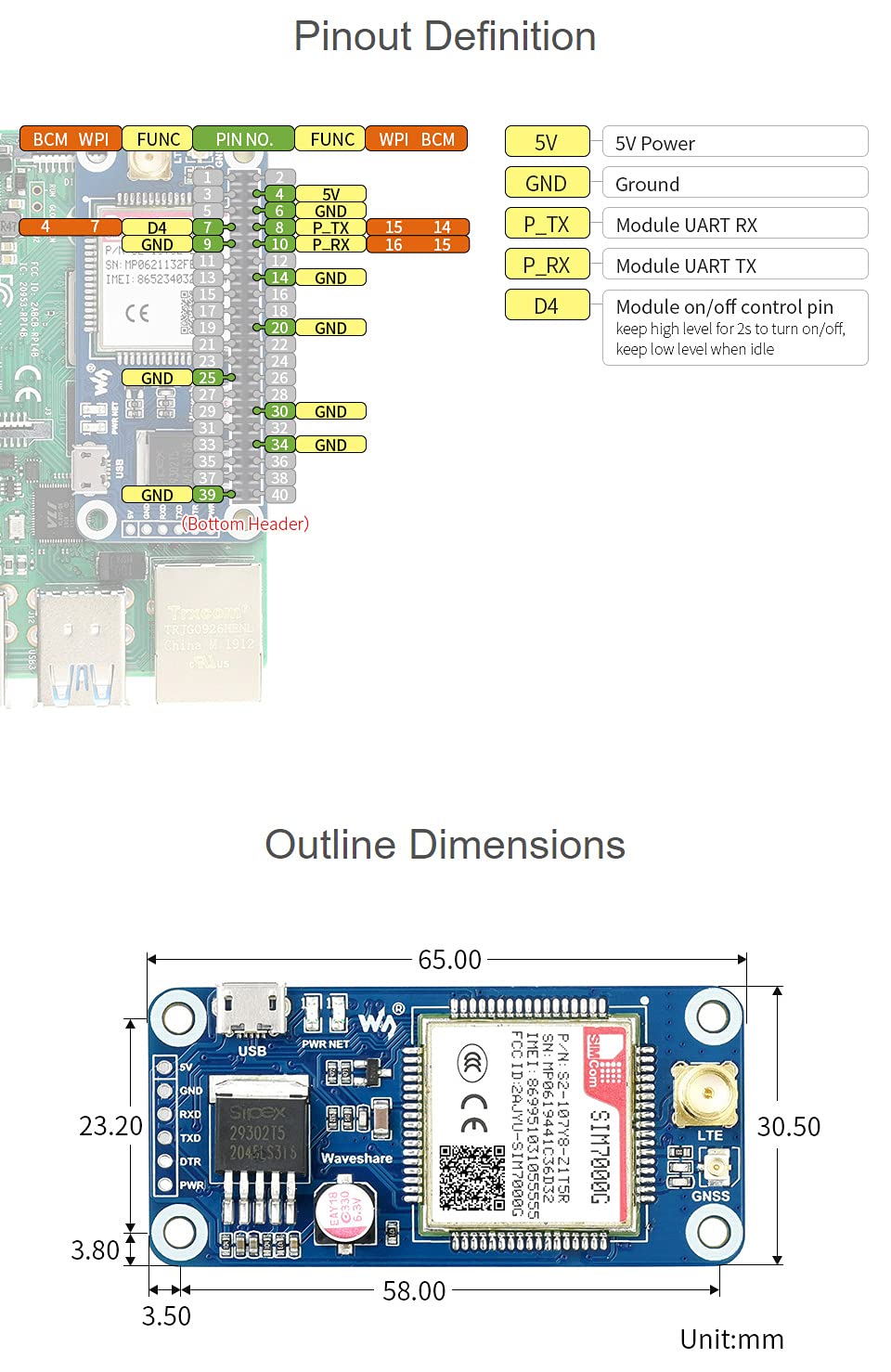

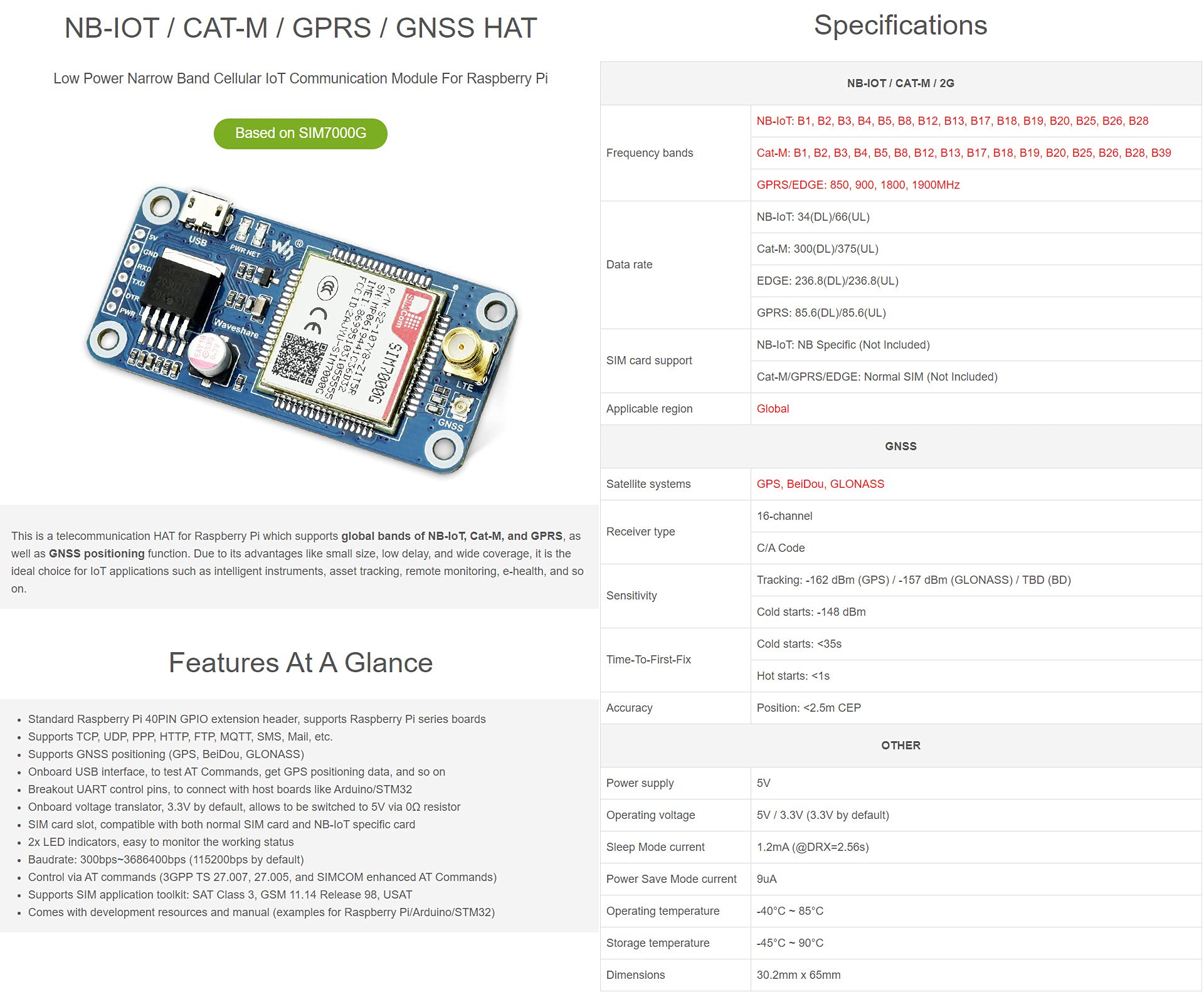

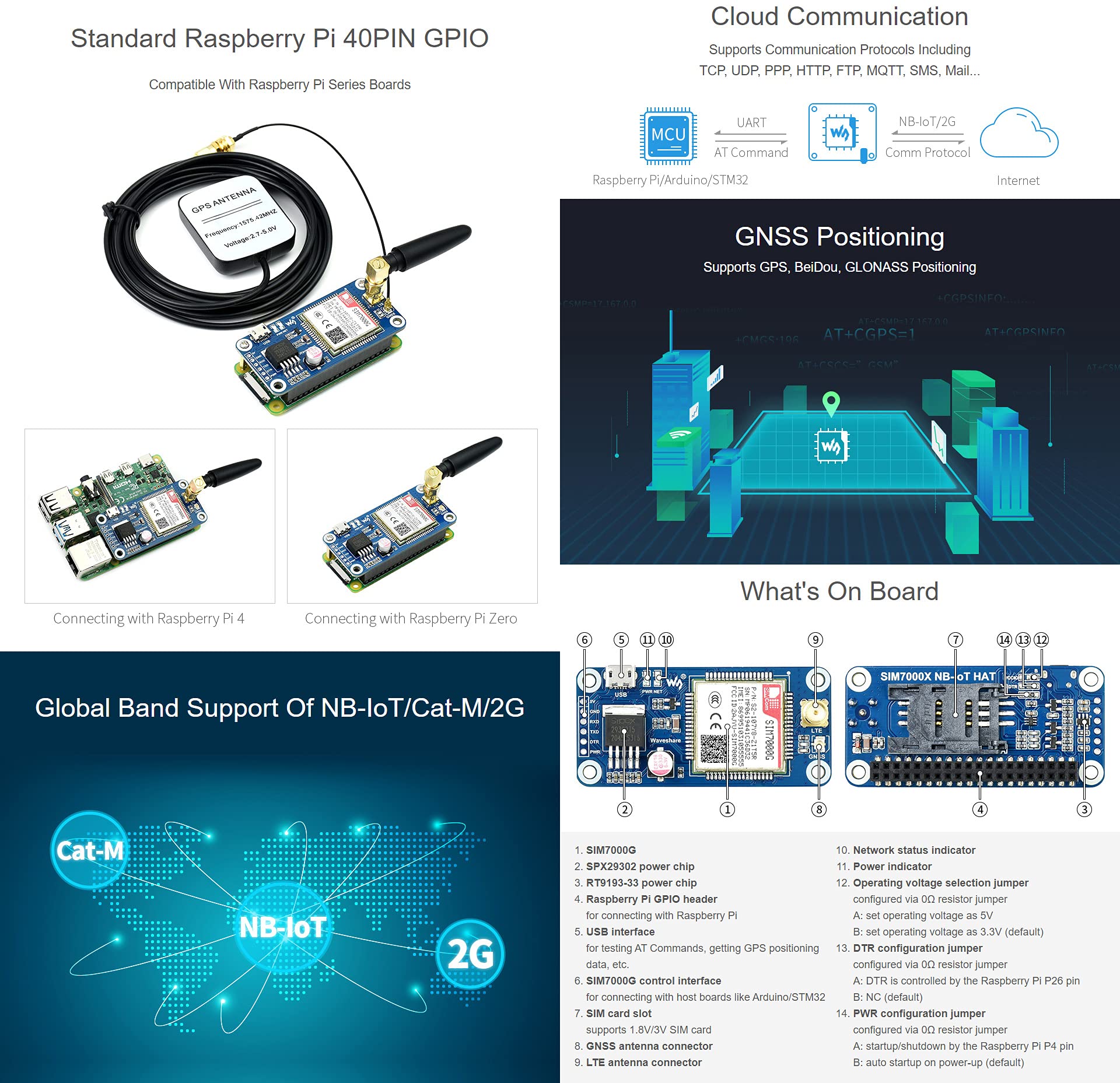

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards. Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.

Supports GNSS positioning (GPS, BeiDou, GLONASS). Onboard USB interface, to test AT Commands, get GPS positioning data, and so on. Breakout UART control pins, to connect with host boards like Arduino/STM32

Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0Ω resistor. SIM card slot, compatible with both normal SIM card and NB-IoT specific card

2x LED indicators, easy to monitor the working status.Baudrate: 300bps~3686400bps (115200bps by default). Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)

Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
