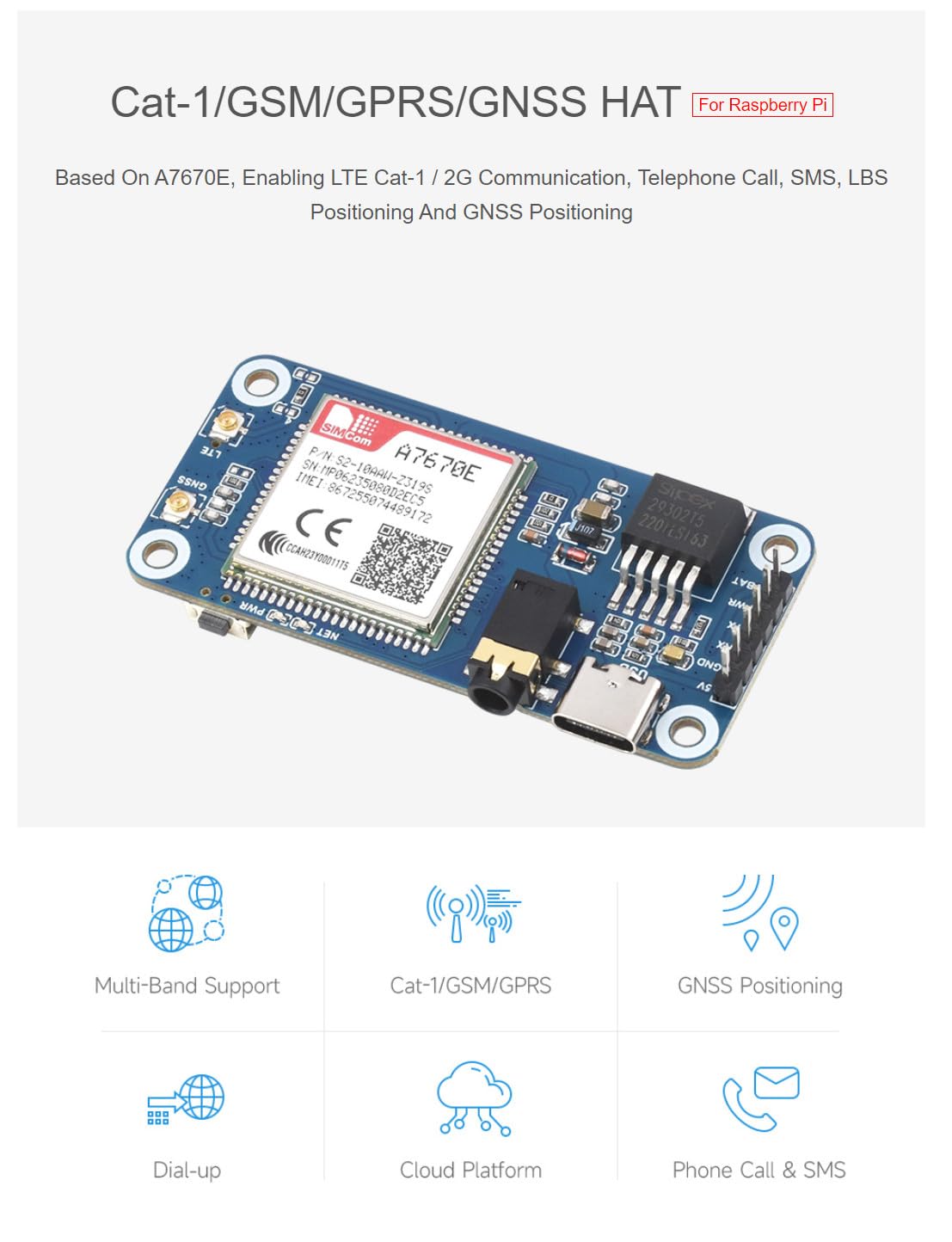

Coolwell Cat-1/GSM/GPRS/GNSS HAT for Raspberry Pi Raspberry Pi 5 4B+ 4B 3B+ 3B 2B+ Zero W WH Jetson Nano Based On A7670E Module GNSS Positioning Support LTE Cat-1 / 2G

4 / 5

Product ID:

161691

Identifier:

B0CVTSQJHK

Brand:

Coolwell

Model:

Shipping Weight:

0.3 lbs

Manufacturer:

Coolwell

Shipping Dimension:

6.14 x 4.29 x 1.18 inches

Share on Social Media

Share on Facebook

Share on X

Share on Instagram

Share on Tiktok

₱3,376

+ ₱ 217

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2026-06-03 to 2026-06-10.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

FEATURES

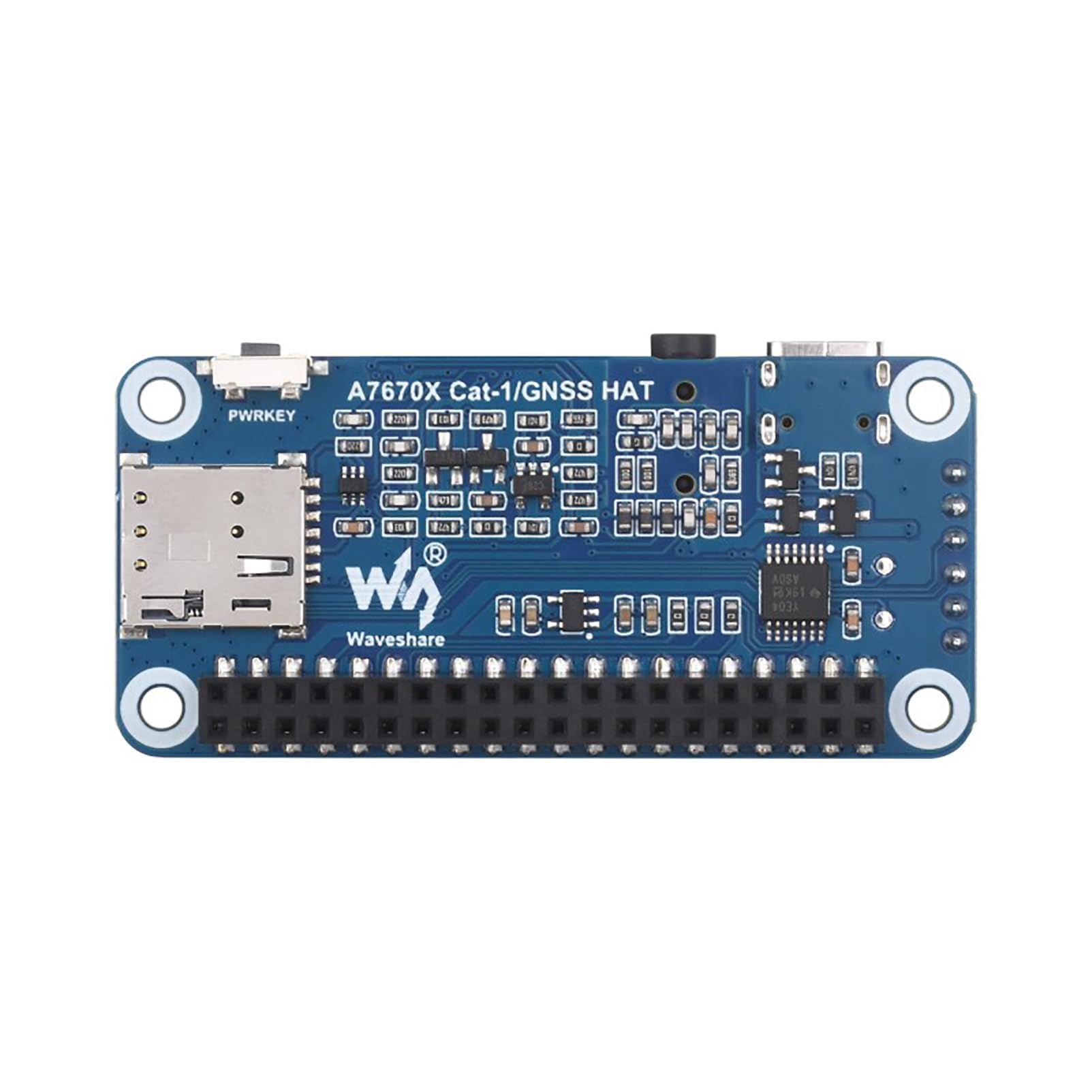

For Raspberry Pi 5 Cat-1/GSM/GPRS/GNSS HAT, standard Raspberry Pi 40PIN GPIO extension header, fits Raspberry Pi series boards

For Arduino Cat-1/GSM/GPRS/GNSS HAT, breakout common used control pins of the A7670E module, make it easy to connect with hosts boards like for Arduino/STM32

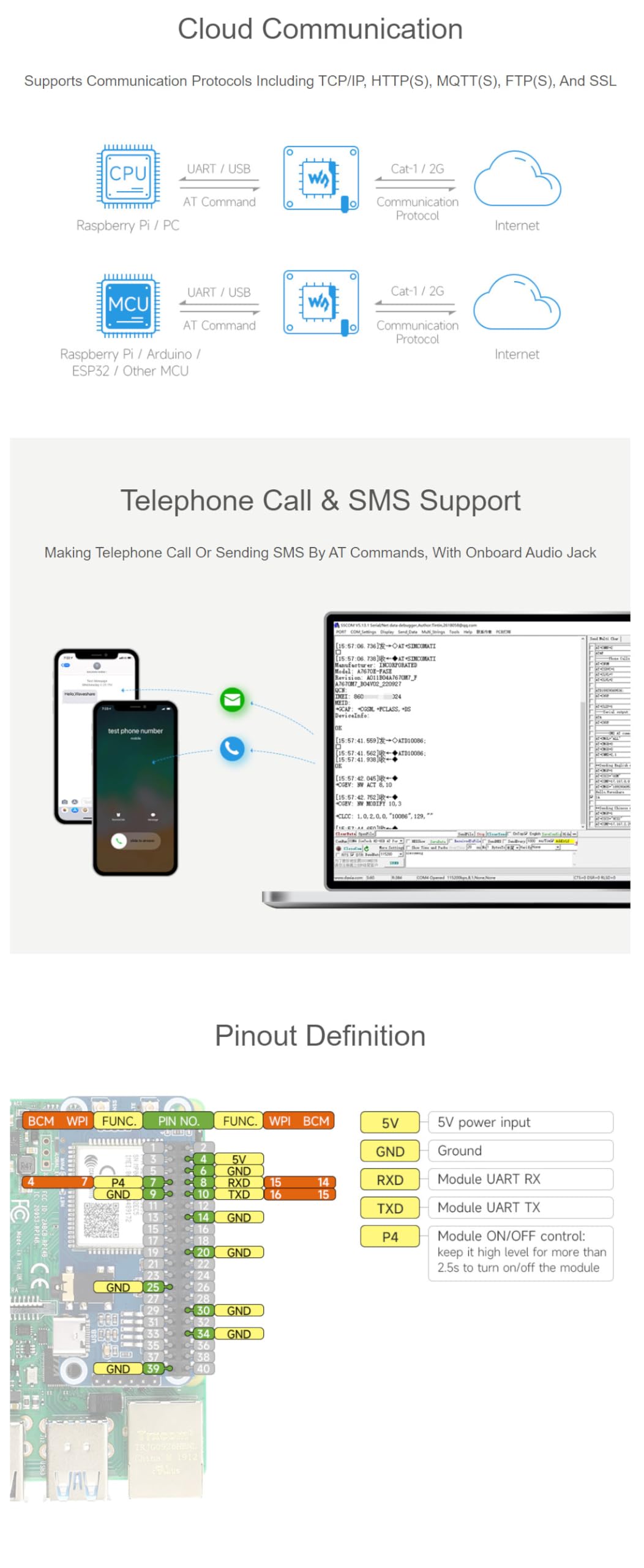

For Jetson Nano Cat-1/GSM/GPRS/GNSS HAT, supports protocols including TCP/IP, HTTP(s), MQTT(s), FTP(s), and SSL; Supports GPS, BeiDou, GLONASS positioning

Supports dial-up, telephone call, SMS; supports LBS base station positioning, it is able to get the approximate position info via mobile network

Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

DESCRIPTIONS

Features The A7670E Cat-1/GNSS HAT is an LTE Cat-1 module, which supports wireless communication modes including LTE-TDD, LTE-FDD, GSM, GPRS and EDGE, with up to 10Mbps downlink rate and 5Mbps uplink rate. It supports Windows/Linux operating systems and multiple network protocols. The module size is the same as SIM7000/SIM7070 series, and the AT commands are mostly compatible with SIM7600 series. It is suitable for IoT applications like remote information processing, monitoring devices, POS, industrial routers, remote diagnosis, satellite positioning, and so on. Standard Raspberry Pi 40PIN GPIO extension header, fits Raspberry Pi series boards Supports protocols including TCP/IP, HTTP(s), MQTT(s), FTP(s), and SSL Supports dial-up, telephone call, SMS Supports LBS base station positioning, it is able to get the approximate position info via mobile network Supports GPS, BeiDou, GLONASS positioning TTS (Text To Speech) feature, texts in Chinese/English can be converted into spoken words Onboard USB interface, for testing AT Commands, network communication, and so on Onboard audio jack for sound recording, making telephone calls, listening the TTS resulting speech, etc. Breakout common used control pins of the A7670E module, make it easy to connect with hosts boards like for Arduino/STM32 SIM card slot, supports 1.8V/3V SIM card 2x LED indicators, easy to monitor the operating status Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32) Package include 1. A7670E Cat-1/GNSS HAT x1 2. USB-A to USB-C cable x1 3. FPC Antenna x1 4. GPS Antenna x1 5. Screws pack x1
