FEATURES

Part Number: GSM/GPRS/GNSS HAT

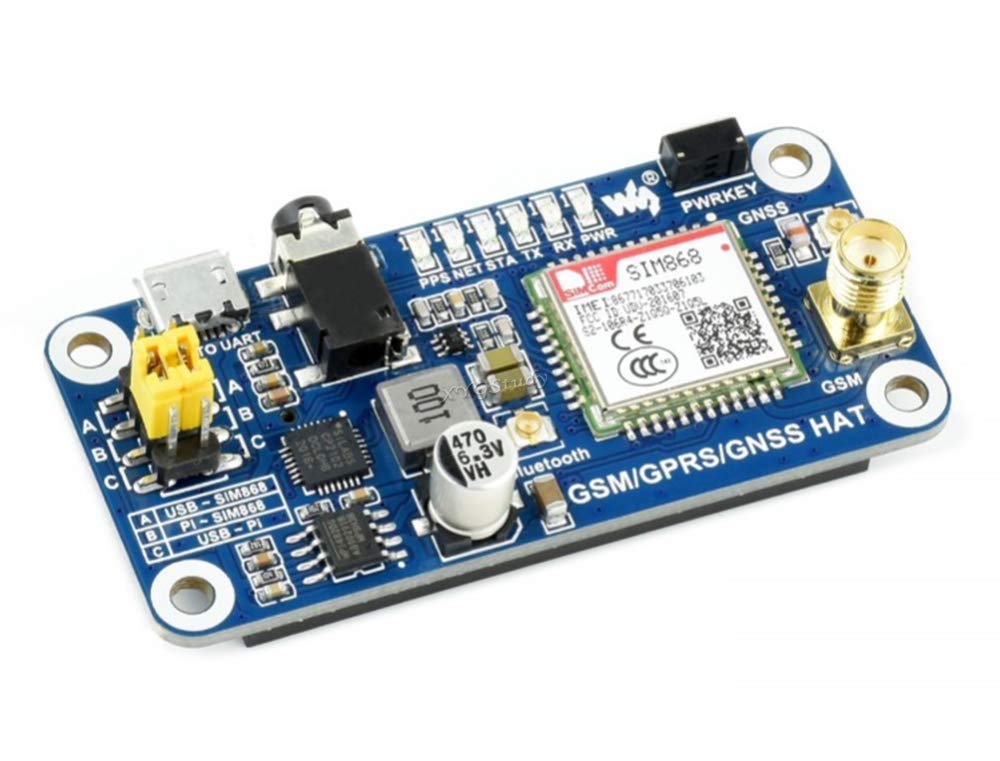

GSM/GPRS/GNSS/Bluetooth HAT for Raspberry Pi, Based on SIM868

This is a handy, low power Raspberry Pi HAT which features multi communication functionalities: GSM, GPRS, GNSS and Bluetooth. It allows your Pi to easily make a telephone call, send messages, connect to wireless Internet, global position, transfer data via Bluetooth, and so on.

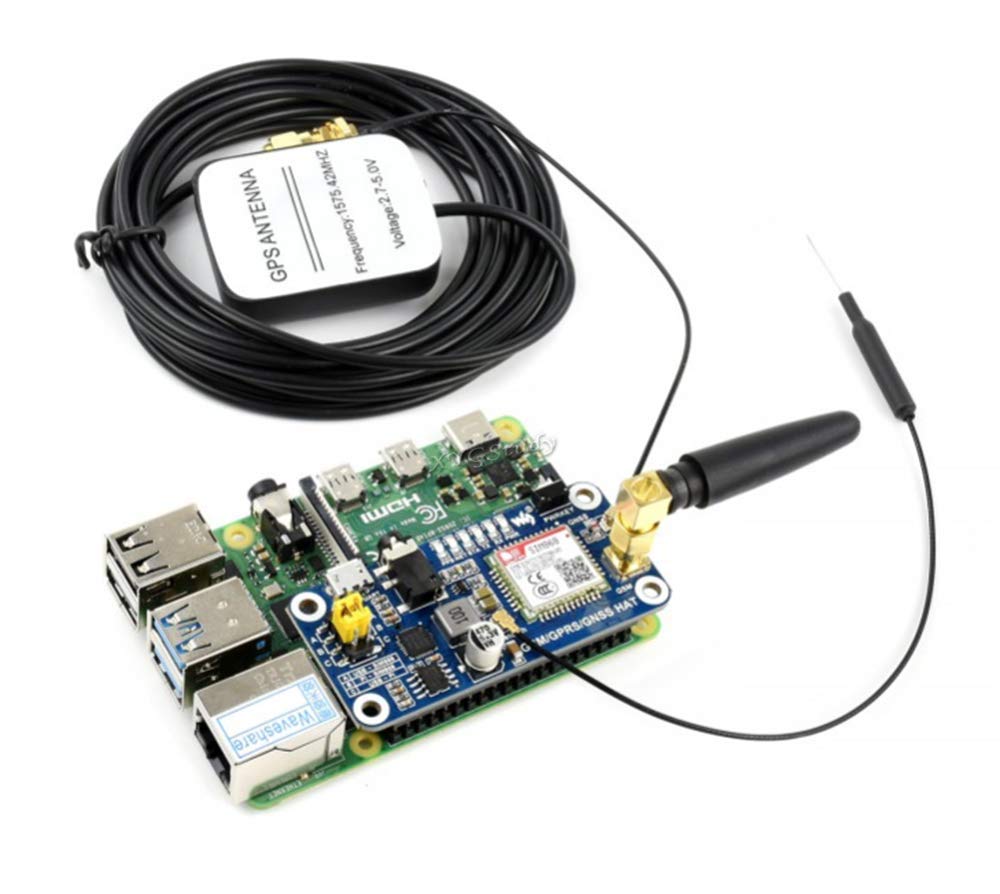

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

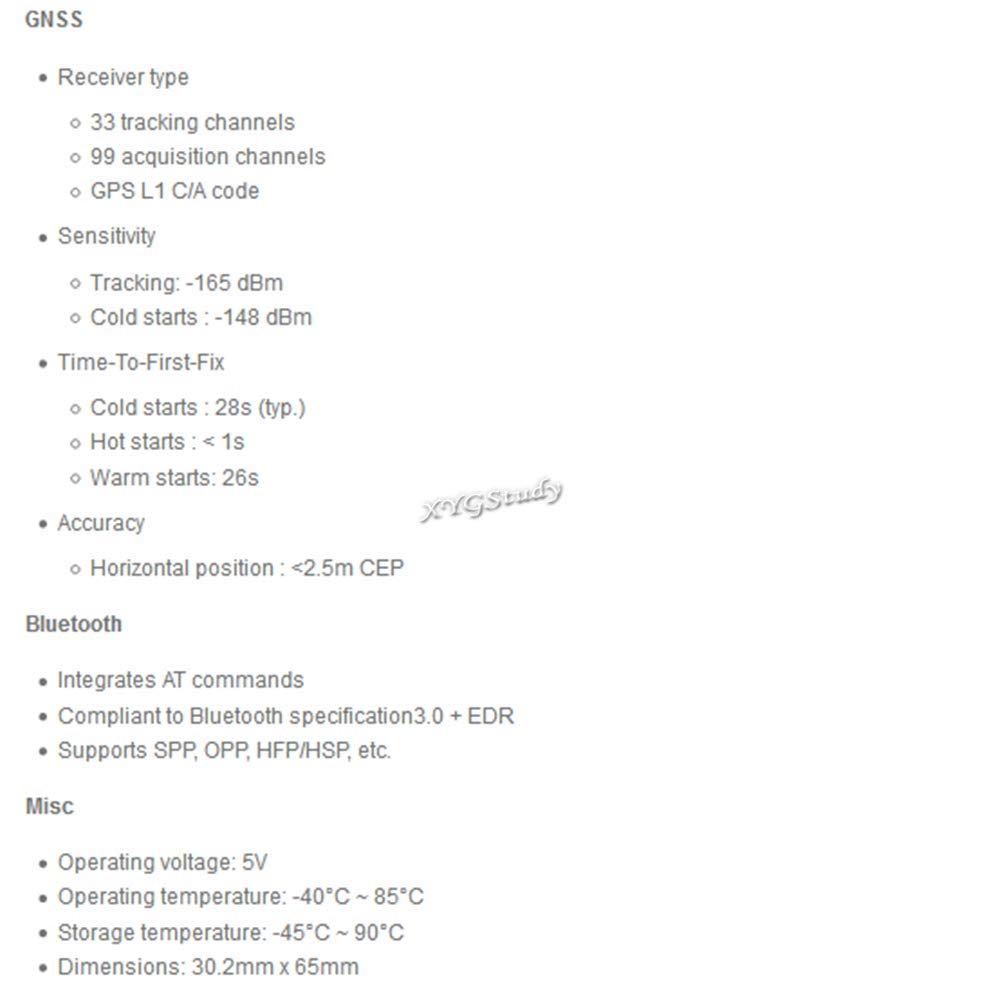

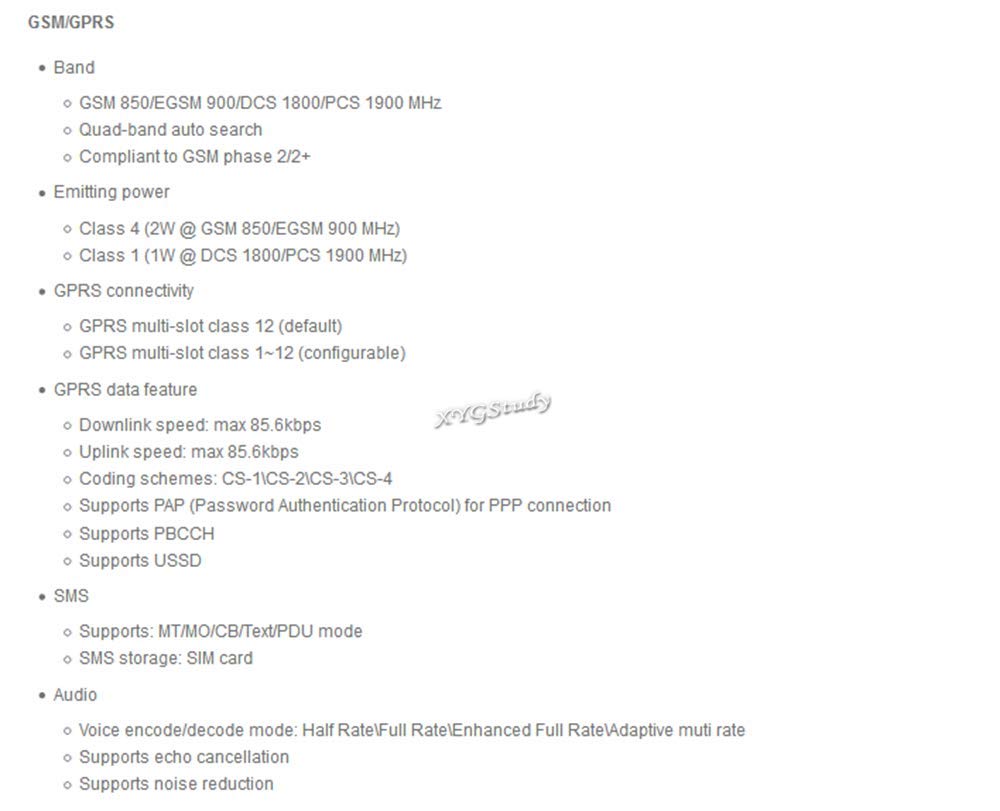

Supports SMS, phone call, GPRS, DTMF, HTTP, FTP, MMS, email, etc. Support GPS, COMPASS, Glonass, LBS base station positioning, omni-positioning. Bluetooth 3.0, supports data transferring through Bluetooth. Onboard USB TO UART converter CP2102 for UART debugging

DESCRIPTIONS

Overview This is a handy, low power Raspberry Pi HAT which features multi communication functionalities: GSM, GPRS, GNSS and Bluetooth. It allows your Pi to easily make a telephone call, send messages, connect to wireless Internet, global position, transfer data via Bluetooth, and so on. Features Standard Raspberry Pi 40PIN GPIO extension header, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B and later versions Supports SMS, phone call, GPRS, DTMF, HTTP, FTP, MMS, email, etc. Support GPS, COMPASS, Glonass, LBS base station positioning, omni-positioning Bluetooth 3.0, supports data transferring through Bluetooth Onboard USB TO UART converter CP2102 for UART debugging 6x LEDs for indicating the module working status SIM card slot for 1.8V/3V SIM card RTC with backup battery holder Baudrate auto detection (1200bps ~115200bps) Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands) Supports SIM application toolkit: GSM 11.14 Release 99 Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32) Package Contains GSM/GPRS/GNSS HAT x1 GSM Antenna x1 GPS External Antenna (B) x1 Bluetooth Antenna x1 USB type A plug to micro plug cable x1 RPi screws pack (2pcs) x1 For more details you need to know, pls firstly send me message via Amazon, I will then send attached link including User Guide for you, thank you for patience.;D
