Product ID:
237324
Identifier:
B0FGJTYRQ3
Brand:
TsoLay
Model:
Shipping Weight:
0 lbs
Manufacturer:
TsoLay
Shipping Dimension:
0 x 0 x 0 inches

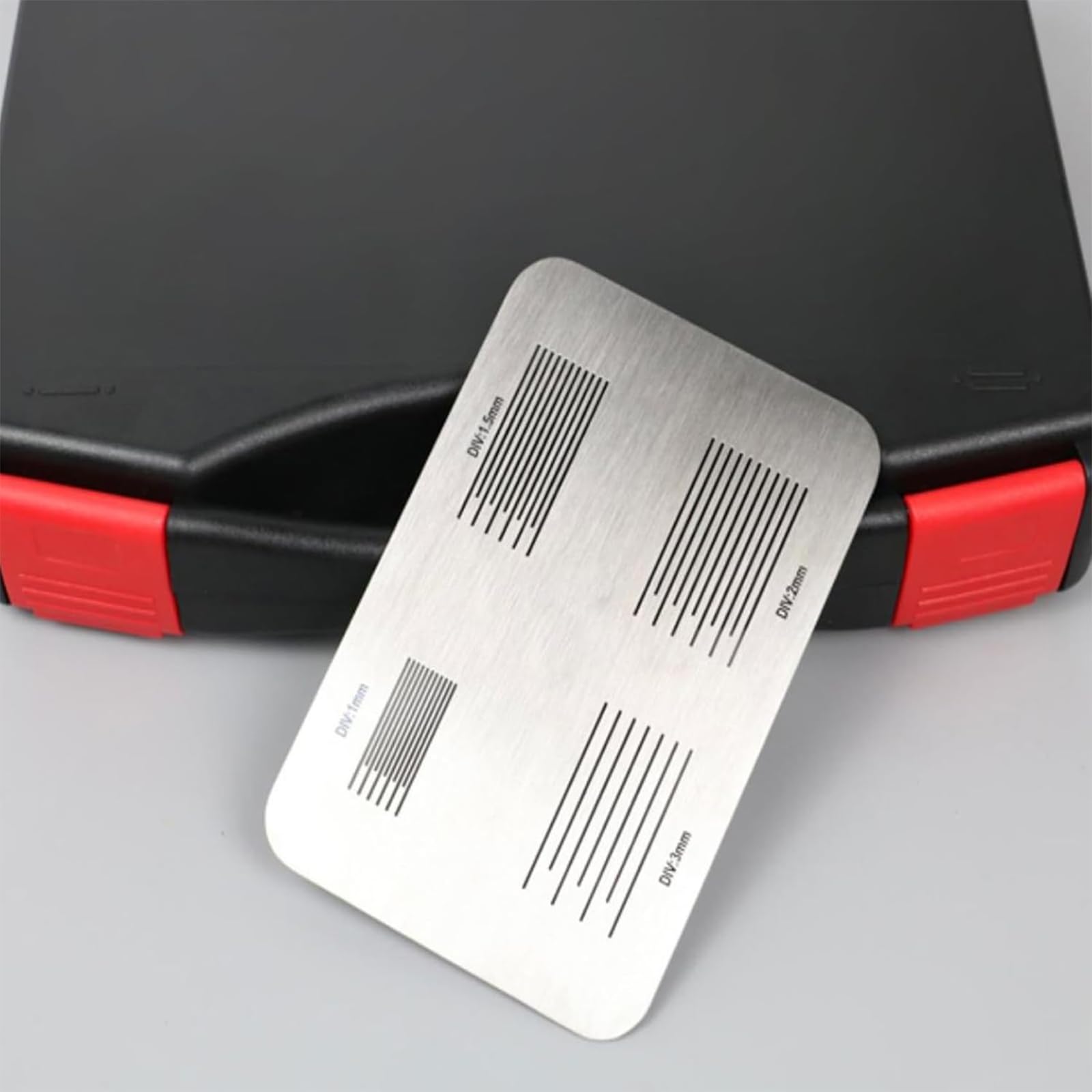

【Product specifications】: 1mm, 1.5mm, 2mm, 3mm, grid board set.
【Cutting distance】: 1mm*11, 1.5mm*11, 2mm*11, 3mm*7.

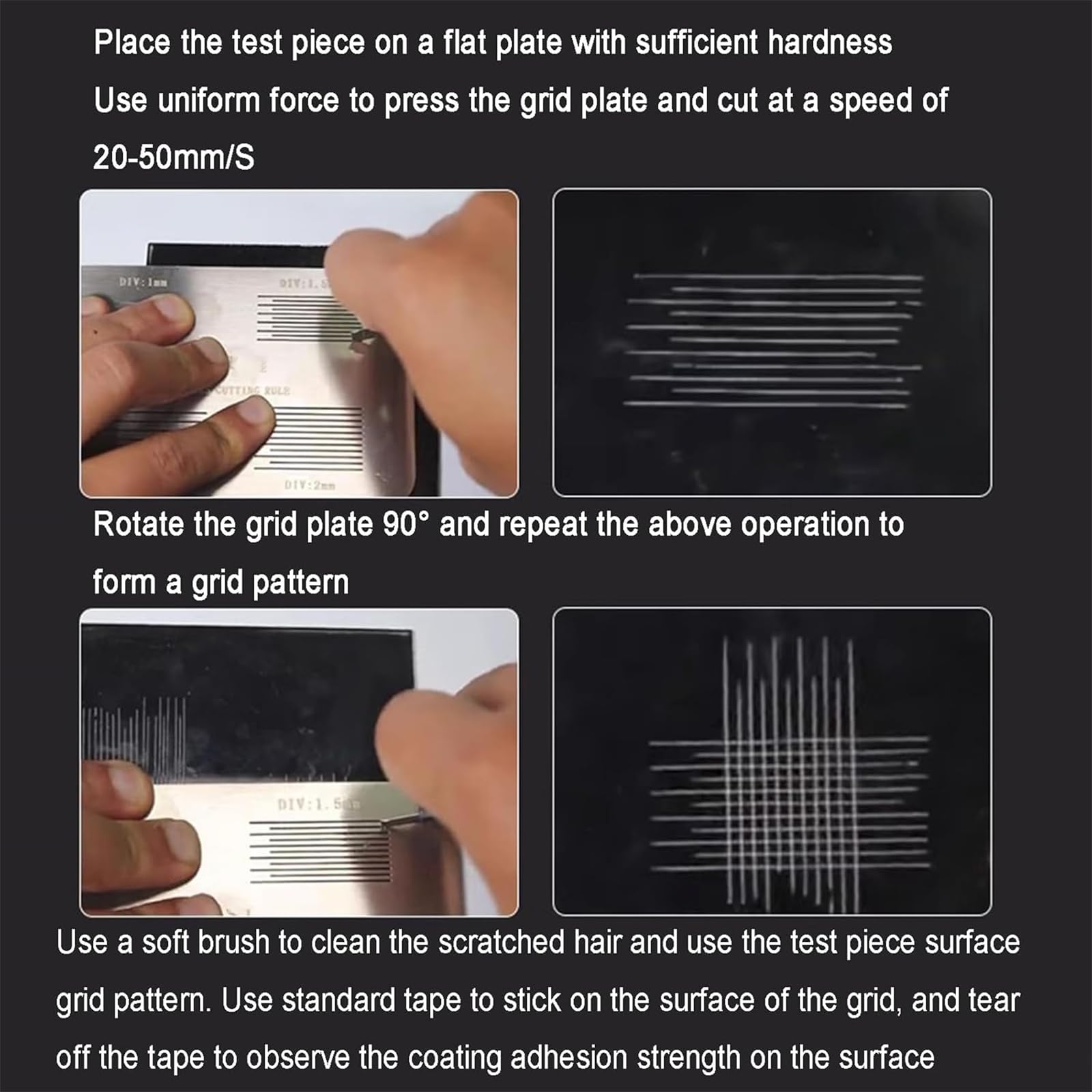

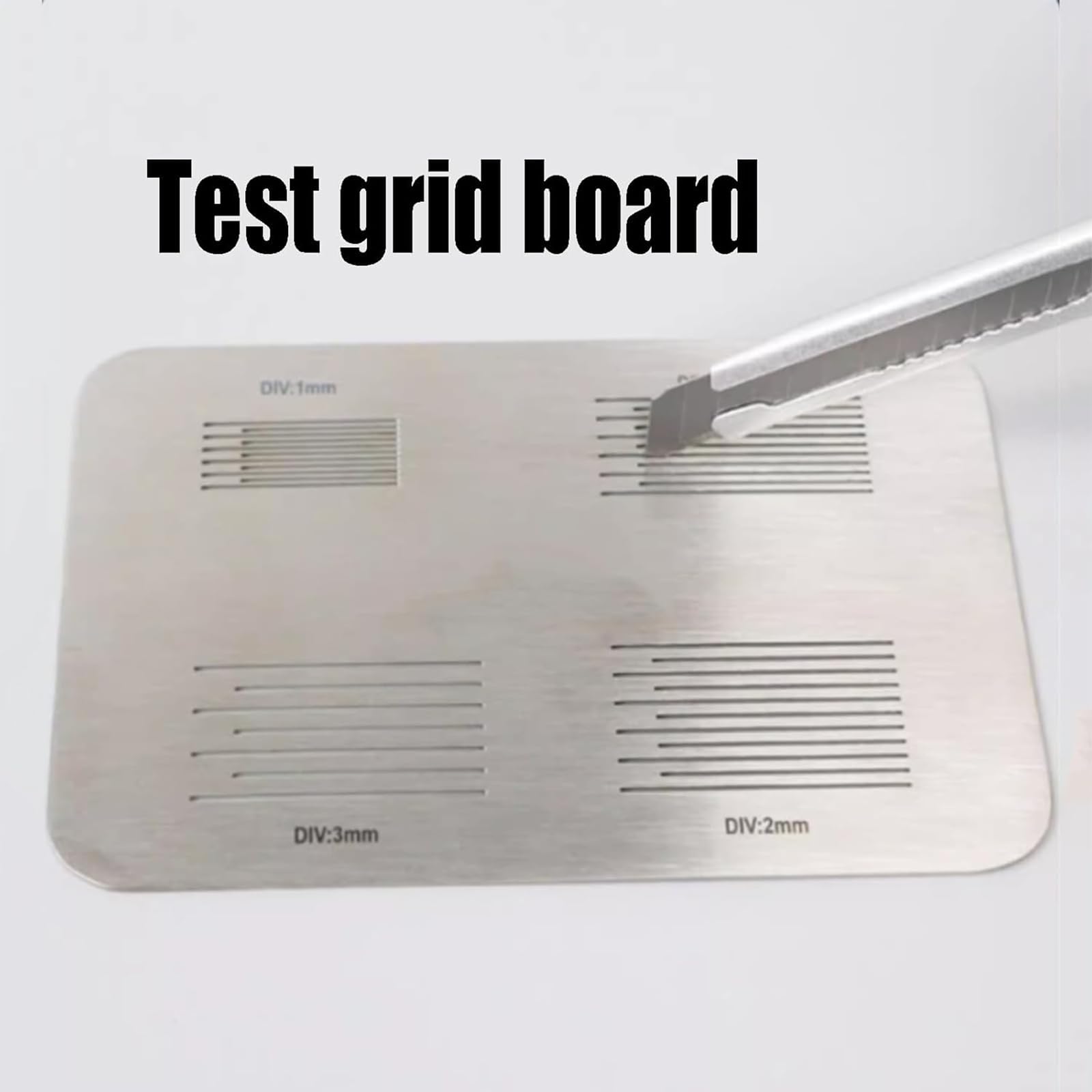

【Function】: Using this template, the coating is cut and penetrated by the grid pattern, and the completed pattern is divided into six levels to evaluate the adhesion between the coating and the substrate.

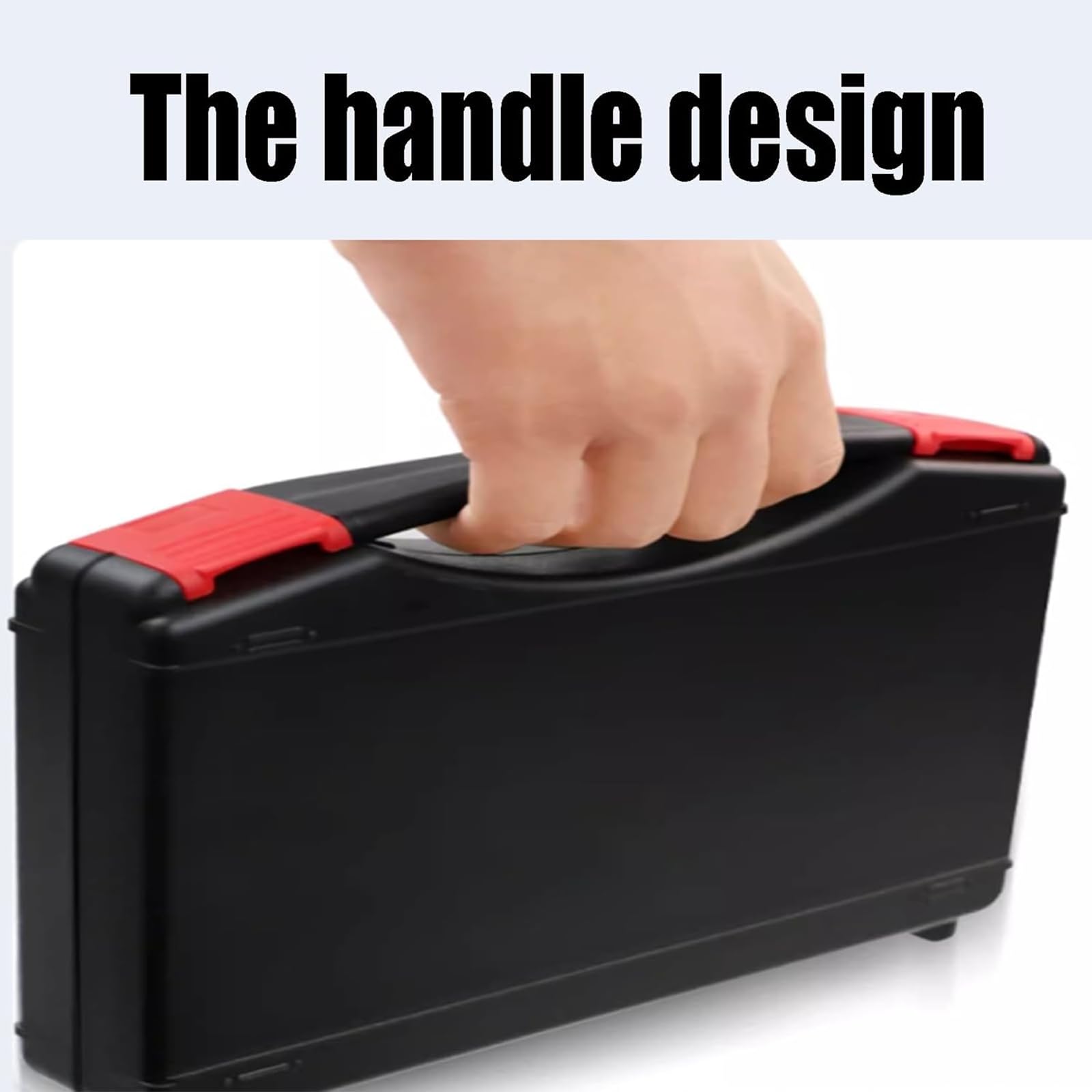

【External handle design】: carry it in your hand to highlight your personal style, simple and convenient (only equipped with the grid board set).

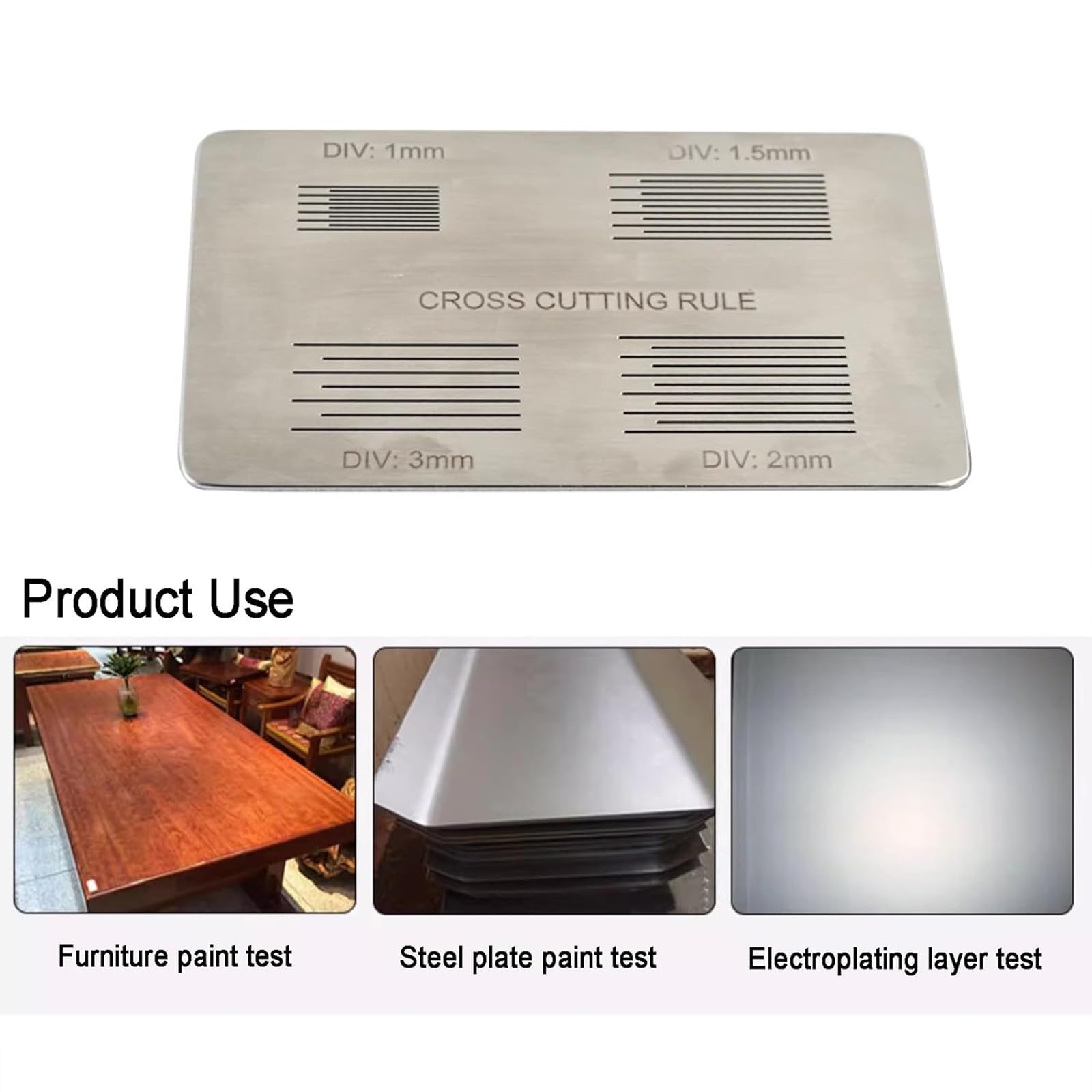

【Application range】: suitable for measuring the adhesion between the paint film and the substrate (the thickness of the paint film is less than 250mm) on the surface of plastic and wooden furniture. The strength of the surface adhesion of the sprayed or electroplated product or the strength of the mutual bonding with the primer layer.
Product Parameters: Product name: 100-grid board 1mm 100-grid board Cut mark spacing: 1mm Cut mark length: 18~22mm Number of cut marks: 11 1.5mm 100-grid board Cut mark spacing: 1.5mm Cut mark length: 30~35mm Number of cut marks: 11 2mm 100-grid board Cut Mark spacing: 2mm Cut length: 30~35mm Number of cuts: 11 3mm grid board Cut spacing: 3mm Cut length: 30~35mm Number of cuts: 7 Complete set of grid board Cut spacing: 1mm, 1.5mm, 2mm, 3mm Cut length: 20~35mm Number of cuts: 7~11 Packing List: Cross Cutting Rule*1 Other accessories Note: Due to the difference in light and screen settings, the color of this item may be slightly different from the pictures. Please allow slight size differences due to different manual measurements.
