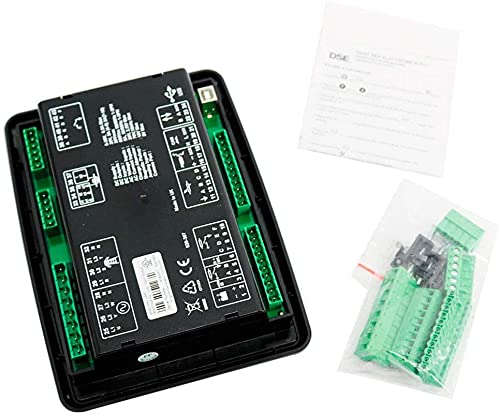

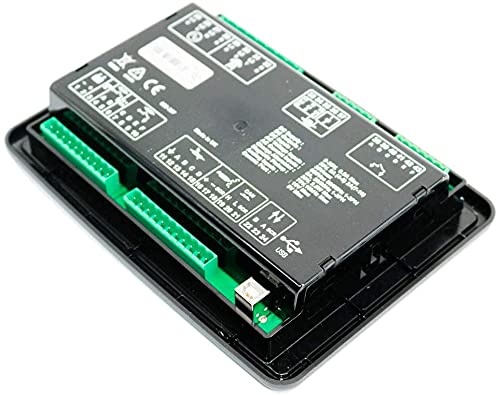

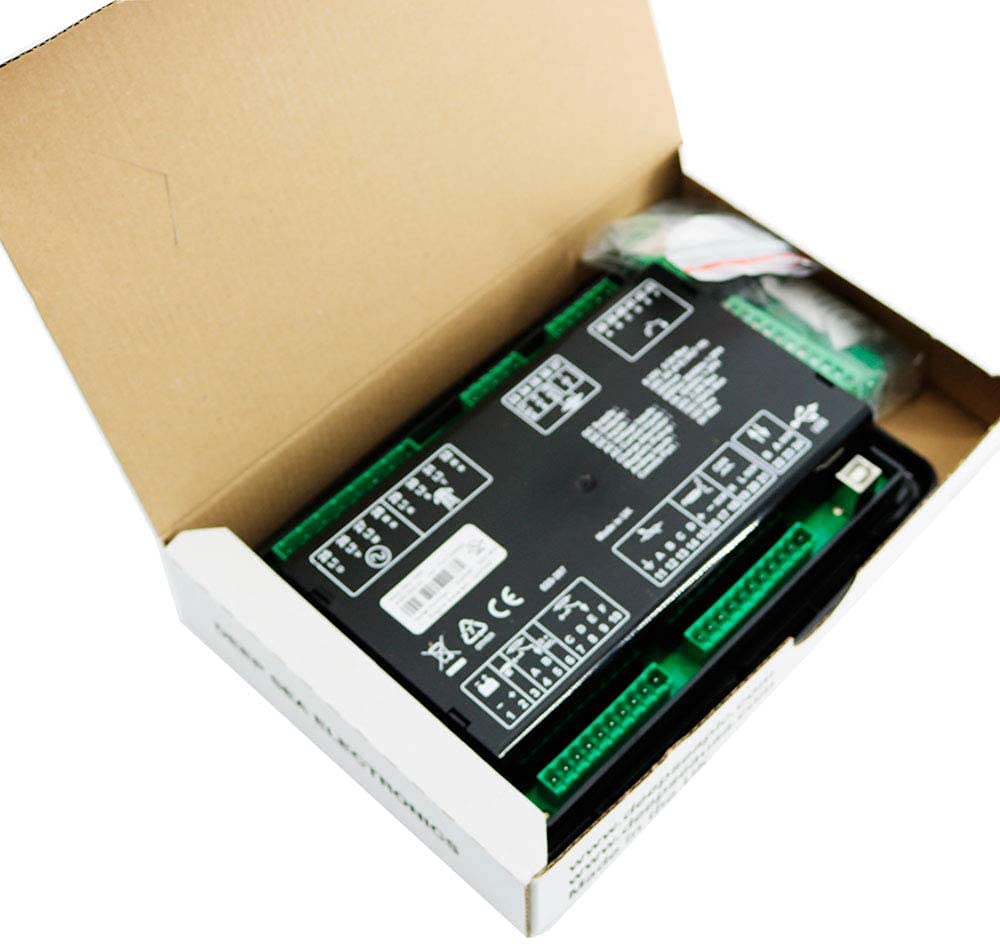

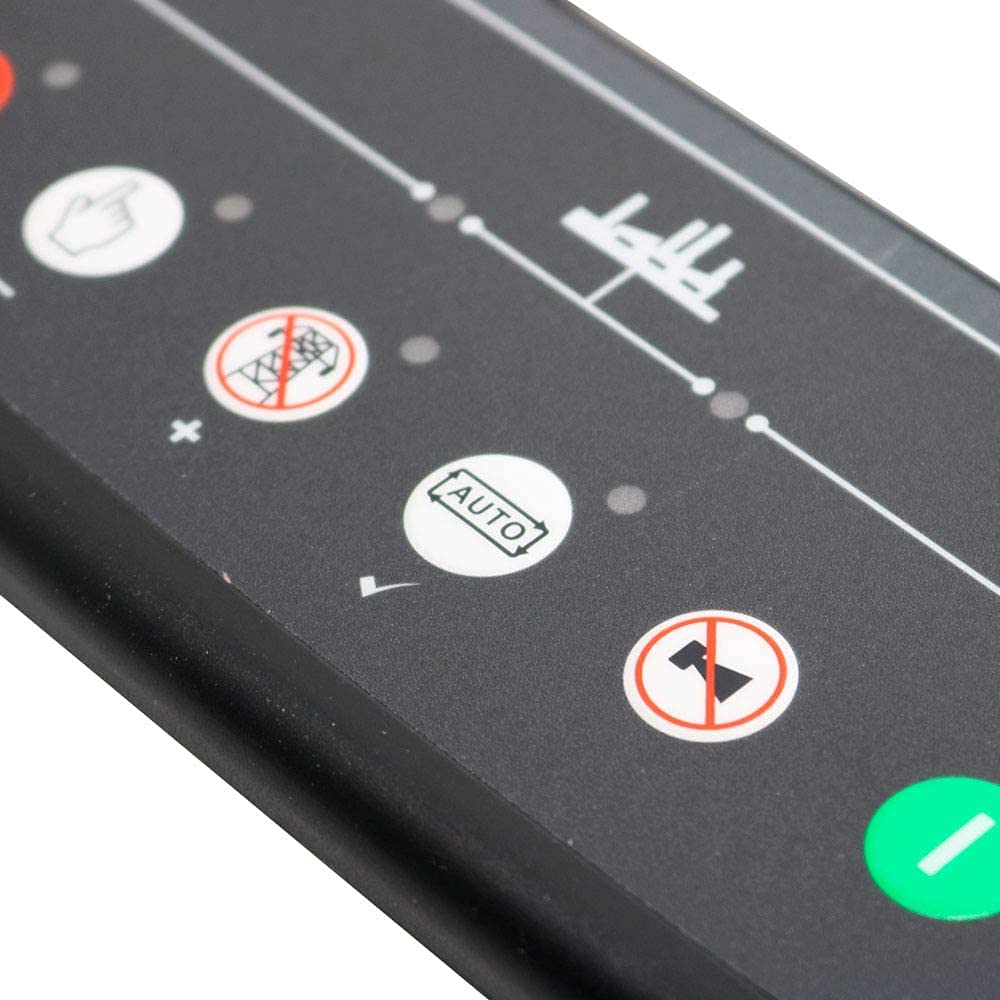

RaeSung DSE6020 MKII Original Deep Sea Electronics Generator Controller DSE6020MKII Generator Control Panel Module

Product ID:

101615

Identifier:

B09QCMNW5R

Brand:

RaeSung

Model:

Shipping Weight:

0 lbs

Manufacturer:

RaeSung

Shipping Dimension:

0 x 0 x 0 inches

Share on Social Media

Share on Facebook

Share on X

Share on Instagram

Share on Tiktok

Price of this item is not available.

FEATURES

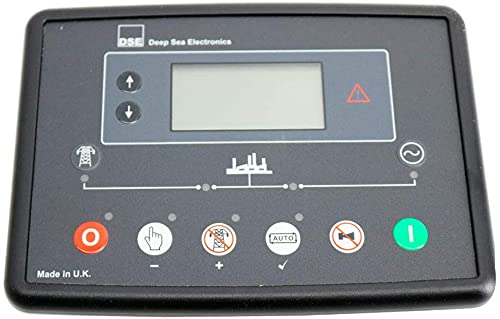

Electronics Generator Controller DSE6020 MKII is used in the automation and monitoring system of single unit. It has many functions like automatic startup/shutdown, data measurement, alarm protection and “three-remote". The controller has large LCD display and Chinese/English interface, realizing simple operation and reliable running.

DSE 6020 AMF module,The control system is an integral part of the unit and also the heart of the unit. The application of the intelligent control system in the unit is helpful to improving the quality of the electric energy and the automation level of the diesel unit.

Standard screen: Namely manual control screen. You only need to connect the start battery to control the unit locally.

Self-start control screen: The unit can realize both local manual control and remote control (by the external signal line). You need to connect the signal control line to this screen correctly.

Three-remote” communication fully automatic control screen: On the basis of the “self-start control screen” function, it also has the communication mode.

DESCRIPTIONS

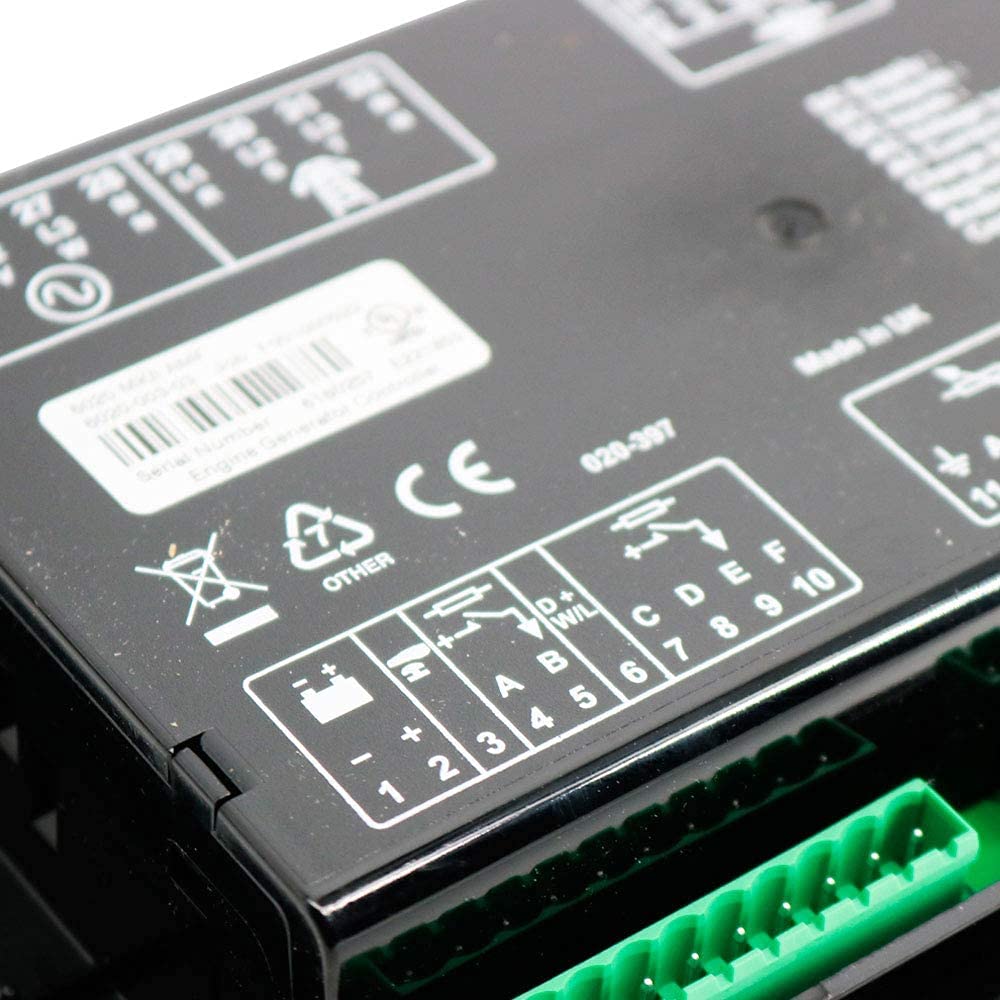

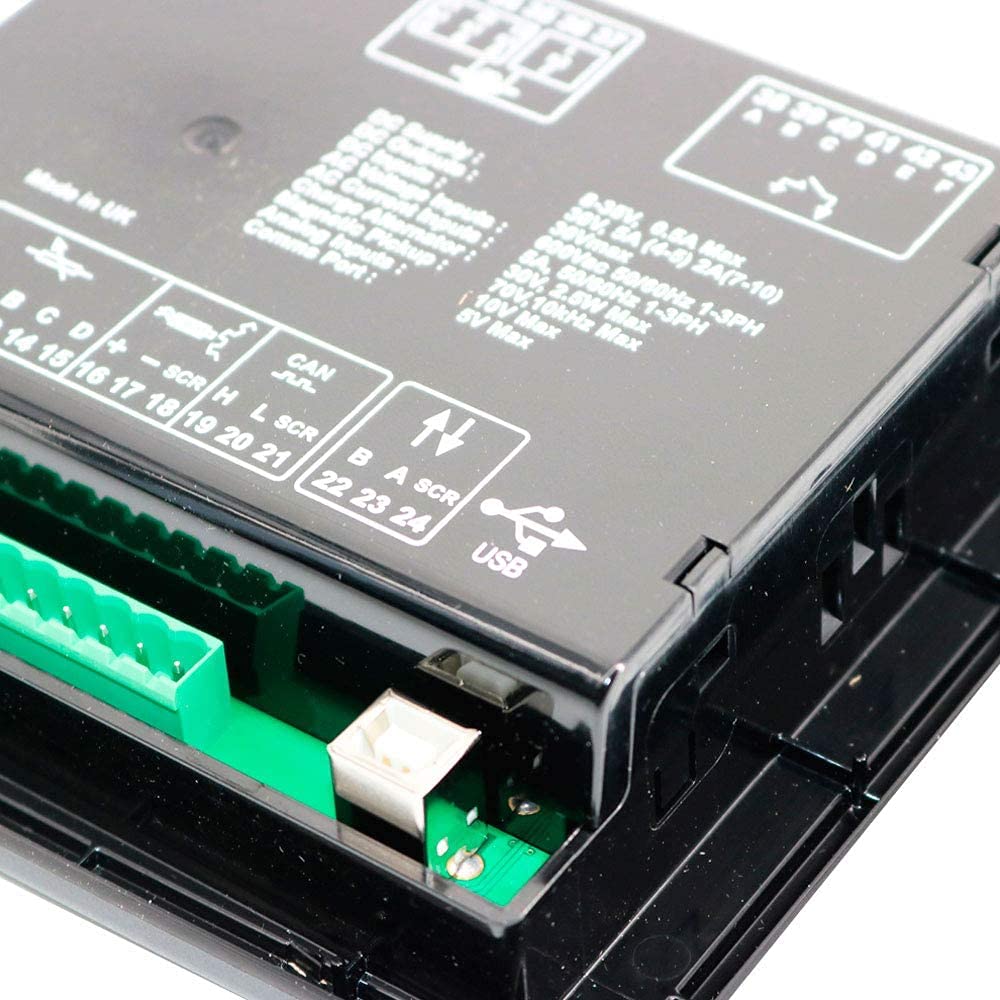

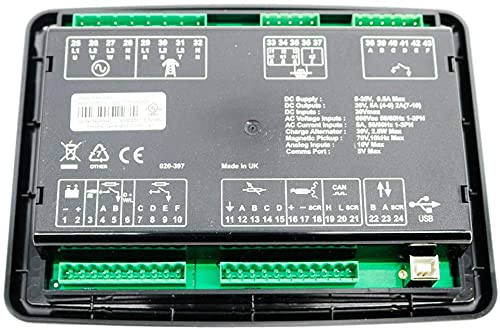

SPECIFICATION: DC SUPPLY CONTINUOUS VOLTAGE RATING 8 V to 35 V Continuous CRANKING DROPOUTS Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking. MAXIMUM OPERATING CURRENT 100 mA at 12 V, 105 mA at 24 V MAXIMUM STANDBY CURRENT 60 mA at 12 V, 55 mA at 24 V MAXIMUM SLEEP CURRENT 40 mA at 12 V, 35 mA at 24 V GENERATOR & MAINS (UTILITY) VOLTAGE RANGE 15 V to 415 V AC (Ph to N) 26 V to 719 V AC (Ph to Ph) FREQUENCY RANGE 3.5 Hz to 75 Hz INPUTS DIGITAL INPUTS A to F Negative switching ANALOGUE INPUTS A to C Configurable as: Negative switching digital input 0 Ω to 480 Ω ANALOGUE INPUT D Configurable as: Negative switching digital input 0 V to 10 V 4 mA to 20 mA 0 Ω to 480 Ω OUTPUTS OUTPUT A (FUEL) 10 A short term, 5 A continuous, at supply voltage OUTPUT B (START) 10 A short term, 5 A continuous, at supply voltage AUXILIARY OUTPUTS C, D, E & F 2 A DC at supply voltage
