✔️Brand: AZ4U. Part Number: 3315332.005 fan motor replacement genteq f48af70a61, brisk air 2 fan motor.This air conditioner fan motor powers the fans and blowers that move air through the RV's air conditioning system. 3315332.005 Genteq F48AF70A61 ZHONGSHAN Broad Ocean Y7L423C032L(NBK20435). Rotation = CCWLE (short shaft end); D-Shaft 1: 3-3/4" L x 1/2" D D-Shaft 2: 2-1/2" L x 1/2" D Mounting Bracket Holes: 2-3/8" apart Motor Body: 5-5/8" Diameter x 4-3/8"(48 Frame)

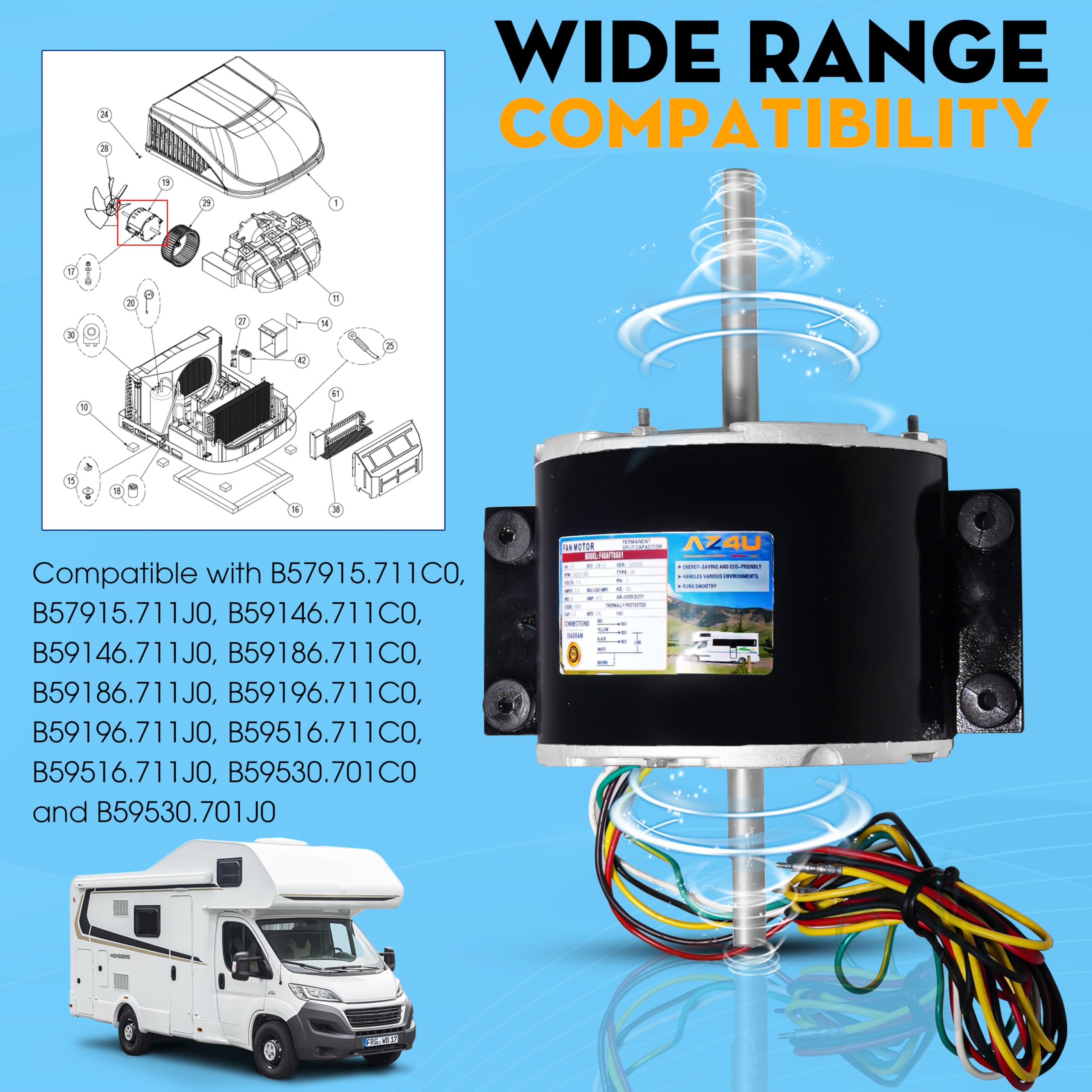

Compatible with Dometic Brisk Air II Penguin: B57915.711C0, B57915.711J0, B59146.711C0, B59146.711J0, B59186.711C0, B59186.711J0, B59196.711C0, B59196.711J0, B59516.711C0, B59516.711J0, B59530.701C0 and B59530.701J0

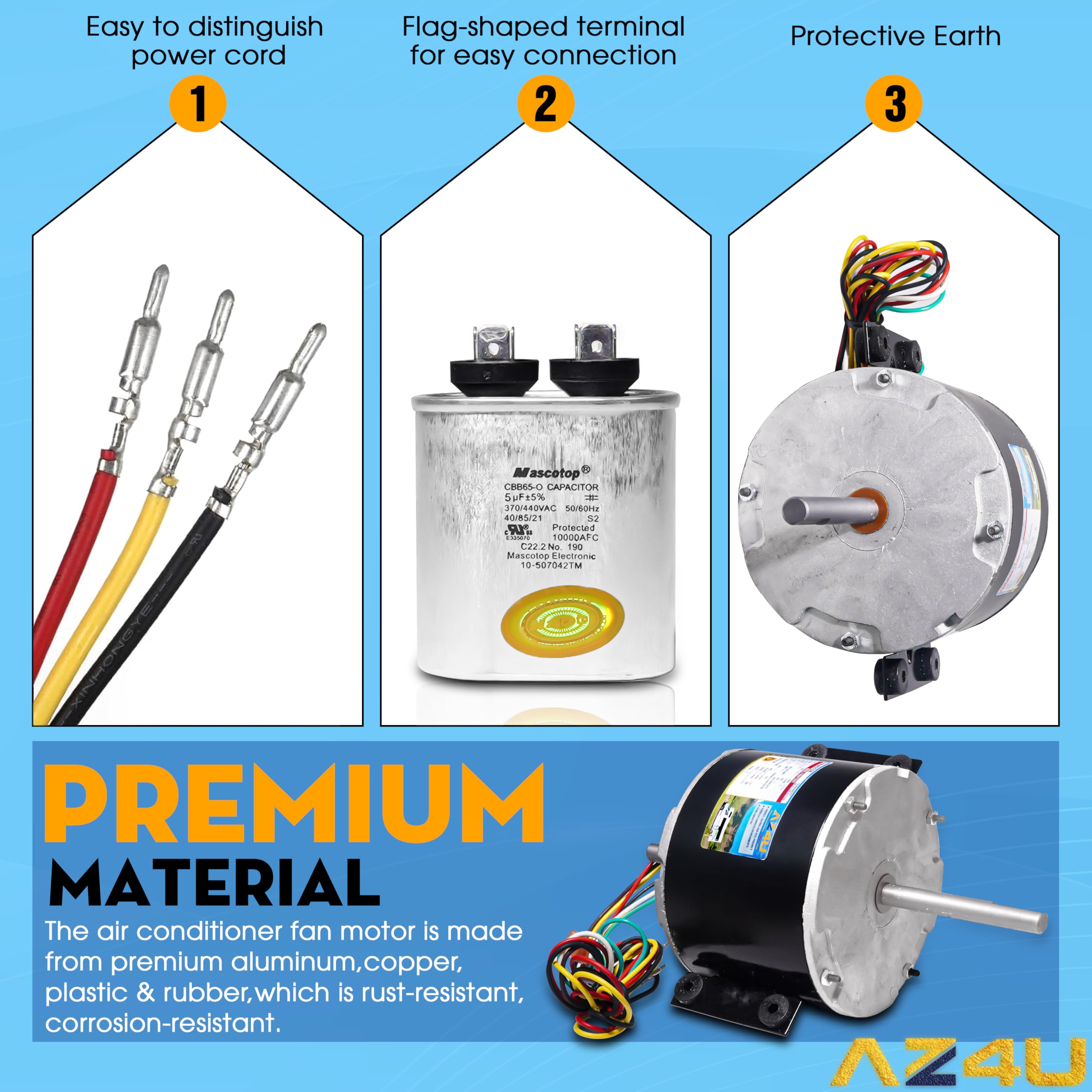

✔️Package includes: 1x F48AF70A61 fan motor + 1x 5/370 (uF/V) Capacitor Compatible with dometic ac fan motor, dometic 3315332.005 fan motor, dometic brisk 2 models: B57915.711C0, B57915.711J0, B59146.711C0, B59146.711J0, B59186.711C0, B59186.711J0, B59196.711C0, B59196.711J0, B59516.711C0, B59516.711J0, B59530.701C0 and B59530.701J0

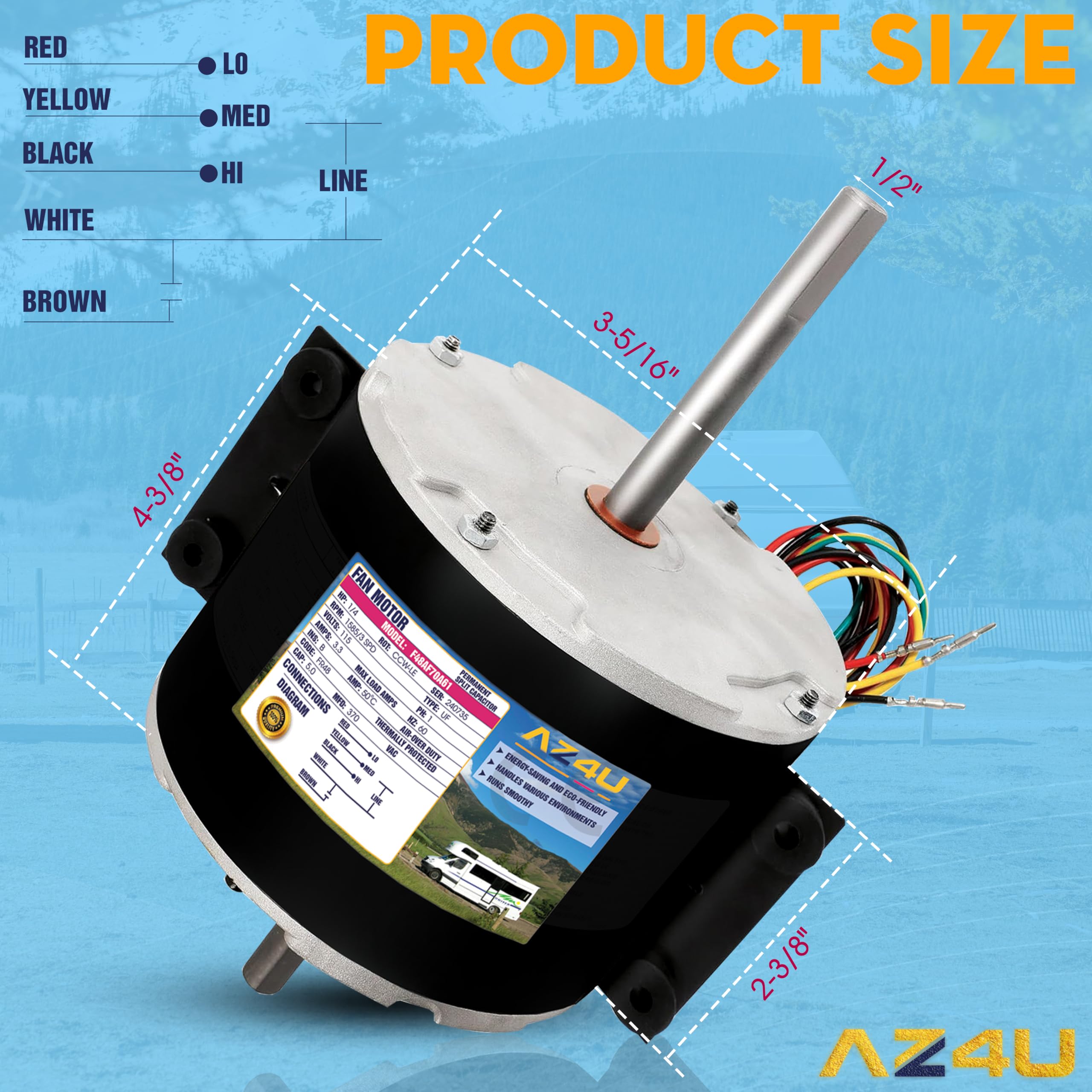

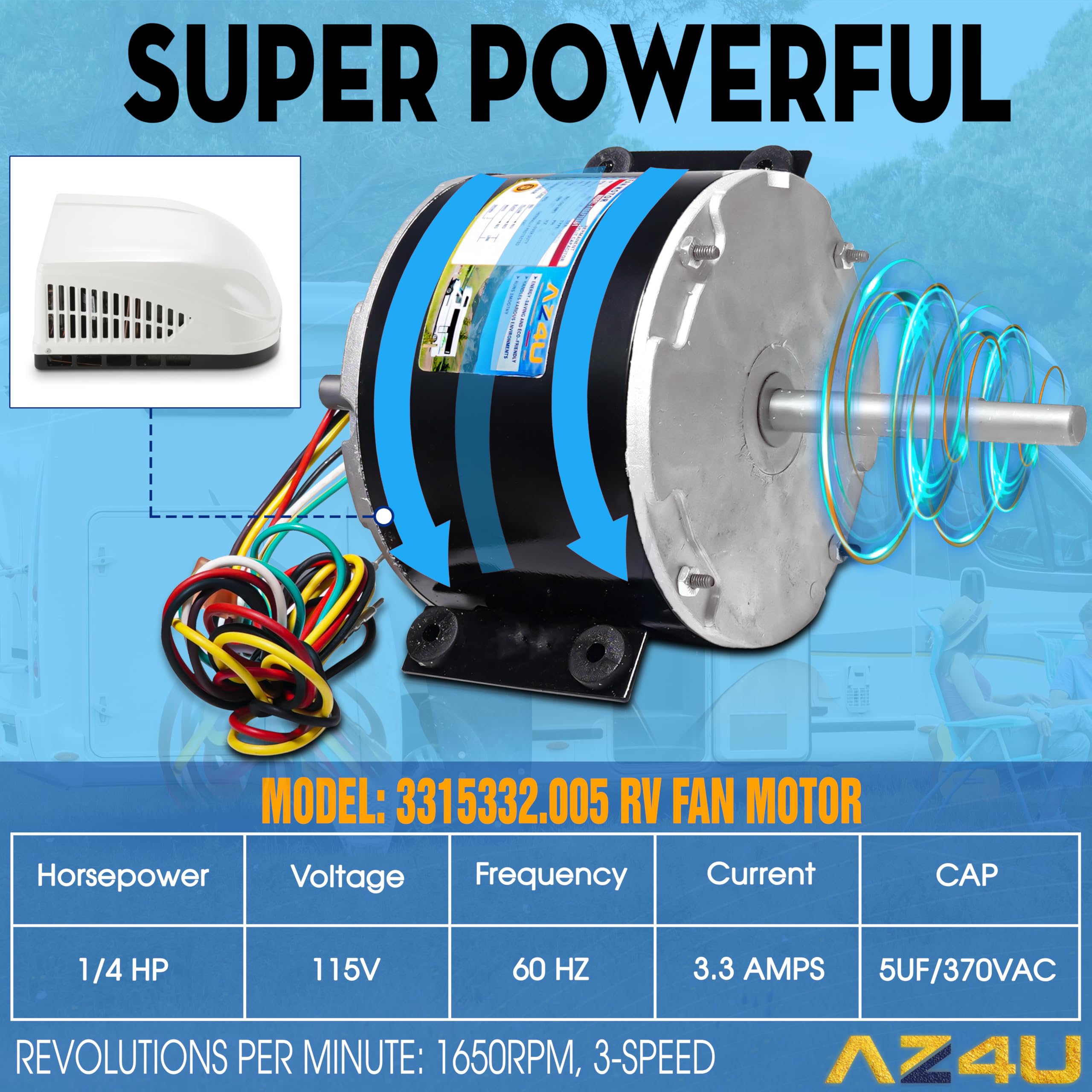

✔️F48AF70A61 fan motor specifications: Mounting Style: For Dometic Brisk Air 2 Fan Motor Series mounting brackets; Motor Type: Genteq f48af70a61 fan motor; Connection Style: Wiring to connect to a capacitor and a 6-pin plug (Plug NOT Included); Power Source: 115V AC; Max Load Amps: 3.3 Amps; HP: 1/4; Motor Body Dim: 5-5/8"; Diameter x 4-3/8" Thick; D-Shaft #1 Dim: 3-5/16"L x 1/2" Diameter; D-Shaft #2 Dim: 2-7/16"L x 1/2" Diameter; Wire Length: Approx 48"; Mounting Bracket Hole Spacing: 2-3/8" Apart on each foot

✔️Reliable and Efficient: This is a shaded pole motor which works by creating a rotating magnetic field using an AC power source. This results in low noise, high reliability, and low maintenance. Shaded pole motors are generally quieter than other types of motors, and have a simple design that reduces the risk of mechanical failure. They are also less susceptible to damage from power surges or voltage fluctuations, which can increase their reliability and lifespan.

✔️3315332.005 Fan Motor is an replacement fan motor for Genteq F48AF70A61 Fan Motor and for dometic brisk air 2 fan motor. This ac fan motor replacement powers the fan and blower wheel that moves air through the RV's air conditioning system. The RV air conditioner motor is responsible for generating the force required to move the air through the air conditioning system. This rv ac fan motor replacement is designed to operate at high speeds for extended periods of time and is built to withstand the harsh conditions of RV travel.

✔️Note: If you are not sure about the compatibility please contact us for advice. we will solve your problem within 24 hours, Money back guarantee: Within 90 days from the date of purchase. We are confident in the quality of our part, and you can be confident in us. If you are not satisfied with our product a refund will be made.
