Microwave Oven Door Switch Replacement Part, 16A 125VAC, KW3AT-16 (Downward Compatible with KW3A-16), Normally Open - 1Pc

4.6 / 5

Available Options

Black (Normally Open) - 2Pcs, 2x Normally Open ₱881.00 Black (Normally Open) - 1Pc, 1x Normally Open ₱607.00 Black (Normally Closed) - 1Pc, 1x Normally Closed ₱607.00 Black (Normally Closed) - 2Pcs, 2x Normally Closed ₱881.00 1x Normally Open + 1x Normally Closed, 1x Normally Open + 1x Normally Closed ₱881.00 2x Normally Open + 1x Normally Closed, 2x Normally Open + 1x Normally Closed ₱890.00

SAVE 35%

₱890

₱607

+ ₱ 150

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2025-11-16 to 2025-11-23.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

DETAILS

Product ID:

240147

Copy Link

Identifier:

B083CYSJQW

Brand:

HiQltyla

Model:

1x Normally Open

Shipping Weight:

0.02 lbs

Manufacturer:

HiQltyla

Shipping Dimension:

1.97 x 1.77 x 0.55 inches

FEATURES

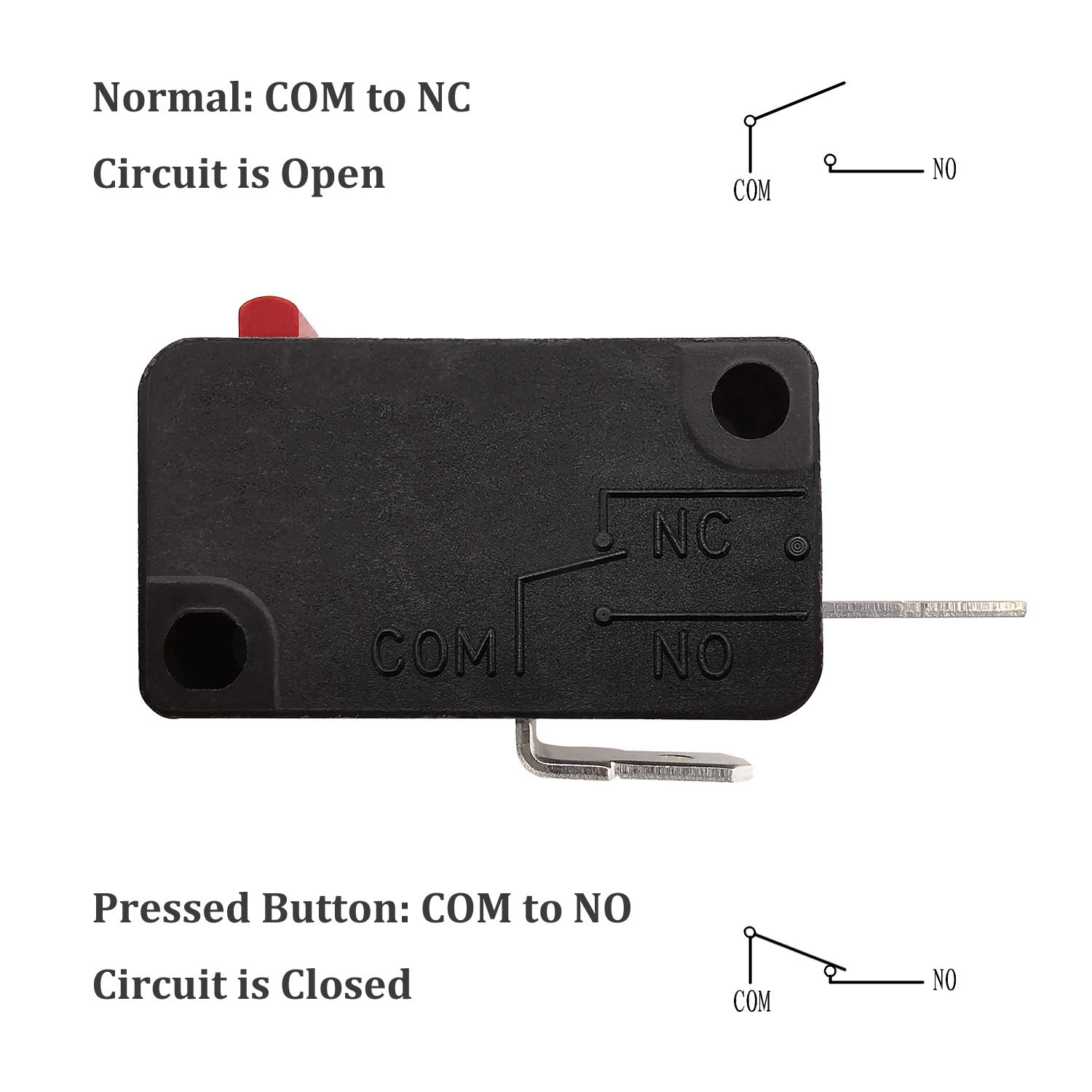

Character: Normally Open (Normal time Terminal COM connect to Terminal NC, the Circuit is Open; When pressed the button, Terminal COM connect to Terminal NO, the Circuit is Closed)

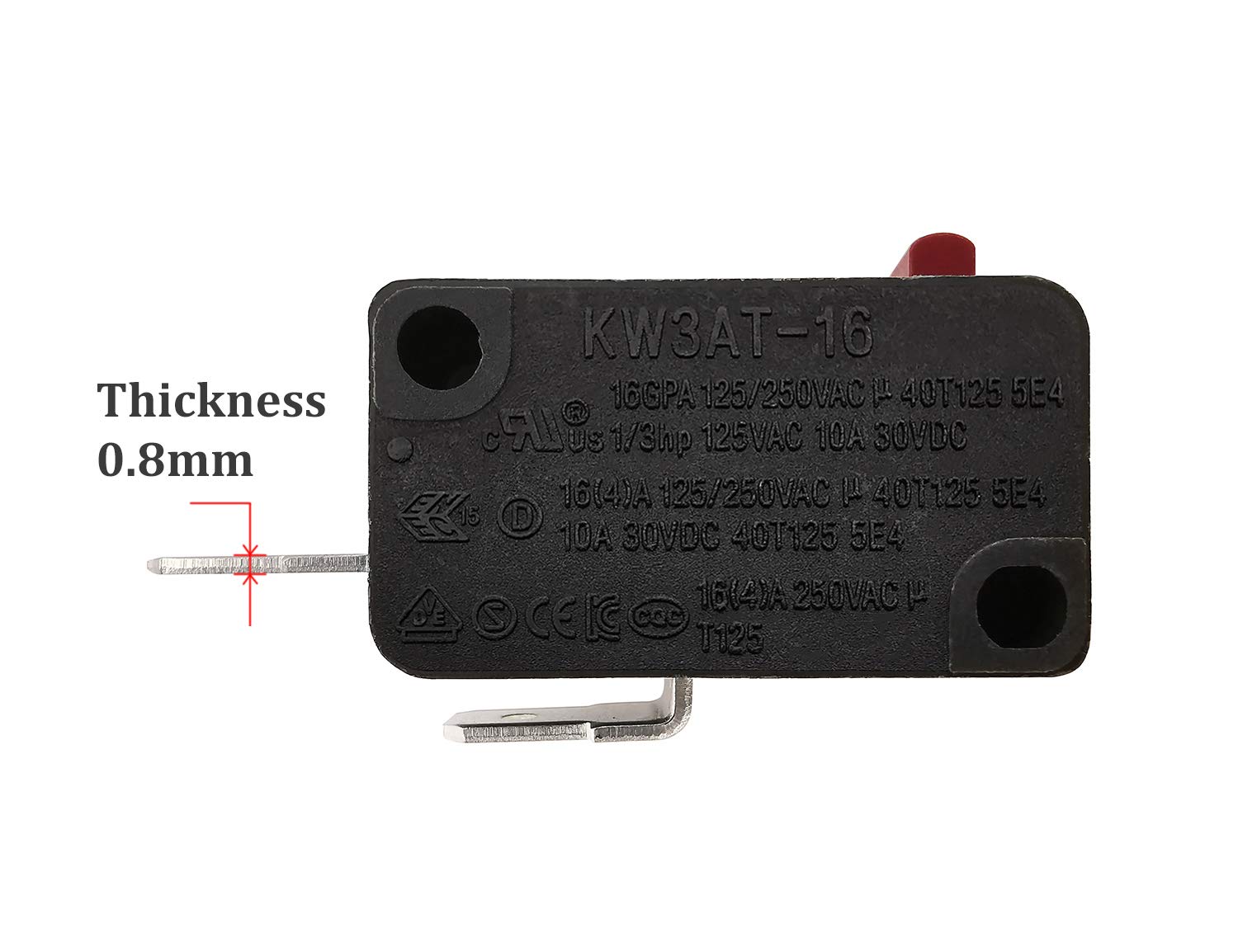

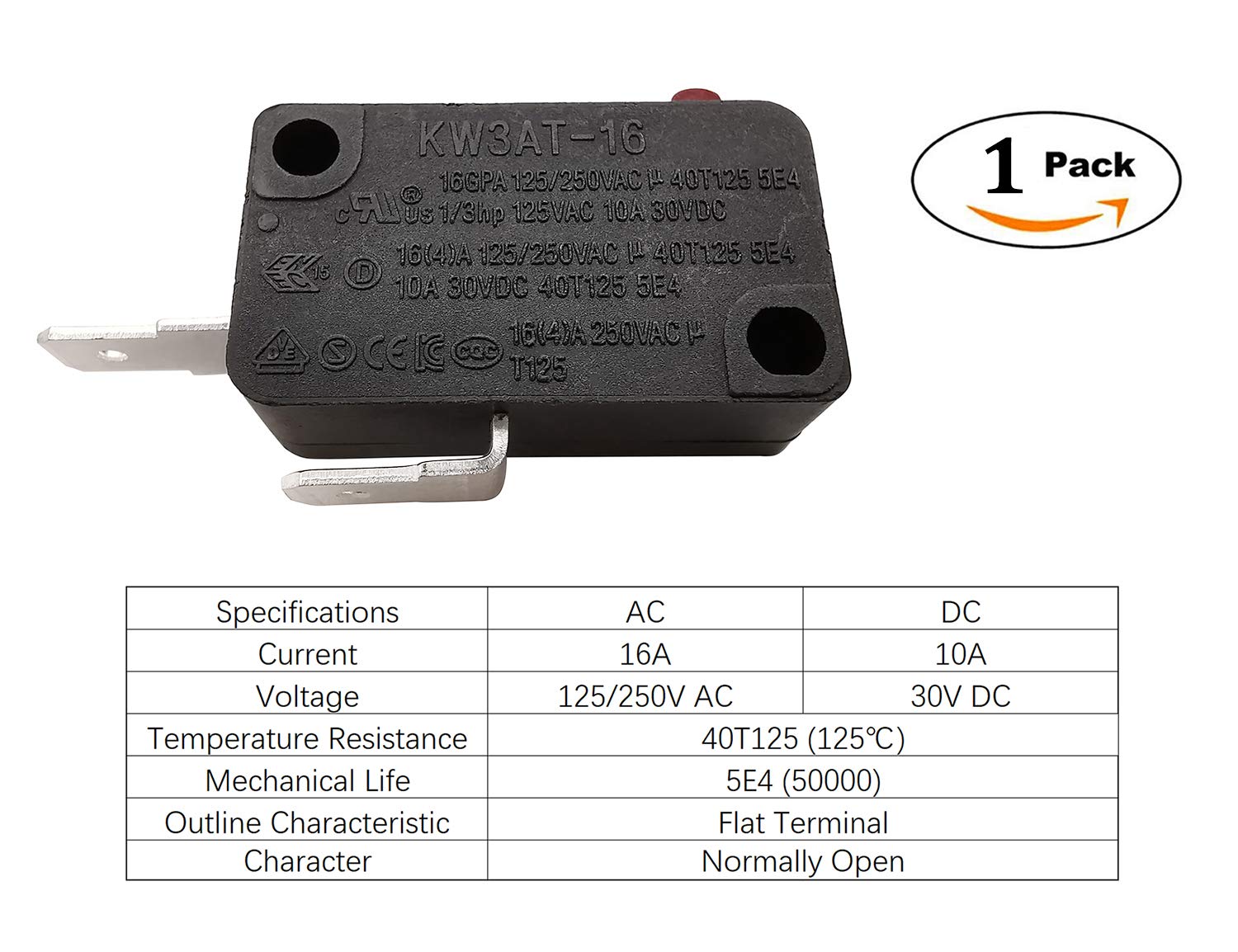

Specifications: 16(4)A 125/250VAC u, 10A 30VDC, 40T125, 5E4

Model Number: KW3AT-16, Compatible M/N: KW3A-16 SZM-V16-FD-63 SZM-V16-FA-63 3B73362F PS3522738

KW3AT-16 has a maximum temperature resistance is 125 ℃ and KW3A-16 has a maximum temperature resistance is 105 ℃, Other electrical performances are the same, so KW3AT-16 is an upgraded version of KW3A-16, which is more competent in harsh working environments than KW3A-16

Compatible with Most of Microwave Oven, If the microwave will not turn or heat properly, there could be an issue with the door switch, a new switch can return the microwave oven to normal operation

Package Includes: 1x Microwave Door Switch (Normally Open)
