FEATURES

DESCRIPTIONS

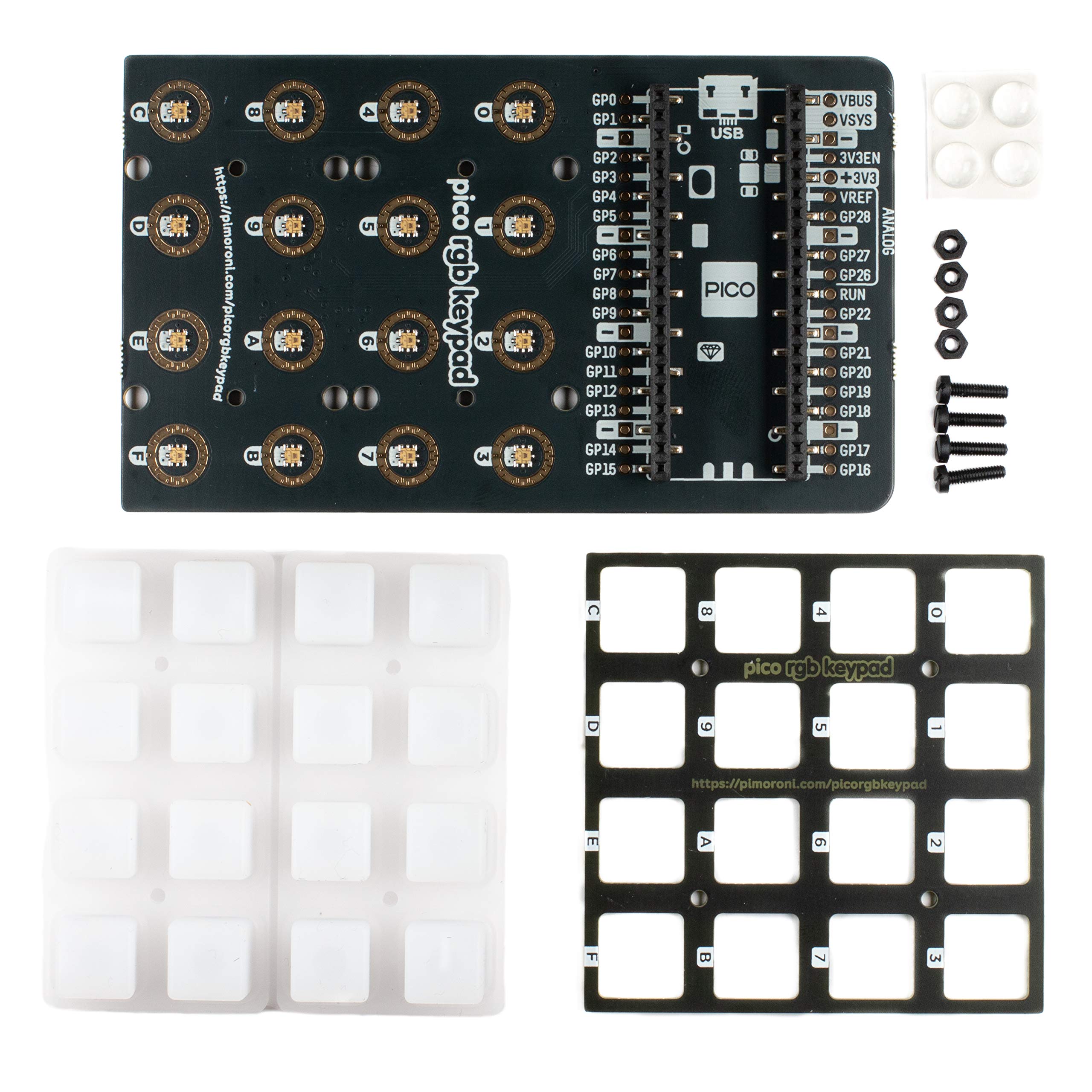

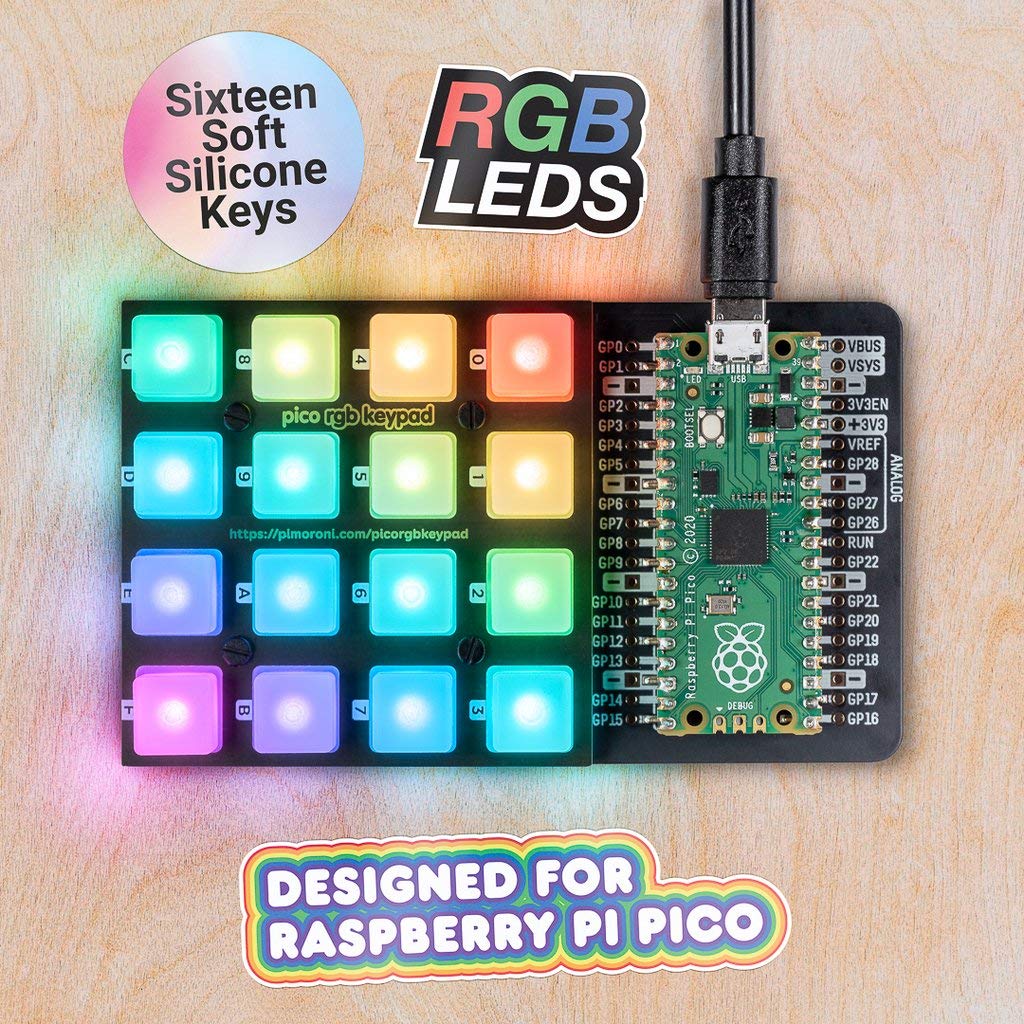

Scoring very highly in the Pimoroni "things on our desk that make people say ooo" rankings, RGB Keypad Base equips a Pico with an eye-catching 4x4 silicone keypad, fully loaded with addressable APA102 LEDs so that each key can be illuminated in any colour that your little unicorn heart desires. It's all mounted on a sturdy base with rubber feet to keep it nice and level, with a handily labelled landing area for your Pico. We've broken out the full set of Pico pins to make it easy to connect up other hardware as well. Connect your Pico project to another computer via USB for a beautiful macro keypad or a tidy midi controller. RGB Keypad Base would also work well in any project that would benefit from having fancy light up buttons as inputs - a code protected door lock perhaps, a disco dance floor for your fingers or a Simon Says style game with which to taunt your friends. A Raspberry Pi Pico is not included Your Pico will need to have male headers soldered to it (with the pins pointing downwards) to attach to our add-on boards. Features 4x4 silicone keypad with conductive buttons 16 x APA102 addressable RGB LEDs Keypad buttons are connected via a TCA9555 IO expander (I2C address: 0x20). Labelled landing area with female headers for attaching your Pico, with broken out pins. Compatible with Raspberry Pi Pico. Some assembly required! No soldering required (as long as your Pico has header pins attached). C/C++ and MicroPython libraries Includes 1x Pico RGB Keypad Base 1x (reversible) square retainer plate 1x silicone keypad M2 8mm bolts and nuts 4x rubber feet
