Fits Oil Burner CAD Cell Eye C554A

Replacement cad cell part numbers are 120320, 124607 and 130367

Replacement Restwood E81, Type M, E81-5, Type M, CleanBurn 33116-E, Clean Burn 33116-E, Honeywell 130367, 120320 and 124607, Oilco OC-10, Oilco OC10, Carlin 4002400A, 10136WB

Fits Honeywell C554A1018, C554A1026, C554A1083, C554A1109, C554A1133, C554A1174, C554A1215, C554A1216, C554A1232, C554A1372, C554A1463, C554A1570, C554A1687, C554A1703, C554A1760, C554A1794, C554A1836, C554A1844, C554A1893, C554A1919, C554A1927, Beckett 7006, 7006U, 7135, 7135U, 7316, 7316U, Lanair 8981, Reznor 123195, EnergyLogic 20210110, Energy Logic 20210110

Fits CAD unit eyes for most Beckett, Carlin and Wayne oil burners

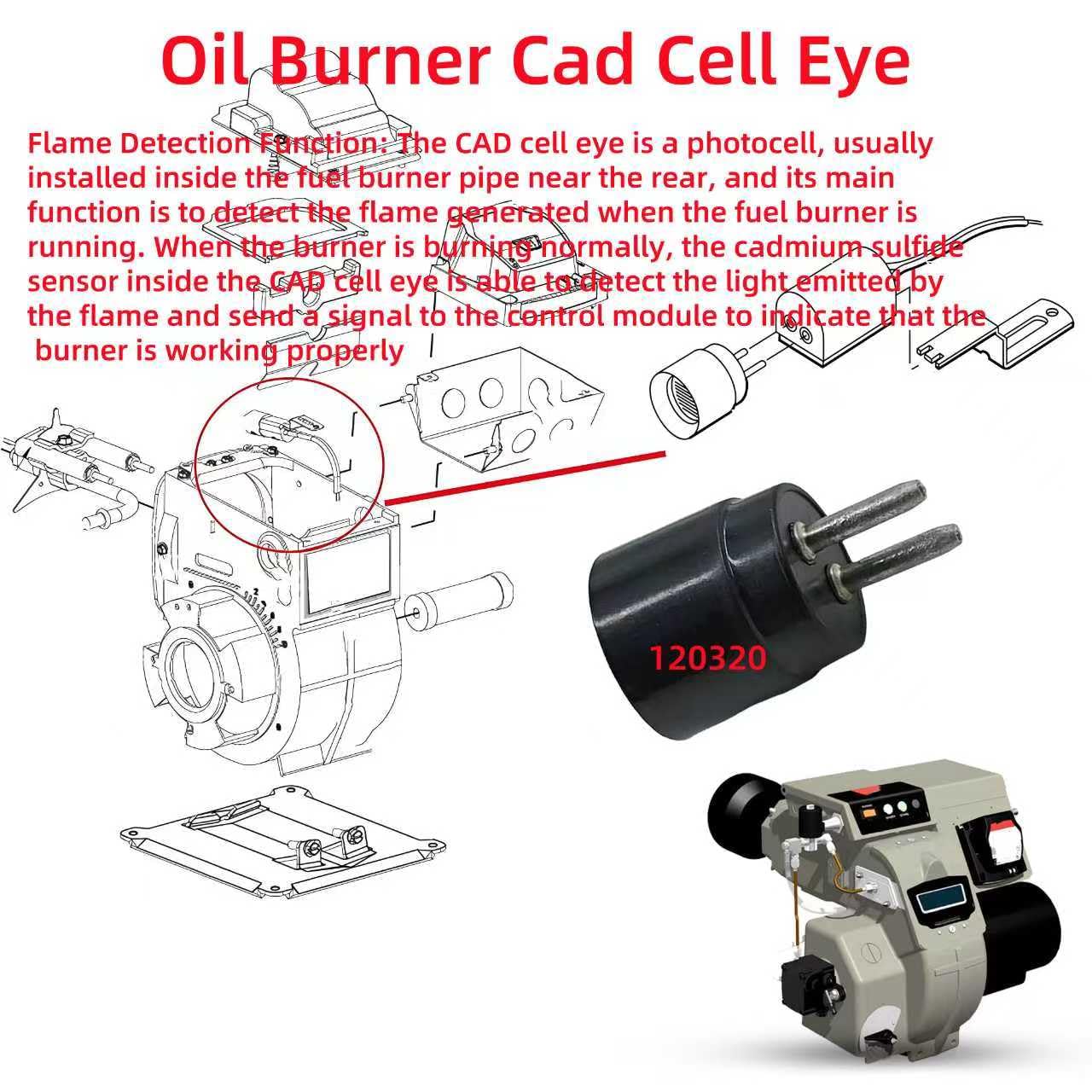

Flame Detection Function: The CAD cell eye is a photocell, usually installed inside the fuel burner pipe near the rear, and its main function is to detect the flame generated when the fuel burner is running. When the burner is burning normally, the cadmium sulfide sensor inside the CAD cell eye is able to detect the light emitted by the flame and send a signal to the control module to indicate that the burner is working properly

Safety protection: If the CAD cell eye fails to detect a flame, or the detected flame signal is weak, it may indicate a burner failure, at which point it will send a signal to the control module, which will take corresponding measures, such as turning off the fuel supply to prevent the accumulation of unburned fuel and avoid potentially dangerous situations

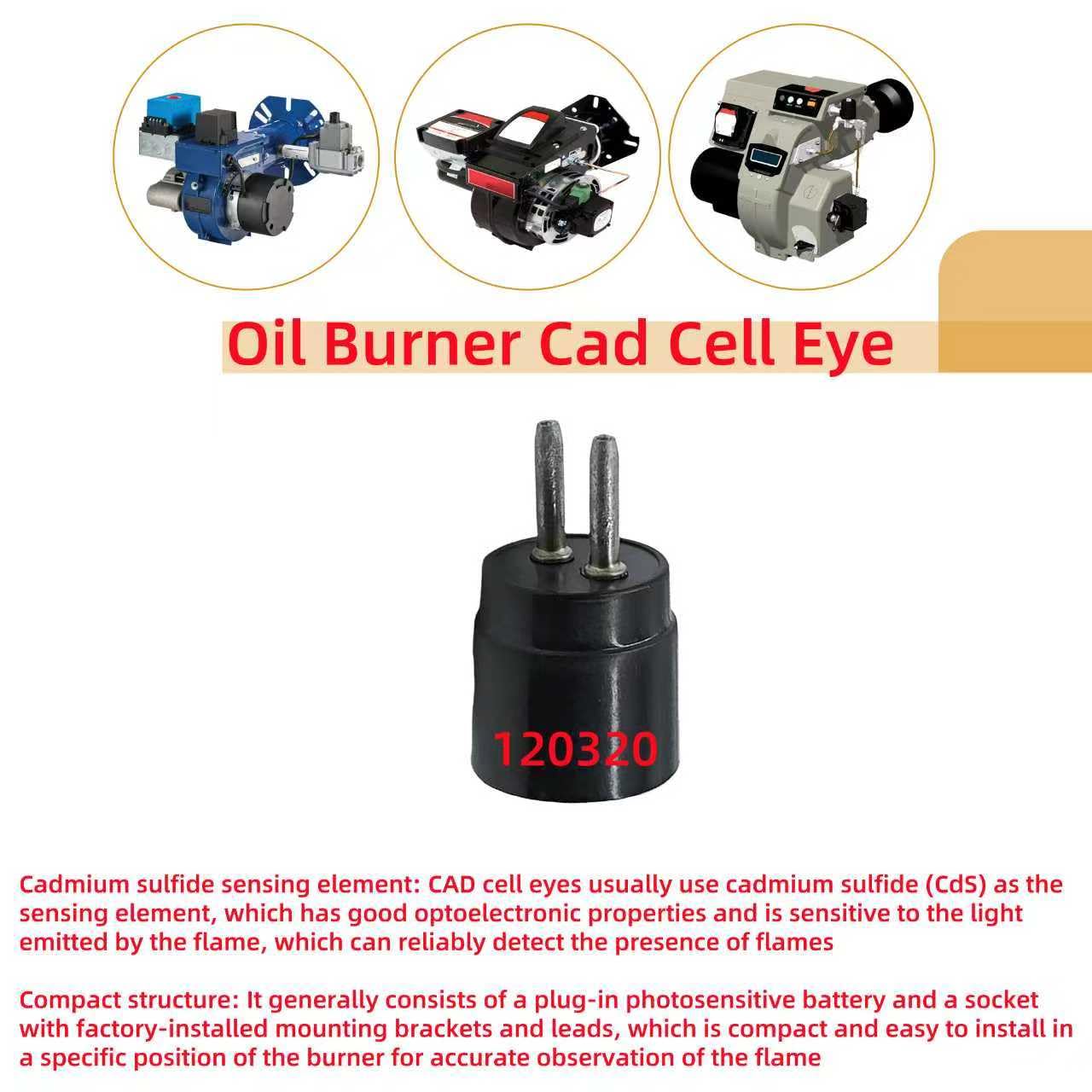

Cadmium sulfide sensing element: CAD cell eyes usually use cadmium sulfide (CdS) as the sensing element, which has good optoelectronic properties and is sensitive to the light emitted by the flame, which can reliably detect the presence of flames

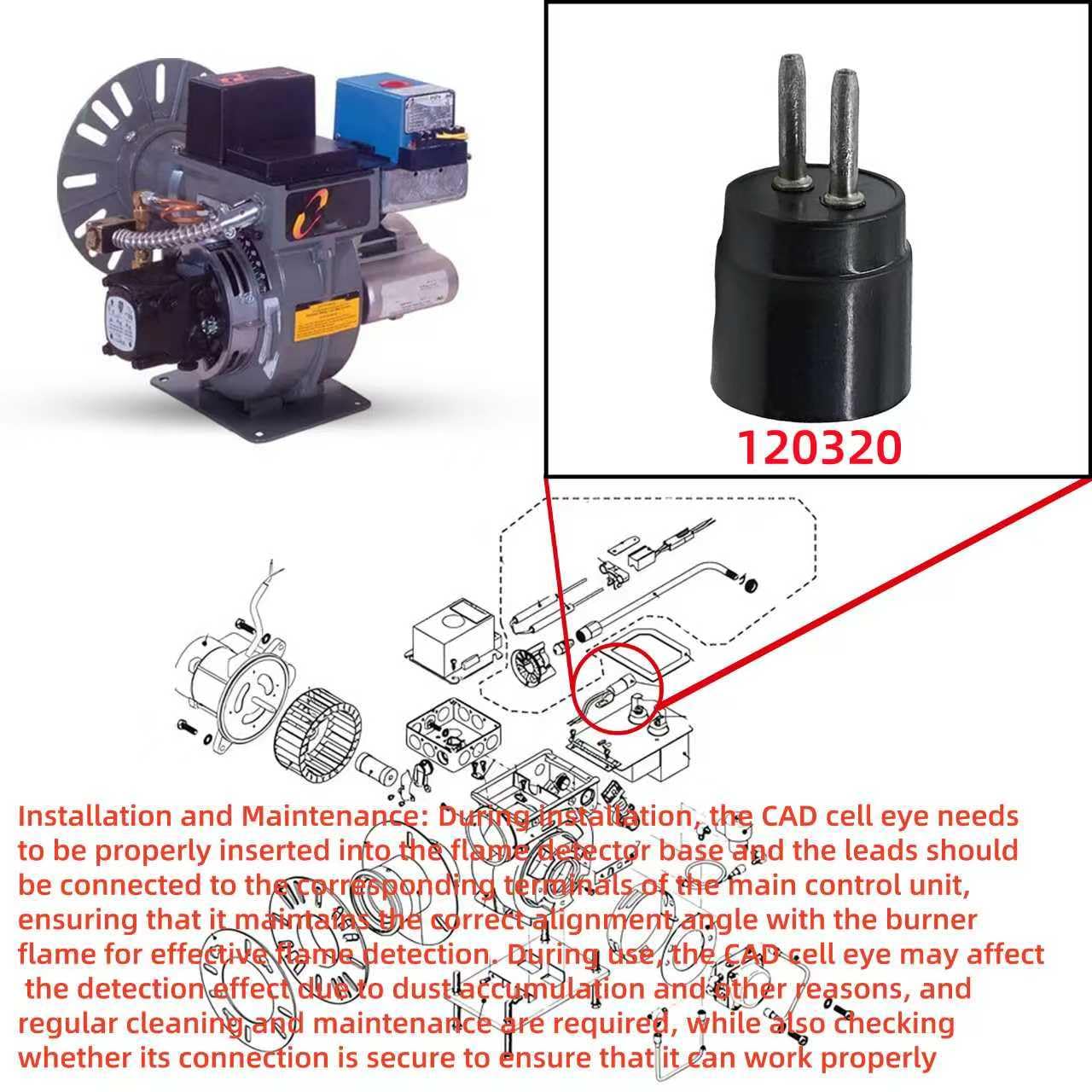

Compact structure: It generally consists of a plug-in photosensitive battery and a socket with factory-installed mounting brackets and leads, which is compact and easy to install in a specific position of the burner for accurate observation of the flame

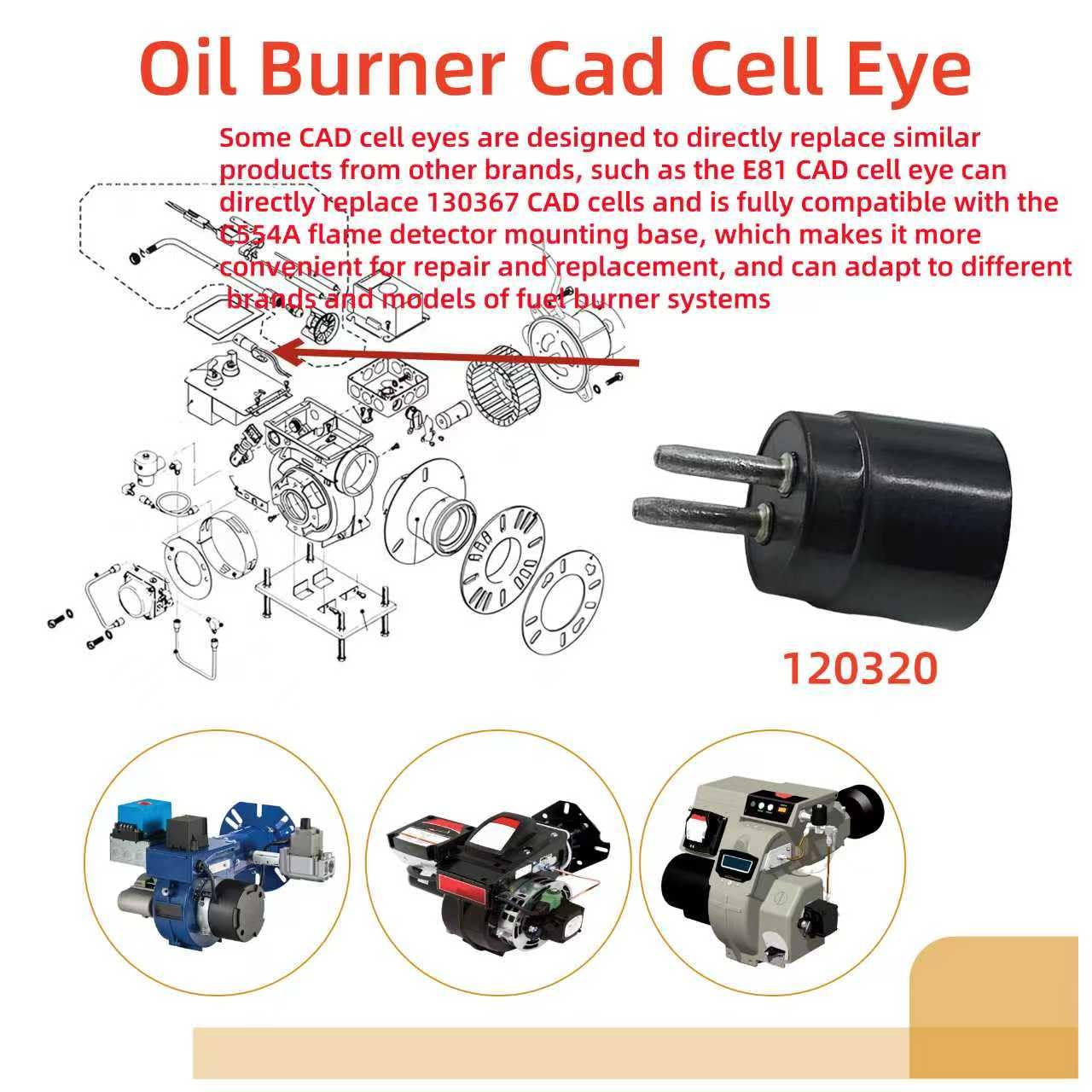

Strong compatibility: Some CAD cell eyes are designed to be a direct replacement for similar products from other brands, such as Westwood's E81 CAD cell eye can directly replace Honeywell's 130367 CAD cells, and is fully compatible with the Honeywell C554A flame detector mounting base, which makes it more convenient for repair and replacement, and can adapt to different brands and models of fuel burner systems
