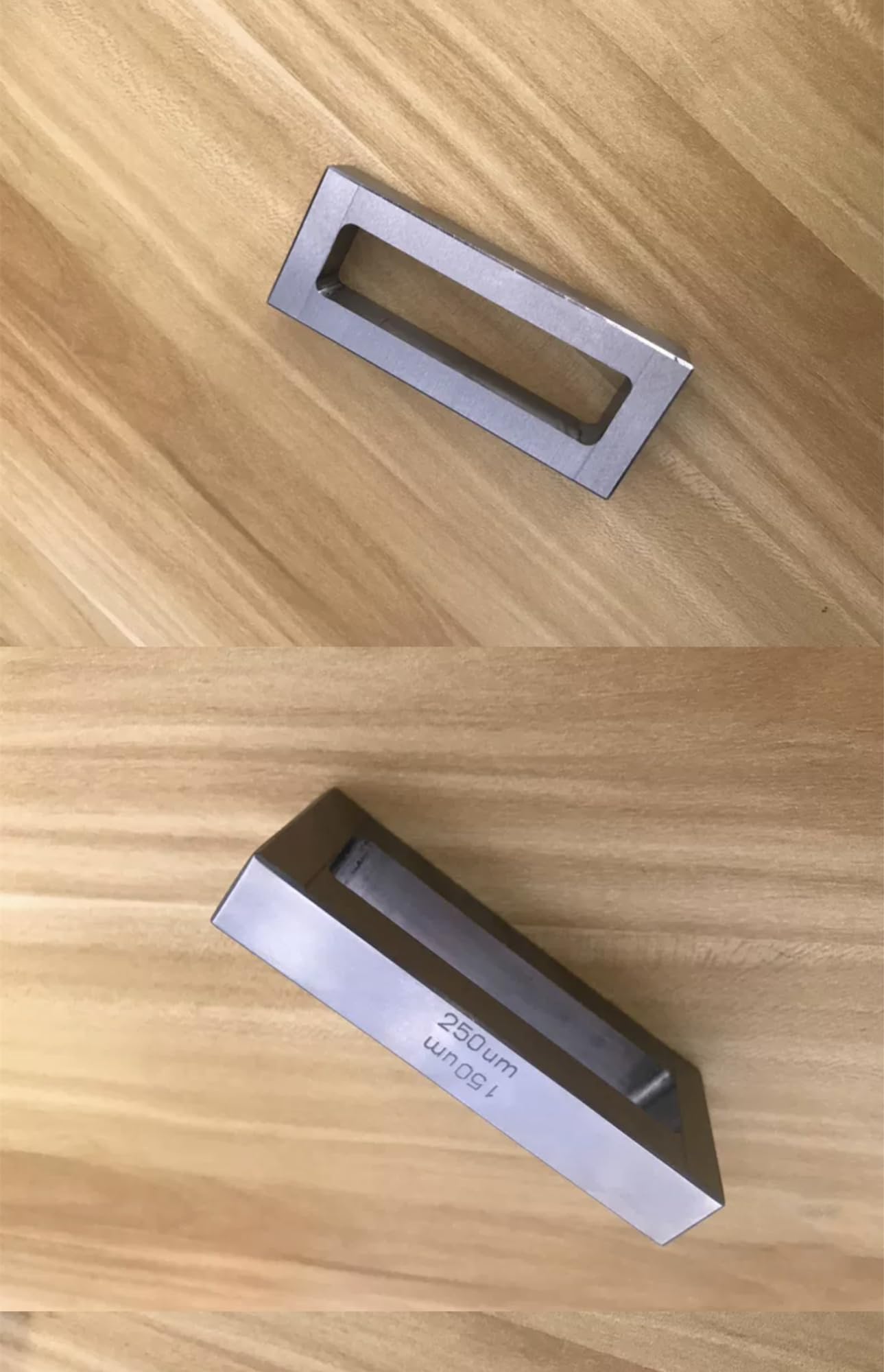

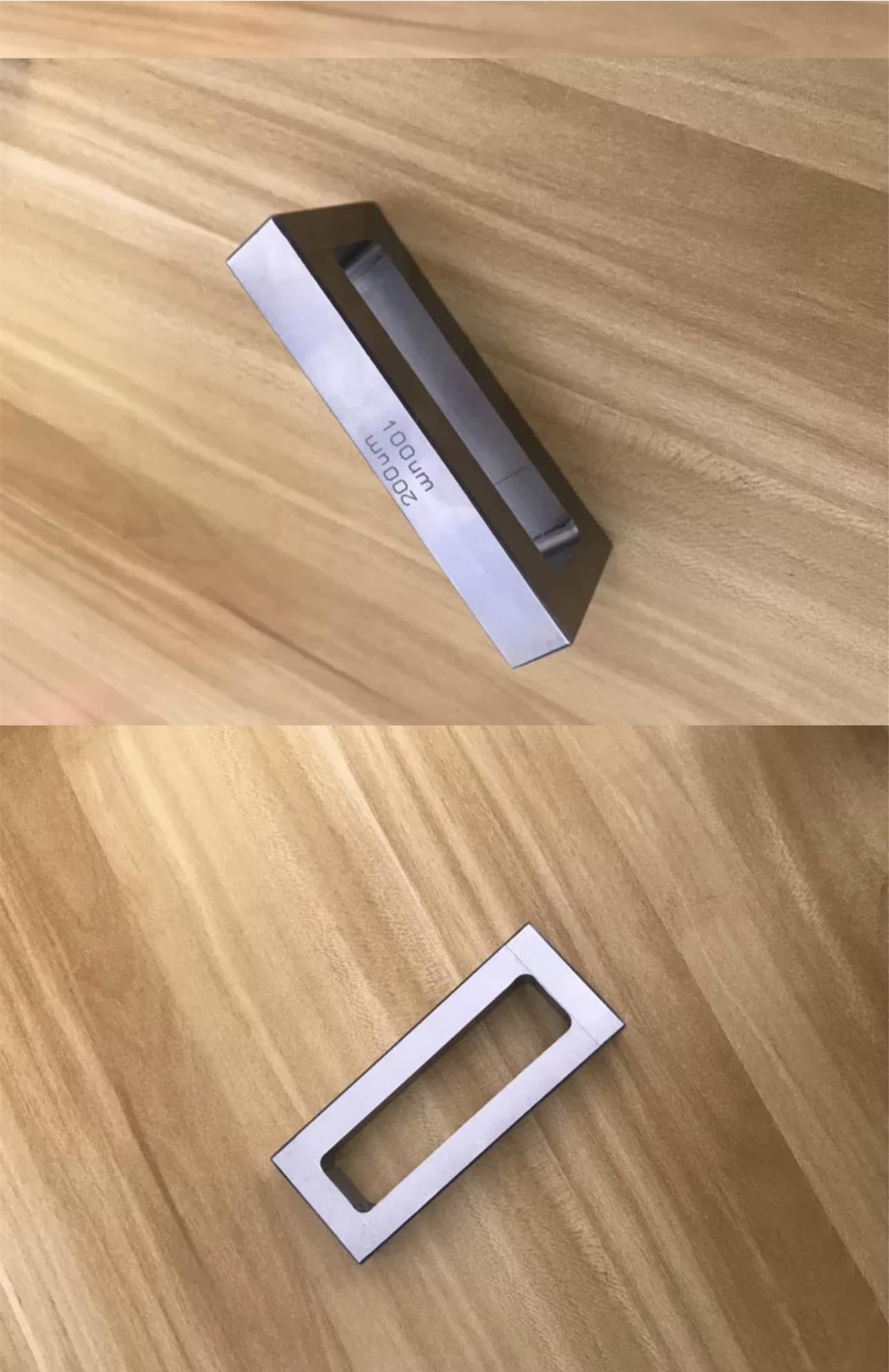

The wet film preparer is used for coating the wet film of the specified thickness to determine the covering rate, color of the sample or prepare the sample plate, etc. Tetrahedral wet film maker is a multi groove film maker designed to coat even paint, binder and similar products on flat substrate.
Our company combines the optional diversity of multi groove film applicator with the precision of fixed groove film applicator in one instrument. It can be applied to water-based, acid and alkaline products.

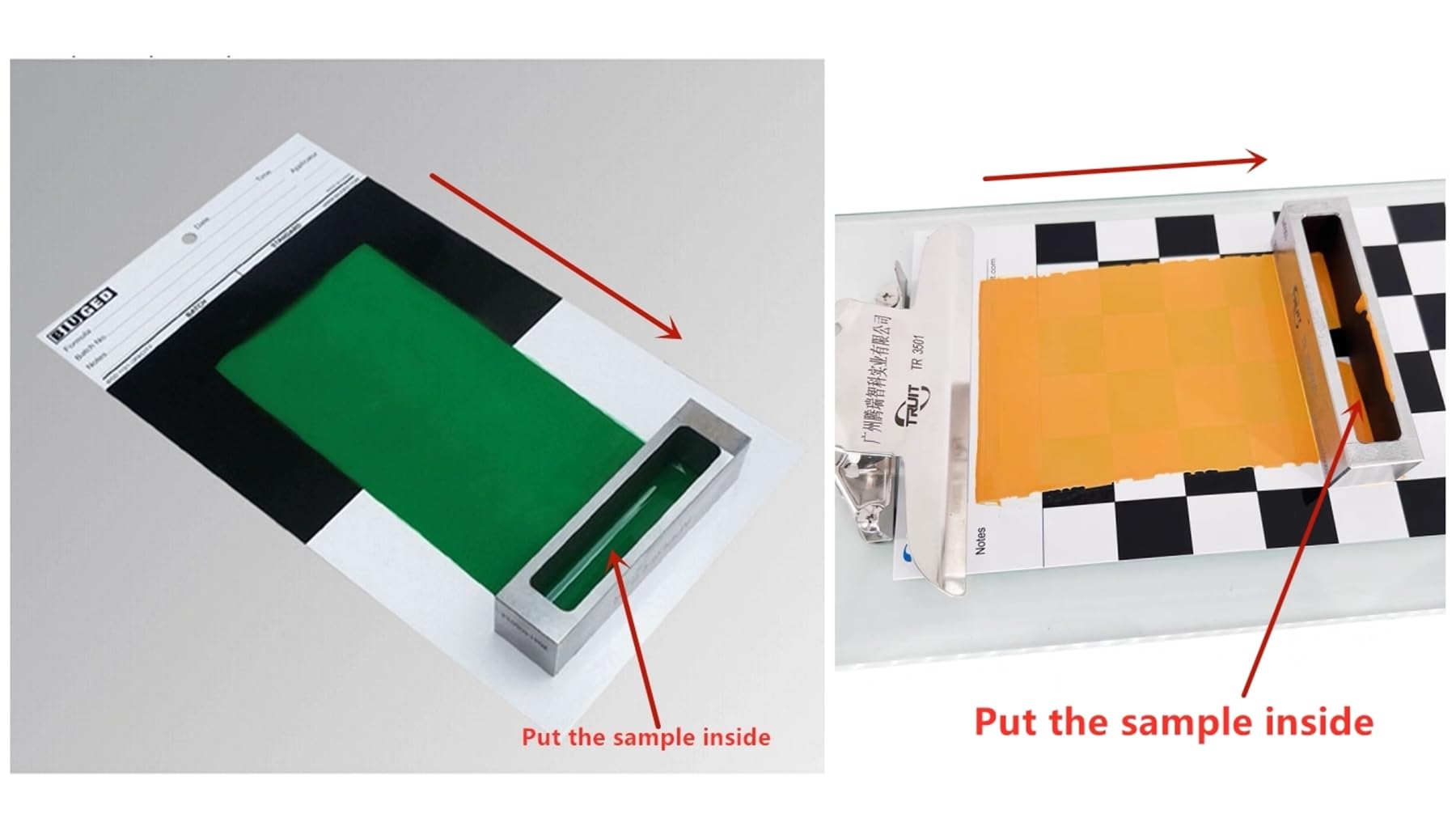

Usage: place the sample plate on the platform and fix it. Do not move it when the preparer slips by. Select the preparer according to the required wet film thickness, place it on the short side of the sample plate, close to the parallel or specified position, then pour the sample in front of the preparer and spin 5ml, press and hold both ends of the sample with your fingers, and slide at the speed of 150mm / S, that is, coating the wet film with the required thickness.

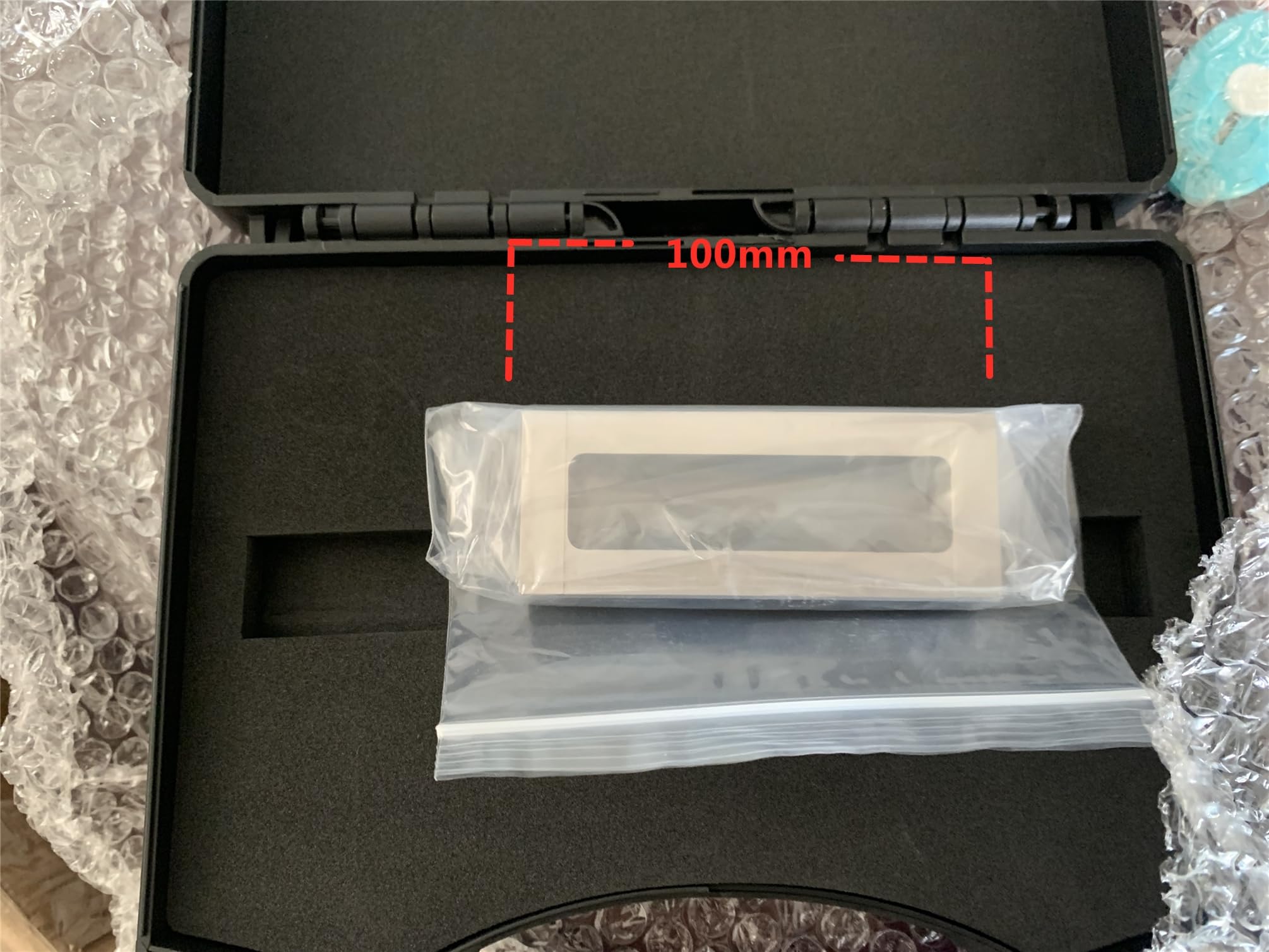

Length: 100mm, effective coating width: 80mm！ Clean and dry with solvent after use, and apply oil on the surface.
Tetrahedral applicator: a multichannel film applicator designed to coat flat substrates with uniform paint, binder, and similar products. Futt combines the optional diversity of multi groove film applicators with the precision of fixed groove film applicators in one instrument. It can be applied to water-based, acid and alkaline products. Futt series gap film applicator is considered to be the highest quality film applicator (we can control the film precision within ± 2 μ m). Because of its simple design and strong structure, it is easy to clean and maintain. ■ all film applicators are inspected by our laboratory before leaving the factory, with certificate of conformity ■ portable plastic packaging box and soft lining can effectively protect the film applicator from damage ■ it is made of imported high-quality wear-resistant and corrosion-resistant stainless steel, ensuring only small tolerance and can be reused Main technical parameters: ■ high grade stainless steel wear-resistant material ■ effective coating width: Universal tetrahedral preparator → 80mm (total length of film applicator: 100mm)
