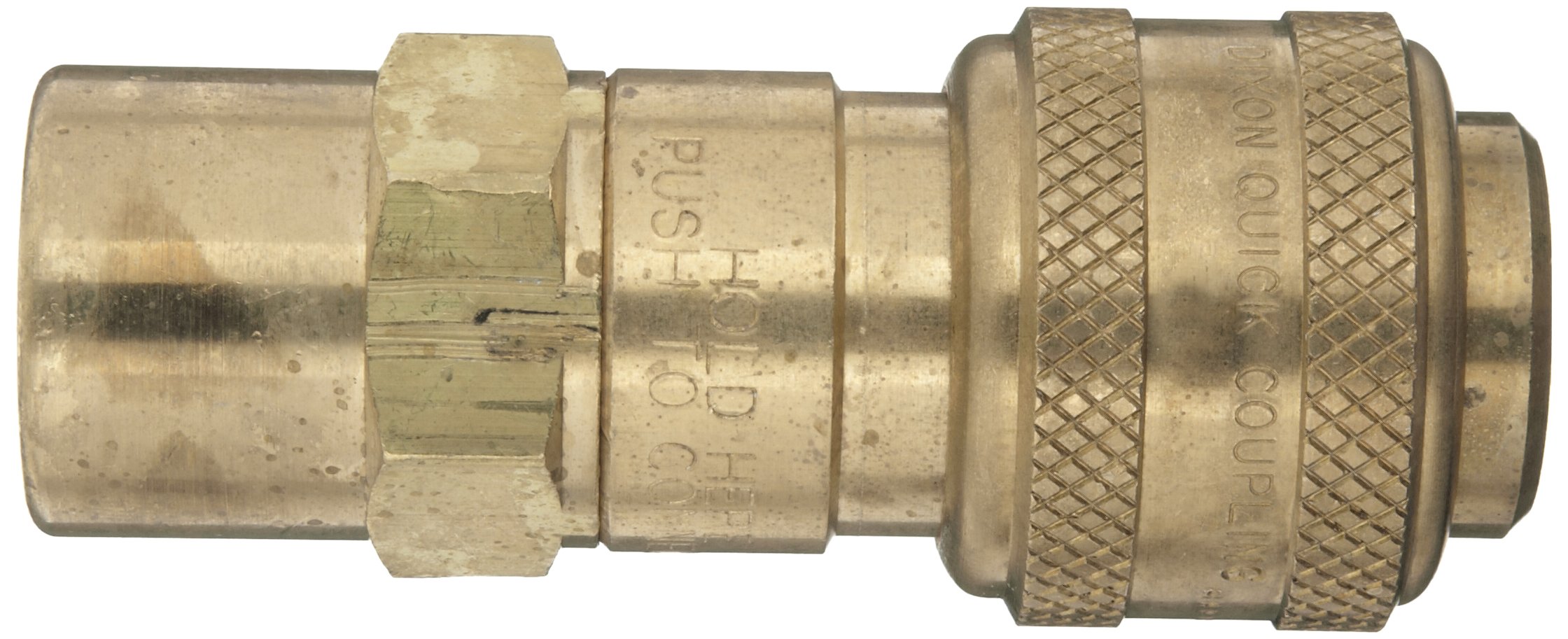

Dixon DCB10 Brass Air Chief Industrial Interchange Quick-Connect Air Hose Fitting, 1/2" Coupling x 1/2" NPT Female

5 / 5

Available Options

Brass, 1/2" Coupling X 1/2" NPT Female, DCB10 ₱2,707.00 Brass, 1/2" Coupling X 3/4" NPT Female, DCB1026 ₱3,884.00 Brass, 3/8" Coupling X 3/8" NPT Female, DCB26 ₱2,018.00

SAVE 23%

₱3,463

₱2,707

+ ₱ 331

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2025-11-27 to 2025-12-04.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

DETAILS

Product ID:

339626

Copy Link

Identifier:

B00835GGHU

Brand:

Dixon

Model:

DCB10

Shipping Weight:

0.6 lbs

Manufacturer:

Dixon Valve & Coupling

Shipping Dimension:

5.98 x 2.48 x 1.18 inches

FEATURES

Air Chief industrial interchange quick connect coupler for connecting directly with a hose with a female NPT end to connect with a male NPT threaded connection

Air Chief Industrial interchange quick connect coupler with a female NPT threaded end

Valved construction automatically shuts off flow when coupler is disconnected.

Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability

Interchanges with MIL-C-4109F/A-A-59439 specifications for quick-disconnect couplings for hoses and portable pneumatic tools, but not water or fluids, at maximum working pressures up to 232 psi (16 bar)

DESCRIPTIONS

This Dixon DCB series brass industrial interchange quick-connect automatic air hose coupler has a female NPT threaded end, and connects to industrial interchange quick connect plugs. The female National Pipe Thread Taper (NPT) threads connect to male NPT-threaded connections. Brass is corrosive resistant, ductile at high temperatures, and has a low magnetic permeability. This fitting's maximum working pressure (MWP) is 300 pounds per square inch (psi) (20.41 bar) in a temperature range from -40 to +250 degrees F (-40 to +121.11 degrees C). This automatic coupler allows one handed, push-to-connect operation and shuts off when disconnected. It meets MIL-C-4109F/A-A-59439 specifications for quick-disconnect coupling halves for hoses and portable pneumatic tools. This coupler is used for air service applications such as pneumatic tools, tire inflation, and general purpose air handling in industrial operations. Specifications Fitting-end connectionAutomatic couplerHose-end connectionFemale NPT threadValveShut-offMaterialBrassMaximum working pressure300 psi (20.41 bar)Operating temperature range-40 to +250F (-40 to +121.11C)FluidAir Hose fittings connect, control, change the direction of, and terminate the flow in piping and hose systems. They are made of brass, stainless steel, galvanized steel, and other materials that resist corrosion, pressure, and wear. Hose fittings have various types of connections, including threaded, barbed, push-to-connect, dry disconnect, and others including those based on internationally-accepted specifications. Hose fittings are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation. Dixon Valve & Coupling Company manufactures pipe and hose fittings and accessories. The company, founded in 1916, is based in Chestertown, Maryland.
