Poynting Omni-496 Dual Band WI-FI Marine Antenna

5 / 5

Product ID:

63849

Identifier:

B07SQ31J6F

Brand:

Poynting

Model:

ANT-PY-00039

Shipping Weight:

2.79 lbs

Manufacturer:

POYNTING

Shipping Dimension:

23.7 x 3.9 x 3.9 inches

Share on Social Media

Share on Facebook

Share on X

Share on Instagram

Share on Tiktok

₱18,458

+ ₱ 1,302

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2026-05-14 to 2026-05-21.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

FEATURES

Dual-band Wi-Fi antenna for 2.4 GHz and 4.9 to 7.2 GHz / Supports Wi-Fi/Wi-Fi6e/Wi-Fi7, 5G 3.3 – 4.2 GHz frequencies with a max gain of 8 dBi

Compliant with IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac wireless standards

Connector Type: N-Type (F)

Purpose built antenna for marine and coastal applications

UV and saltwater resistant Robust and weather resistant

Mounting bracket: Marine Adapter (1'' -14 TPI) & L-bracket (Ø30-50mm Pole)

Product dimensions 560 mm x 75 mm / Weight: 0.57 kg

Salt Spray: MIL-STD 810F/ASTM B117 / Water ingress protection ratio/standard: IP 68

DESCRIPTIONS

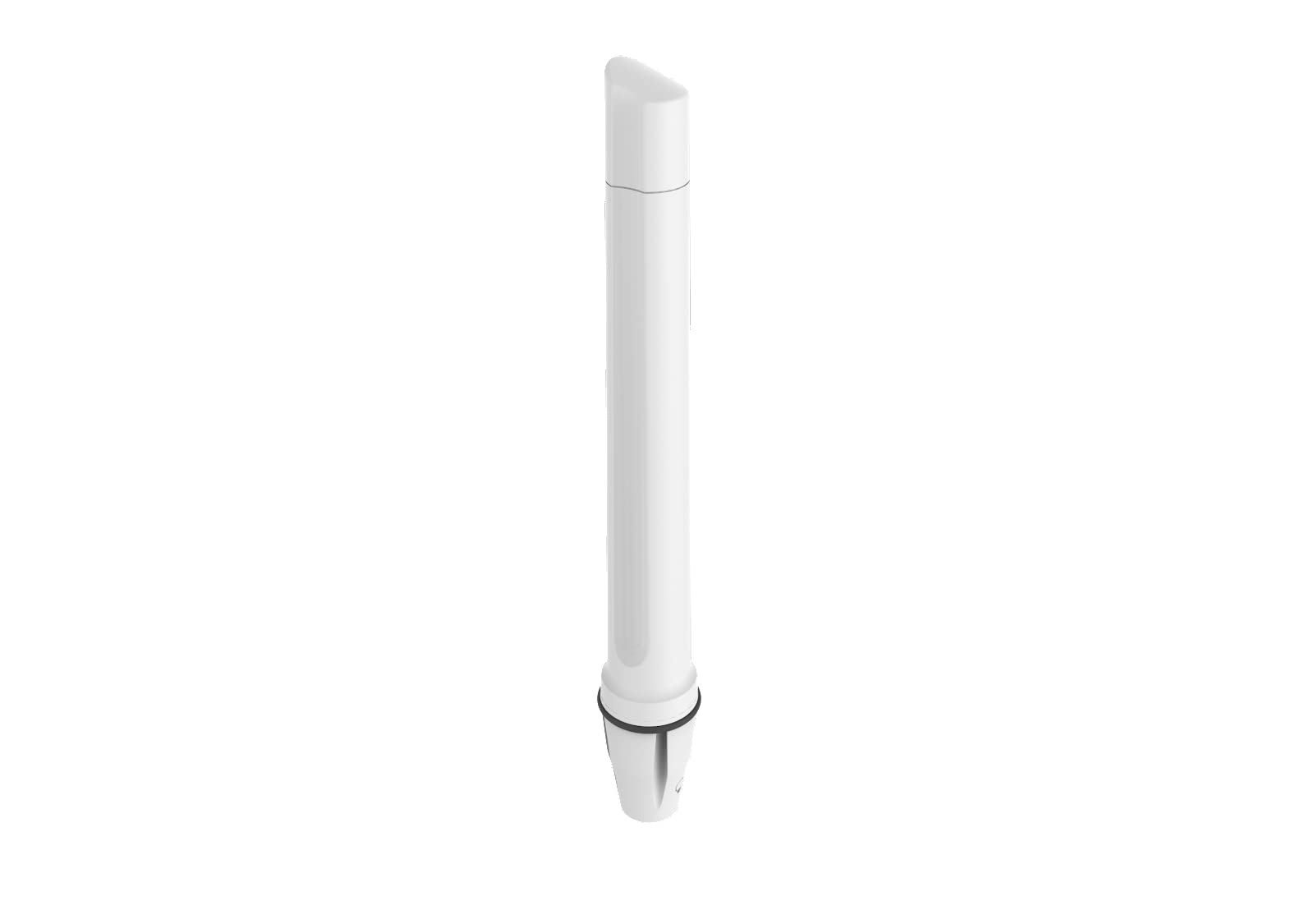

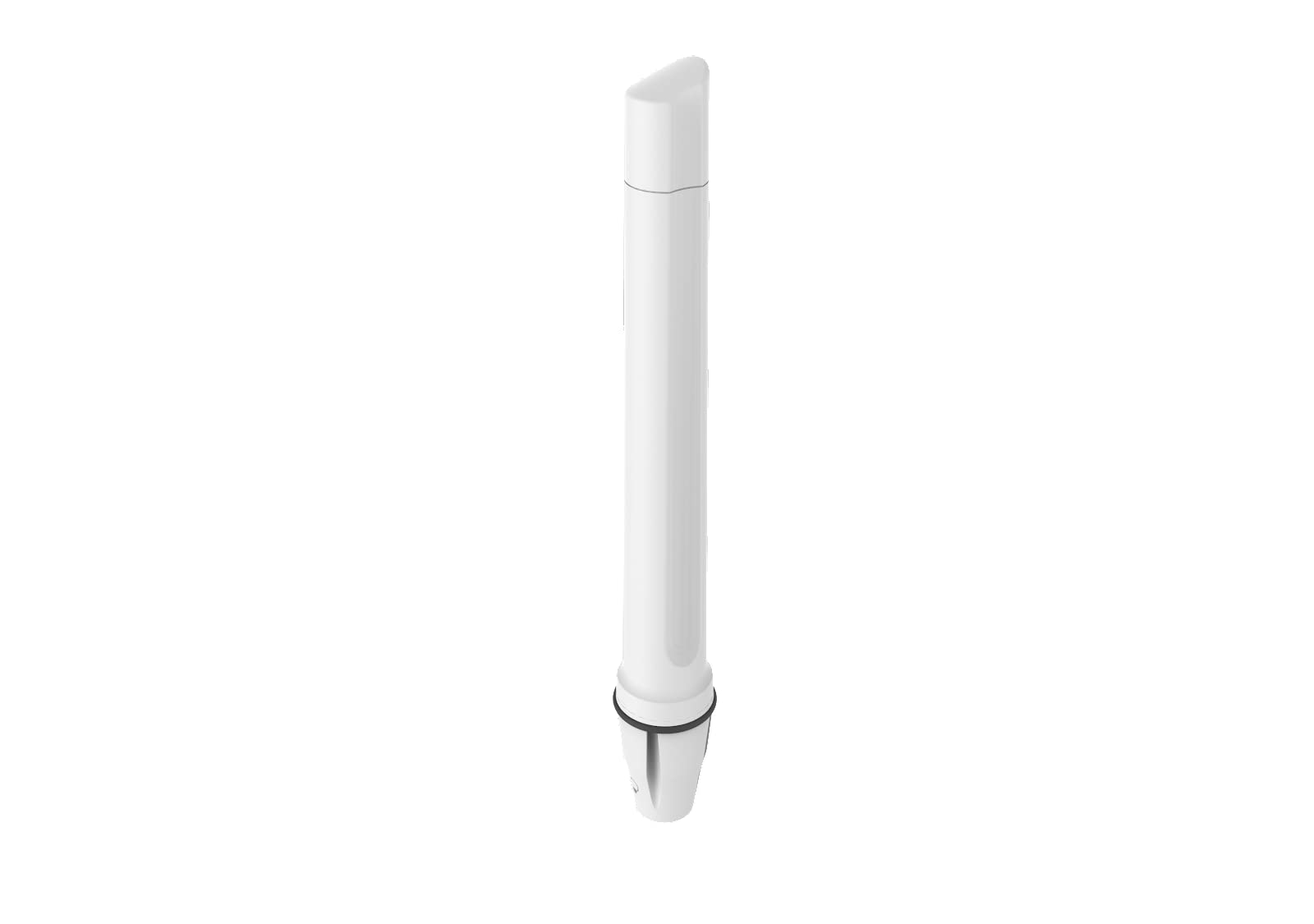

The OMNI-496 is a dual-band Wi-Fi omni-directional antenna, developed by Poynting Antennas. The antenna can connect to any Wi-Fi access point whether it is older Wi-Fi technology or new dual band 802.11ac enabled Wi-Fi technology. The antenna can resolve channel saturation and provide the ultimate in Wi-Fi performance and flexibility. The OMNI-496 is an IP68 marine version of its urban, industrial & commercial counterpart; the OMNI-296. The antenna operates in two frequency bands 2.4 GHz and 5 GHz, offering excellent utilization of the radio spectrum. The antenna has a maximum gain of 6 dBi at 2.4 GHz band and 7.5 dBi in the 5 GHz band, which offers the best performance with reliable connections. The antenna has a N-Type female connector at its base which can be terminated to a cable of the desired type and length.
