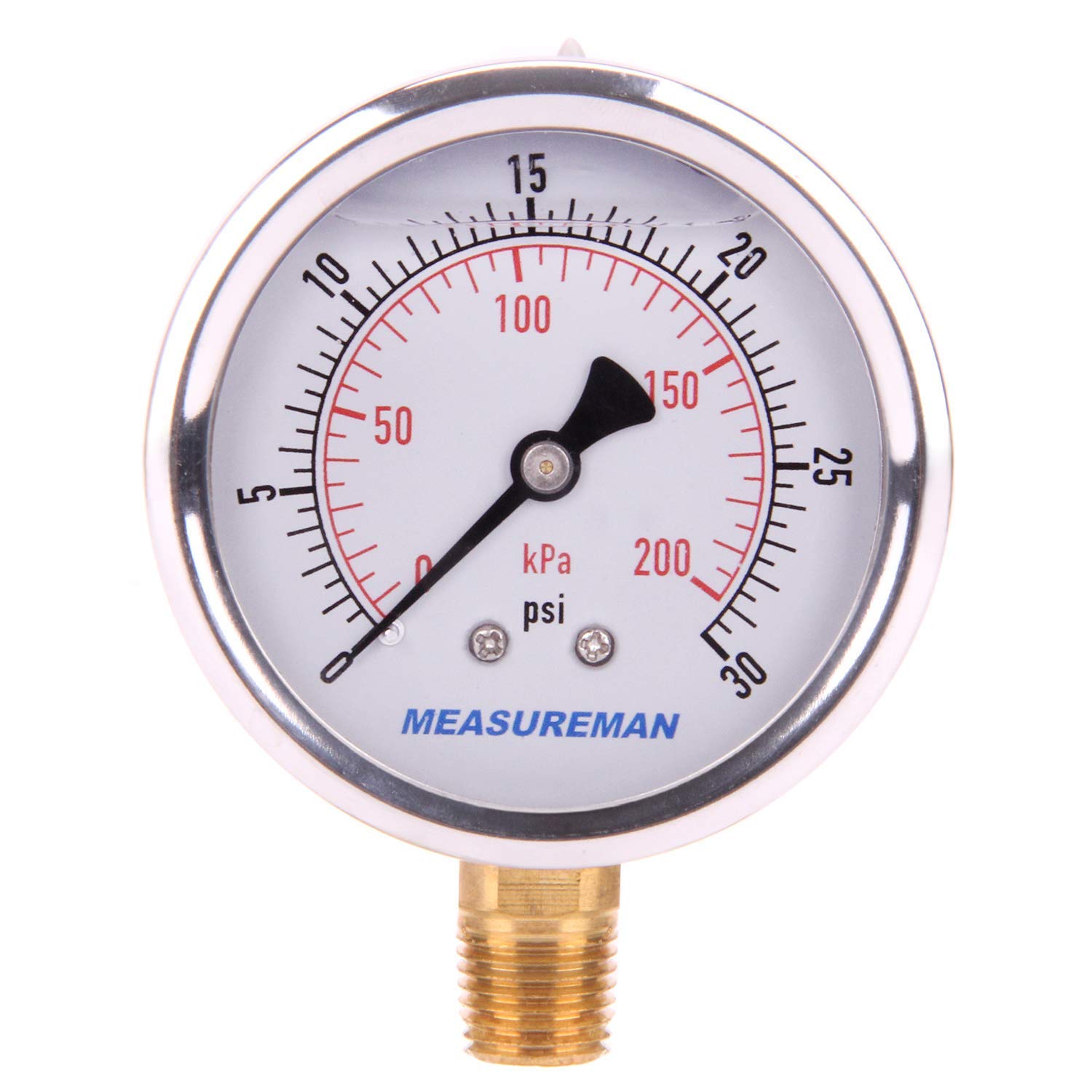

MEASUREMAN 2-1/2" Dial Size, Glycerin Filled Pressure Gauge, 0-30psi/kpa, 304 Stainless Steel Case, 1/4" NPT Lower Mount 2 Pack

3.8 / 5

Available Options

0-30 Psi / 2PCS, MA200 ₱1,596.00 0-300 Psi / 2PCS ₱1,596.00 2-1/2 Inch ₱1,505.00

SAVE 35%

₱2,327

₱1,596

+ ₱ 504

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2026-05-16 to 2026-05-23.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

DETAILS

Product ID:

1670714

Copy Link

Identifier:

B0C33781NM

Brand:

MEASUREMAN

Model:

MA200

Shipping Weight:

0.86 lbs

Manufacturer:

MEASUREMAN

Shipping Dimension:

3.62 x 2.83 x 2.76 inches

FEATURES

For pressure measuring of gas, liquid which is not corrosive to brass, also where vibration and pulsation is a concern.

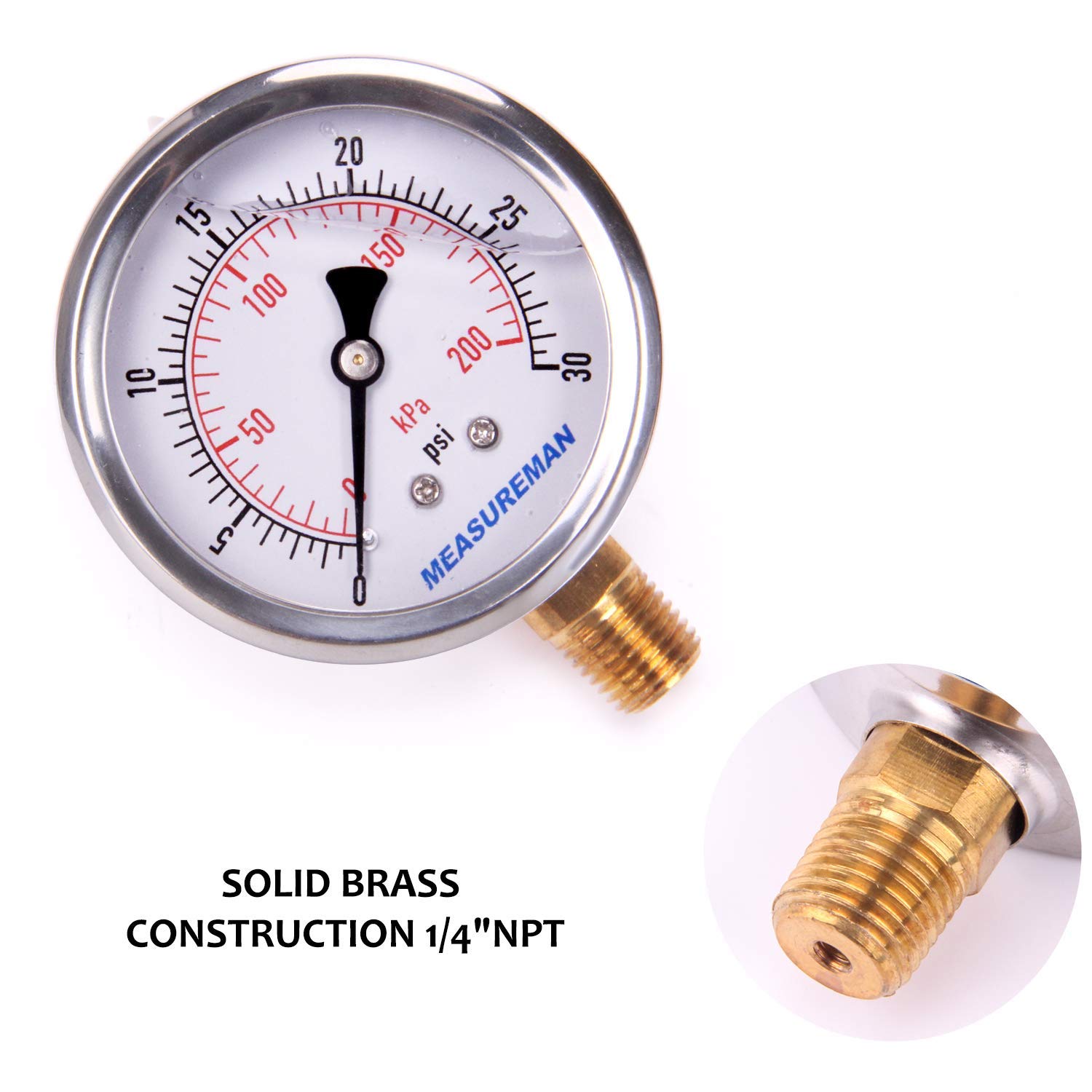

2-1/2" dial size, 1/4"NPT lower mount

Pressure range: 0-30psi/kpa dual scale

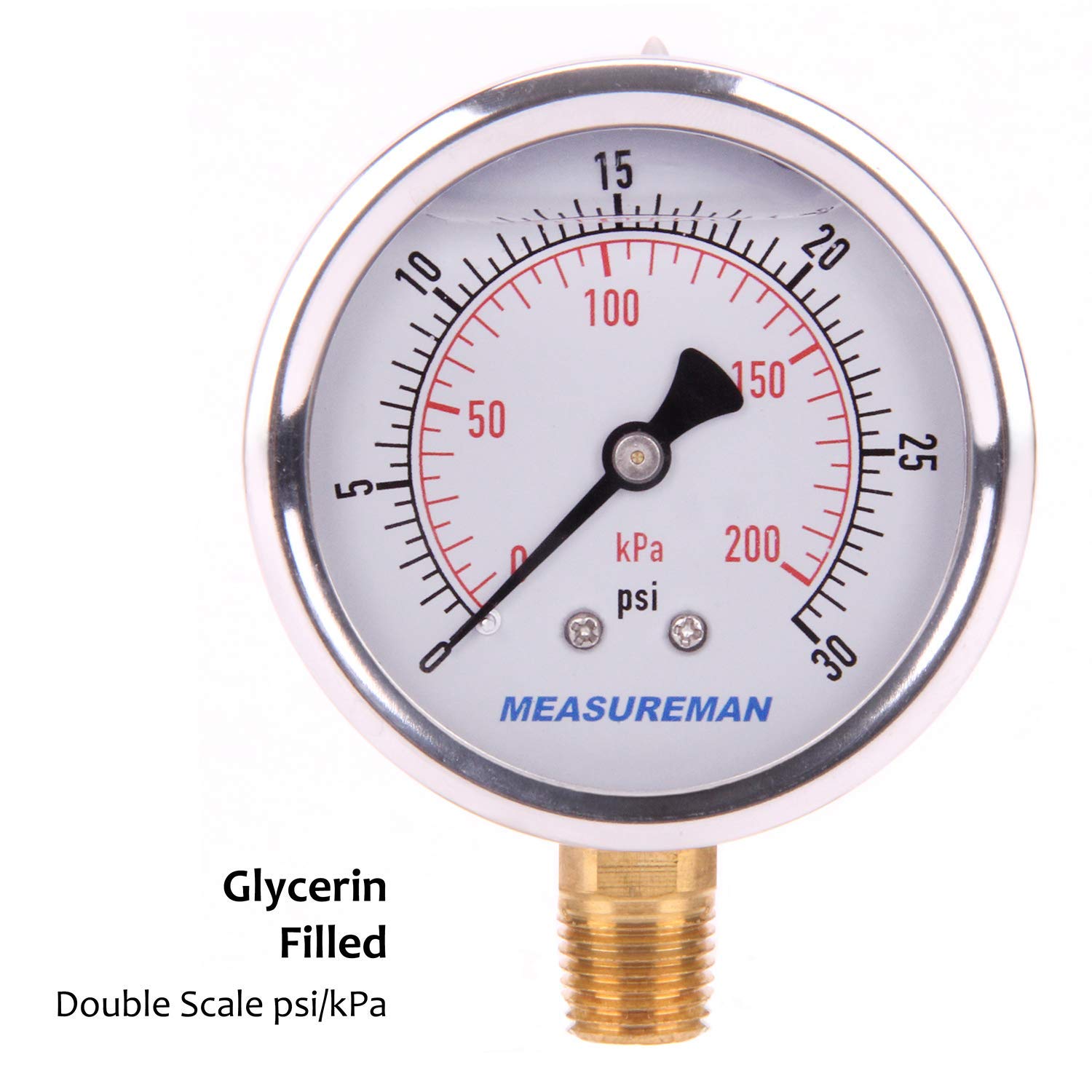

Stainless steel case, brass wetted parts, glycerin filled

Accuracy: +/-3-2-3%

DESCRIPTIONS

Description This liquid filled pressure gauge is designed for media which is not corrosive to brass, also where vibration and pulsation is a concern. Dial size: 2-1/2" Process connection: 1/4"NPT lower mount Case: 304 stainless steel case and crimped ring Window: Polycarbonate Dial plate: aluminum, with pointer stop Pointer: Aluminum, black, DIN style Boudon tube: Copper alloy Movement: Brass Connection: Brass, one piece design Oil cap: rubber, gray color Filling: Glycerin filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge. IP class: IP67 Accuracy: +/-3-2-3% Range: 0-30psi/kpa dual scale, psi outside, kpa inside Working temperature:-4 to 140 deg F/-20 to 60 deg C Ambient temperature:140 deg F/60 deg C maximum Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
