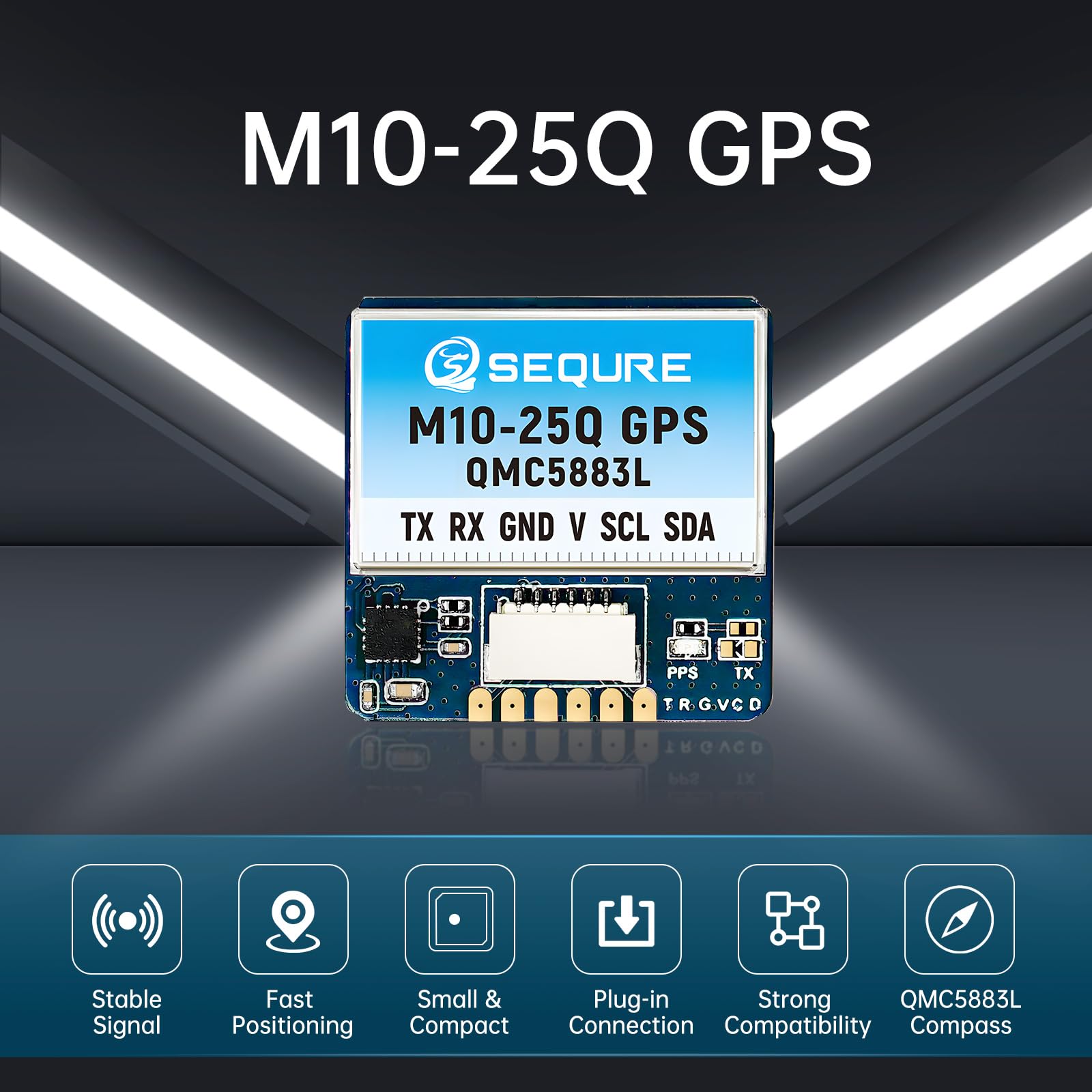

SEQURE M10-25Q FPV GPS Module with QMC5883L Compass Dual Protocol Upgraded 10th Generation Chip Fast Satellite Positioning for FPV Racing Drones

4.7 / 5

Available Options

Blue, M1025Q ₱2,277.00 Black, M1012 ₱2,044.00 Blue, M1018 ₱2,134.00

SAVE 26%

₱3,032

₱2,277

+ ₱ 150

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2025-11-13 to 2025-11-20.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

DETAILS

Product ID:

195005

Copy Link

Identifier:

B0D7Q27CT1

Brand:

SEQURE

Model:

Shipping Weight:

0.02 lbs

Manufacturer:

SEQURE

Shipping Dimension:

4.49 x 3.19 x 0.28 inches

FEATURES

【Upgraded】 Using the new 10th generation chip design for UBLOX protocol, fast positioning in any place. 10Hz Output frequency, lower power consumption.

【Mini & Lightweight】 Small size, wide application, compatible with 5 inch and above UAV.

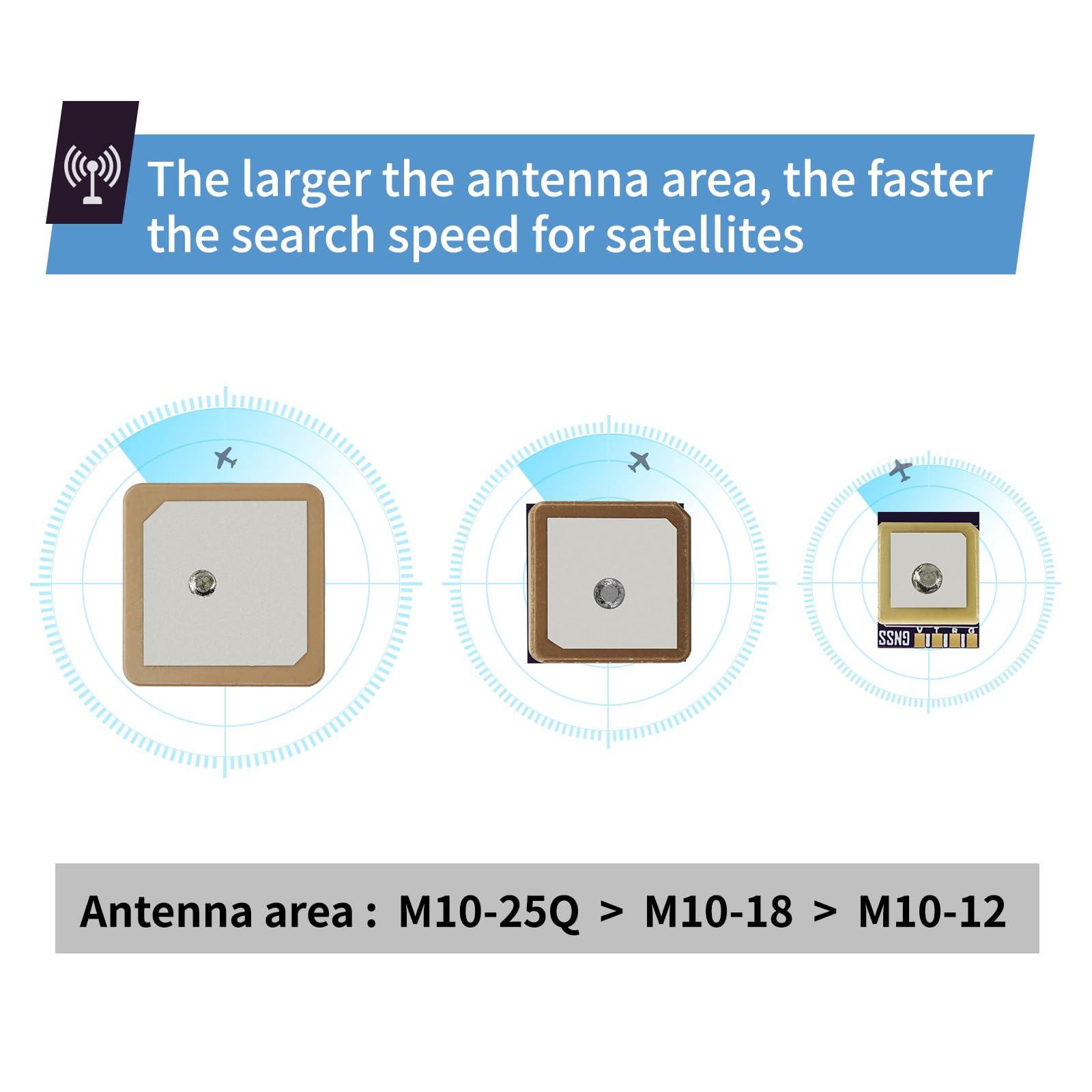

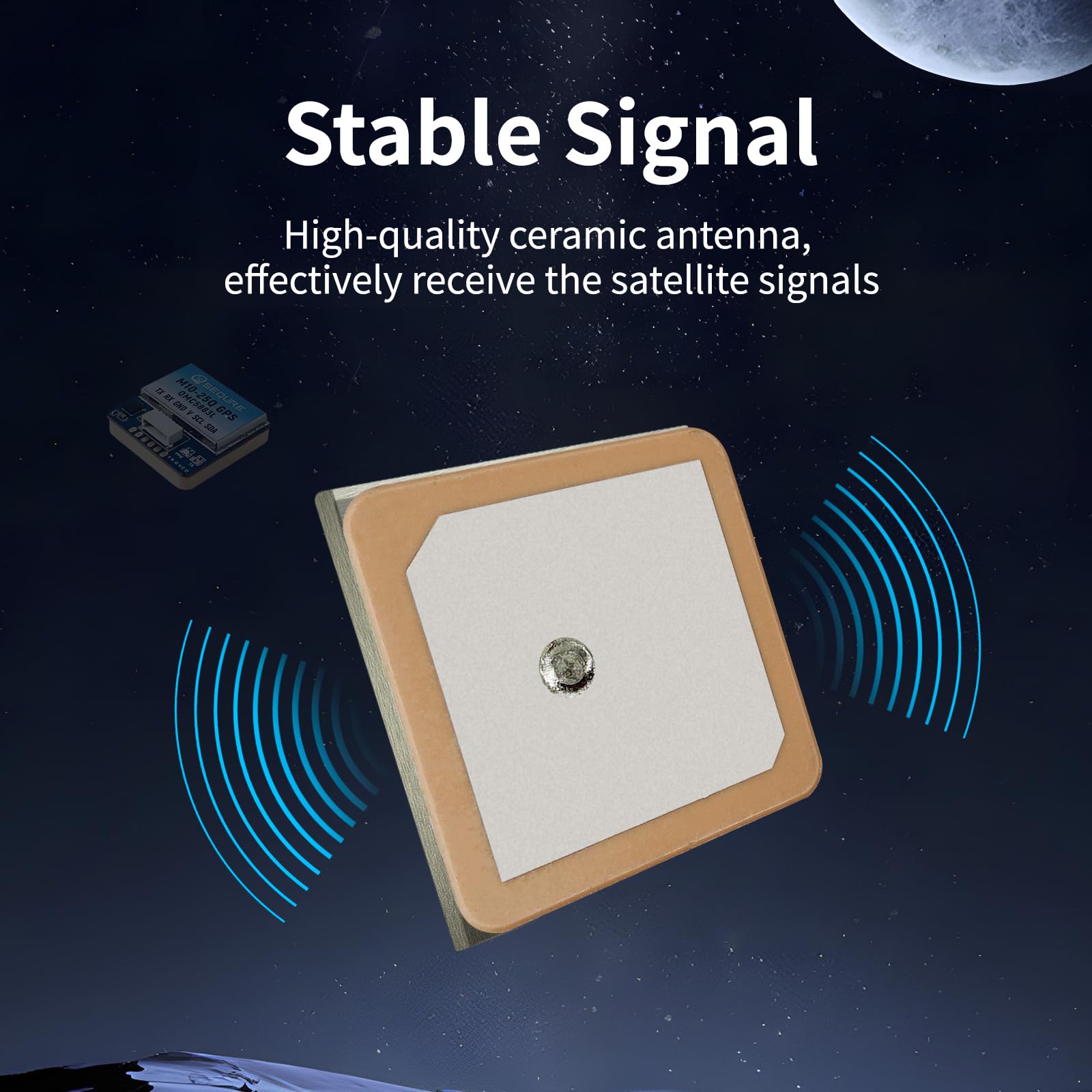

【Stable Signal】 Equipped with ceramic antenna and externally expanded PCB design, ensure fast and effective satellite signals.

【More Position Modes】 Support GPS, GLONASS, BDS, GALILEO, SBAS, and QZSS. You can choose it according to your project requirements.

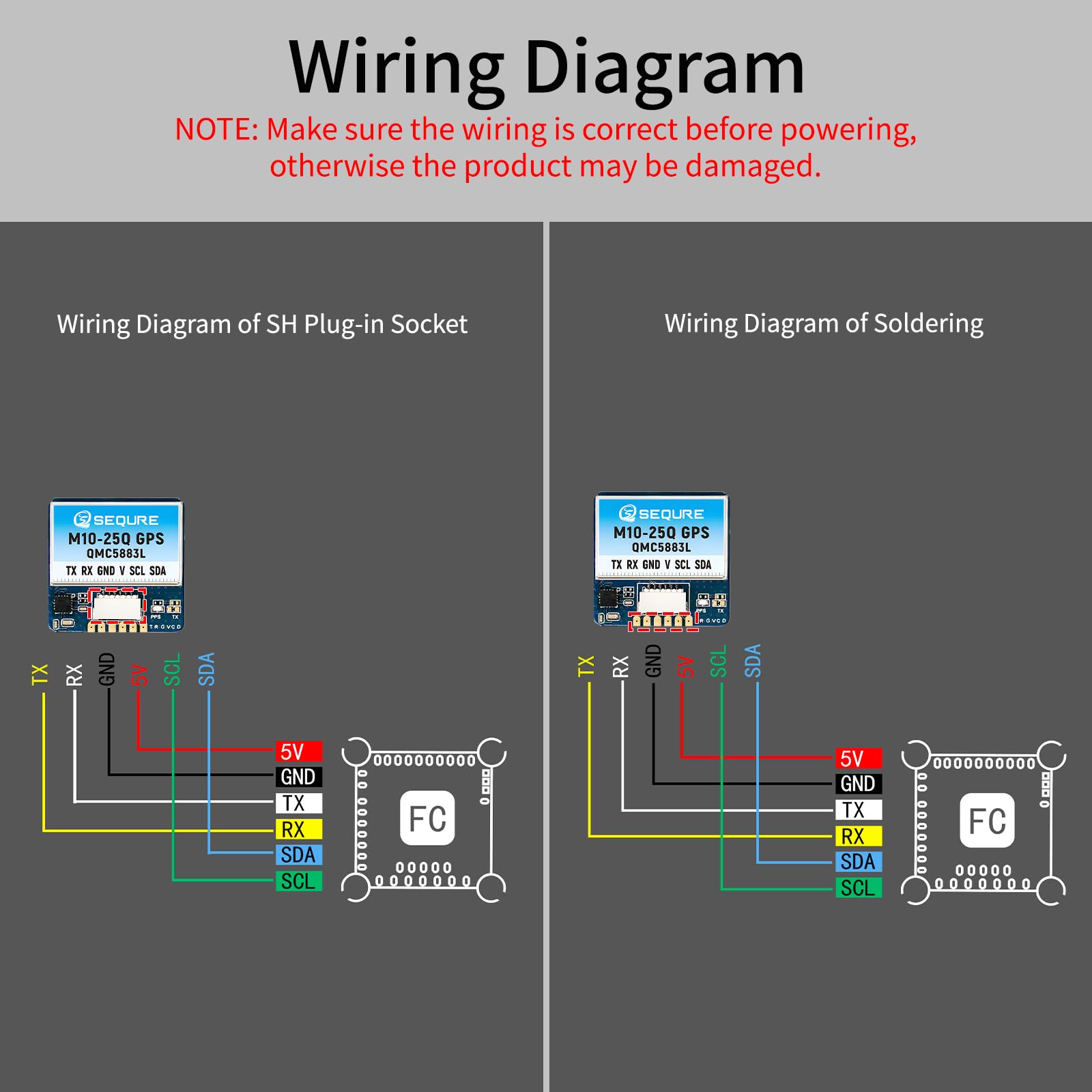

【Plug & Play】 2 connection methods. Plug and play, no need to solder. The other is soldering. Convenient and easy to use.

【QMC5883L Compass】 Quickly identify the direction to ensure fast and accurate positioning.

DESCRIPTIONS

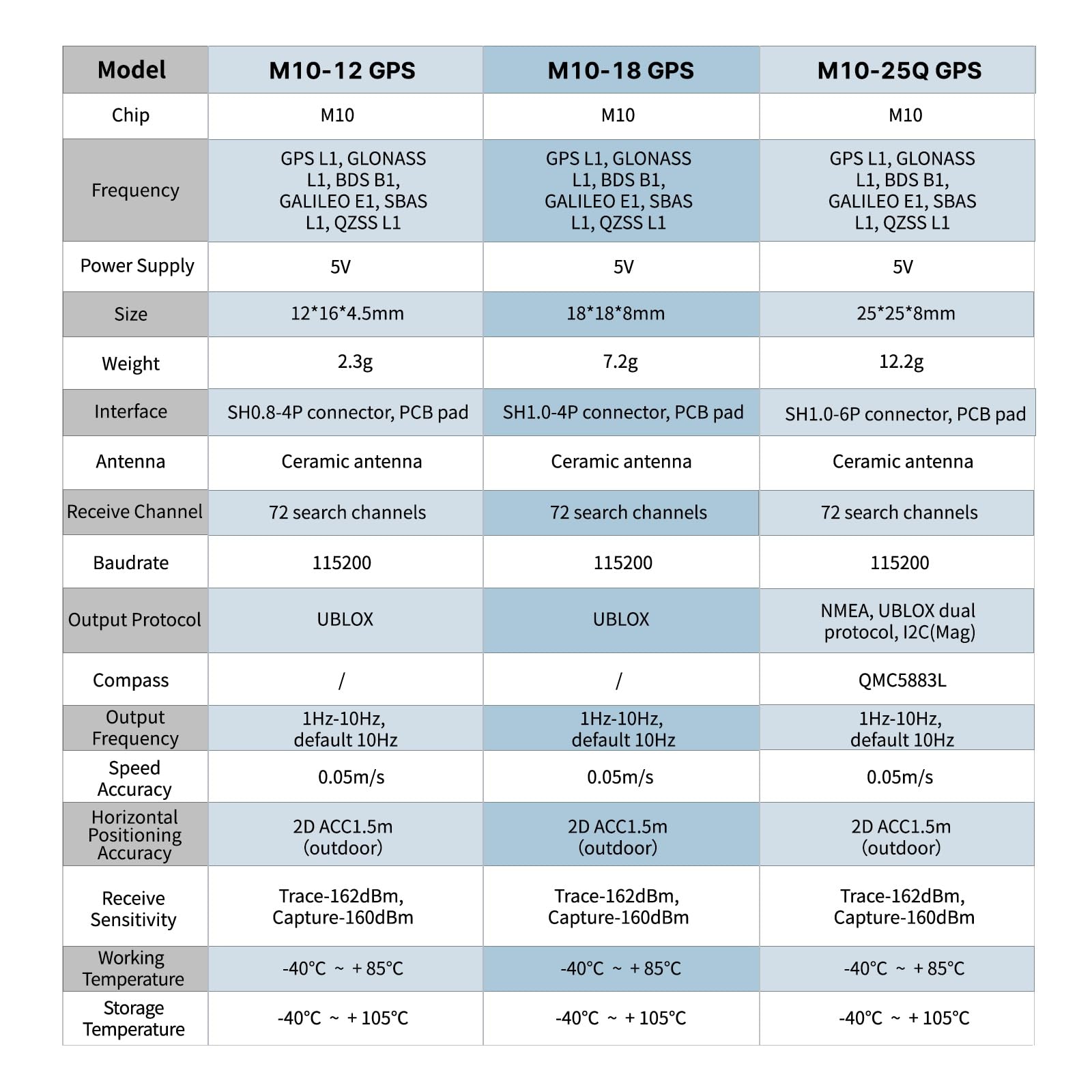

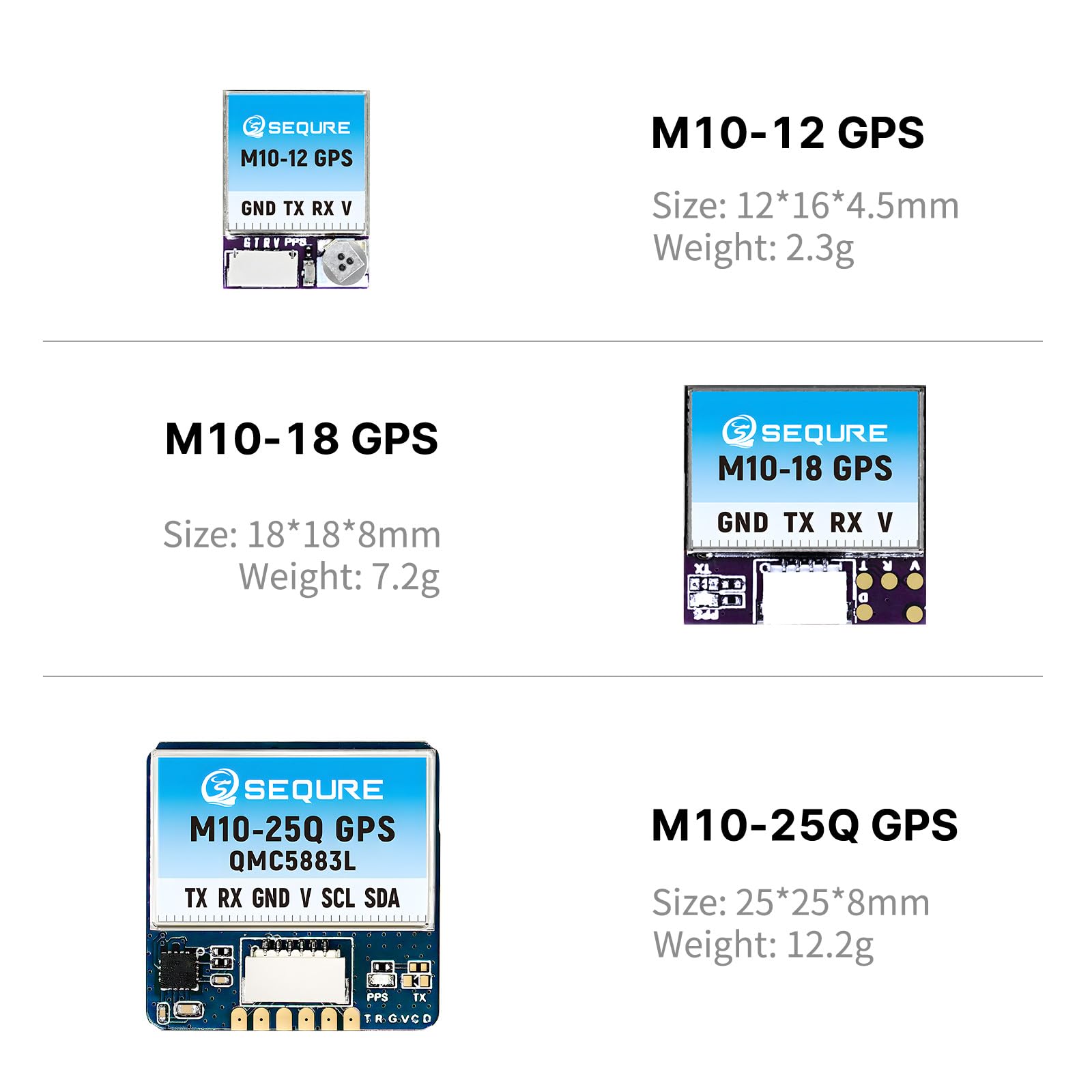

SEQURE M10-25Q GPS Module for UBLOX & NEMA Dual Protocol with QMC5883L Compass For FPV Racing Drones Fixed Wing UAV Specification: Model: M10-25Q GPS Chip: M10 Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1 Power supply: 5V Size: 25*25*8mm Weight: 12.2g Interface: SH1.0-6P connector, PCB pad Antenna: Ceramic Antenna Receiving channels: 72 search channels Baud rate: 115200 Output protocol: NMEA, UBX dual protocol, I2C(Mag) Compass: QMC5883L Output frequency: 1Hz-10Hz, default 10Hz Speed accuracy: 0.05m/s Horizontal positioning accuracy: 2D ACC1.5m（Outdoor） Receive sensitivity: Trace-162dBm, capture-160dBm Working temperature: -40℃ ～ + 85℃ Storage temperature: -40℃ ～ + 105℃ Features: M10-25Q GPS is recommended for INAV firmware. Adopts 10th generation chip for UBLOX and NMEA dual output protocol, and max 10Hz output frequency, lower power consumption, and fast positioning. High-quality ceramic antenna with strong performance and effective reception of satellite signals. Miniaturized and multi-specification design, easy to install, suitable for drones of various sizes. 2 connection methods: direct plug-in and soldering pad, with strong compatibility.
