HT-225 Resiliometer Concrete Rebound Test Schmidt Swiss Hammer

5 / 5

Product ID:

351627

Identifier:

B0BBCQZPB9

Brand:

Canglan Technology

Model:

Shipping Weight:

0 lbs

Manufacturer:

Canglan Technology

Shipping Dimension:

0 x 0 x 0 inches

Share on Social Media

Share on Facebook

Share on X

Share on Instagram

Share on Tiktok

Price of this item is not available.

FEATURES

Non-Destructive Testing: The HT-225 Resiliometer uses the rebound principle to determine the hardness and strength of concrete structures without damaging or altering the concrete.

Reliable Results: The results obtained from the HT-225 Resiliometer are highly correlated with the compressive strength of concrete, making it a reliable tool for testing concrete strength.

Portable Design: The Resiliometer is a small, portable device that can easily be carried to the testing location.

Easy to Use: The Resiliometer is simple to operate and does not require any special skills or training. Simply press the plunger against the concrete surface and the instrument will provide a reading of the rebound value.

Durable Construction: The Resiliometer is constructed with high-quality materials that can withstand harsh conditions and provide long-lasting durability.

DESCRIPTIONS

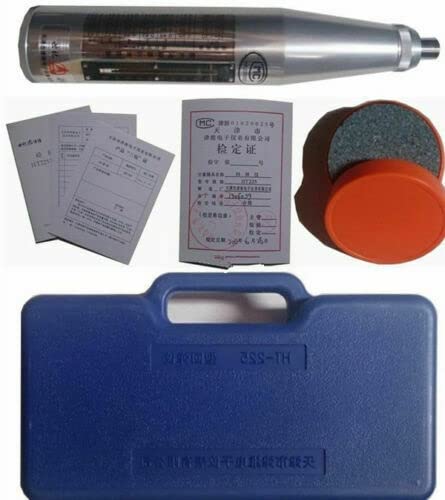

HT-225 Concrete Test Hammer Model: HT-225 Name: Concrete Test Hammer Explanation Consistent withGB/T9138-1988 standards and JJG817-93 statutes and JGJ/T23-2001 technical regulations. HT-225 Concrete Test Hammer generally applied to building components, bridges and all kinds of concrete components (panels, beams, columns, bridges) strength. Features 1) Center guide rod using imported materials, high precision, wear-resistant; 2) Use of super-hard aluminum shell to avoid on-site work injury apparatus, to extend the service life; 3) Pointer slider with external spring ring structure, both convenient for the friction adjustment,and ensures that the pointer shaft and pointer slider friction uniform, to ensure the accuracy of the instrument.Peer-products is relatively high accuracy, quality and cheap, long service life. Technical Data Measuring ranges: 10-60MPa Impact energy: 2.207J（0.225Kgf.m) Spring extension: 75mm The static friction of pointer slider: 0.5N±0.8N Radius of spherical tip : 25mm±1mm The average rebound values on steel anvil: 80±2 Housing dimensions: Φ54*278mm Weight: ≈1Kg Incidental Items with Instrument 1. HT-225 Concrete Test Hammer 2. Desiccant 3. Millstone 4. Technical Information with Instrument 5. Manual of HT-225 Concrete Test Hammer 6. Rugged carrying case with key
