3 HP SPL Air Compressor Motor, 3450 RPM Electric Motor, 115/230V, 18/9A Single Phase, 56 Frame 5/8" Keyed Shaft, Commercial-Duty CCW Rotation, 1.88" Shaft Length for Air Compressors

4 / 5

Available Options

Black, 3HP, 108069-5334-1447383191 ₱53,248.00 Black, 1.5 HP, 108071-5334-1456258991 ₱25,260.00 Black, 3/4HP, 108072-5334-1459196481 ₱26,766.00 Black, 3HP SPL, 132720-5334-1645084881 ₱24,255.00

₱24,255

+ ₱ 14,112

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2025-11-27 to 2025-12-04.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

DETAILS

Product ID:

330626

Copy Link

Identifier:

B0BZD5HN5Q

Brand:

Cuilvu

Model:

132720-5334-1645084881

Shipping Weight:

31.19 lbs

Manufacturer:

Cuilvu

Shipping Dimension:

15.51 x 11.1 x 9.61 inches

FEATURES

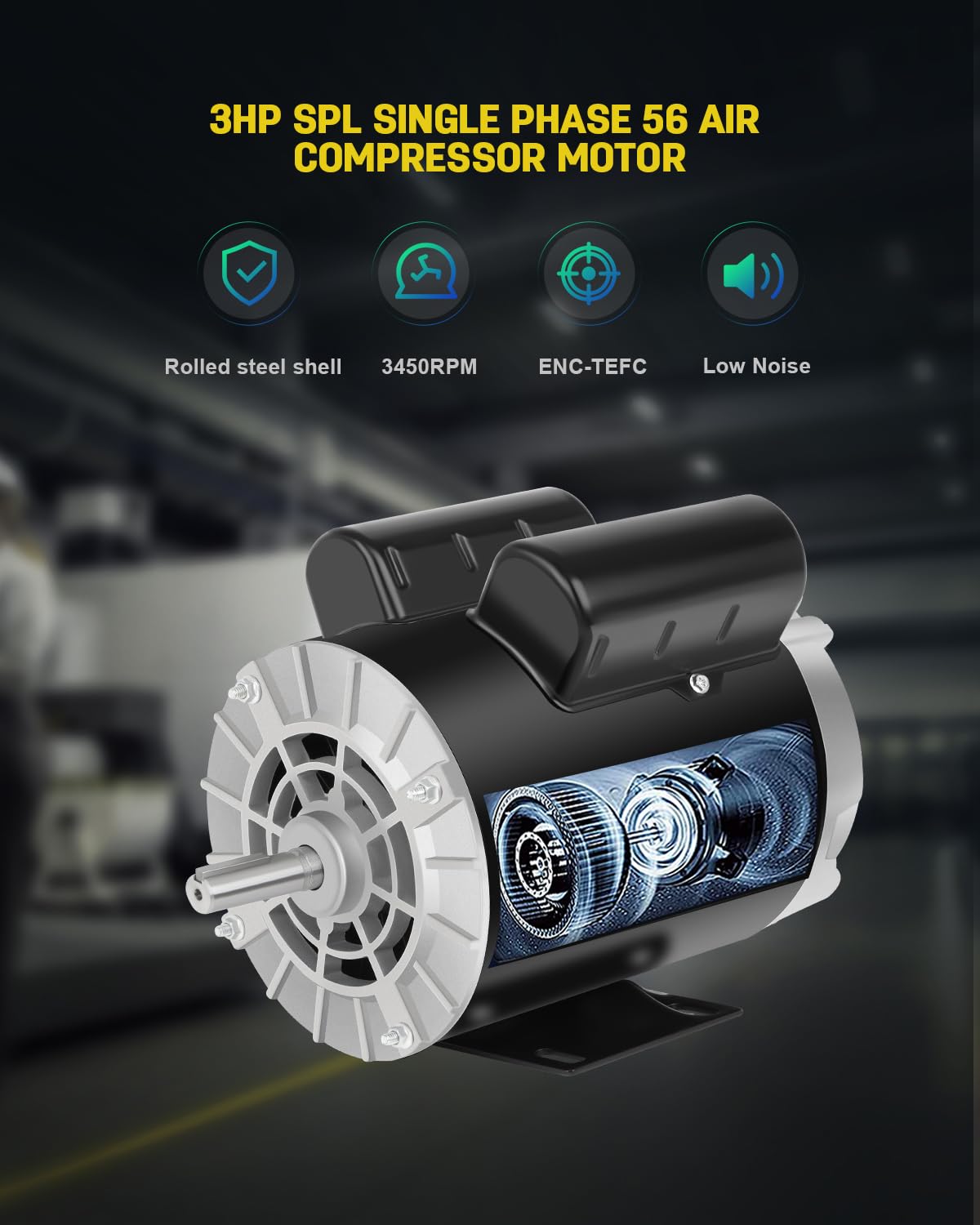

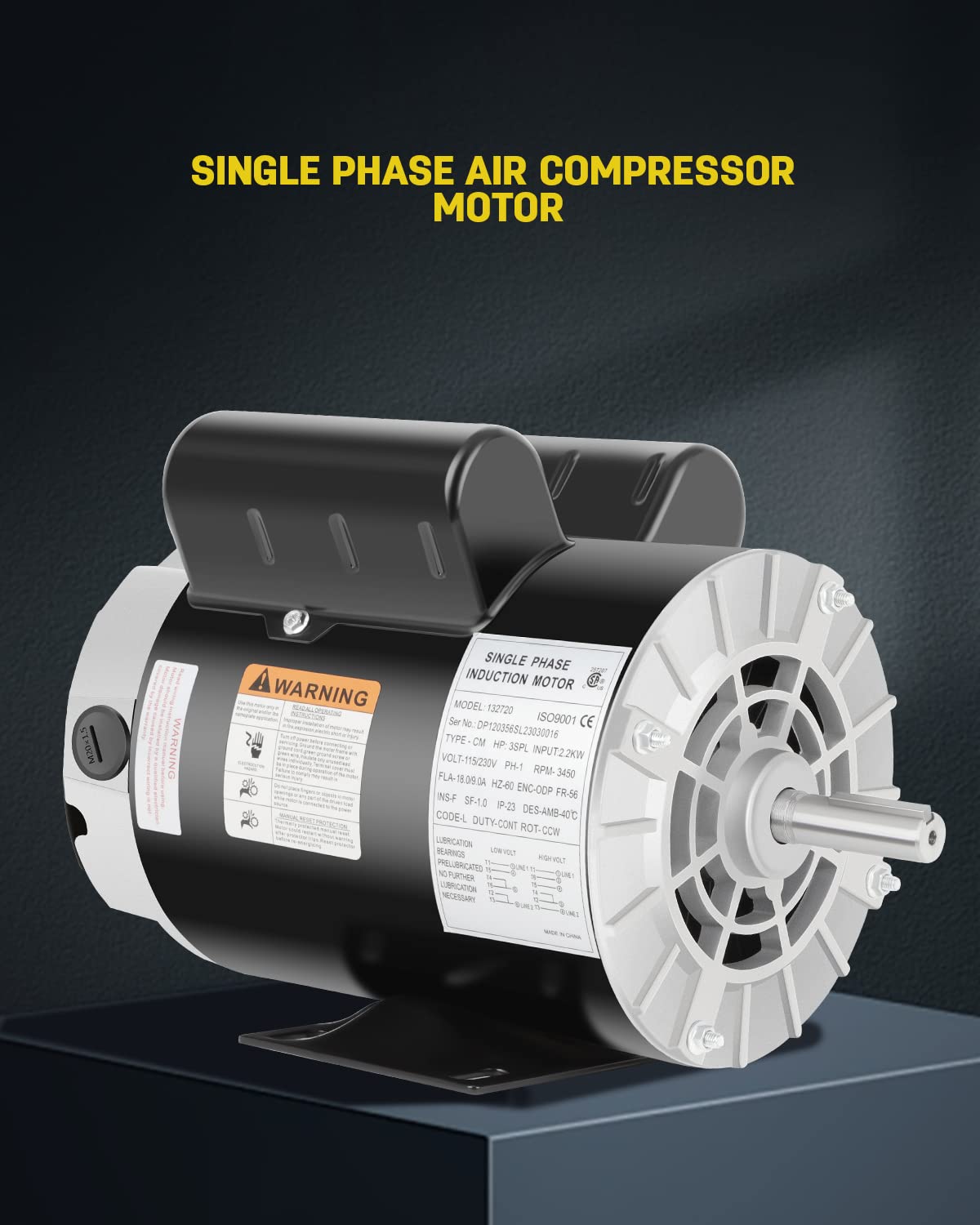

Air Compressor Motor: HP - 3HP SPL, POLE - 2, FRAME - 56, ENC - ODP, IP - 23,Open drip proof is better used in the environment that are relatively clean and dry environments.

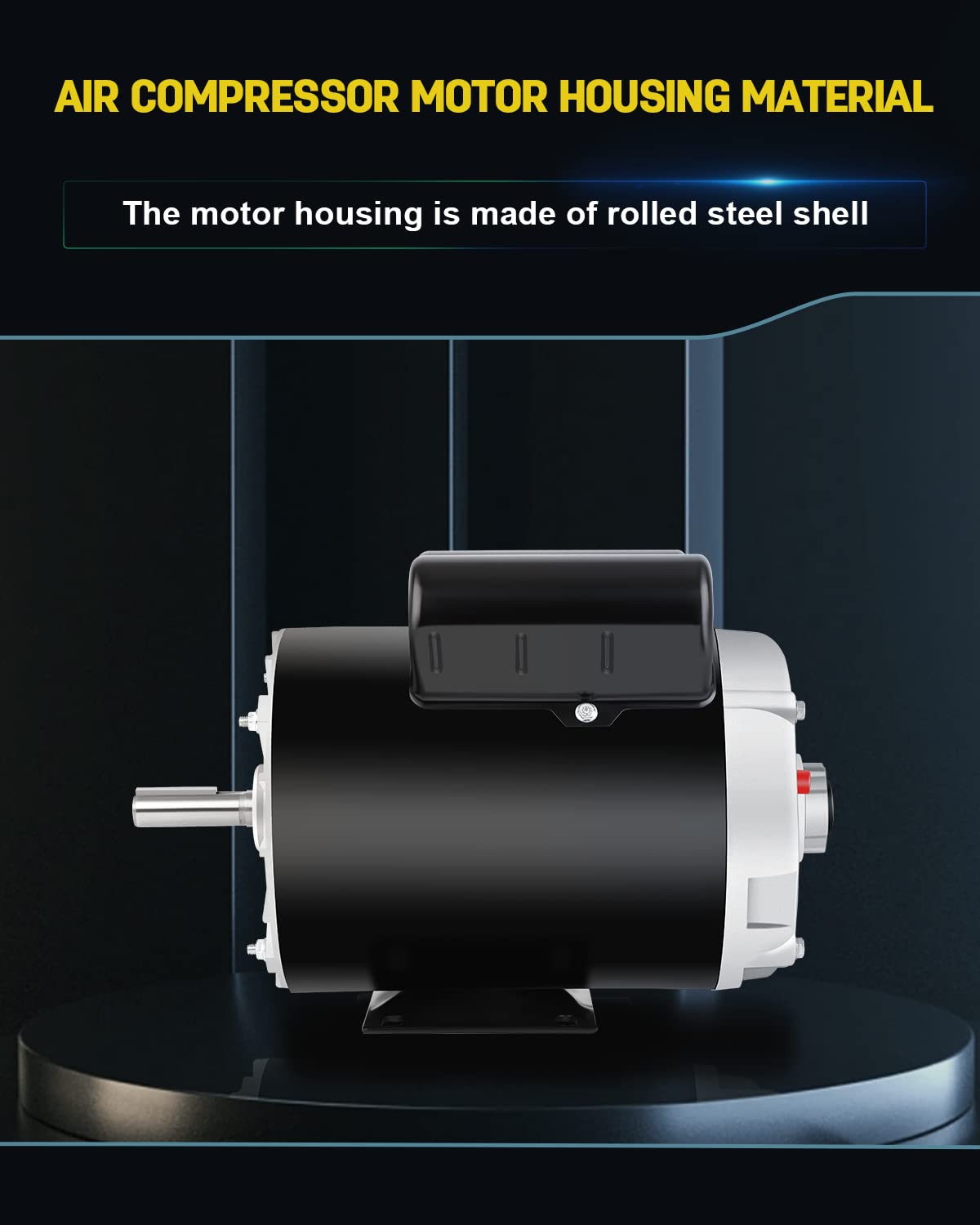

Housing material: Rolled steel shell. Adopt S1 continuous working system. Safe and durable, long service life.

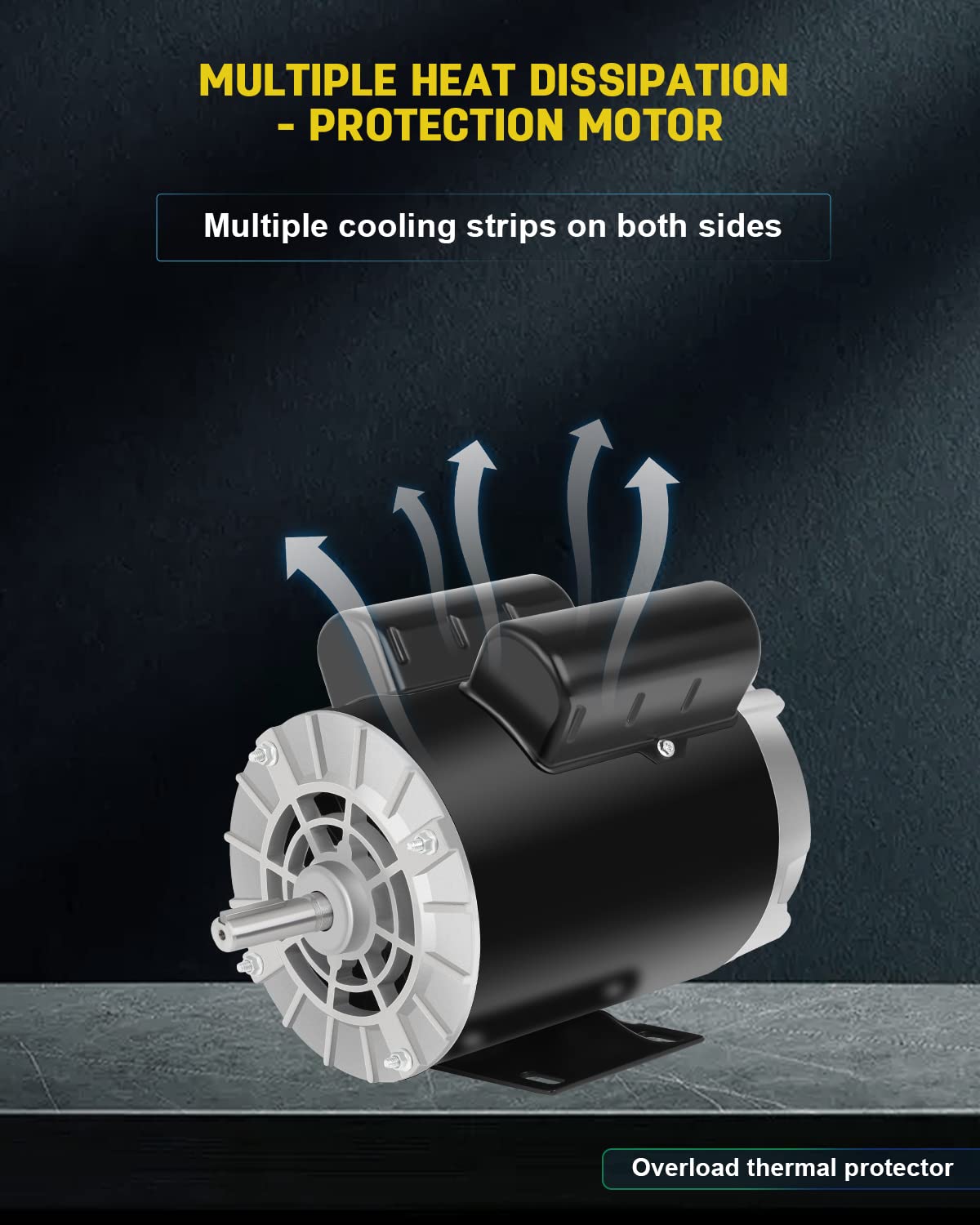

High Working Efficiency: Compact structure and small size, electric motor can run at the maximum speed of 3450 rpm, high working efficiency; There are lots of heat sinks, so it has huge heat sinks.

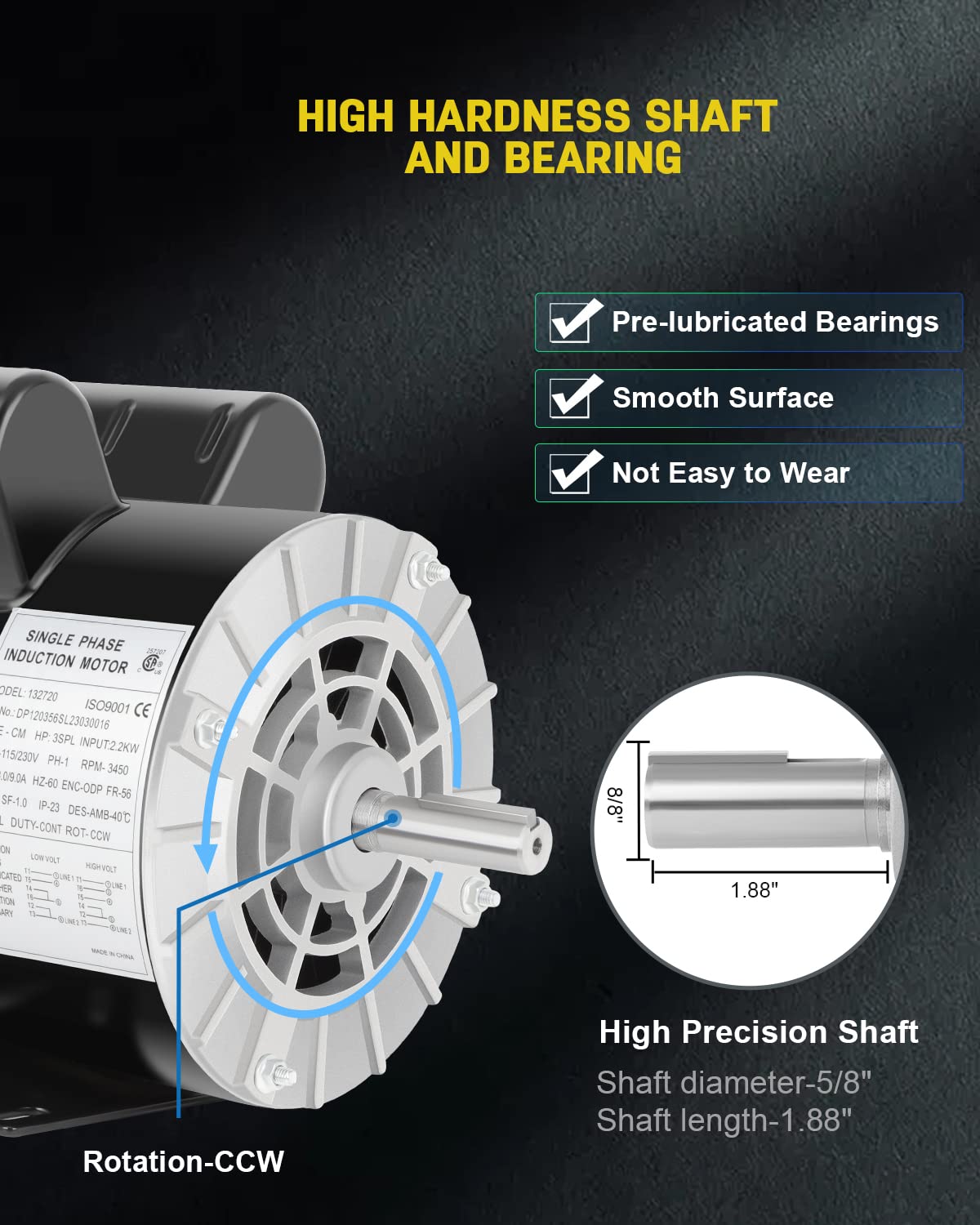

Detailed Parameters: HZ: 60Hz, Voltage: 115V/230V, AMP: 18/9A, RPM: 3450, INS - F, Rotation - CCW, Shaft diameter - 5/8”, Shaft length - 1.88“.

Protector and Application: Equip with protector, designed for air compressor tax purposes. Please purchase the motor according to the specific requirements of the compressor.
