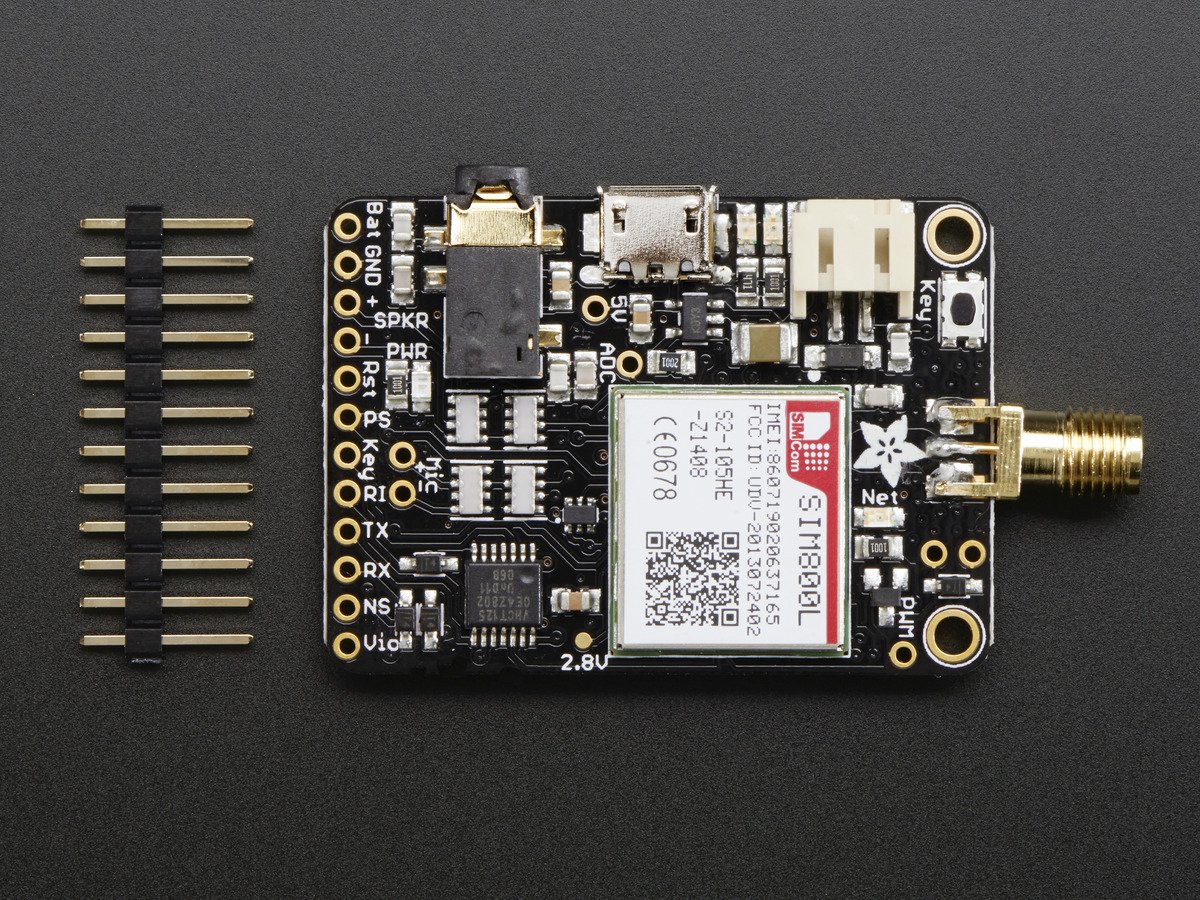

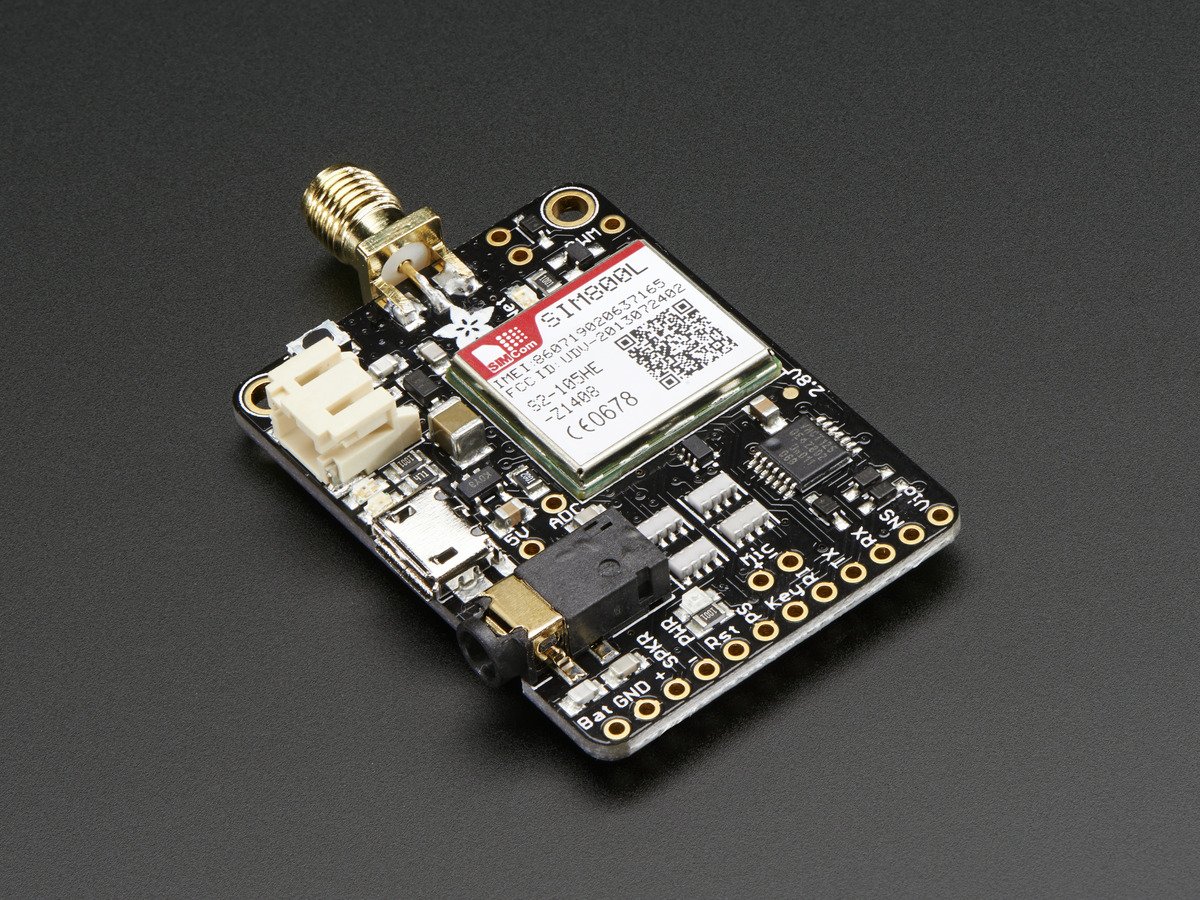

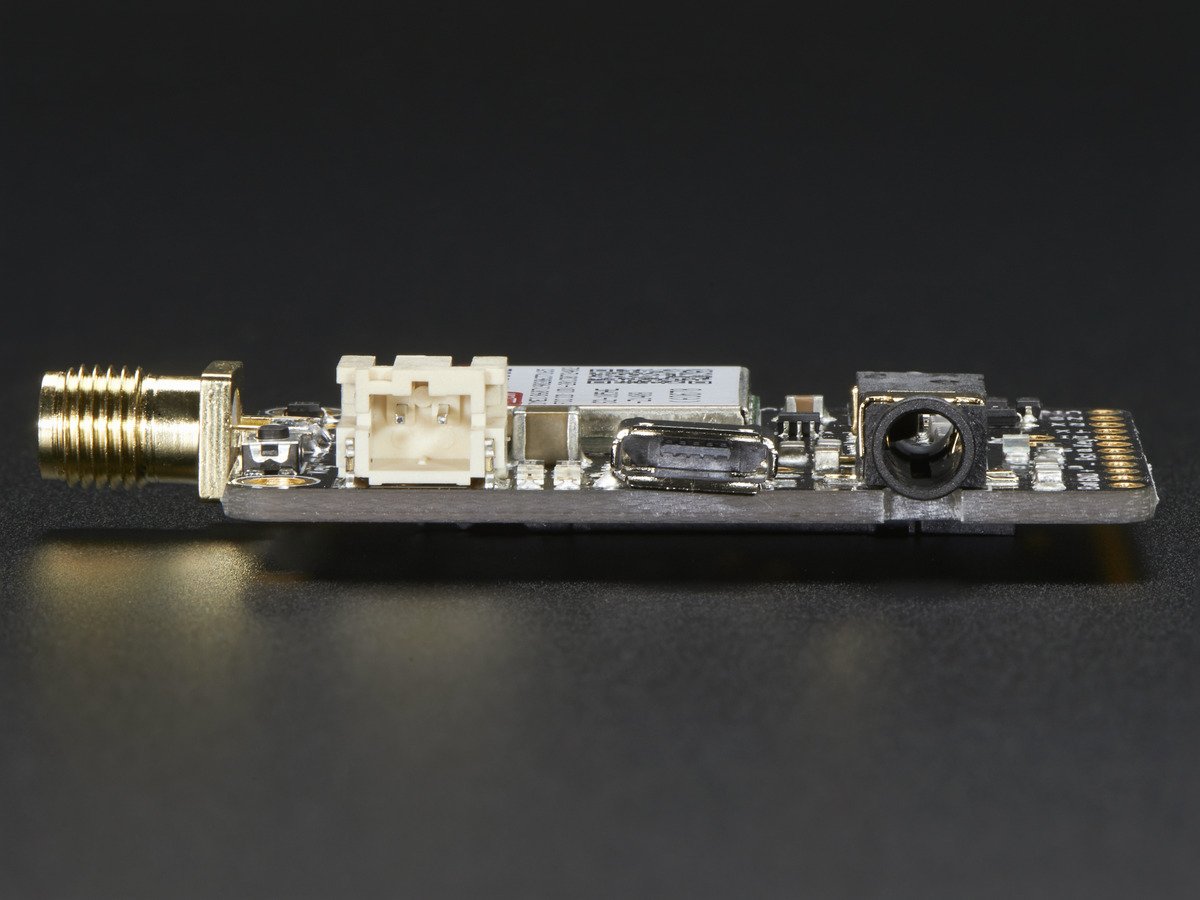

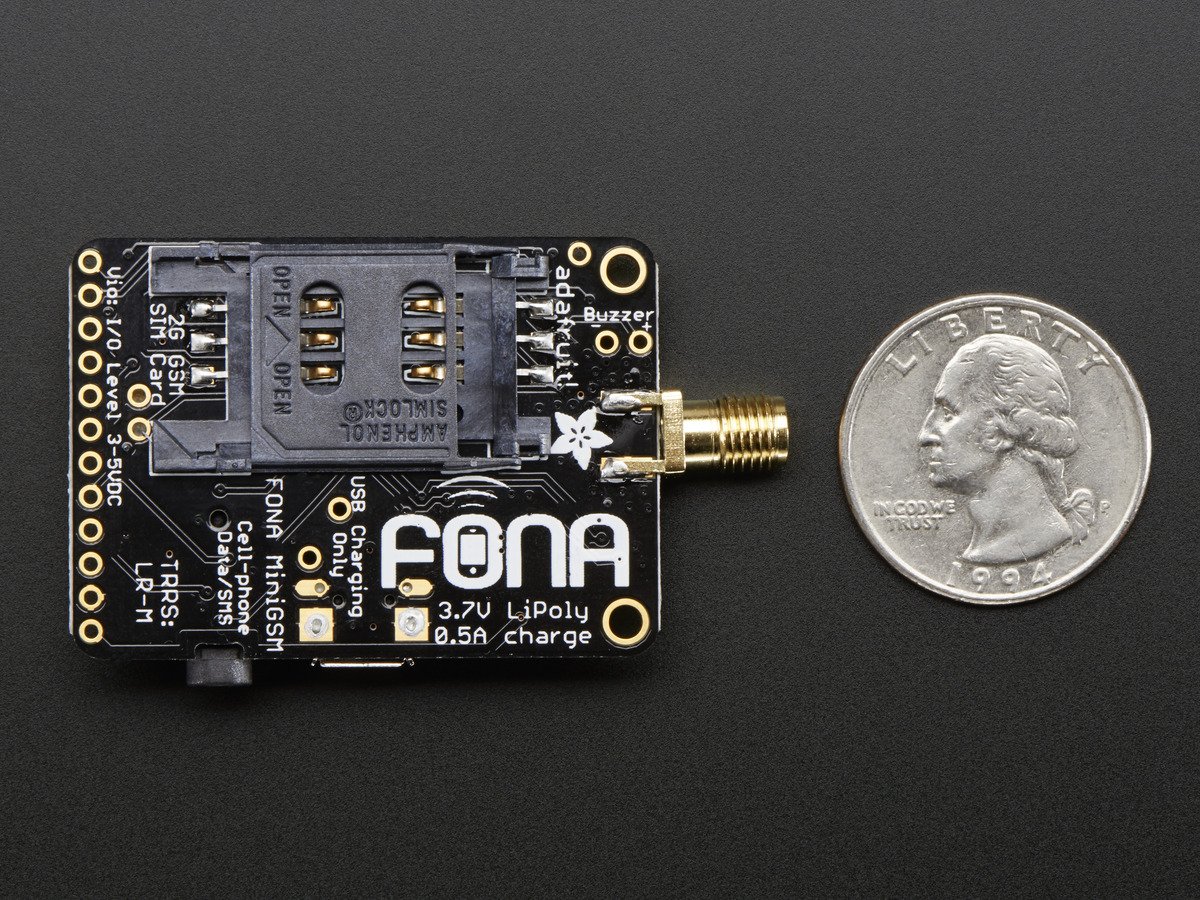

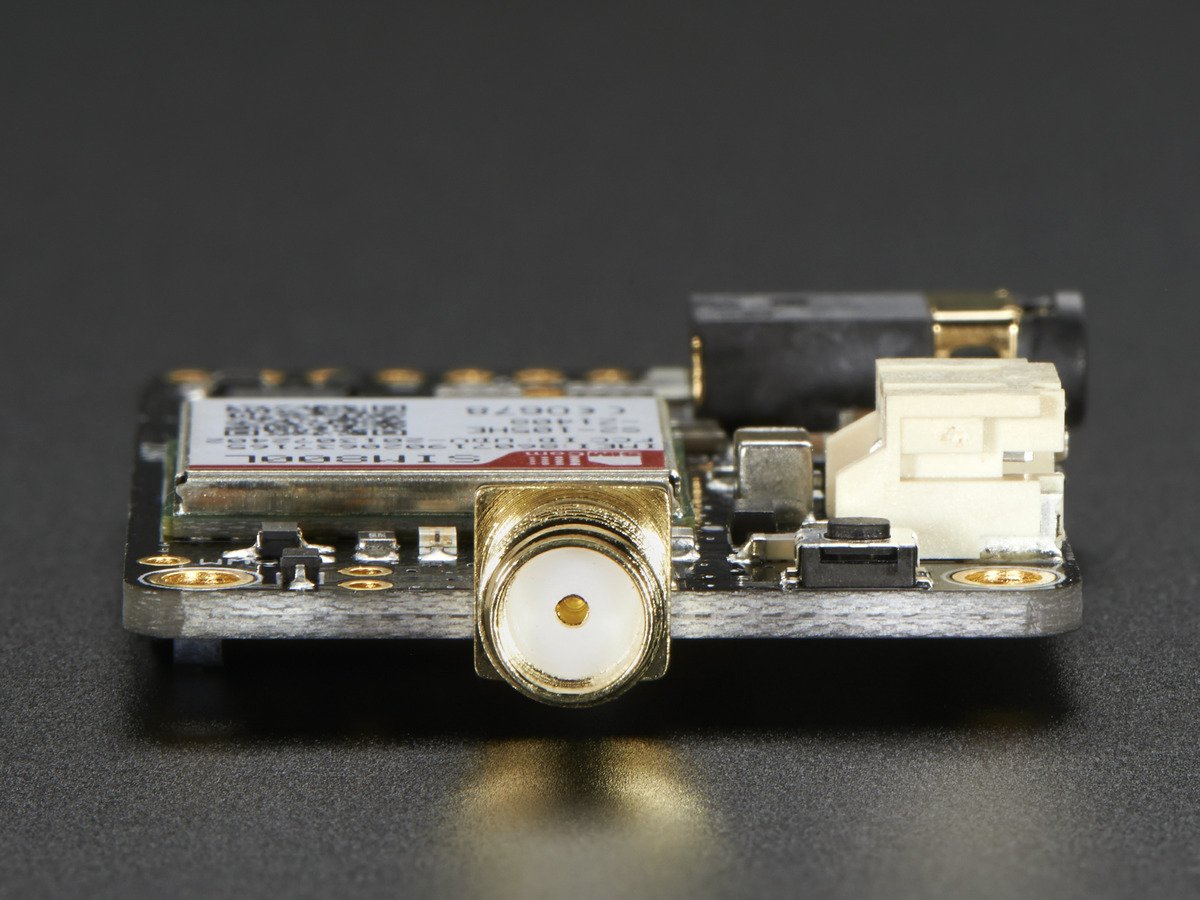

Ring, Ring! Who's that callin'? It's your breadboard! Introducing Adafruit FONA MiniGSM, an adorable all-in-one cellular phone module that lets you add voice, text, SMS and data to your project in an adorable little package. This module measures only 1.75"x1.25" but packs a surprising amount of technology into its little frame. At the heart is a GSM cellular module (we use the latest SIM800) the size of a postage stamp. This module can do just about everything. This version has an SMA connector. For the uFL version, click here! Quad-band 850/900/1800/1900MHz - connect onto any global GSM network with any 2G SIM (in the USA, T-Mobile is suggested) Make and receive voice calls using a headset OR an external 8Ω speaker + electret microphone Send and receive SMS messages Send and receive GPRS data (TCP/IP, HTTP, etc.) Scan and receive FM radio broadcasts (yeah, we don't exactly know why this was included but it works really well) PWM/Buzzer vibrational motor control AT command interface with "auto baud" detection Sounds delicious, right? So we plated this fine module onto a little breakout with all the extras you need to make your next project shine Onboard LiPoly battery charging circuitry so you can take your project on the go. Use any 500mAh+ LiPoly or LiIon battery and recharge over the MicroUSB when necessary. Two LEDs let you know when its charging and done Standard 4-pole TRRS headphone jack. Use any 'Android' or 'iPhone'-compatible headset with mic Breakouts for external 8Ω speaker and electret mic if you don't want to use a headphone Level shifting circuitry so you can run it with 2.8V to 5V logic. Vibrational motor (buzzer) driver so you can have noiseless notifications SMA connection for external antenna Indicator LEDs for power and network connectivity Standard SIM slides into the back Cellular modules can be a bit challenging to use, the FONA is intended for hackers and advanced makers. We're still adding library support for all the various things the FO
