Original Deep Sea DSE6020 MKII Generator Controller Auto Mains (Utility) Failure Control Module Genset Parts Made in UK DSE6020MKII PEMP

Product ID:

101618

Identifier:

B0DRNZVMC7

Brand:

PEMPGENUINE

Model:

Shipping Weight:

2.2 lbs

Manufacturer:

PEMPGENUINE

Shipping Dimension:

10.63 x 8.27 x 3.94 inches

Share on Social Media

Share on Facebook

Share on X

Share on Instagram

Share on Tiktok

SAVE 42%

₱49,370

₱29,326

+ ₱ 1,302

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2025-11-26 to 2025-12-03.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

FEATURES

Original generator controller,we focus on original parts and supply original parts only.

Support for 0-10 V & 4-20mA oil pressure senders. Provides flexibility for use with multiple sensors and engine types

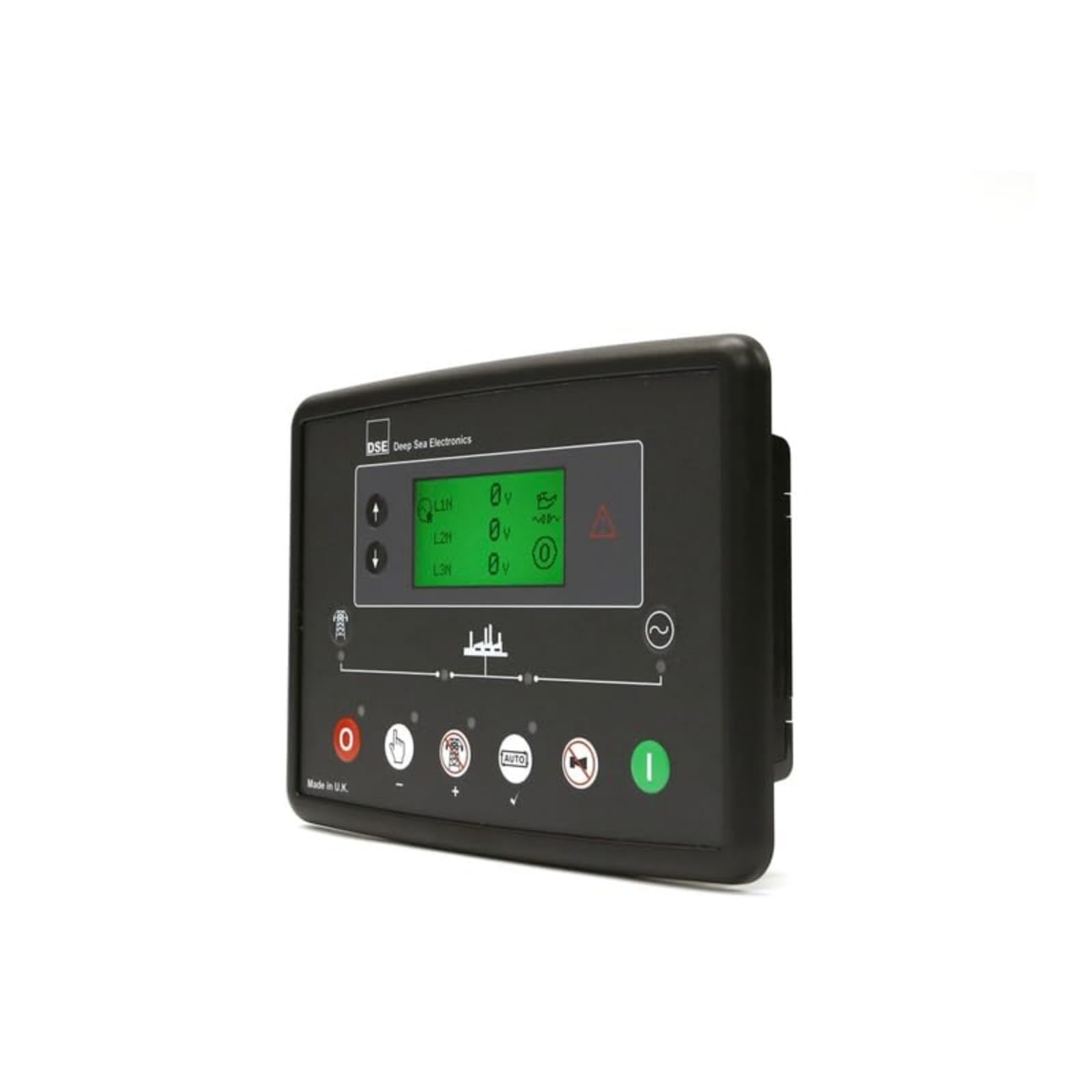

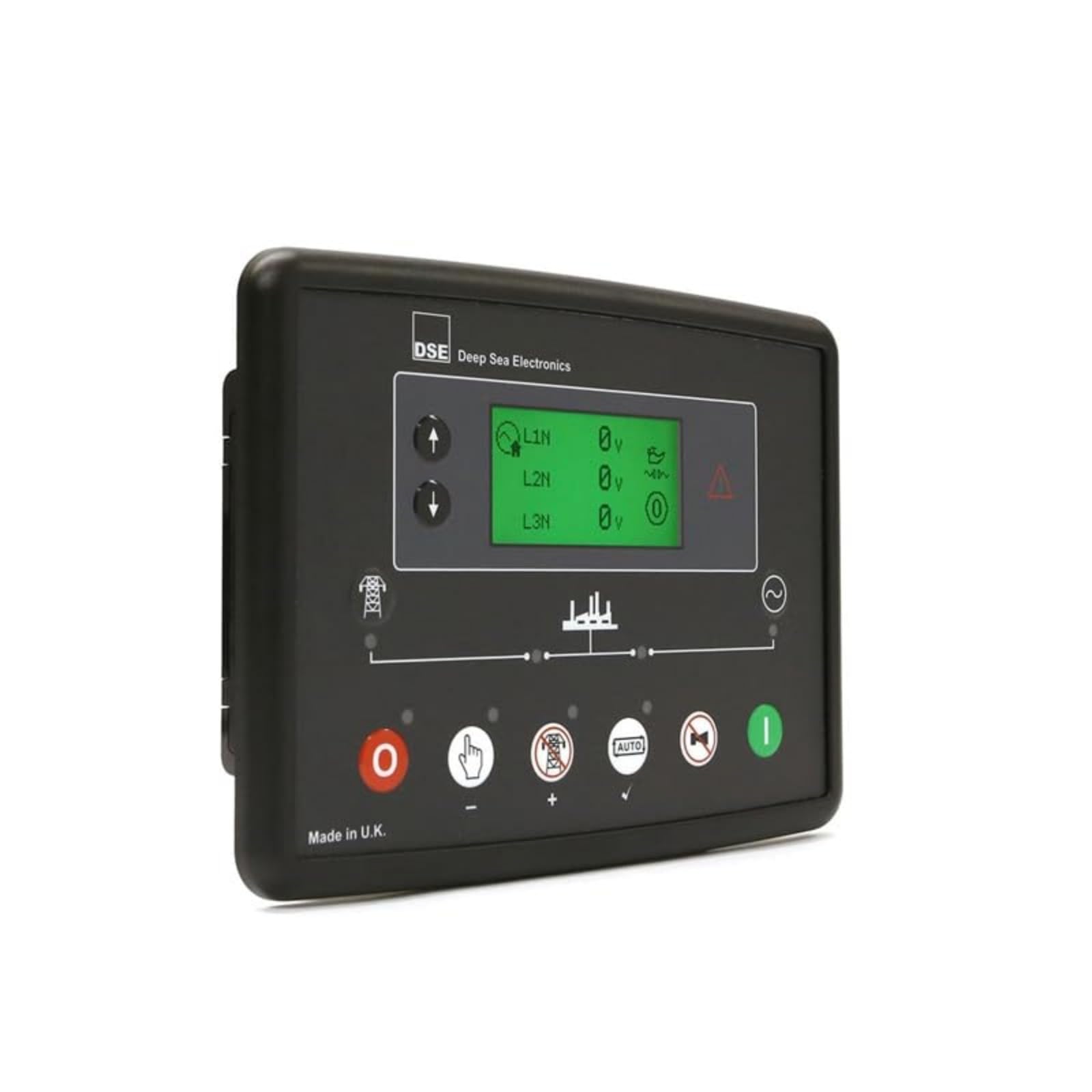

Large back-lit icon LCD display. Displays information to the operator in a clear and concise format

Standard screen: Namely manual control screen. You only need to connect the start battery to control the unit locally.

Heated display option. Ensures the display continues to operate in extreme cold weather conditions

DESCRIPTIONS

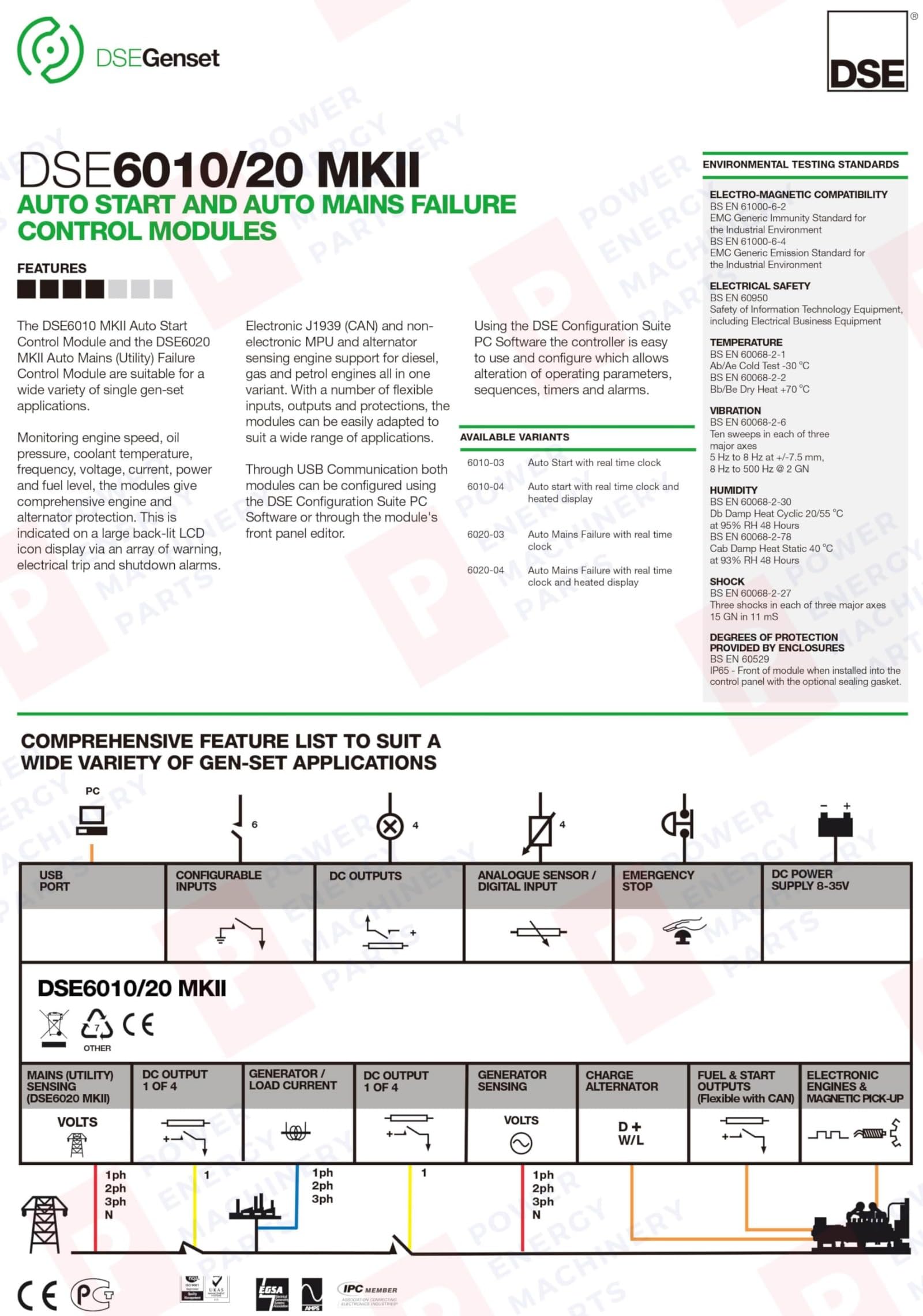

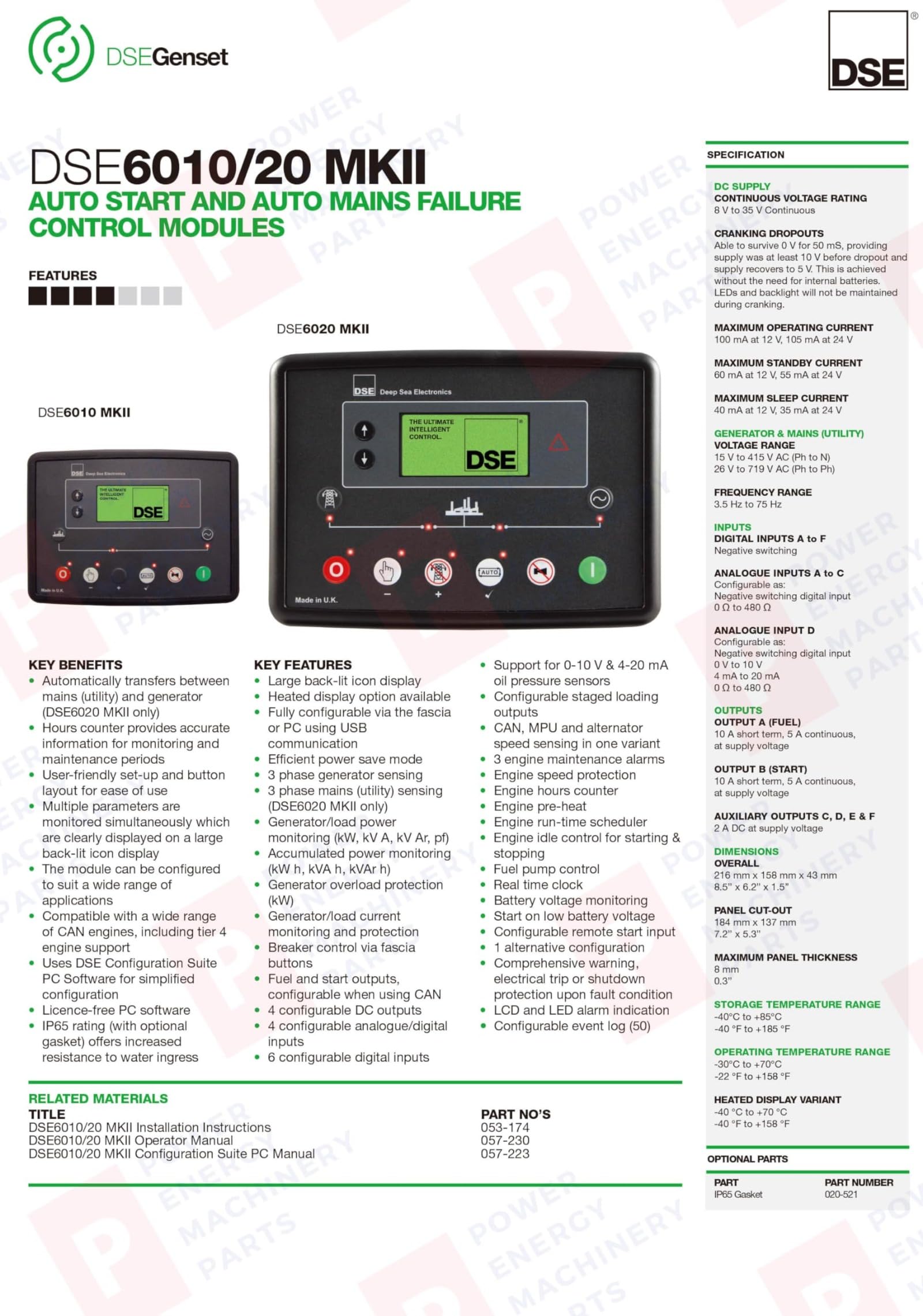

Original Deep Sea DSE6020 MKII Generator Controller Auto Mains (Utility) Failure Control Module Genset Parts DSE6020MKII DSE6020MKII Auto Mains (Utility) Control Module The DSE 6020 MKII is an Auto Mains (Utility) Failure Control Module developed to provide a wide range of operating and monitoring features for single diesel and gas gen-sets. OVERALL SIZE 216 mm x 158 mm x 43 mm (8.5” x 6.2” x 1.5”) PANEL CUTOUT SIZE 184 mm x 137 mm (7.2" x 5.3") MAXIMUM PANEL THICKNESS 8.0 mm (0.3”) WEIGHT 0.48kg PRODUCT VARIANTS 6020-03 - MKII Auto Mains (Utility) Failure Control Module 6020-04 - MKII Auto Mains (Utility) Failure Control Module (Htr) KEY FEATURES Support for 0-10 V & 4-20mA oil pressure senders. Large back-lit icon LCD display. Heated display option. 3-phase generator sensing. 3-phase generator and mains (utility) sensing. Breaker control buttons on front fascia. Generator & load power monitoring (kW, kVA, kVAr, pf). Generator overload protection (kW). Generator/load current monitoring & protection. Configurable analogue/digital inputs. Configurable DC,volt-free and staged loading outputs. CAN, MPU & alternator speed sensing (selectable depending on engine type). Tier 4 CAN engine support. Configurable event log (50). DSE Configuration Suite PC Software. Fuel and start outputs (configurable on CAN).
