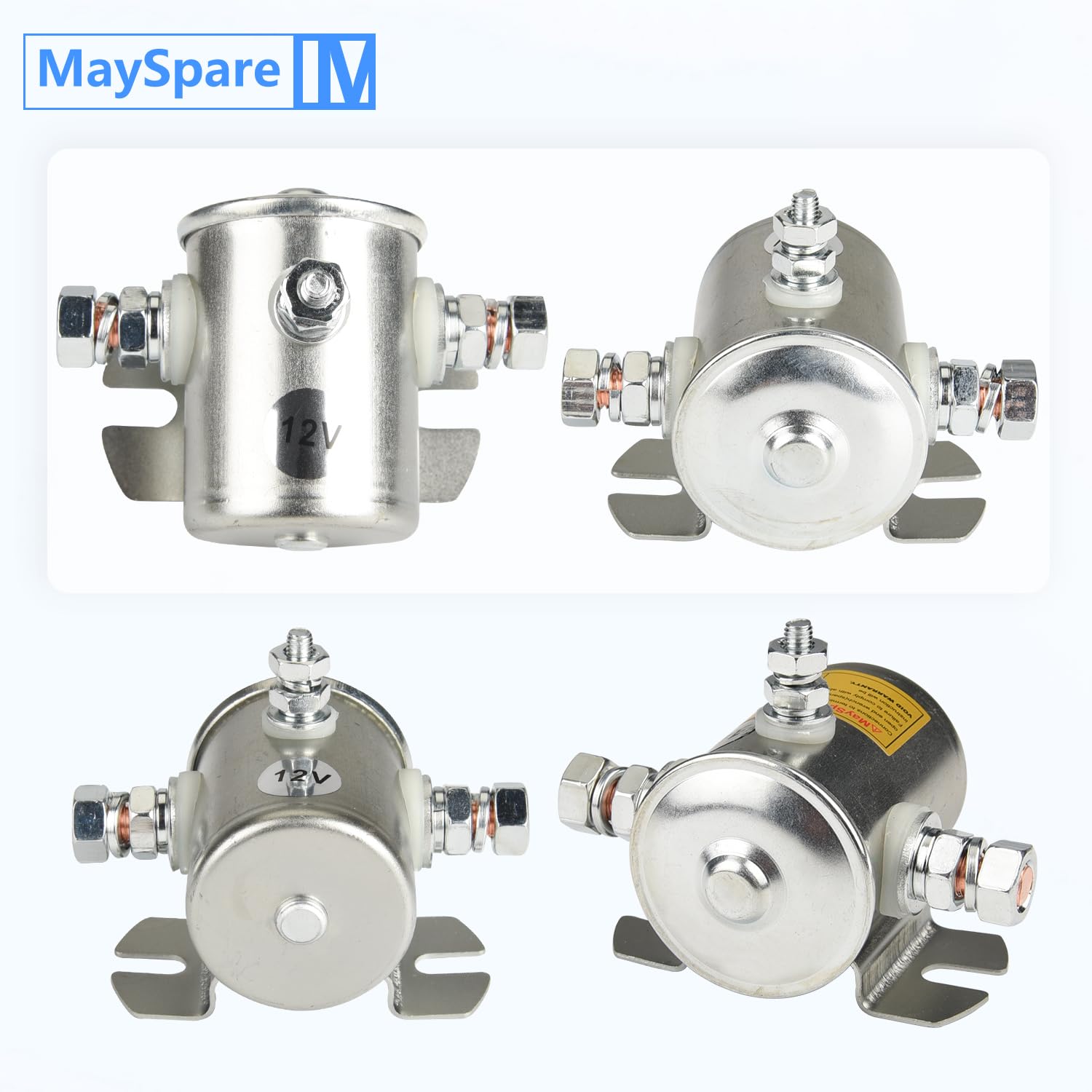

MaySpare Max Transient 200A Trombetta 12V Solenoid Relay 3 Terminal Heavy Duty Winch Marine 24106 SPST 12 Volt Solenoid

4.3 / 5

Available Options

SLIVER, 3-Terminal, US-AUTO3T ₱1,722.00 4-Terminal, XR-2061 ₱1,812.00 SLIVER, 4-Terminals/resistors And Diodes ₱1,812.00

SAVE 21%

₱1,321

₱1,722

+ ₱ 434

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2025-11-12 to 2025-11-19.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

DETAILS

Product ID:

71115

Copy Link

Identifier:

B0797WZBD9

Brand:

MaySpare

Model:

US-AUTO3T

Shipping Weight:

0.79 lbs

Manufacturer:

May Spare Parts

Shipping Dimension:

3.62 x 3.03 x 3.03 inches

FEATURES

Contacts:Normally Open (NO)/ Flat Base Metal Case / 10-32 Terminal

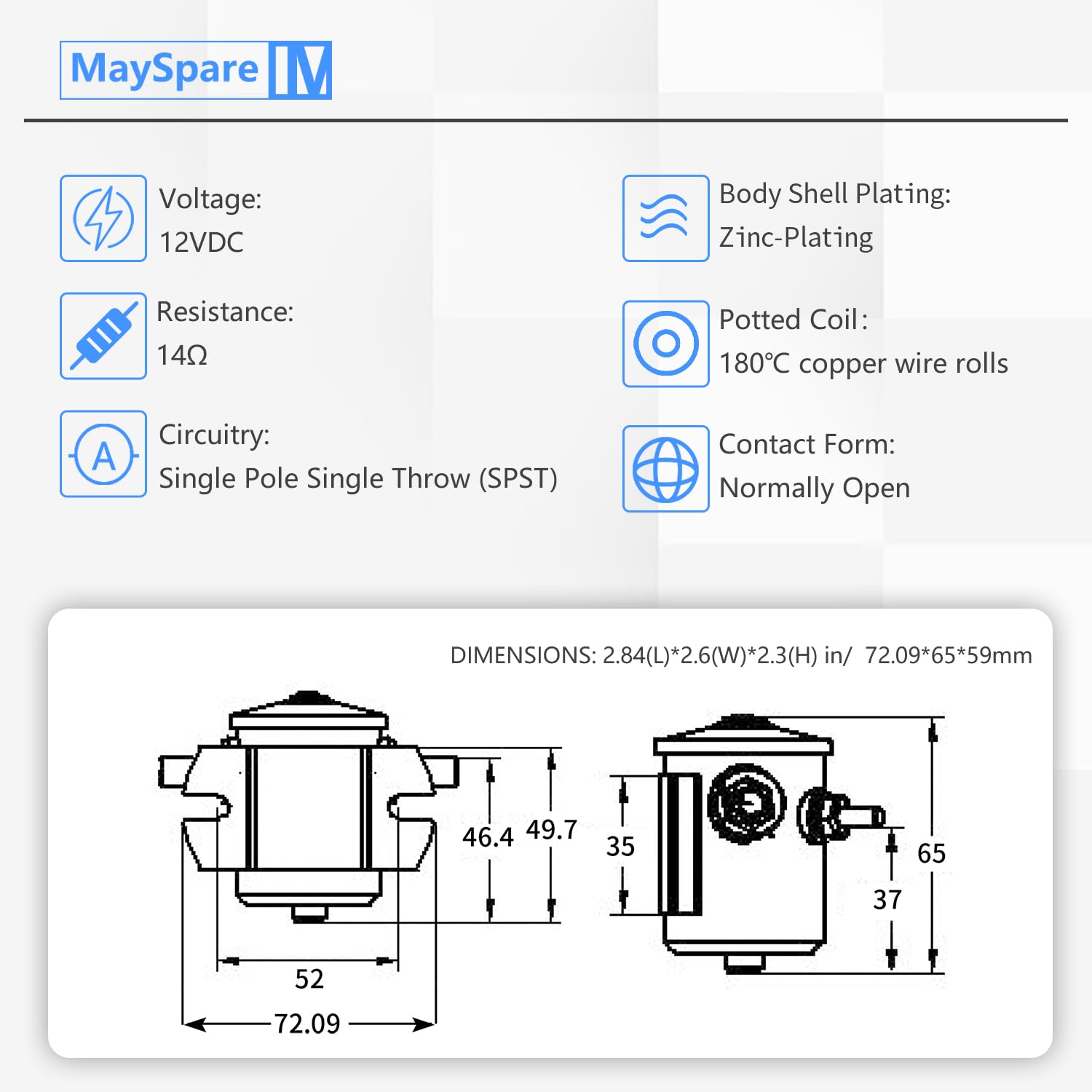

3 Pole Battery Isolation Solenoid, 12VDC With 2 Copper Point,Housing plated Steel Case / 180Flat mounting bracket./ Mounting holes: 5/16 x 19/32, 2-13/64 on centers.

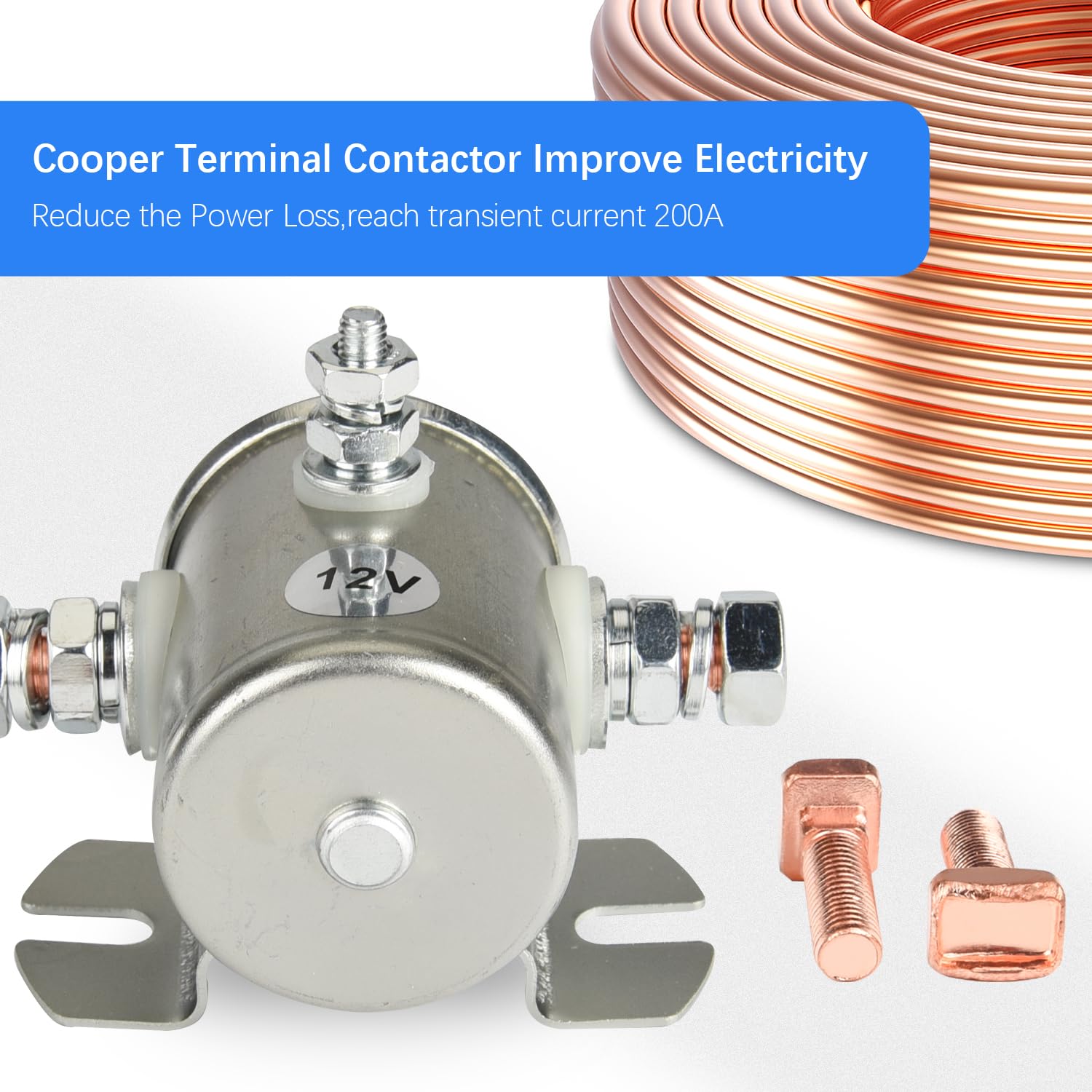

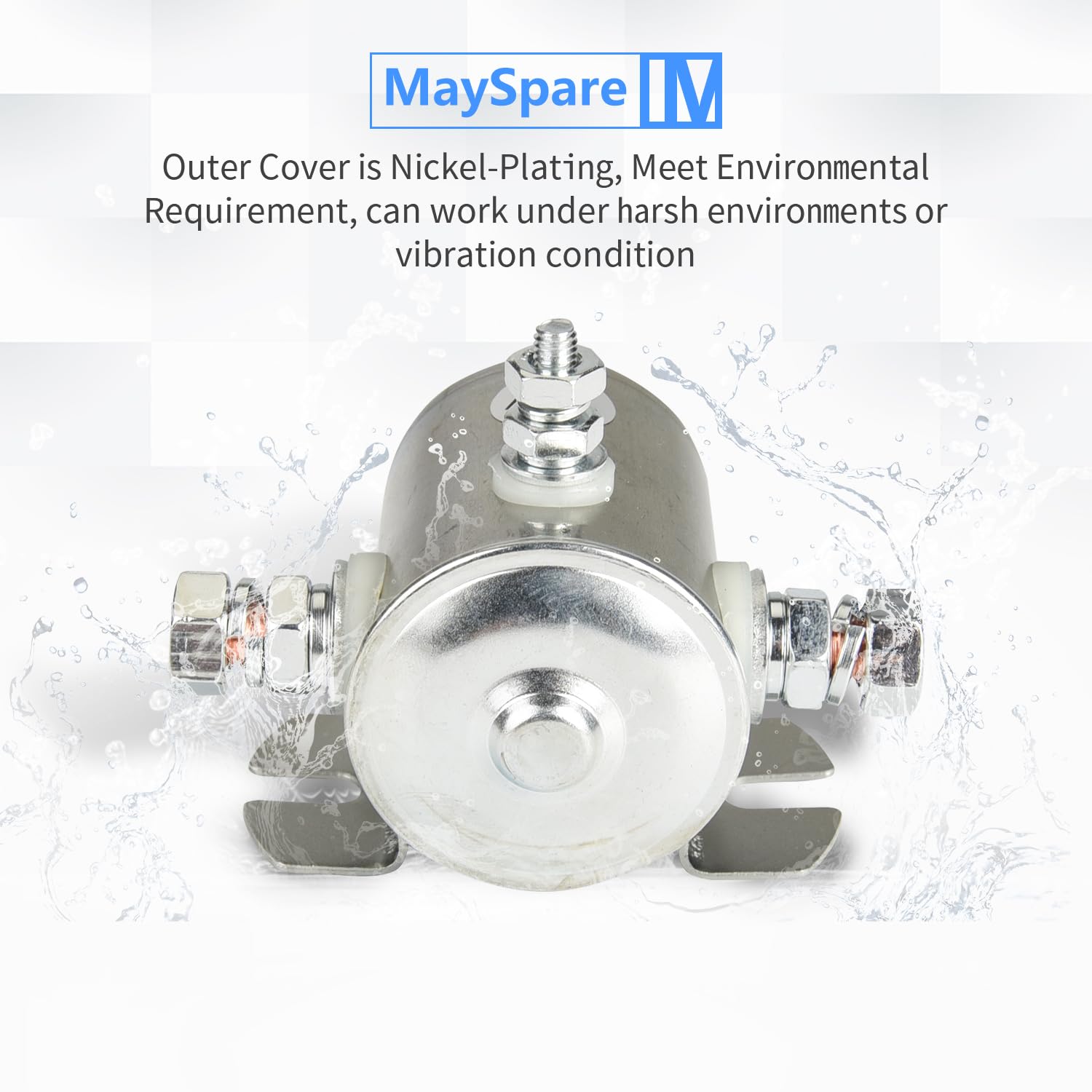

Our Coil Roll is using 180℃ Copper. Max Current Above 200amp/ Rate Current: 100A / Our Cover is Environmental Plating,Sealed Unit Protects Solenoid From The Elements Helping Prevent Corrosion

if be Continuous Duty,can work 5 minutes under 150Amp, but NEED BREAK otherwise will be too hot to burned or fired

Note:It is a starter solenoid, work in the process of started. recommend hold time is 5 minutes, must need a cool rest time for the next start. /If u need a long working one, pls note us.
