Product ID:
1549340
Identifier:
B0DFVHMGYB
Brand:
CTobd
Model:
12+8 OBD2 Cable
Shipping Weight:
0.29 lbs
Manufacturer:
Shenzhen Chaos Knight Technology Co., Ltd
Shipping Dimension:
7.05 x 5.98 x 0.63 inches
₱1,931
₱1,565
+ ₱ 252
Shipping Cost from USA to Philippines inclusive of custom fees.
Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.
Get it between 2026-04-29 to 2026-05-06.
Additional 3 business days for provincial shipping.
- Price and Stocks may change without prior notice
- Packaging of actual item may differ from photo shown
Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.
Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods
1.【12+8 OBD2 Cable】 OBD2 cable adapter is a good helper across the FCA gateway, work with scanners, such as MS906 PRO MS906 PRO-TS MS906BT MS906S MS906 MS906TS MS908 MS908S PRO Elite Elite II, etc. This Chrysler 12+8 OBD2 diagnostic cable can bypass the FCA gateway protocol, connect the scanner directly to the car to perform a range of advanced functions.

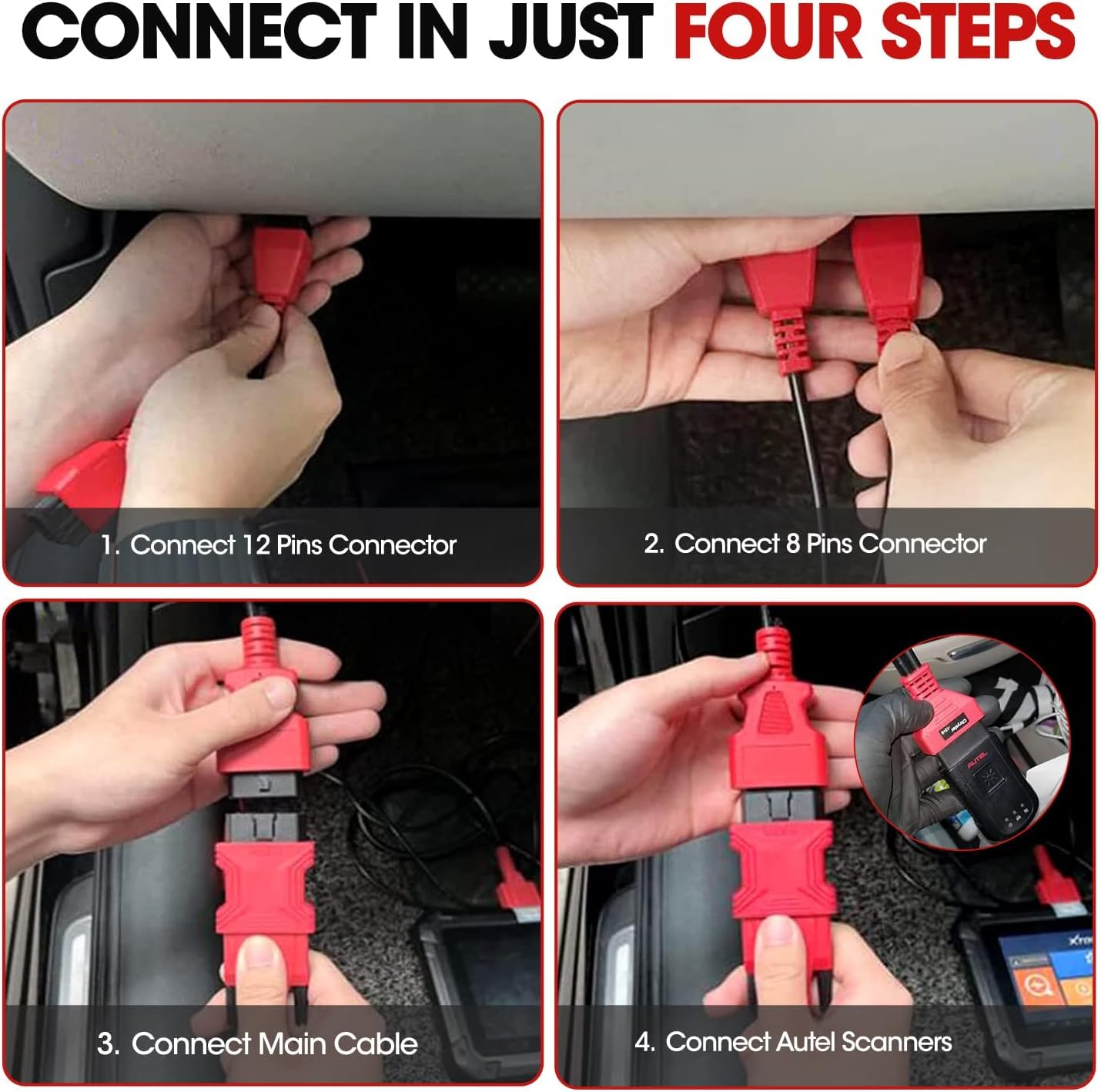

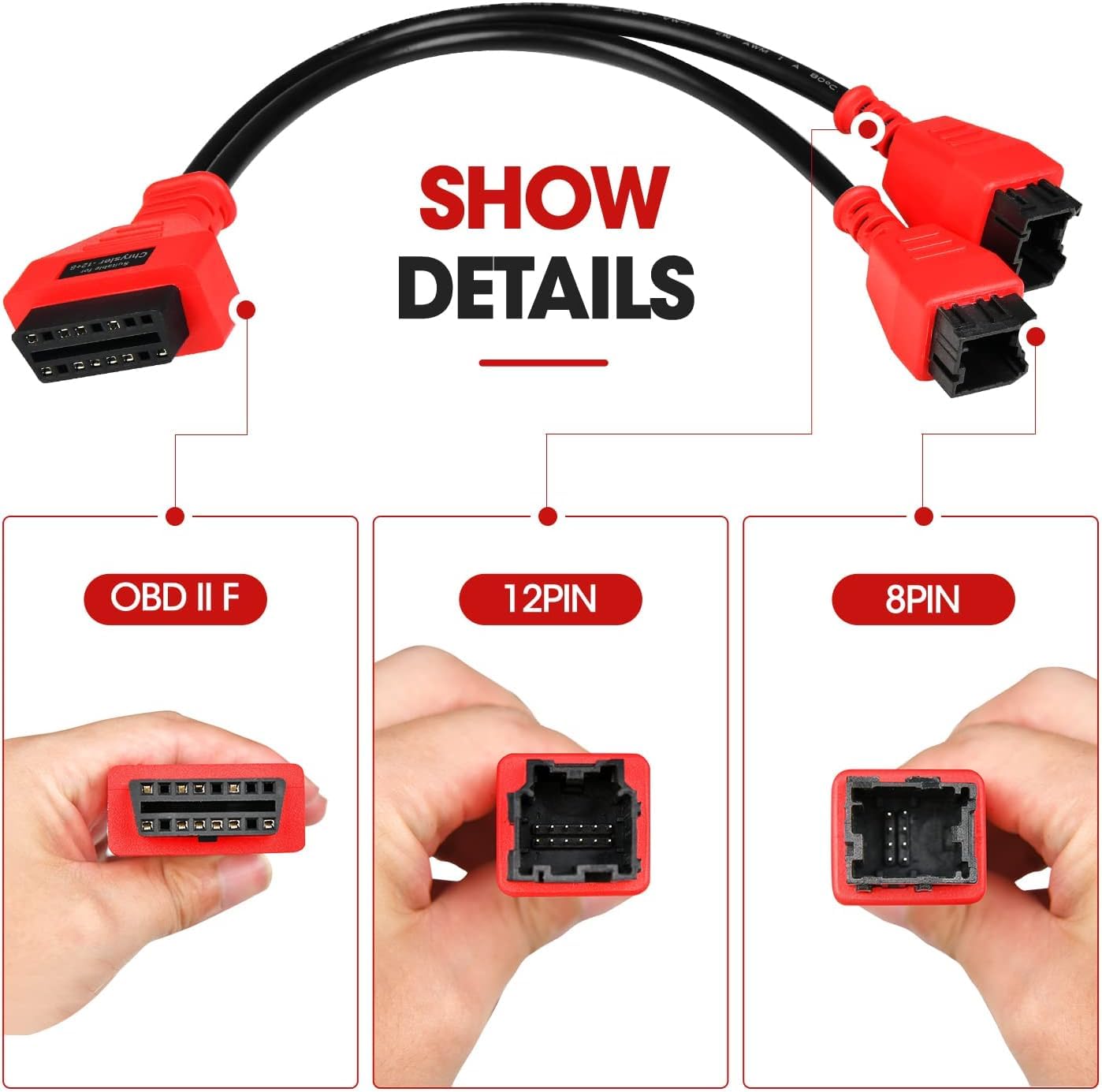

2.【Connection in 4 Simple Steps】1. Find and unplug the 12pin and 8pin connectors of the SGW module 2. Connect the 12+8 PIN port directly to the 12PIN and 8PIN ports (connect to the two connectors of SGW) 3. Connect the other end of the FCA Chrysler diagnostic cable directly to the 16-pin OBD2 diagnostic test cable or to the OBD Bluetooth interface 4. Connect the 16-pin OBD2 diagnostic cable to the scanner or establish communication between the OBD Bluetooth interface and the scanner.

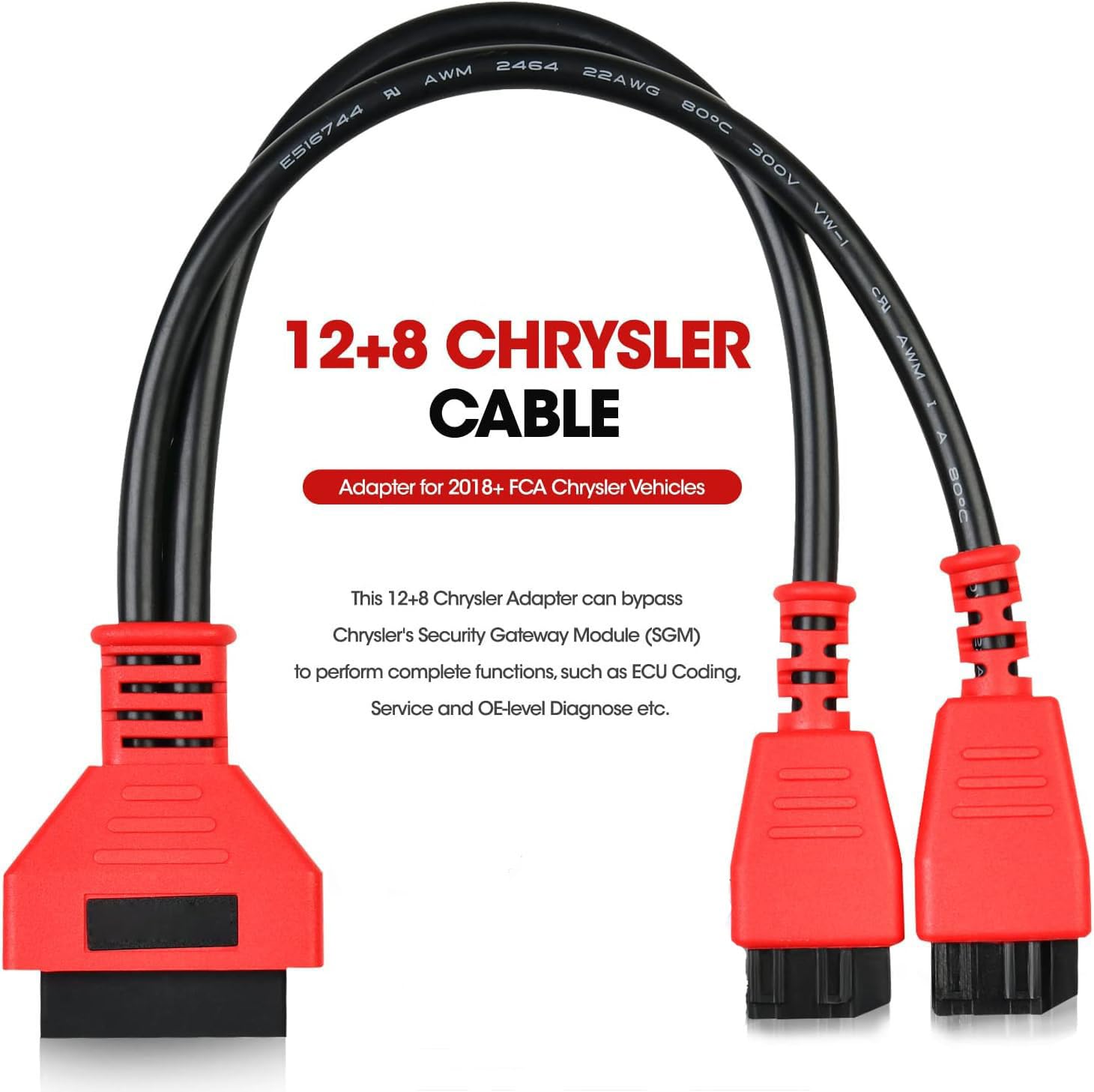

3.【Compatible Vehicle Models】This 12+8 OBD2 Cable diagnostic cable can bypass the Security Gateway Module (SGM) and communicate with 2018 and later Chrysler, Dodge, Jeep, Fiat and Alfa vehicles, allowing the scanner to work on the above vehicles Execute complete system diagnostics, service functions, and other code functions.
The Programming Cable 12+8 Suitable for: 1: devices like MS906BT+, MS906BT, MS906S, MS908, MS908S, MS908S PRO, Maxisys Elite and IM608 etc. 2: devices like X431 V, X431 V+ etc. 3: devices like X300 DP Plus etc. 4: Tablet, like X100PAD, X100PAD2, X100PAD3, EZ400PRO, A80PRO , A80PRO MASTER, D7, D8, D9, D9PRO etc. 4: devices, Key Tool Plus Pad. Expect to see this message when scanning a Chrysler with the Security Gateway Module: “DEVICE UNABLE TO COMMUNICATE WITH THE CONTROL UNIT” NOTE：placement of the SGM varies, but it is often located in the side kick panel, passenger side near the glove box, or behind the radio. What is it used for? 1. It's used to diagnose for Chrysler,for Jeep Renegade Wrangler 300C after 2018 year. 2. Most 2018 and newer FCA vehicles include a Security Gateway Module. 3. Read/ Clear Codes 4. Perform Active Tests 5. View Generic & Manufacturer Live Data 6. Perform TPMS OBDII Relearn 7. Coding and Adaptation with Maxisys Tablet Tools MS906BT+ 8. ADAS calibrations (Requires Maxisys ADAS Software For FCA Programming Cable 12+8 needed on Vehicles with Secure Gateway Module: 2013+ For RAM Promaster 2015+ For Fiat 500x 2015+ For RAM Promaster City 2016+ For Jeep Renegade 2017+ For Alfa Romeo Giulia 2017+ For Jeep Compass 2017+ For Jeep Cherokee 2018+ For Jeep Wrangler 2018+ For Ram Trucks 2018+ For Dodge Durango 2018+ For Jeep Wrangler (JL Body only, not JK) 2018+ For Dodge Journey 2018+ For Jeep Grand Cherokee 2018+ For Chrysler Pacifica 2018+ For Chrysler 300 2018+ For Dodge Charger 2018+ For Dodge Challenger 2019+ Most For Fiat/ For Chrysler/ For Jeep/ For Ram vehicles 2020+ ALL FCA vehicles Package List: 1pc x Red Programming Cable 12+8
