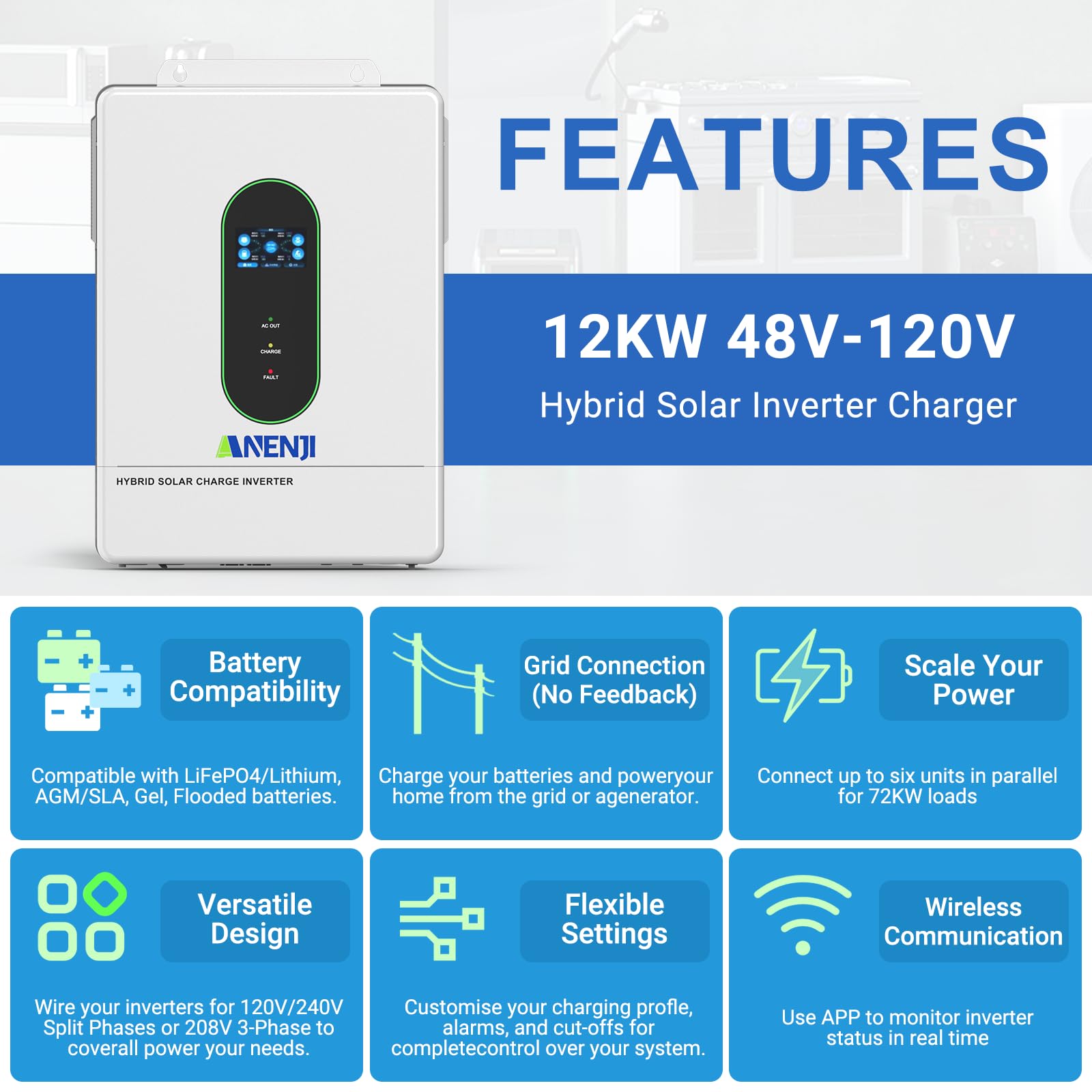

【12000W HYBRID SOLAR INVERTER】Converts 48V DC to 120Vac (L1/N, L2/N) / 240Vac (L1/L2) AC and is equipped with a dual-channel MPPT solar charge controller. Integrated OLED light-touch touchscreen and optional WiFi/GPRS remote monitoring. 2 AC outputs (configurable for Split-Phase or Single-Phase). Max. PV Array Power 6000W + 6000W; Max. PV Array Open Circuit Voltage 500VDC; PV Array MPPT Voltage Range 90VDC–450VDC; Max. Solar Input Current per Channel 22A; Max. Solar Charge Current 200A (configurable); Max. AC Charge Current 160A; Max. Combined Charge Current (PV + AC) 220A (configurable).

【OPERATION WITH AND WITHOUT BATTERIES】The ANJ Hybrid Inverters support standard battery operation mode and simultaneous battery-less operation. The inverter can power the load directly from the PV array and/or the AC grid (Mains) without requiring a battery to be connected. (When no battery is connected, the minimum PV operating voltage must reach 90 Vdc). Furthermore, the inverter features a dual lithium battery activation function (enabled by default), which can be triggered by PV or AC mains to reactivate a dormant battery.

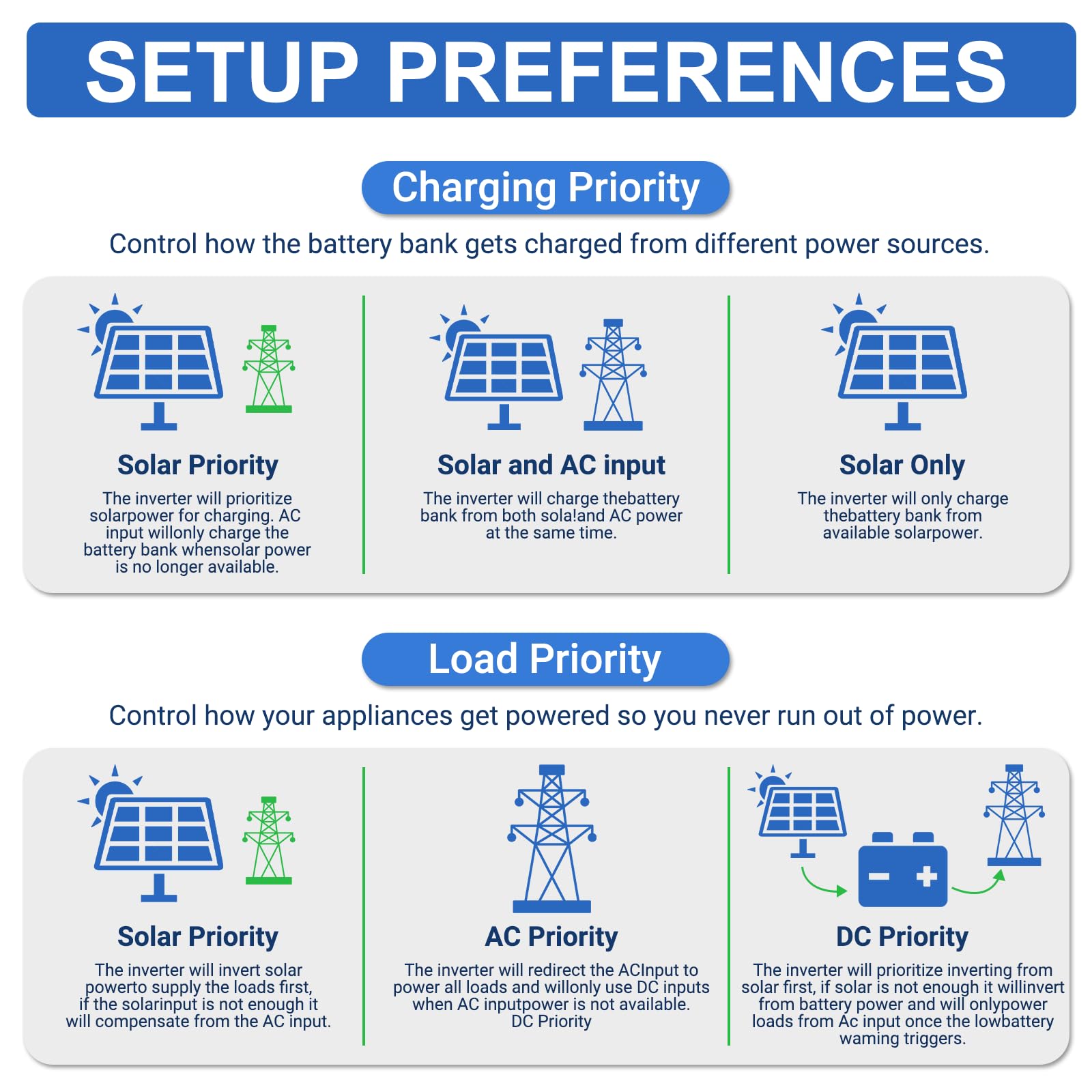

【VARIOUS OUTPUT MODES】The inverter offers several configurable AC output priority modes: Utility Priority (Line): Switches to battery/inverter power only when the mains fails. Battery Priority (Bat): Primarily uses battery power, only switches to utility power when the battery is low. Solar Priority (Solar): Primarily uses PV energy, switches to utility power when solar energy is insufficient or the battery is low. Hybrid Mode: The load is powered simultaneously by PV, battery, and grid (depending on settings and availability).

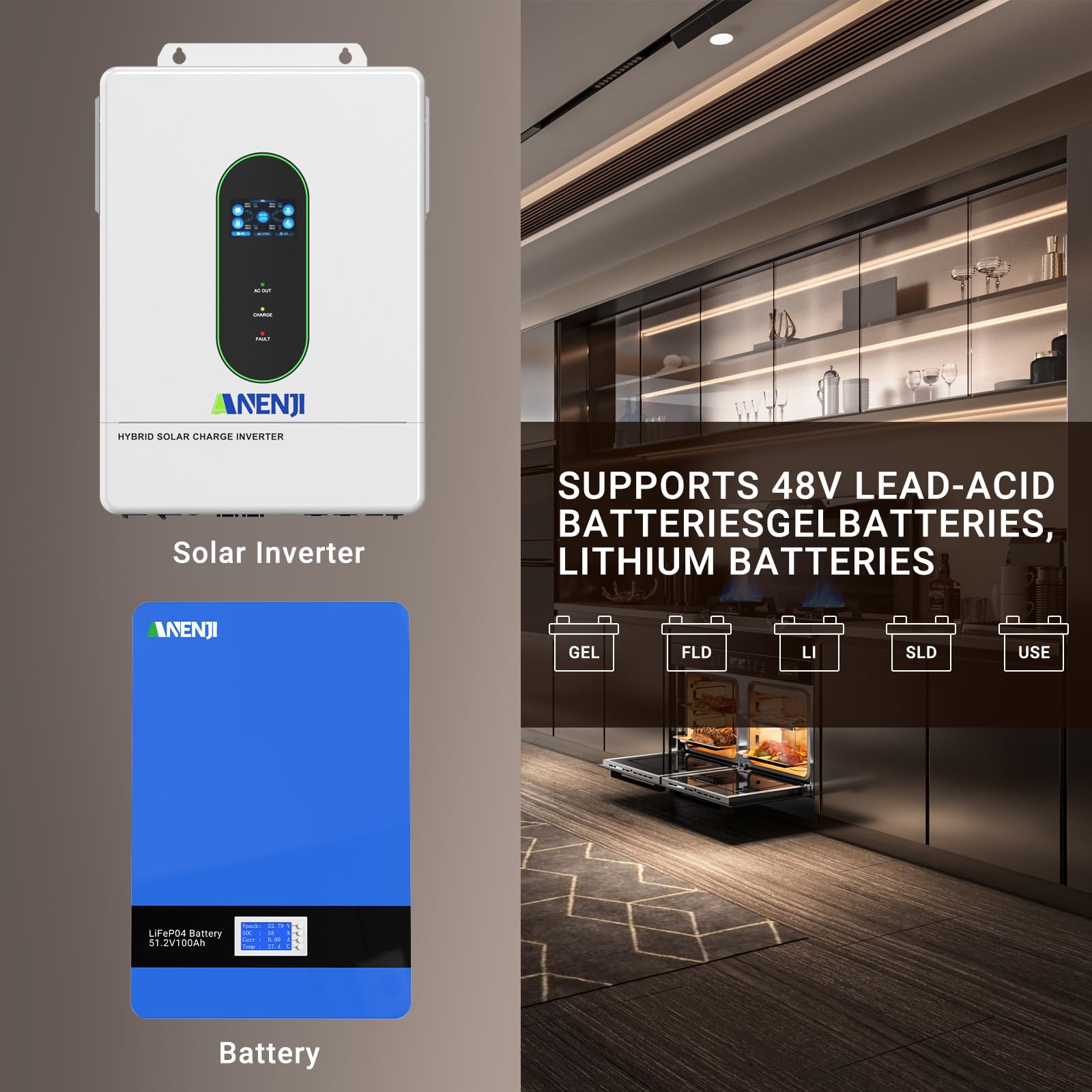

【FOUR CHARGING MODES AND COMPREHENSIVE PROTECTION FEATURES】Four battery charging modes can be configured via the inverter settings: Only Solar, Mains Priority, Solar Priority, and Hybrid Charging (PV & AC, default). Additionally, the inverter features numerous protection functions (Over/Under Voltage, Overload, Overtemperature, Short Circuit, Reverse Polarity, etc.) for the device, battery, and connected loads. Supports communication with the BMS of leading lithium battery manufacturers.

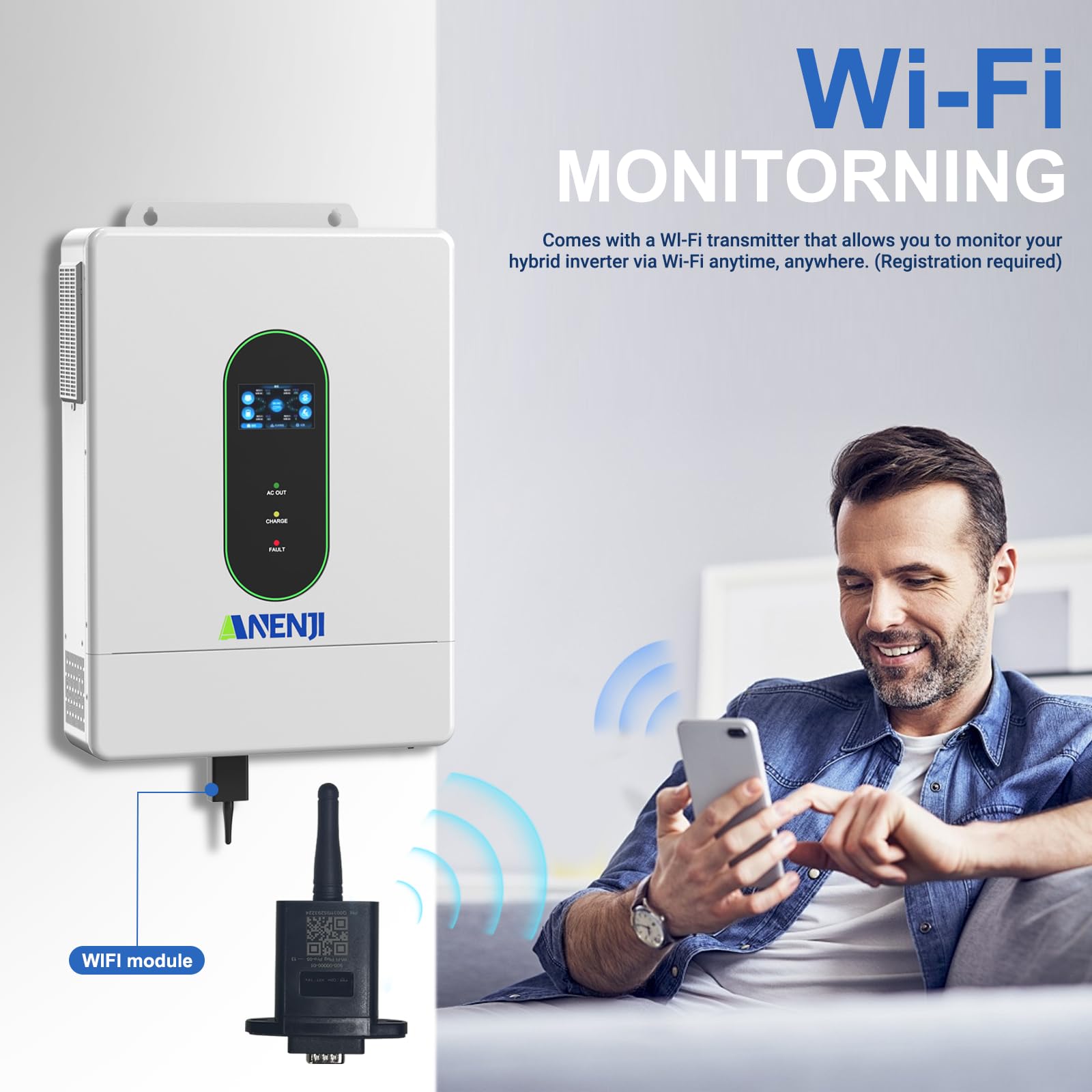

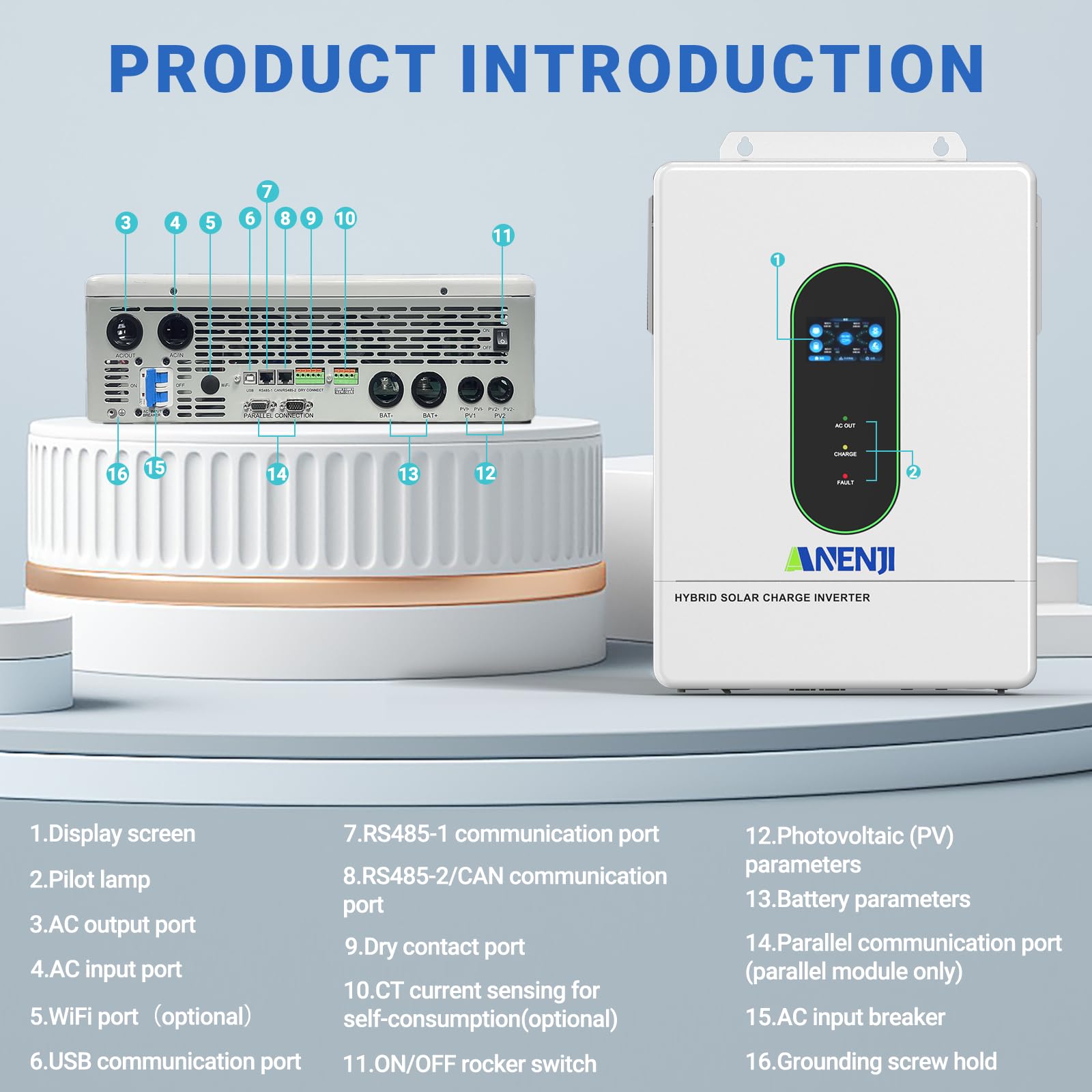

【OLED LIGHT-TOUCH TOUCHSCREEN FOR REAL-TIME MONITORING】The Hybrid Inverter is equipped with a high-definition OLED light-touch touchscreen that displays system data and operational status in real-time via a dynamic flow diagram. In case of a fault, a detailed fault code is displayed, enabling quick troubleshooting.

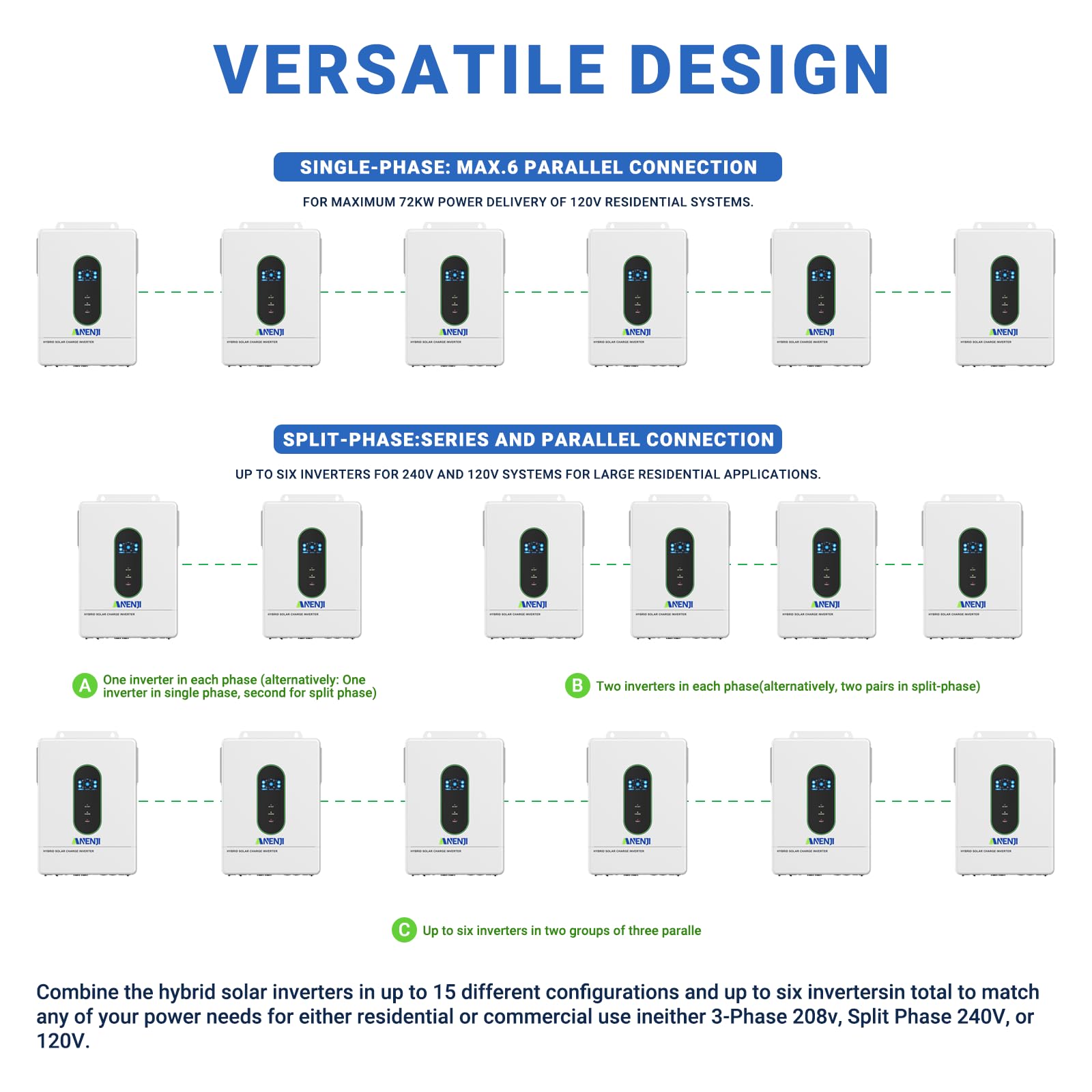

【ADDITIONAL APPLICATION AREAS】This powerful and versatile hybrid solar inverter is ideally suited for off-grid or on-grid solar applications in RVs, boats, vacation homes, and household or commercial backup power systems. It can power various electrical appliances up to 12000W continuous power, including demanding consumers like air conditioners (up to 6 HP) and motors. Supports parallel operation of up to 6 units for higher power capacity.
