AYWHP ESP32 Development Board, ESP32 ESP-32 Module with CP2012 Chip WiFi+Bluetooth Dual Core Support STA/AP/STA+AP Type-C Interface 38 PINS Soldered Version Compatible with Arduino

4.4 / 5

₱890

+ ₱ 150

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2026-06-13 to 2026-06-20.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

DETAILS

Product ID:

325599

Copy Link

Identifier:

B0DG8JFY3C

Brand:

AYWHP

Model:

Shipping Weight:

0.02 lbs

Manufacturer:

AYWHP

Shipping Dimension:

4.57 x 3.03 x 0.67 inches

FEATURES

【WiFi and Bluetooth Module】: Features the powerful ESP32 chip with dual-mode Bluetooth and WiFi capabilities, perfect for IoT applications.

【CP2012 USB to Serial Communication】: ESP32 equipped with CP2012 USB-to-serial chip for easy communication with various microcontrollers and computers, Compatible with Arduino.

【Supports Lua Programming】: The ESP32 board supports Lua scripting language, which simplifies the development process and makes it more accessible for both beginners and advanced users.

【Compact and Versatile Design】: The ESP32 compact size allows easy integration into any project,usb c supports AP, STA, and AP+STA coexistence modes.

【Reliable Performance】: Built using TSMC 40nm low-power technology, the offers high performance with minimal power consumption.

DESCRIPTIONS

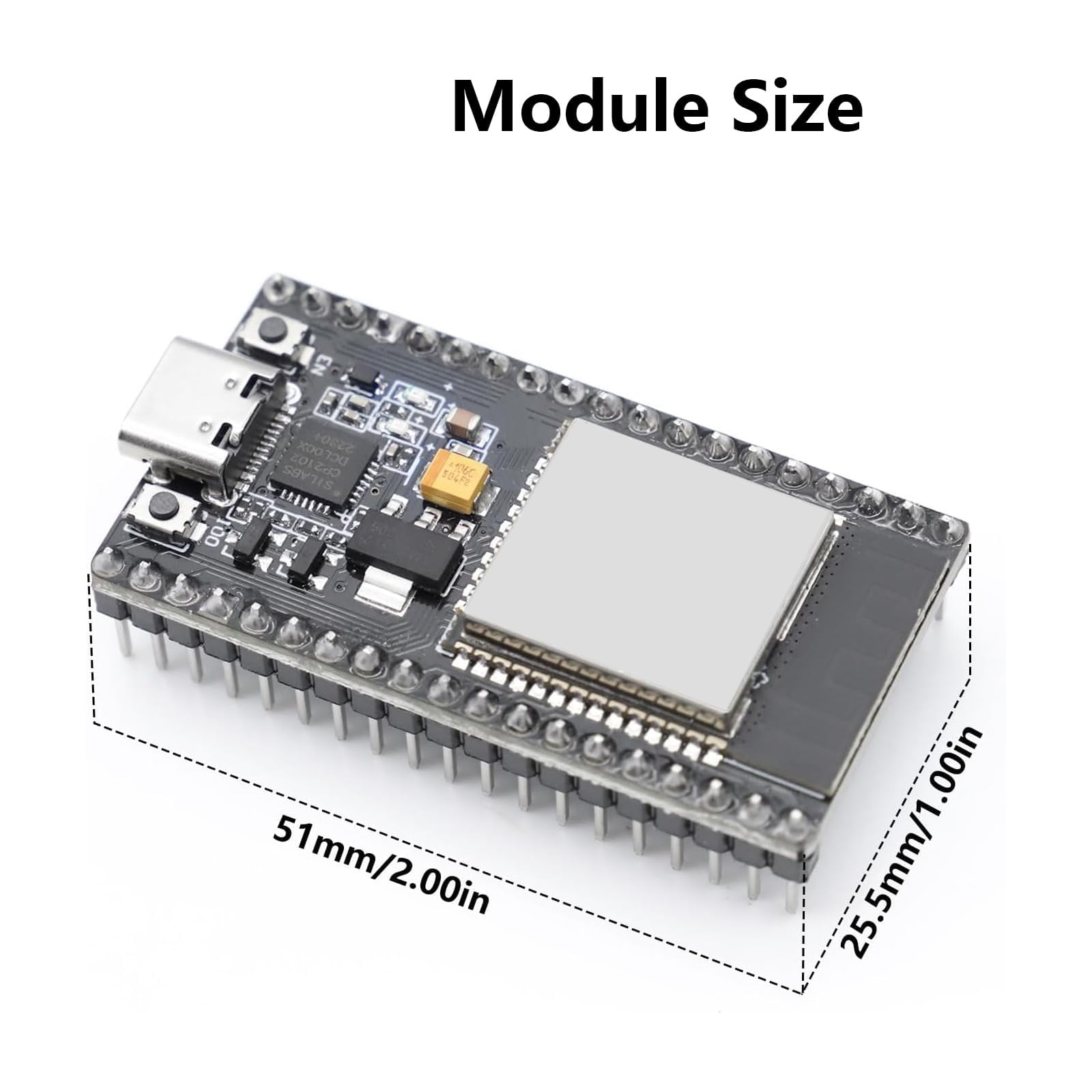

Description: The integrates antenna switches, RF baluns, power amplifiers, low-noise amplifiers, filters, and power management modules, resulting in a solution that occupies less printed circuit board area. 2.4 GHz Wi-Fi plus Bluetooth Dual Mode Chip TSMC's low-power 40nm technology provides excellent power and RF performance, reliability, and easy scalability to a wide range of applications. Features: Small footprint. Easy to embed into any product Powerful functions, support LWIP protocol, freertos Support three modes: AP, STA, AP + STA coexistence mode Lua programming, let you develop more simple Parameters: Chip: ESP32 (with dual-core LX6 microprocessor) Main frequency: 240MHz Memory: 4MB Flash WiFi standard: IEEE 802.11 b/g/n Bluetooth version: Bluetooth 4.2 and BLE (Low Power Bluetooth) I/O ports: 32 GPIO pins in total Operating voltage: 3.3V Input voltage range: 5V (powered via Micro USB port) or 7-12V (powered via VIN pin) Power supply interface: Micro USB interface or VIN pin Dimensions: approx. 50mm x 25.4mm Development environment: compatible with Arduino IDE, Lua, MicroPython and other development environments Products included: 1 X ESP32 module with CP2012 Chip
