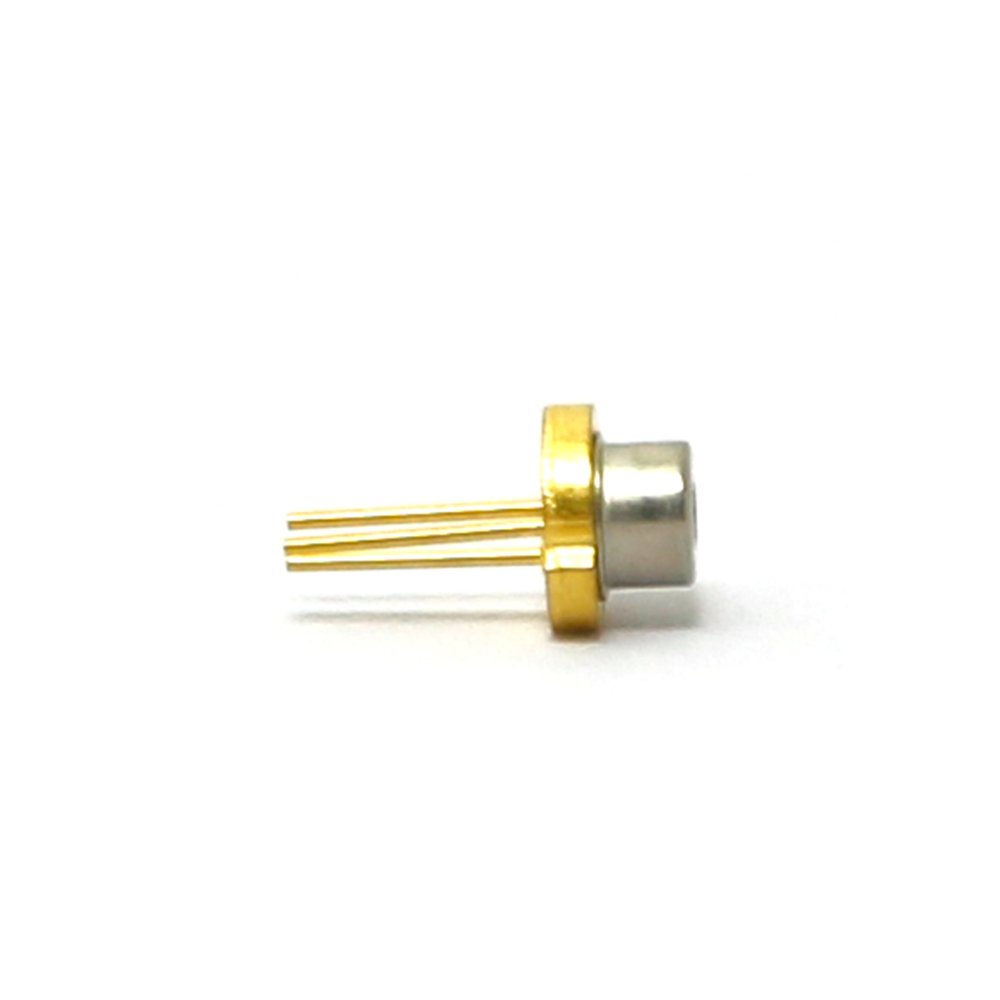

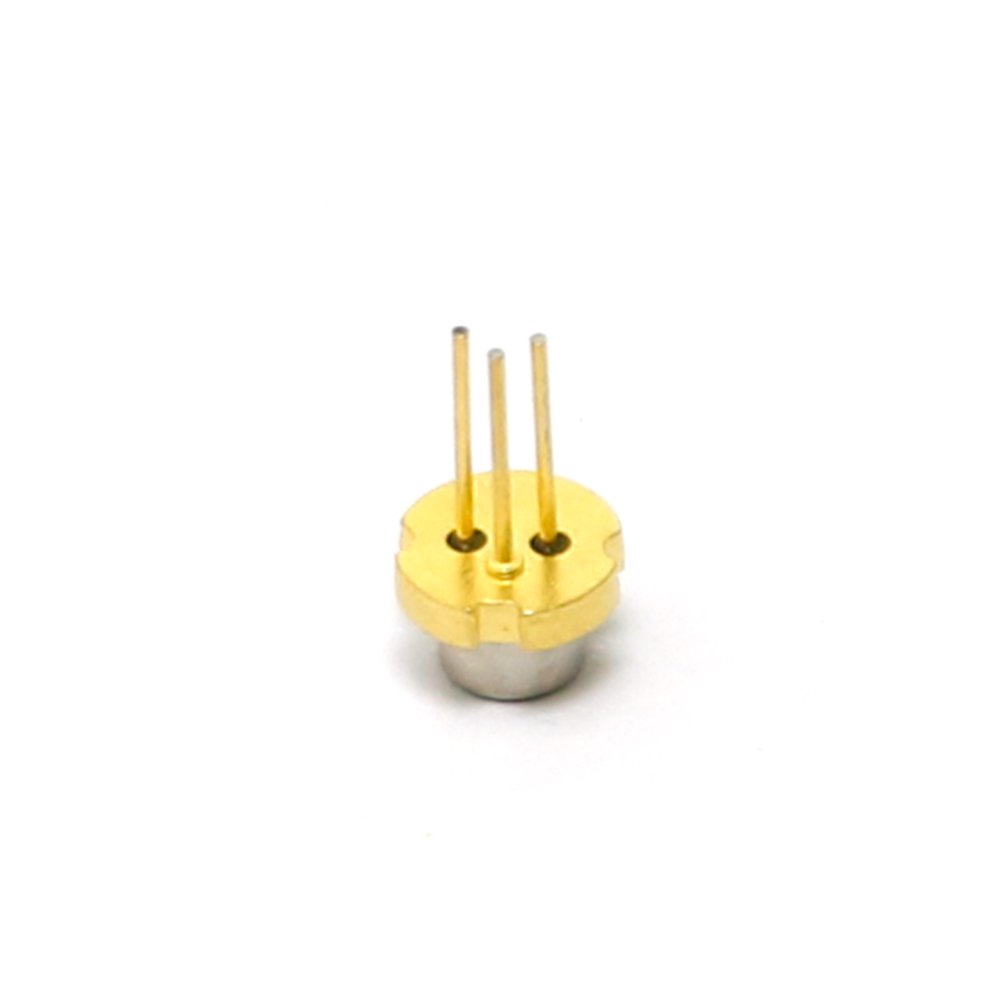

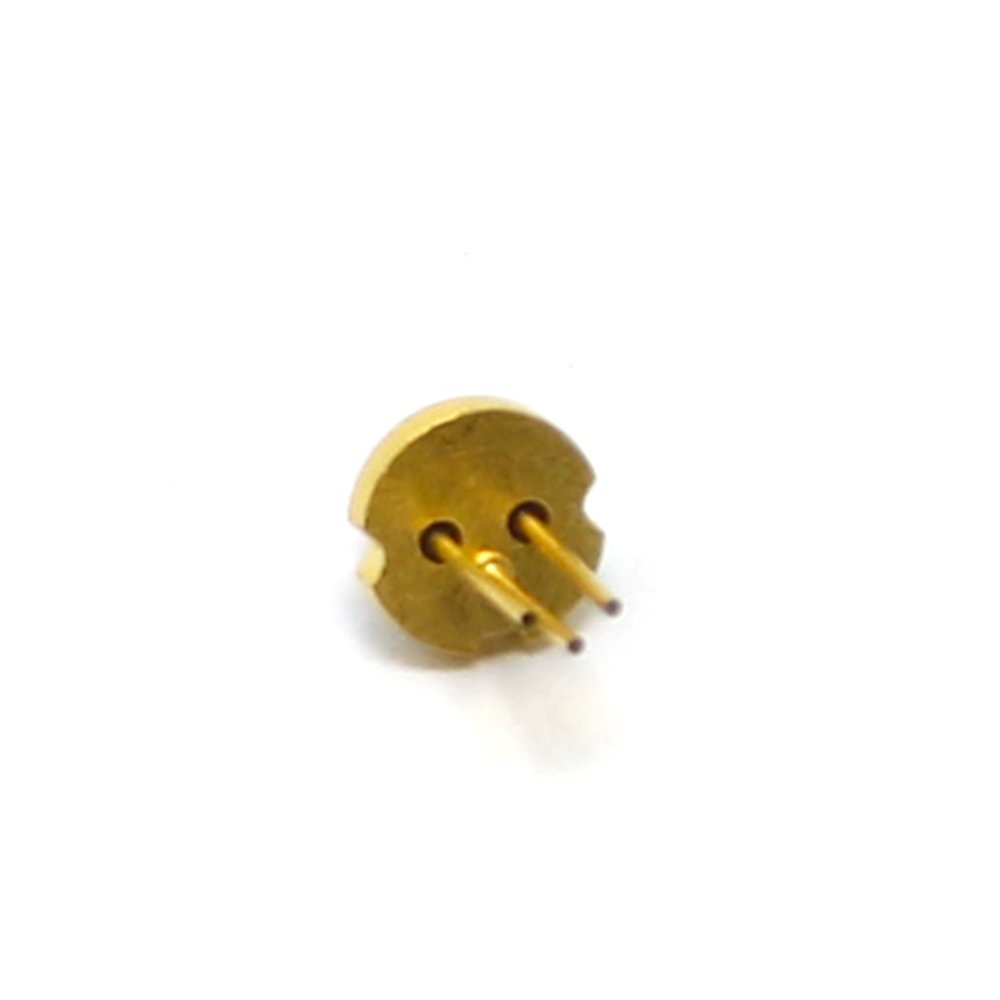

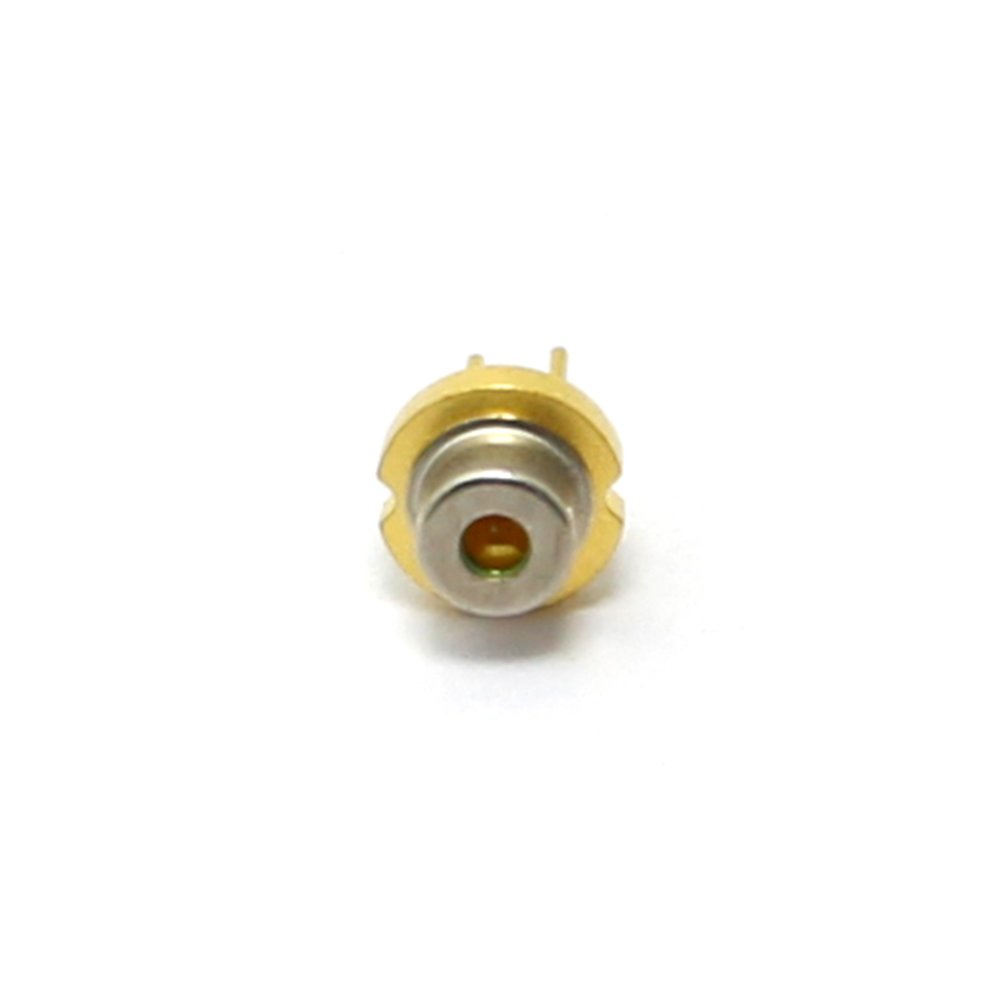

Q-BAIHE 405nm 100mw CW Violet/Blue Laser Diode LD 5.6mm TO-18 SLD3235VF

1 / 5

Product ID:

420151

Identifier:

B01LZ3AX5N

Brand:

Q-BAIHE

Model:

SLD3235VF

Shipping Weight:

0.07 lbs

Manufacturer:

Q-BAIHE

Shipping Dimension:

0 x 0 x 0 inches

Share on Social Media

Share on Facebook

Share on X

Share on Instagram

Share on Tiktok

Price of this item is not available.

FEATURES

405nm 100mw CW

Violet/Blue Laser Diode LD

5.6mm TO-18 SLD3235VF New

When handling the LDs, wear appropriate safety glasses to prevent laser light, even any reflections from entering to the eye

DESCRIPTIONS

Features: Optical Output Power: CW100mW Peak Wavelength: 405nm Can Type: 5.6mm with Photo Diode Absolute Maximum Ratings: Optical Output Power: 140mw LD Reverse Voltage: 2v PD Reverse Voltage: 5.5V Storage Temperatuer: -40~85¡ãC Operating Case Temperature: -10~70¡ãC For more technical information, please contact us for LD datasheet. Safety of Laser Light: Laser light can damage the human eyes and skin. Do not expose the eye or skin to any laser light directly and/or through optical lens. When handling the LDs, wear appropriate safety glasses to prevent laser light, even any reflections from entering to the eye. Focused laser beam through optical instruments will increase teh chance of eye hazard. These LDs are classified in Class 4 of IEC60825-1 and 21 CFR Part 1040.10 Safety Standards. It is absolutely necessary to take overall safety measures against User's modules, equipment and systems into which Nichia LDs are incorporated and/or integrated. Package: 1X 5.6mm 120mW 405nm Violet/Blue Laser Diode TO-18 New
