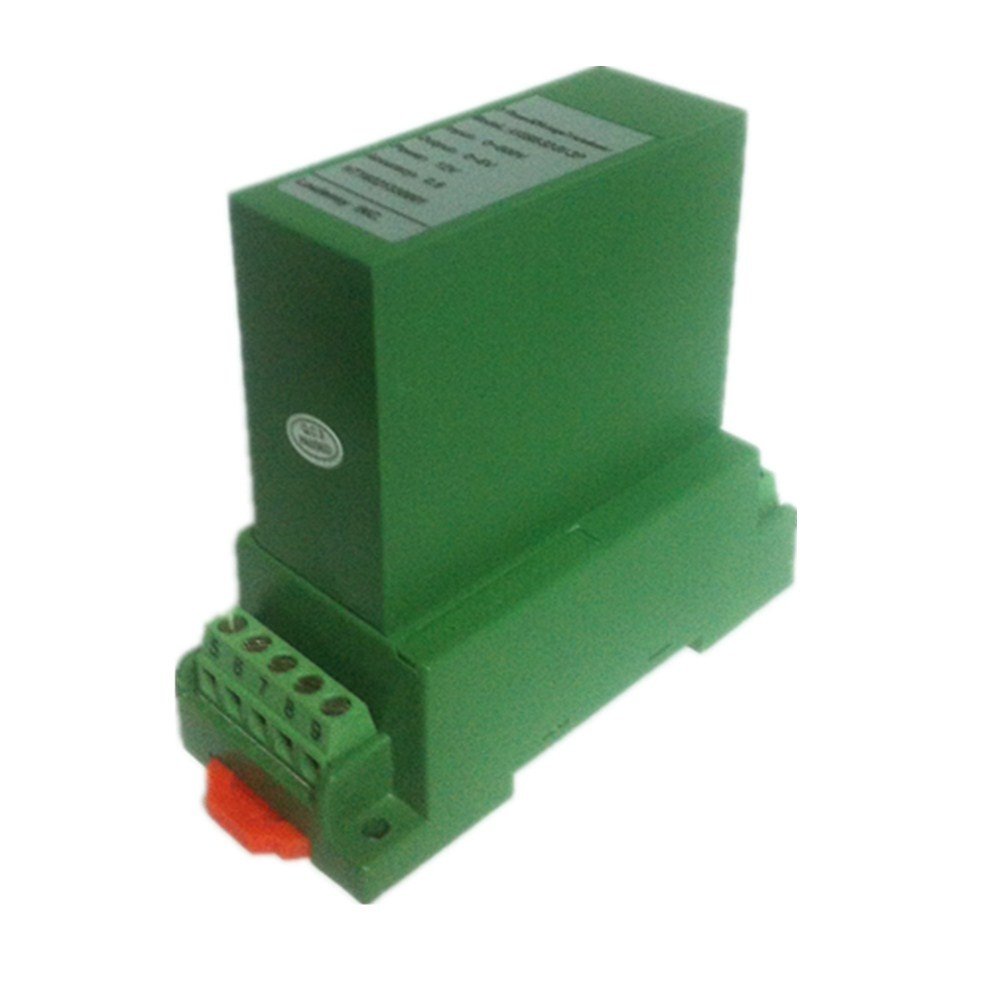

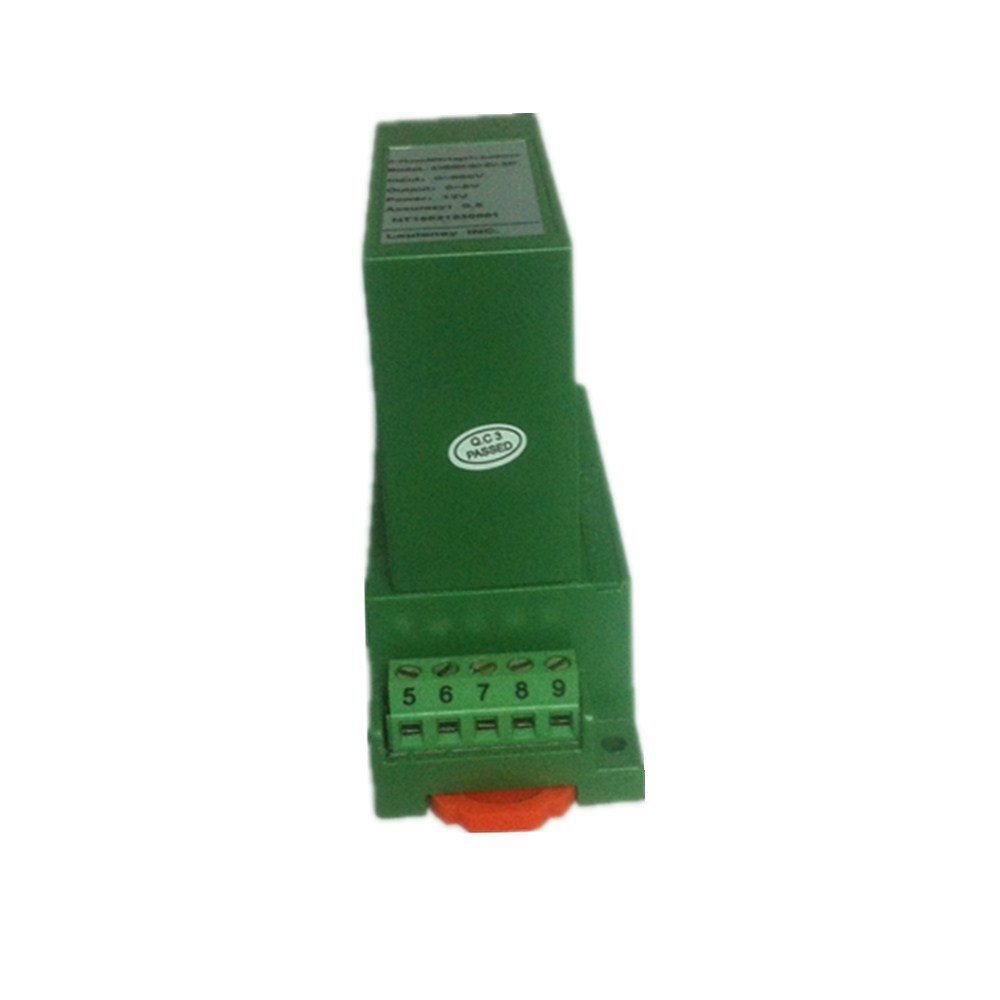

3-Phase AC Voltage Transducer Sensor Transformer Transmitter 3-Input 0-500V AC with 3-Output 0-5V DC

Product ID:

78905

Identifier:

B00LQA1TD0

Brand:

Loulensy

Model:

Shipping Weight:

0 lbs

Manufacturer:

Loulensy

Shipping Dimension:

0 x 0 x 0 inches

Share on Social Media

Share on Facebook

Share on X

Share on Instagram

Share on Tiktok

Price of this item is not available.

FEATURES

Input:0-500V AC

Output:0-5V DC

Power Supply:24V DC +/- 15%(defalted,if need 12V DC,please contact us)

Dimension:83*36*76mm(L*W*H)

Accuracy Grade:0.5%.F.S

Working Stability: annual change < 0.2%

Power Consumption:1.0 VA or less

Working Environment:-10 to 50 degrees Centigrade,20% to 90% without condensation

Isolation Resistance:>/=20M Ohm(DC510V)

Capacity Max:0-500V AC (Customerized,contact operator if you need other input ranges,e.g.0-75mV or 0-300V)

Impulse Voltage:5KV(peak value),1.2/50uS

Response Time:=/< 300mS

Default Frequency:40-60Hz(contact us,if you specially need different frequency,e.g. 100Hz)

Load Capacity: 2 times current continuous

Isolation Withstanding Voltage:AC 2.0KV/min*1mA between input/output/power

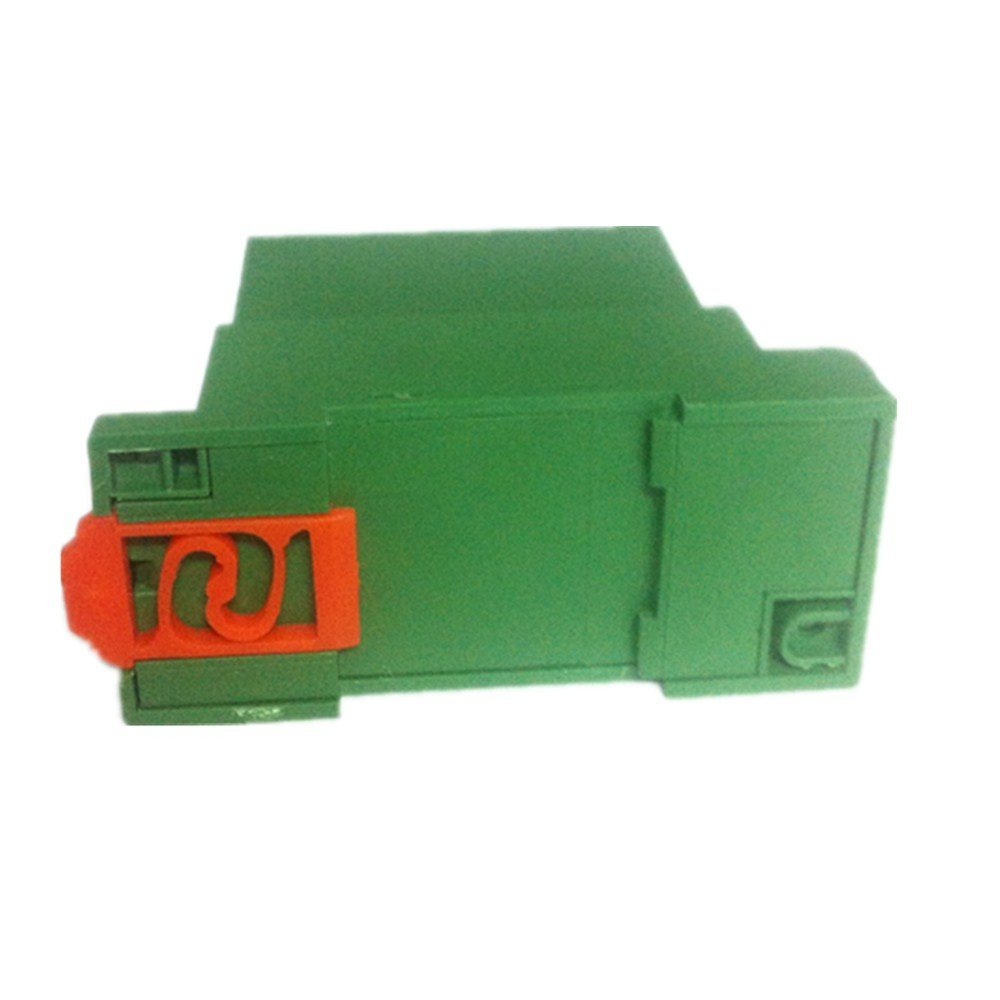

Feature:Voltage Terminal Insert,standard din rail(35mm)mounting or pannel mounting

Storage Temperature:-40 to 70 degrees Centigrade,20% to 95% without condensation

DESCRIPTIONS

This voltage transducer combines a potential transformer and signal conditioner, and is suitable for use in industrial automation systems. The transducer provides average root-mean-square (RMS) measurement for sinusoidal alternating voltage waveforms, with an accuracy of 0.5% full scale (FS) and a response time of 300 ms or shorter. Mounting options include DIN rail or panel. It is suitable for monitoring linear, constant-speed loads that produce sinusoidal waveforms.
