ACEIRMC VL53L0X Time-of-Flight Flight Distance Measurement Sensor Breakout VL53L0X ToF Laser Range Finder for Arduino (5pcs Black)

4 / 5

Available Options

Black, 16242 ₱890.00 5pcs Purple, VL53L0X ₱1,530.00 5pcs Black, VL53L0X ₱1,347.00 Purple, 16242 ₱981.00

SAVE 31%

₱1,895

₱1,347

+ ₱ 150

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2026-04-19 to 2026-04-26.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

DETAILS

Product ID:

1449253

Copy Link

Identifier:

B0F28MFW6X

Brand:

ACEIRMC

Model:

VL53L0X

Shipping Weight:

0.02 lbs

Manufacturer:

ACEIRMC

Shipping Dimension:

3.27 x 2.13 x 0.35 inches

FEATURES

The VL53L0X from ST Microelectronics is a time-of-flight ranging system integrated into a compact module. This board is a carrier for the VL53L0X, so we recommend careful reading of the VL53L0X datasheet (1MB pdf) before using this product.

The VL53L0 uses ST's FlightSense technology to precisely measure how long it takes for emitted pulses of infrared laser light to reach the nearest object and be reflected back to a detector, so it can be considered a tiny, self-contained lidar system.

Ranging measurements are available through the sensor's I⊃2;C (TWI) interface, which is also used to configure sensor settings, and the sensor provides two additional pins: a shutdown input and an interrupt output.

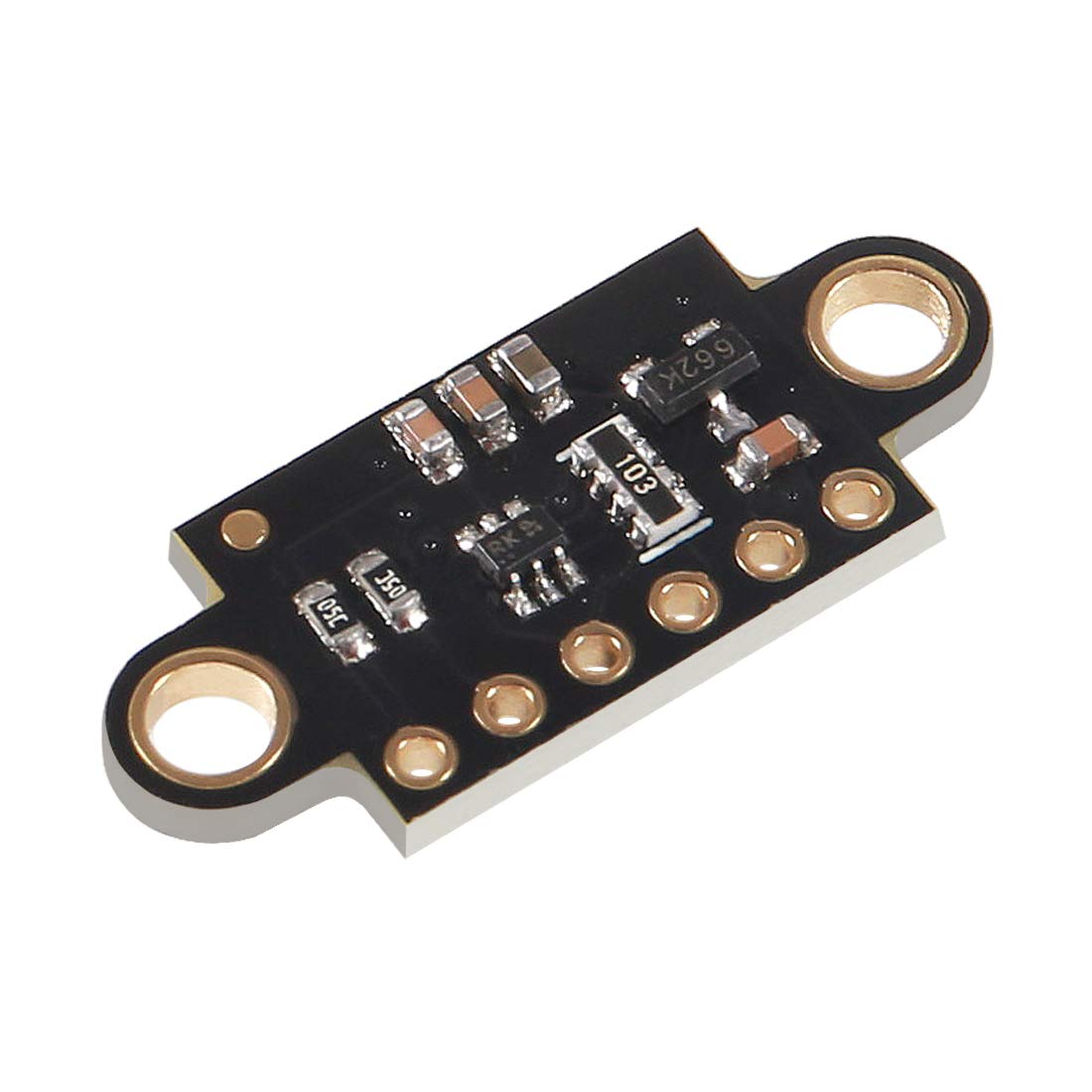

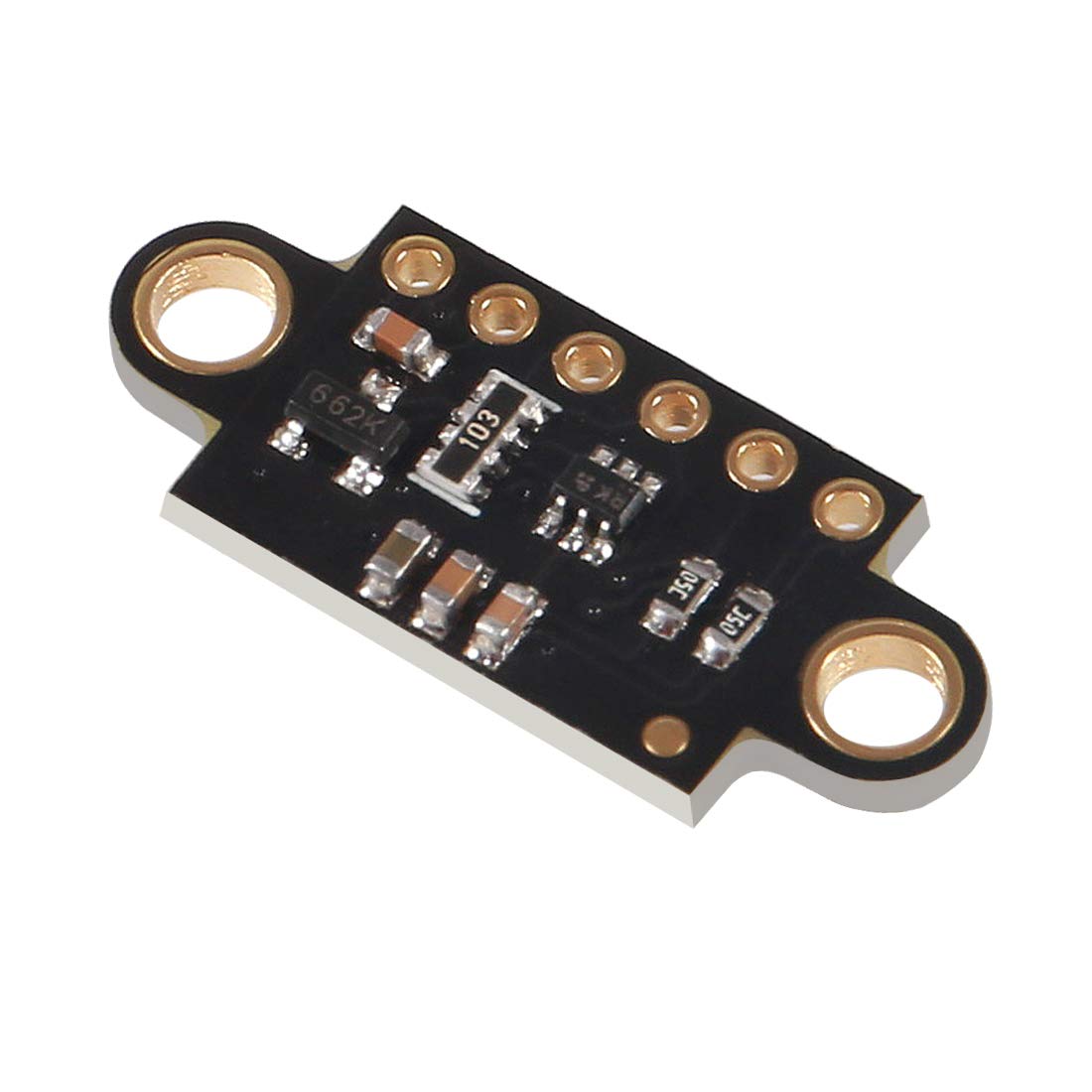

The VL53L0X is a great IC, but its small, leadless, LGA package makes it difficult for the typical student or hobbyist to use. It also operates at a recommended voltage of 2.8 V, which can make interfacing difficult for microcontrollers operating at 3.3 V or 5 V. Our breakout board addresses these issues, making it easier to get started using the sensor, while keeping the overall size as small as possible.

A time-of-flight ranging system integrated into a compact module

DESCRIPTIONS

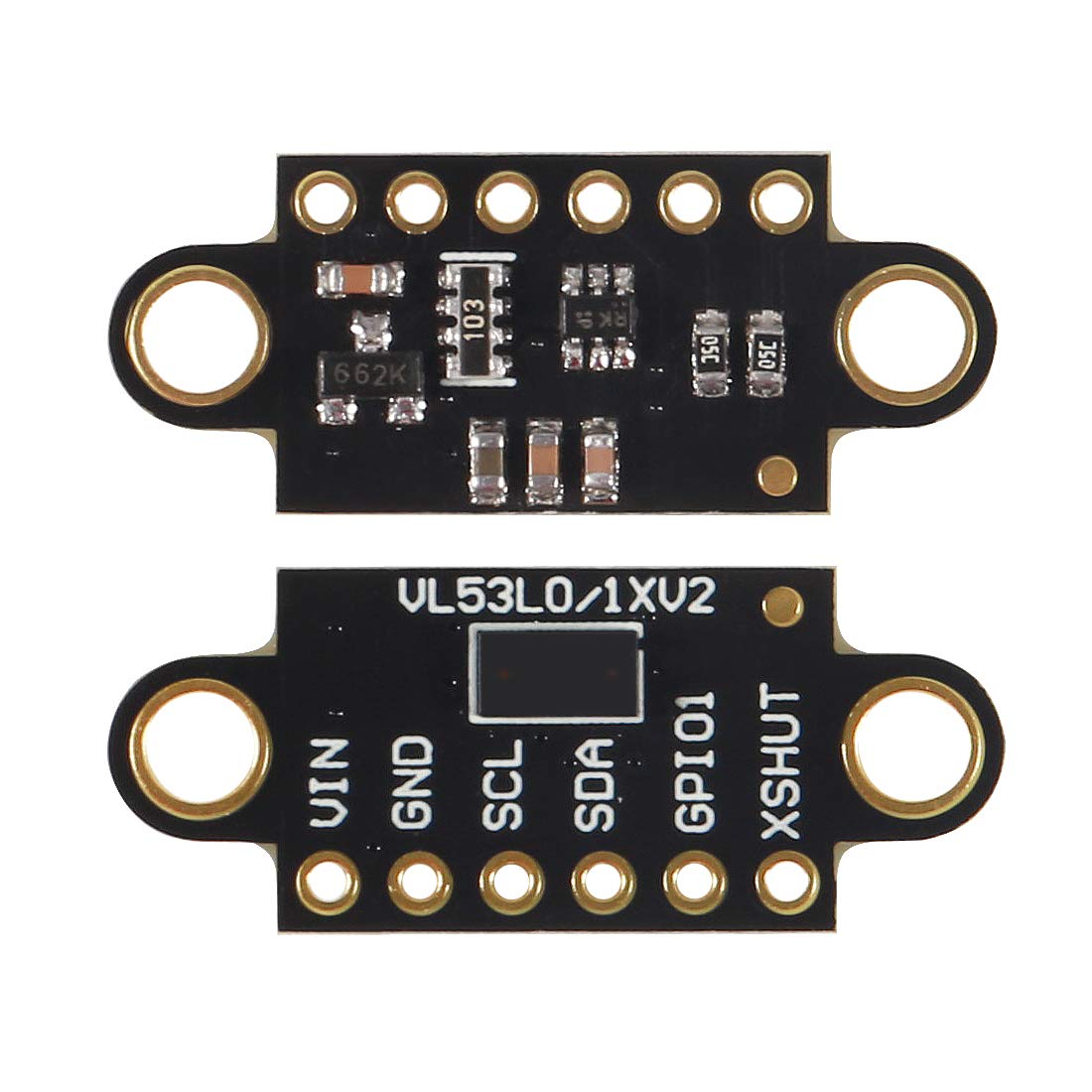

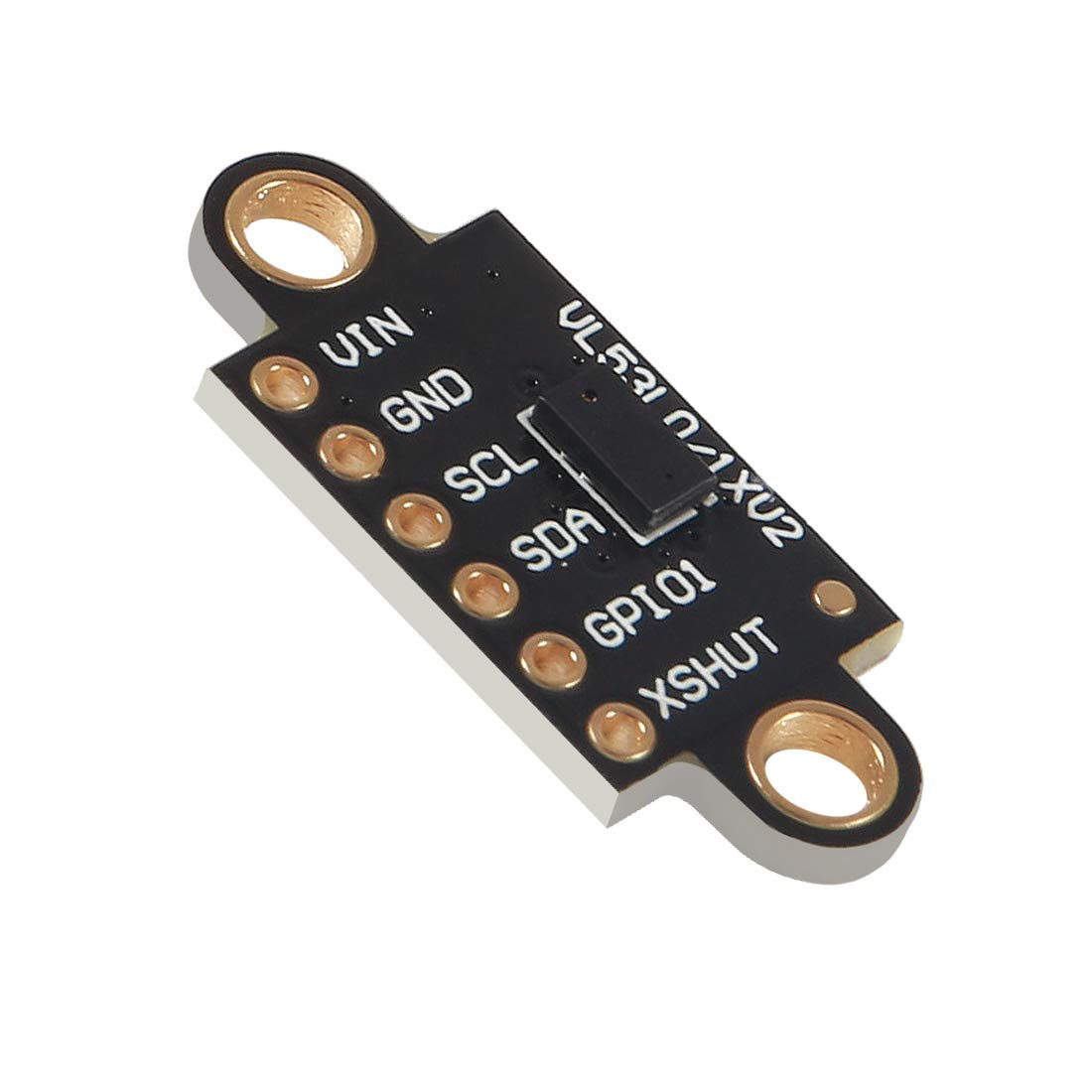

Description: The VL53L0X from ST Microelectronics is a time-of-flight ranging system integrated into a compact module. This board is a carrier for the VL53L0X, so we recommend careful reading of the VL53L0X datasheet (1MB pdf) before using this product. Ranging measurements are available through the sensor’s I²C (TWI) interface, which is also used to configure sensor settings, and the sensor provides two additional pins: a shutdown input and an interrupt output. PIN Description: VDD Regulated 2.8 V output. Almost 150 mA is available to power external components. (If you want to bypass the internal regulator, you can instead use this pin as a 2.8 V input with VIN disconnected.) VIN This is the main 2.6 V to 5.5 V power supply connection. The SCL and SDA level shifters pull the I2C lines high to this level. GND The ground (0 V) connection for your power supply. Your I2C control source must also share a common ground with this board. SDA Level-shifted I²C data line: HIGH is VIN, LOW is 0 V SCL Level-shifted I²C clock line: HIGH is VIN, LOW is 0 V XSHUT This pin is an active-low shutdown input; the board pulls it up to VDD to enable the sensor by default. Driving this pin low puts the sensor into hardware standby. This input is not level-shifted. Package includes : 5 x L53L0X Time-of-Flight Distance Sensor
