Galleon 2026Download our mobile shopping application for faster and easy transaction.
Product ID:
424518
Identifier:
B06ZZLJ1D2
Brand:
WITMOTION
Model:
Tilt Switch-Relay
Shipping Weight:
0.66 lbs
Manufacturer:
WitMotion
Shipping Dimension:
6.1 x 6.1 x 2.05 inches
₱8,006
+ ₱ 331
Shipping Cost from USA to Philippines inclusive of custom fees.
Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.
Get it between 2026-06-06 to 2026-06-13.
Additional 3 business days for provincial shipping.
- Price and Stocks may change without prior notice
- Packaging of actual item may differ from photo shown
Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.
Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

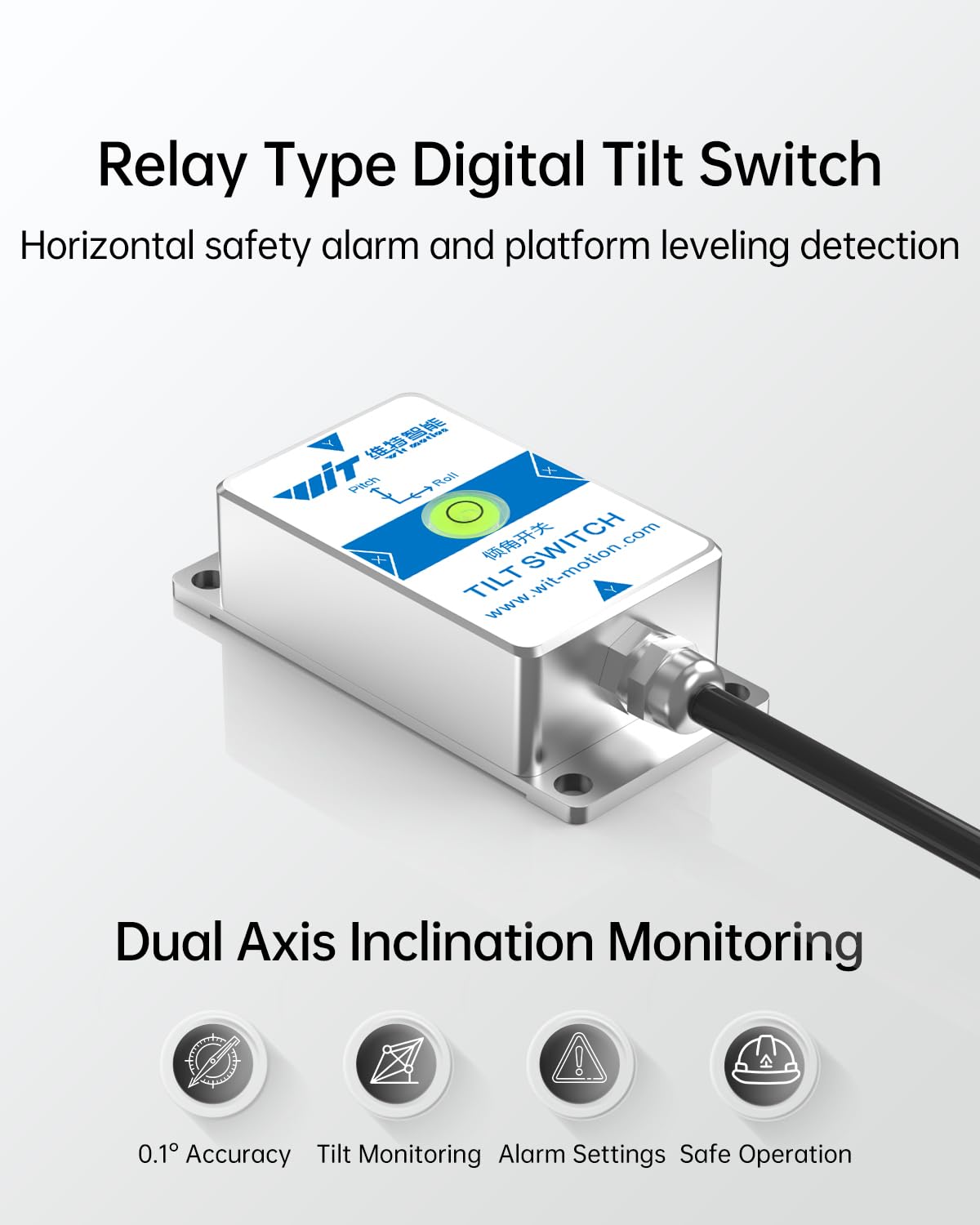

【 Relay-type Analog Inclinometer 】Dual axis Inclination Measuring: X&Y Dual-axis (+- 90 degree), Relay Value Output Type (200HZ Max output rate, normally open and normally closed optional)
【 Robust Design 】 Cortex-M0 core processor, highly-integrated MEMS, and Kalman Algorithm combine to deliver measurement accuracy at 0.1 degree(X, Y-axis) even in the dynamic environment, professional for industrial safety monitoring system
【 WITMOTION Advantage 】8-year Professional Attitude Measuring Solution Provider, sensors integrated R&D dynamic fusion algorithm and Kalman Filtering ensuring stable data output and excellent bias stability, low noise level, increasing measurement accuracy
【 Worry-free Support 】12-month warranty, lifetime friendly customer service by WitMotion team. Option 1. The tutorial link is printed on the guiding card inside the package. Option 2. search wit-motion(dot)com and download the complete tutorial. Option 3. contact us if you need any help, support (at) wit-motion (dot) com
【 What You Get 】1 x WitMotion SINRT inclinometer(9-36V RS232 version) + 1 x Evaluation Board + 1 x Welcome guide (USB-UART converter not included )

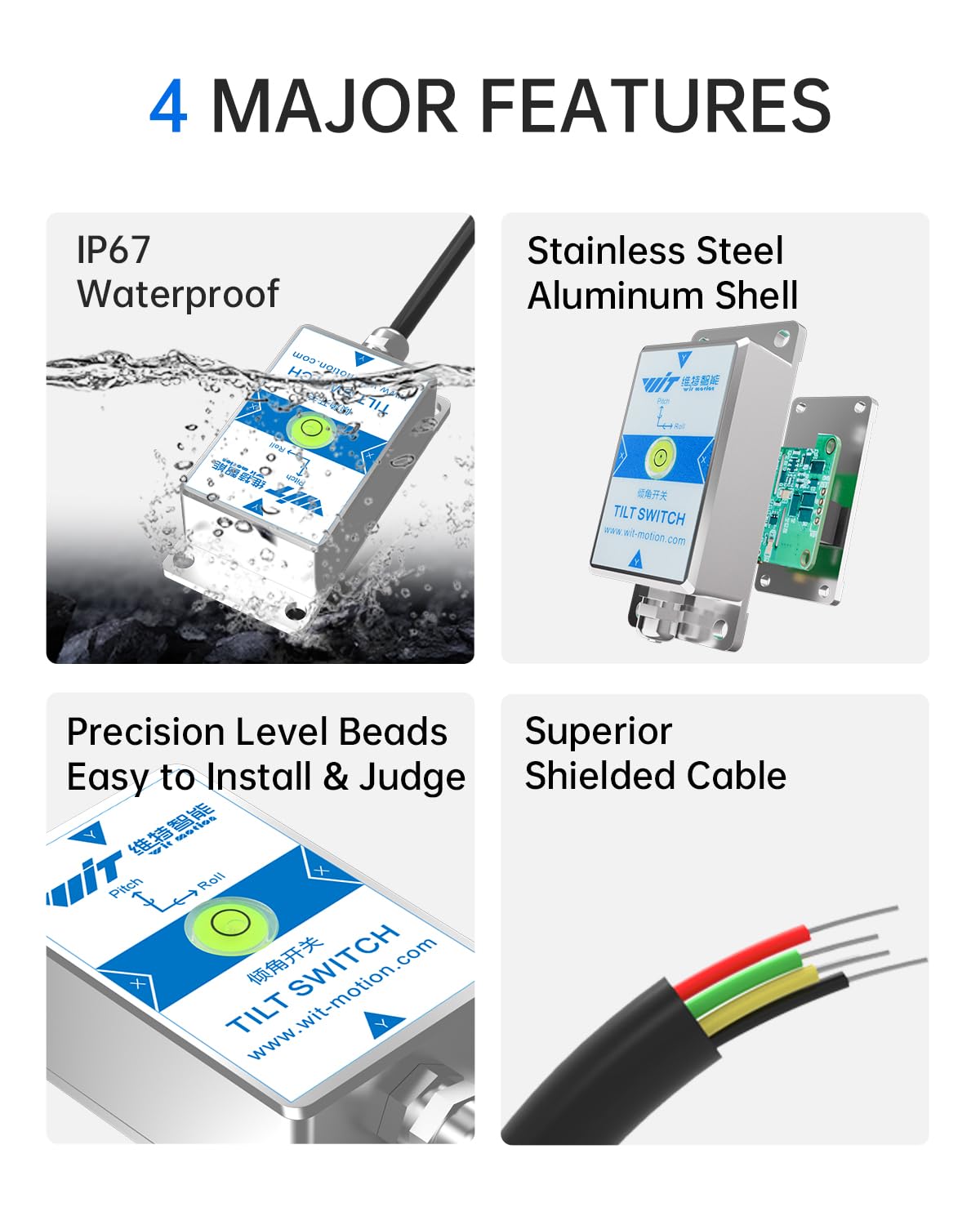

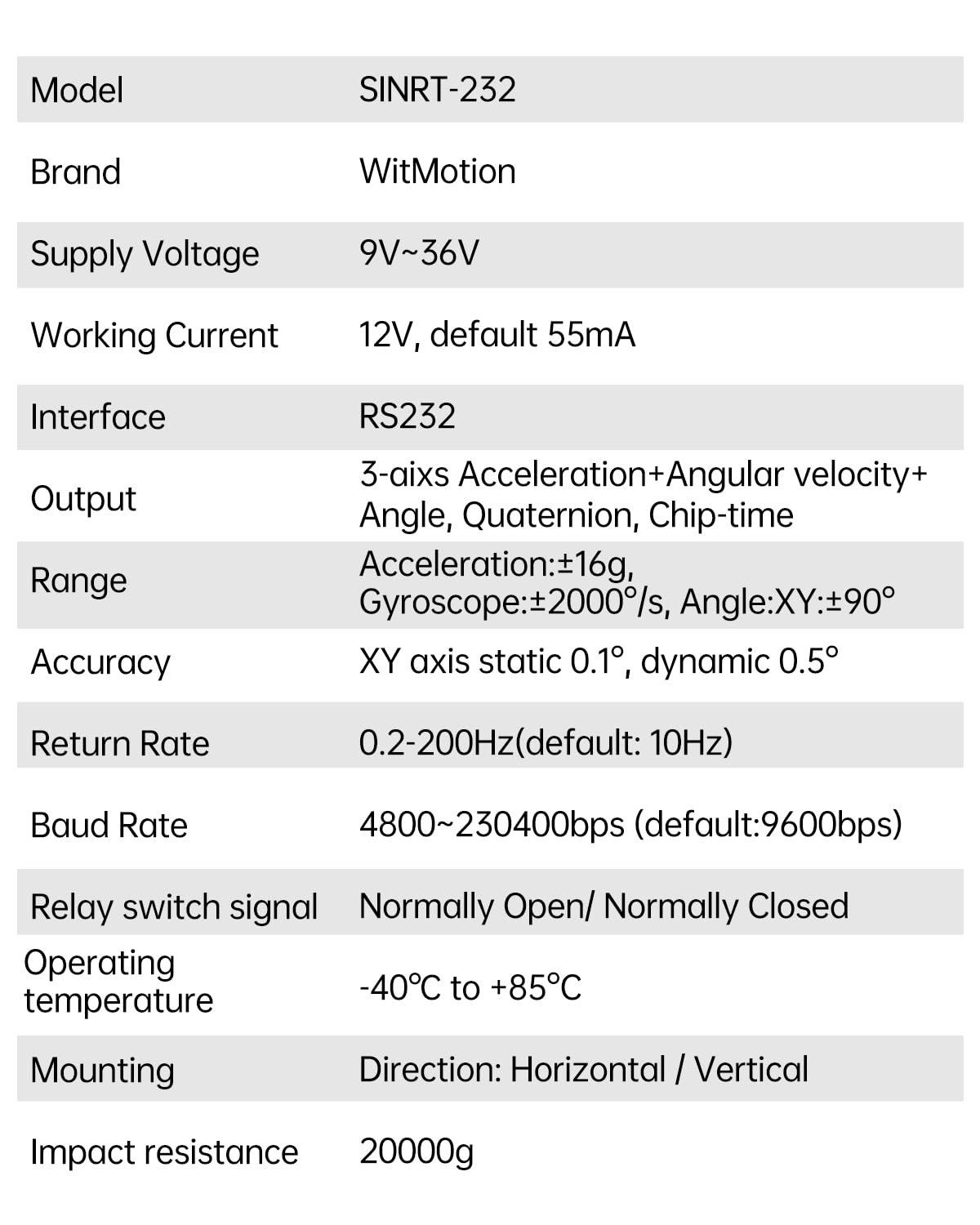

Document download link: https://wiki.wit-motion.com/english/doku.php?id=tilt_switch Product Description: a.Measuring range: ±90 degree b.Measuring axis : X, Y axis c. UART RS232 Serial port. d. Alarm threshold can be set (default 10 degrees). e. High vibration resistance> 3500g. f. Relay output (Default open). g. Full range of precision 0.1 degree, resolution 0.01 degree. h. Wide voltage input DC9 ~ 36V. i. Wide temperature work -40 ~ +85 ℃. j. Small size (55 * 36.8 * 24mm) . k. IP67 degree of protection. l. Frequency response : 100. m. Resolution: 0.01 degree. n. Long term stability: 0.1. o. Power on start time : 0.5. p. Average working hours: ≥55000Hour / time. q. Anti-vibration: 10grms、10~1000hz. r. Insulation resistance: ≥100KΩ. n. waterproof level: ip67. s. Cable: Standard 1.0 m length, wear, oil, wide temperature, shielded cable. t. weight: 55g (without packing box). Packing list 1 x WitMotion SINRT inclinometer(RS232 version) +1 x instructions card
