FEATURES

DESCRIPTIONS

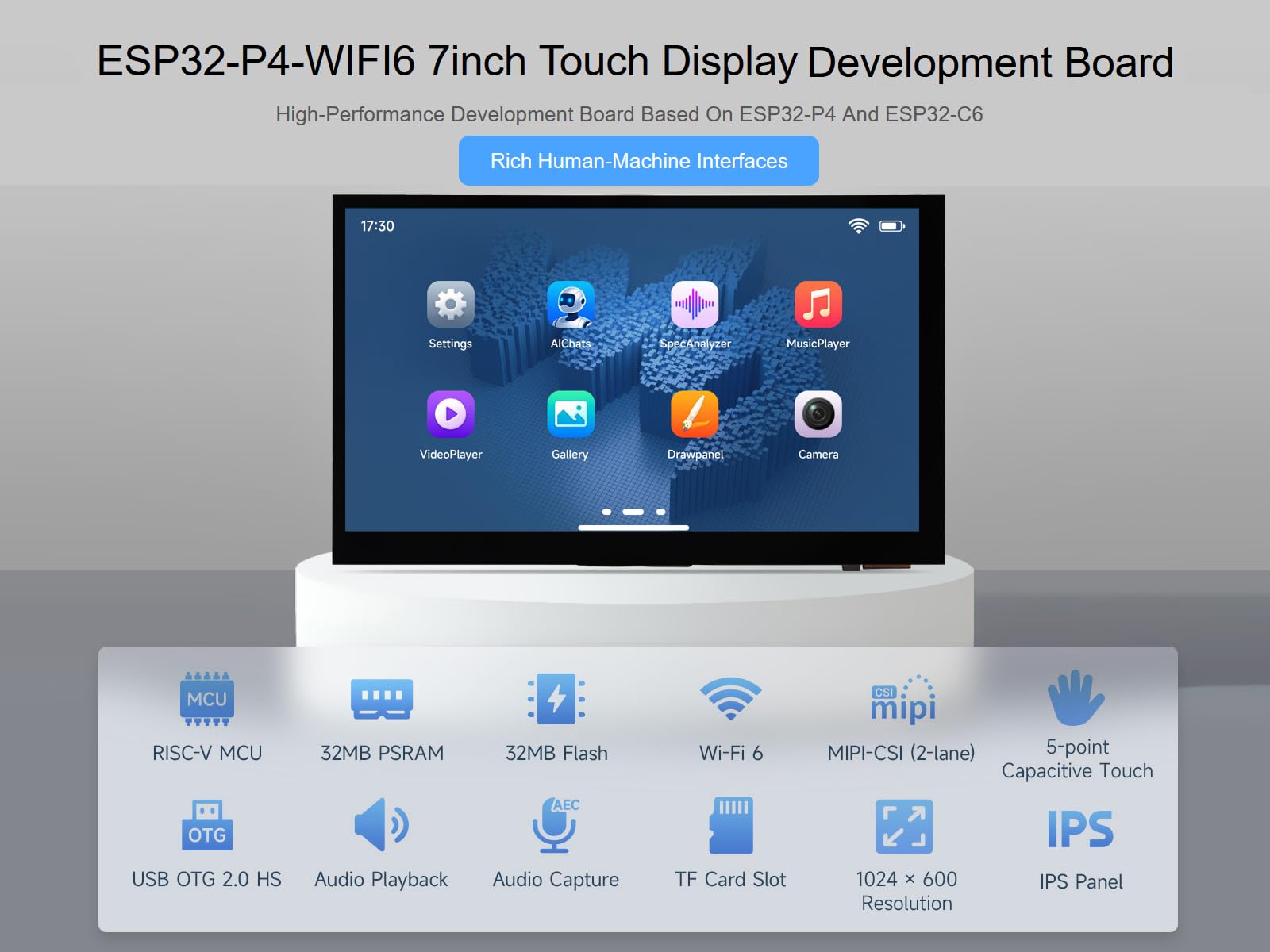

Overview ESP32-P4-WIFI6-Touch-LCD-7B is a high-performance development board based on ESP32-P4 chip, with integrated RISC-V 32-bit dual-core and single-core processors. Equipped with 7inch 1024 × 600 touch display, features rich human-machine interfaces including MIPI-CSI (with integrated Image Signal Processor), it also supports USB OTG 2.0 HS for high-speed communication. The ESP32-P4 chip integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, to meet the higher requirements of embedded applications such as Human-Machine interaction, efficient edge computing, and IO expansion. Features --High-performance MCU with RISC-V 32-bit dual-core and single-core processors --128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP S-R-A-M, 8 KB TCM --Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder --32MB PSRAM in the chip's package, with onboard 32MB Nor Flash --Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG HS, SDIO 3.0 TF card slot, dual microphones (supports echo cancellation), speaker header and RTC battery holder, etc. --Adapting 2*12 GPIO header with 17 x remaining programmable GPIOs --Onboard RS485, CAN, I2C, and UART headers for easy communication with industrial equipments Package Content 1. ESP32-P4-WIFI6-Touch-LCD-7B x1 2. USB Type-A dual-plug cable x1 3. USB Type-A to Type-C cable ~1m x1 4. Speaker x1 5. SH1.0 4PIN cable ~150mm x1 6. PH2.0 12PIN cable ~200mm x2 7. PH2.0 4PIN cable ~200mm x4 NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
