OMAX 40X-1000X Trinocular Compound Microscope with Replaceable LED Light and Darkfield Condenser

Product ID:

110974

Identifier:

B00FG8B1AO

Brand:

OMAX

Model:

M837L-A191

Shipping Weight:

7.96 lbs

Manufacturer:

OMAX

Shipping Dimension:

21.26 x 17.32 x 11.81 inches

Share on Social Media

Share on Facebook

Share on X

Share on Instagram

Share on Tiktok

SAVE 30%

₱72,352

₱52,412

+ ₱ 11,718

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2026-04-18 to 2026-04-25.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

FEATURES

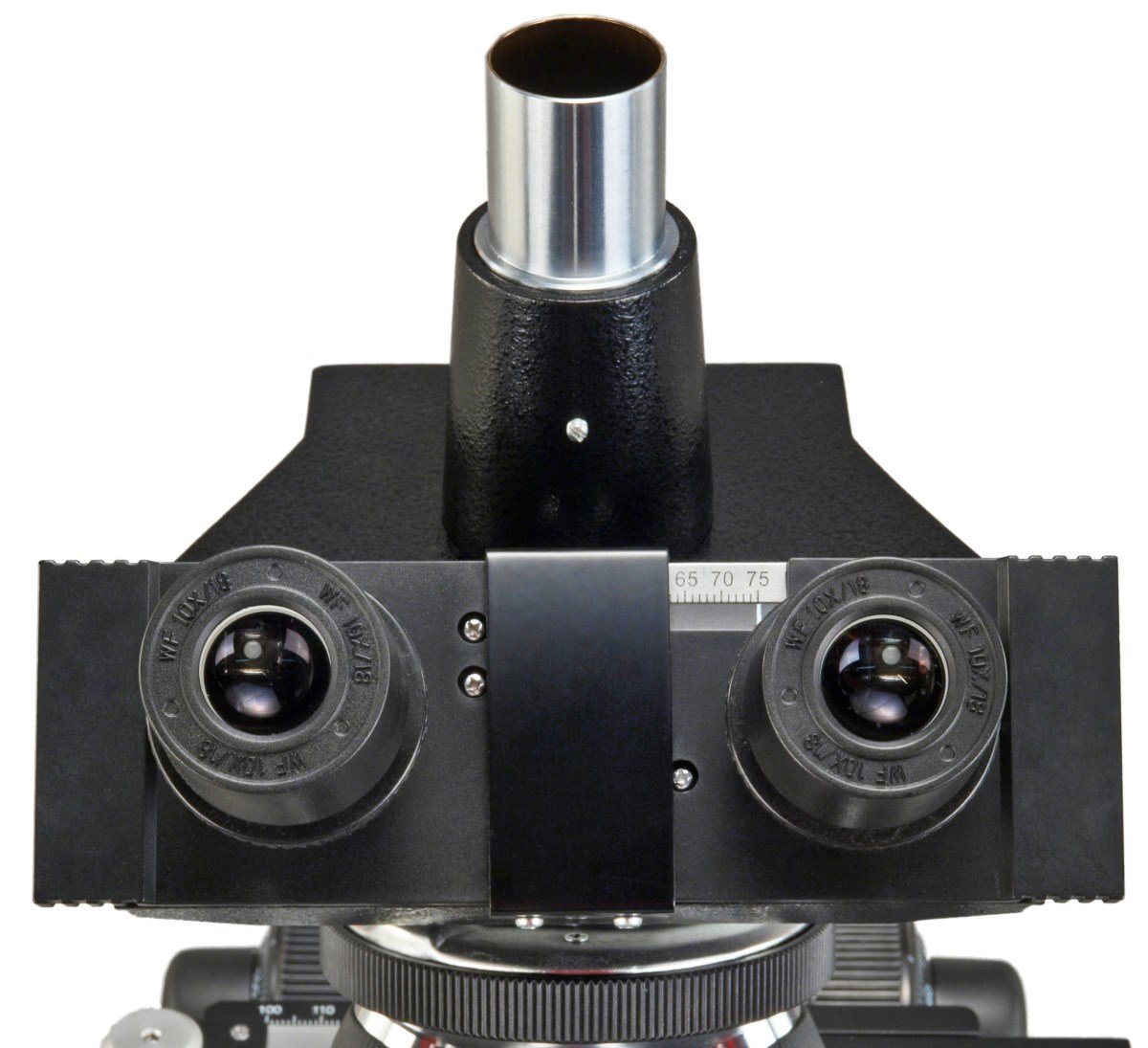

Total magnification: 40X-100X-400X-1000X; Eyepieces: widefield WF10X/18; Objectives: achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil); Viewing head: 45degrees inclined 360 degrees swiveling trinocular; Interpupillary distance: sliding adjustable 2-3/16inch ~ 2-15/16inch (55mm ~ 75mm); Diopter: adjustable on both eyepiece tubes

Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer, size: 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Photo tube adjustment range: 5/8inch (15mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control

Focusing knob can be locked for observation and transportation; Brightfield condenser: NA1.25 Abbe condenser with iris diaphragm and filter holder, rack and pinion adjustment; Dry darkfield condenser: NA0.7-0.9

Black palm rest on the base; Illumination: transmitted (lower), replaceable 3W LED light, variable intensity; Metal mechanical components; Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug)

5-year warranty against manufacturing defects

DESCRIPTIONS

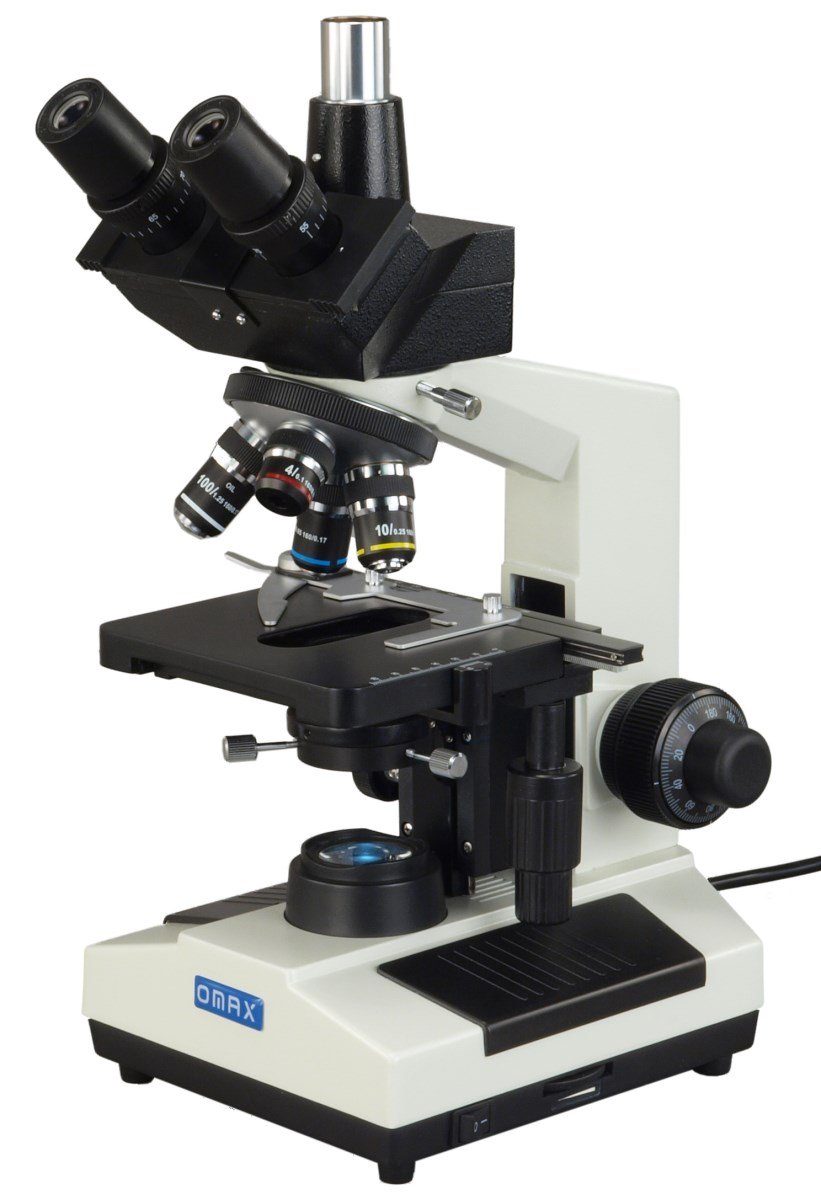

The professional trinocular compound LED microscope provides both darkfield and brightfield microscope system. It offers four level magnifications from 40X to 1000X. The darkfield compound microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. The compound microscopy includes a 45 degree inclined 360 degree swiveling trinocular head, body frame, revolving quadruple nosepiece, a pair of widefield eyepieces WF10X/18, four DIN achromatic objectives: 4X, 10X, 40X (spring), 100X (spring,oil), large double layer mechanical stage, LED illumination system and darkfield NA0.7-0.9 & brightfield Abbe NA1.25 condensers. The LED lamp can be replaced by yourself. The trinocular port is easy to mount photo or video capability. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This trinocular microscopy is good for teaching, demonstration, clinical examination and research purpose.
