Product ID:
415633
Identifier:
B0BDF52LK5
Brand:
LDMINDA
Model:
24V 4 Terminal Max 150A
Shipping Weight:
0.71 lbs
Manufacturer:
LDMINDA
Shipping Dimension:
3.7 x 3.07 x 2.99 inches

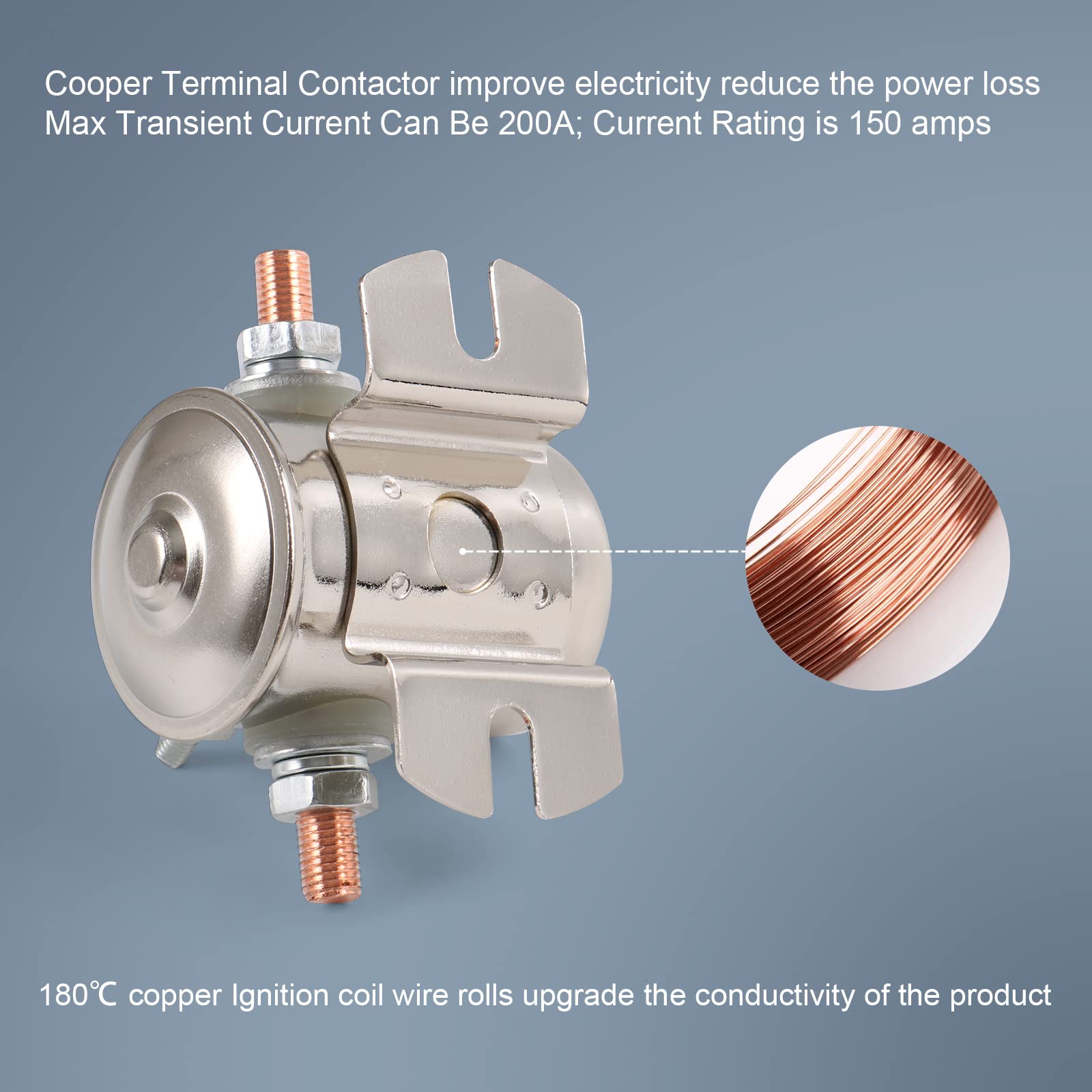

✦ 【Materials】4 Terminal Max 200A 24 Volt With 2 Copper Point Continuous Duty Solenoid Relay ,The The electromagnetic relay adopts high-quality components, Coil Roll is using 180℃ copper wire, Cover is Nickel-Plating, The Nickel-Plating outer layer and the inside of the canned coil, Sealed Unit Protects Solenoid From The Elements Helping Prevent Corrosion

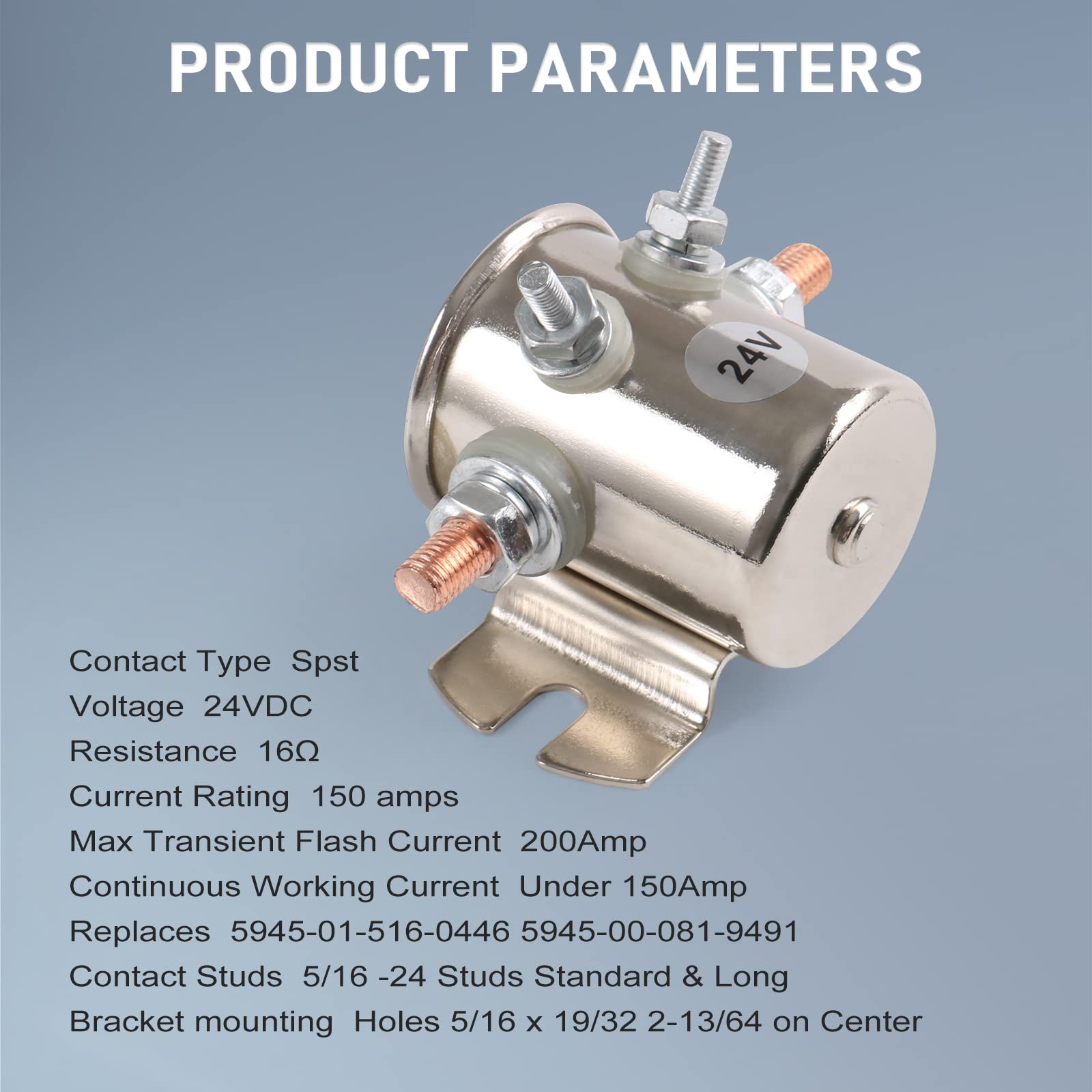

✦ 【Contacts】Normally Open (NO)/ 24VDC With 2 Copper Point, Solid Shell/ Copper 5/16-Inch -24 thread, Max Transient current can be 200A/ Rated Current is 150A/ SPST, One Circuit, Off - On;Ignition coil wire is 180℃

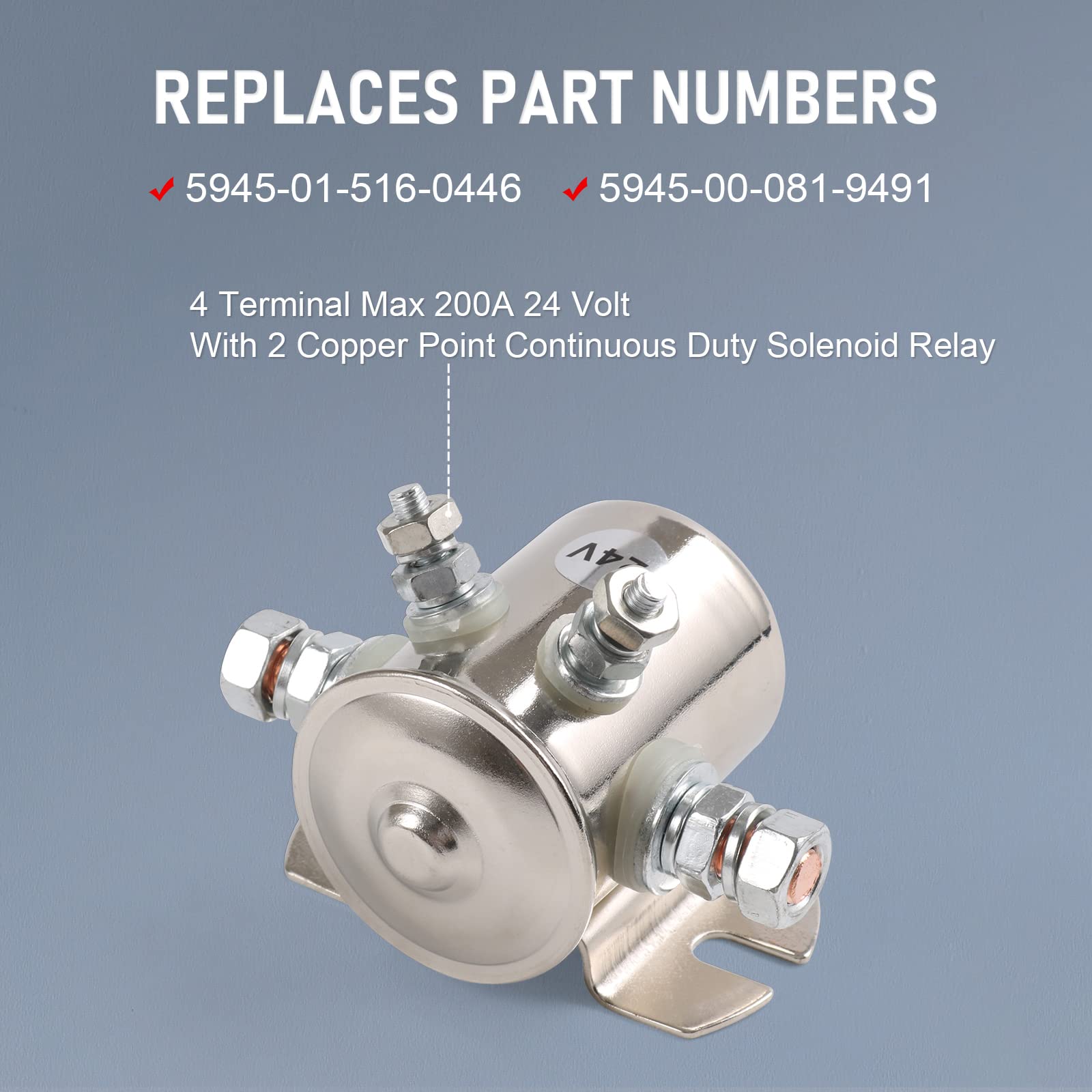

✦ 【Replaces Parts Number】This Continuous Duty Solenoid Relay Replacement For 5945-01-516-0446, 5945-00-081-9491,0662565200754
✦【Note】This is a start solenoid only finish work when your key start, if be Continuous Duty,can work 5 minutes under 150Amp, but NEED BREAK otherwise will be too hot to burned or fired ; Usually with 80Amp as working current, need Break 10 seconds on,30 minutes off
✦ 【Widely Application】Widely used in ships, winches, military vehicles, hydraulic control units, golf carts, factory machines
