Newdeli Max 200A Trombetta Continuous Solenoid Relay 3 Terminal Heavy Duty Winch Marine 24106 SPST Solenoid 12VDC

4.2 / 5

Available Options

Silver, MAX 300A-12V, 300A-12V ₱1,622.00 Silver, MAX 200A-12V, 200A-12V ₱1,622.00 Silver ₱1,622.00

₱1,622

+ ₱ 434

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2025-11-06 to 2025-11-13.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

DETAILS

Product ID:

63600

Copy Link

Identifier:

B09TNYPHMT

Brand:

Newdeli

Model:

200A-12V

Shipping Weight:

0.79 lbs

Manufacturer:

Wenzhou Yuxuan Electronic Commerce Co.,LTD

Shipping Dimension:

3.62 x 3.03 x 3.03 inches

FEATURES

【Specification】:3-pole battery isolation solenoid valve: Voltage: 12VDC; Working current: Below 80A Resistance: 14Ω; Capacity: 10.2W; Maximum transient flash current: 200Amp; Contact stud: 5/16-24 stud standard and Long; Mounting Holes: 5/16 x 19/32, 2-13/64 Center.

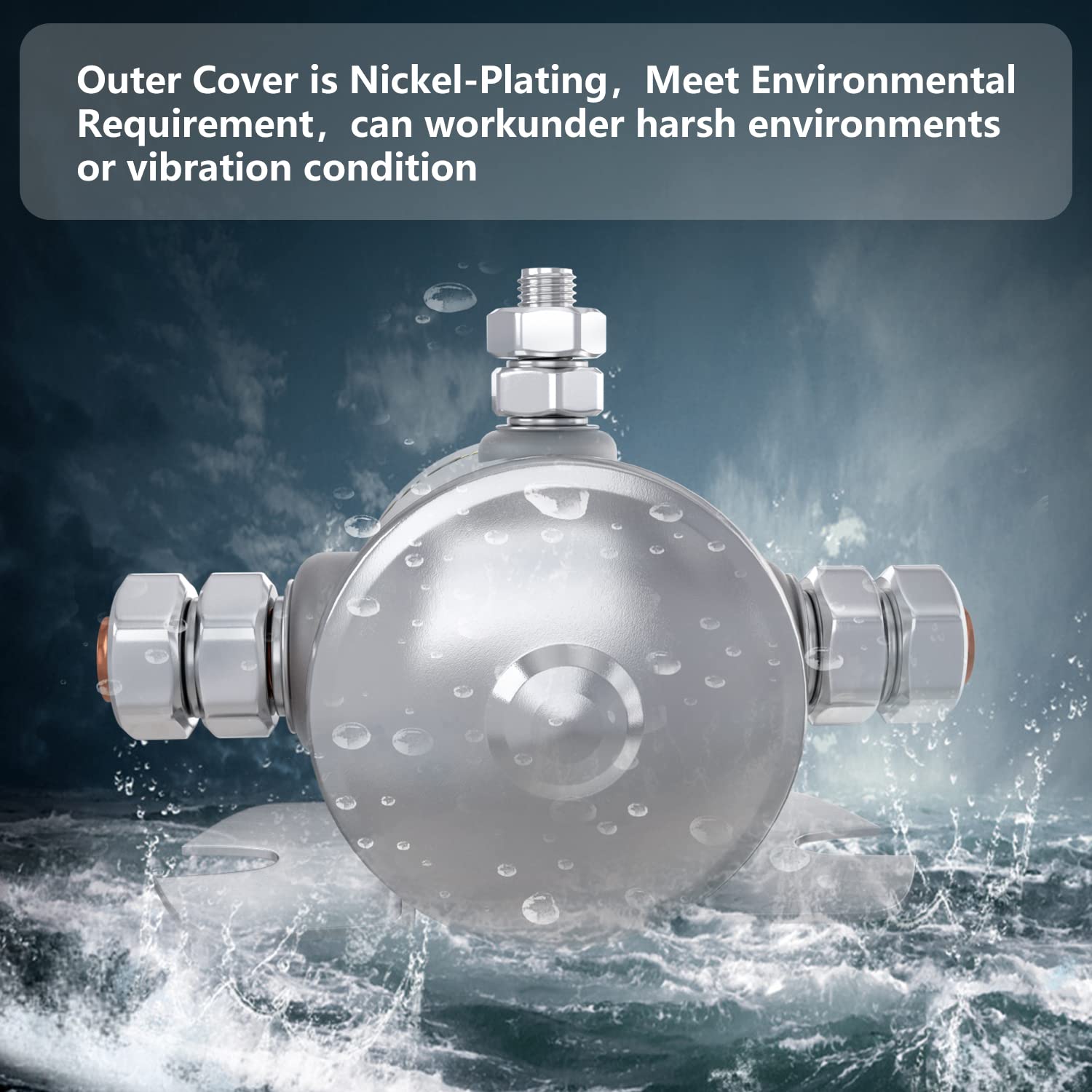

【High Quality】:The coil uses 180 ℃ copper wire, the electromagnetic relay is made of high-quality components,the contact: normally open (NO), the galvanized outer layer and the inside of the canned coil, suitable for use in any environment,Sealed Unit Protects Solenoid From The Elements Helping Prevent Corrosion.

【Application】:Wiedly Used for Marine, Winch, Military Vehicles, Hydraulic Control Units, Golf Cart, Factory Machines. Attention: If it is the energizing circuit which is typically 16/18 Awg, suggest a 5amp fuse; If 10 Awg wire suggests 30 amp auto circuit breaker; If high output alternator, suggest an 8 AWG wire with a 50 Amp auto circuit breaker.

【INSTIALL】：One side goes to Battery, opposite side to starter, top screw which is smaller goes to switch or key start only. It is already grounded internal.

【Replaces Part Number】:This Continuous Duty Solenoid Relay Replaces # 934-1215-010, 9341215010, 934-1215-010-16, 934121501016, 1114240, 1114241, 1114208，1114218，1114534，1114547，1114538 ,97240-X, 70091714，Trombetta 974-1215-011-09，974-1215-011，98226-9.
