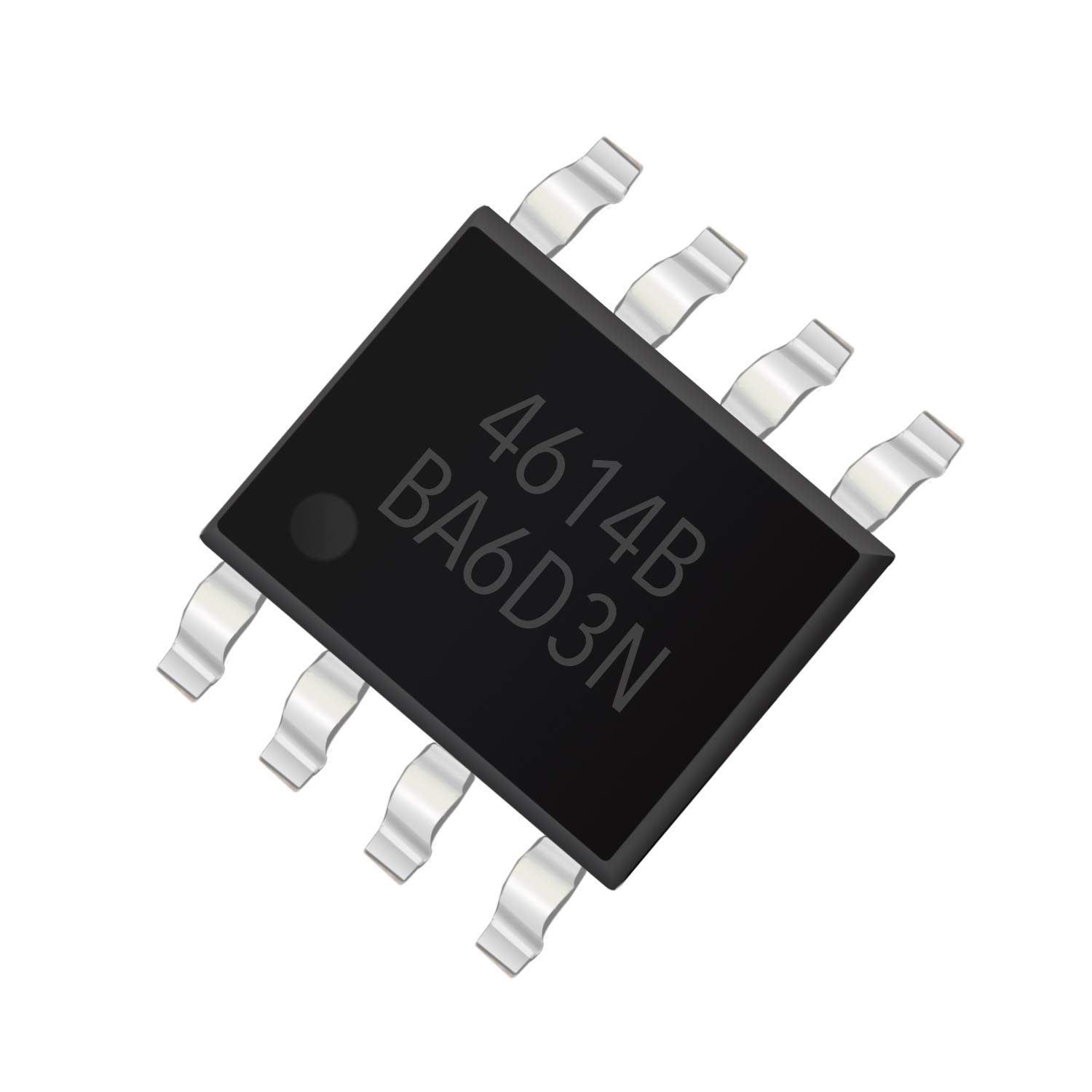

Chanzon AO4614B SOP-8 NMOS MOS/PMOS MOS Complementary MOS Transistor, N- and P-Channel 30 V SMD Transistor (Pack of 10pcs)

₱616

+ ₱ 150

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2026-06-02 to 2026-06-09.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

DETAILS

Product ID:

78694

Copy Link

Identifier:

B08M3QCT2P

Brand:

CHANZON

Model:

Shipping Weight:

0.03 lbs

Manufacturer:

CHANZON

Shipping Dimension:

6.3 x 5.51 x 0.39 inches

FEATURES

Transistor Type: Complementary Metal-Oxide-Semiconductor (CMOS) MOSFET transistor.

Transistor Polarity: Dual (N- and P-Channel) MOSFET Transistor.

Specification: It supports 30V voltage.

Application: Primarily used for a wide array of electronics applications that require efficient switching, amplification, and power management functions.

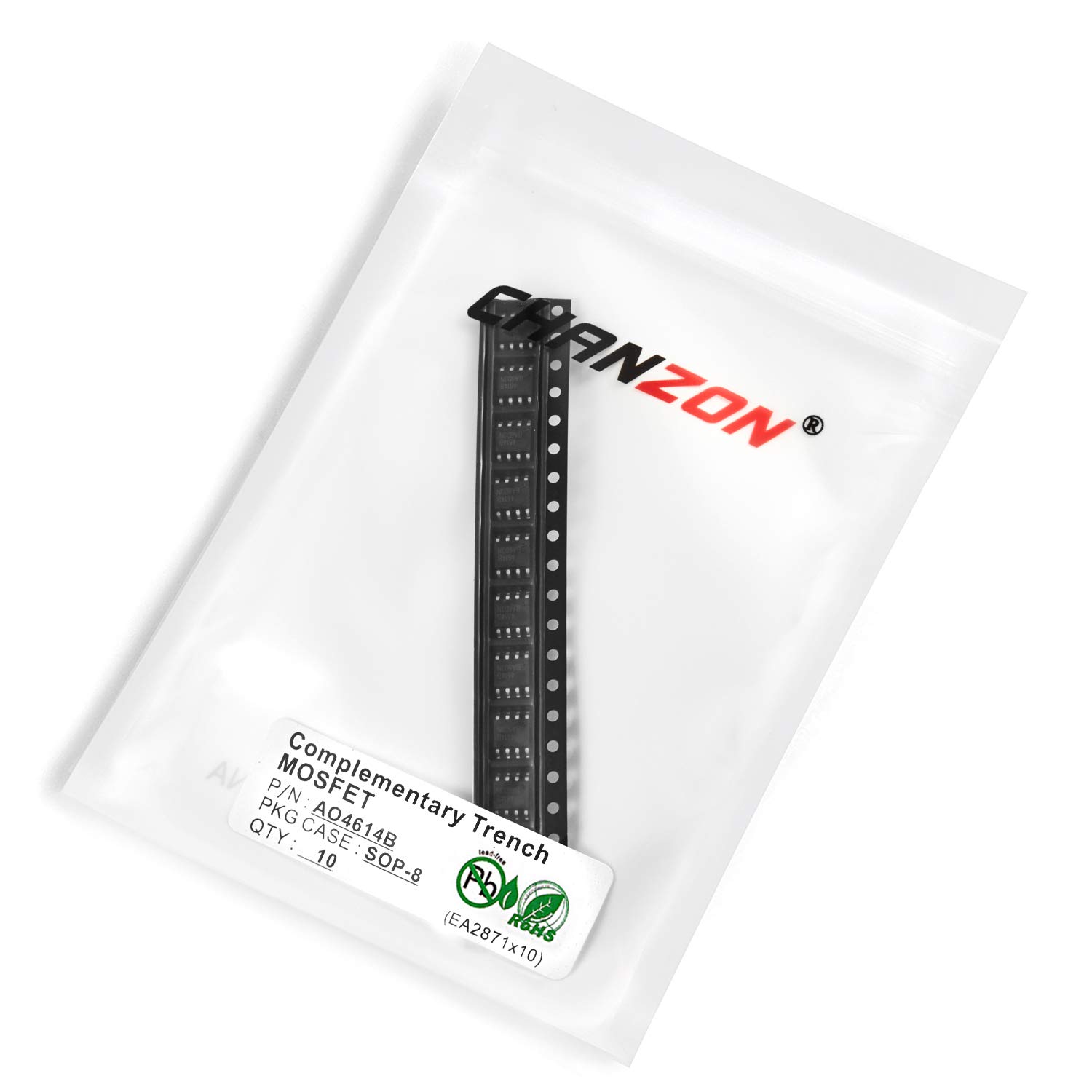

Package: The package includes an anti-static bag that provides electrostatic protection, ensuring ESD safety and a prolonged shelf life.

DESCRIPTIONS

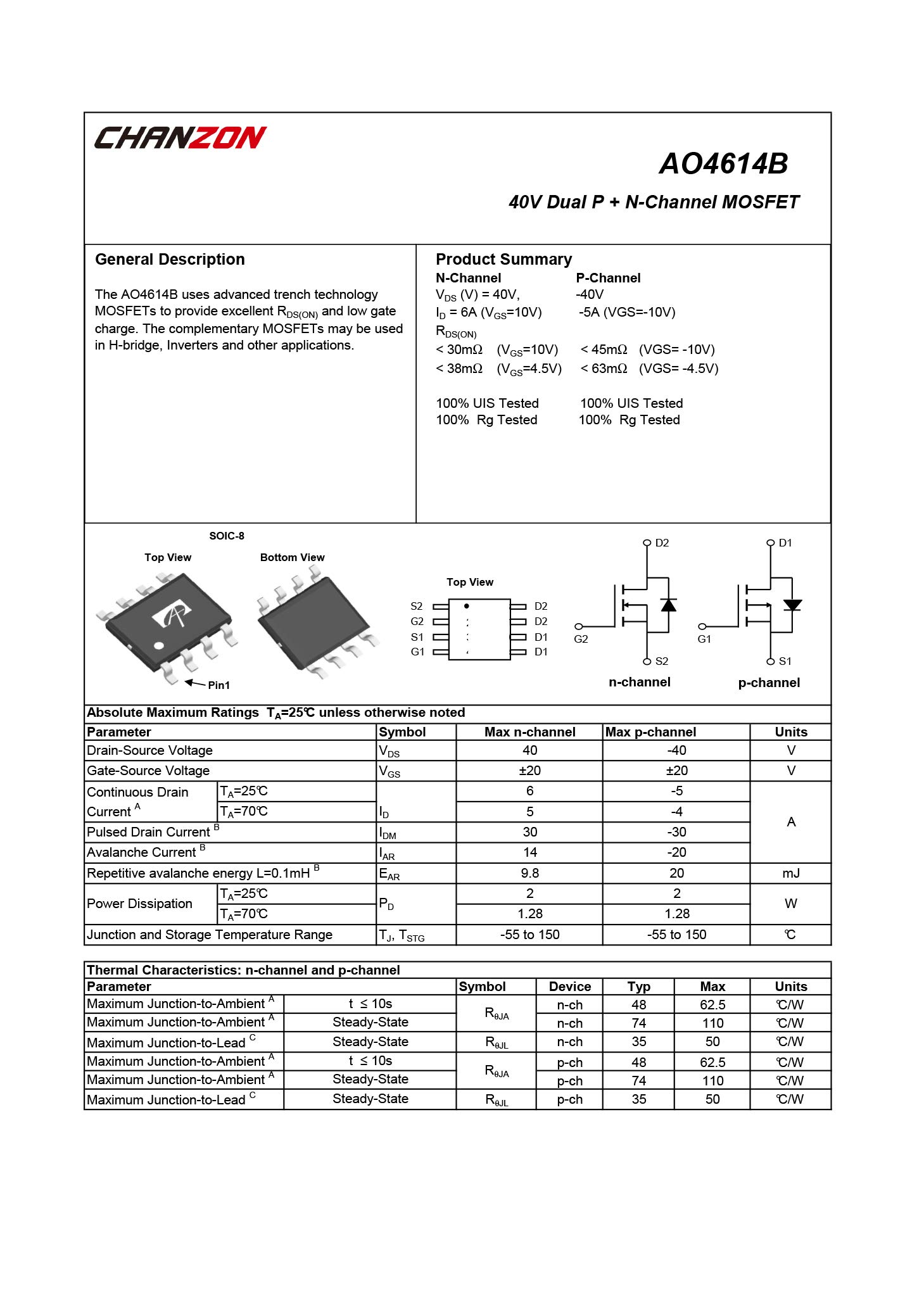

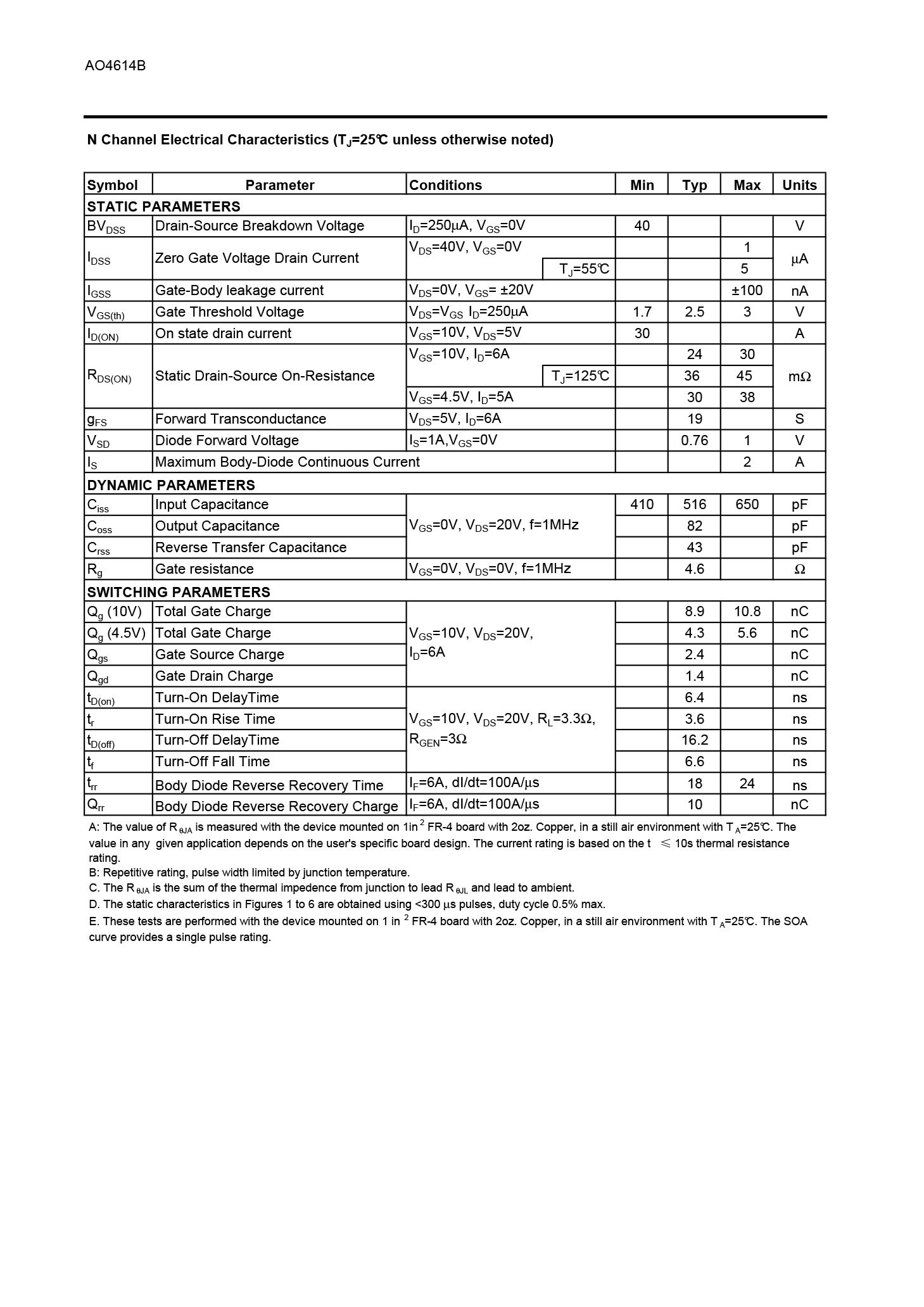

Product Description: This 40V Dual P + N-Channel MOSFET is designed for high performance in applications such as H-bridges and inverters. With advanced trench technology, it offers excellent RDS(ON) and low gate charge for efficient power management. Key Features: Voltage Ratings: VDS (N-Channel) 40V, VDS (P-Channel) -40V Continuous Drain Current: ID (N-Channel) 6A, ID (P-Channel) -5A Static Drain-Source On-Resistance: RDS(ON) <30mΩ (VGS=10V), <45mΩ (VGS=-10V) Gate Threshold Voltage: VGS(th) 1.7V to 3V (N-Channel), -1.7V to -3V (P-Channel) Gate Charge: Qg (10V) 8.9nC to 10.8nC, Qg (-10V) 17nC to 22nC Switching Parameters: Turn-on Delay Time (td(on)) 6.4ns, Turn-off Delay Time (td(off)) 16.2ns Therermal Characteristics: Maximum Junction-to-Ambient Thermal Resistance (RθJA) 40°C/W (N-Channel), 74°C/W (P-Channel) Electrical Characteristics: The device provides a wide range of electrical characteristics to meet diverse application needs, including on-state drain current, gate-source voltage, and on-resistance versus junction temperature. Safety and Reliability: 100% UIS Tested for both N-Channel and P-Channel MOSFETs, ensuring safety and reliability in your electronic designs. Package Type: SOIC-8 Operating Temperature Range: Junction and Storage Temperature Range -55 to 150°C For detailed specifications and application guidance, please refer to the datasheet.
