FEATURES

DESCRIPTIONS

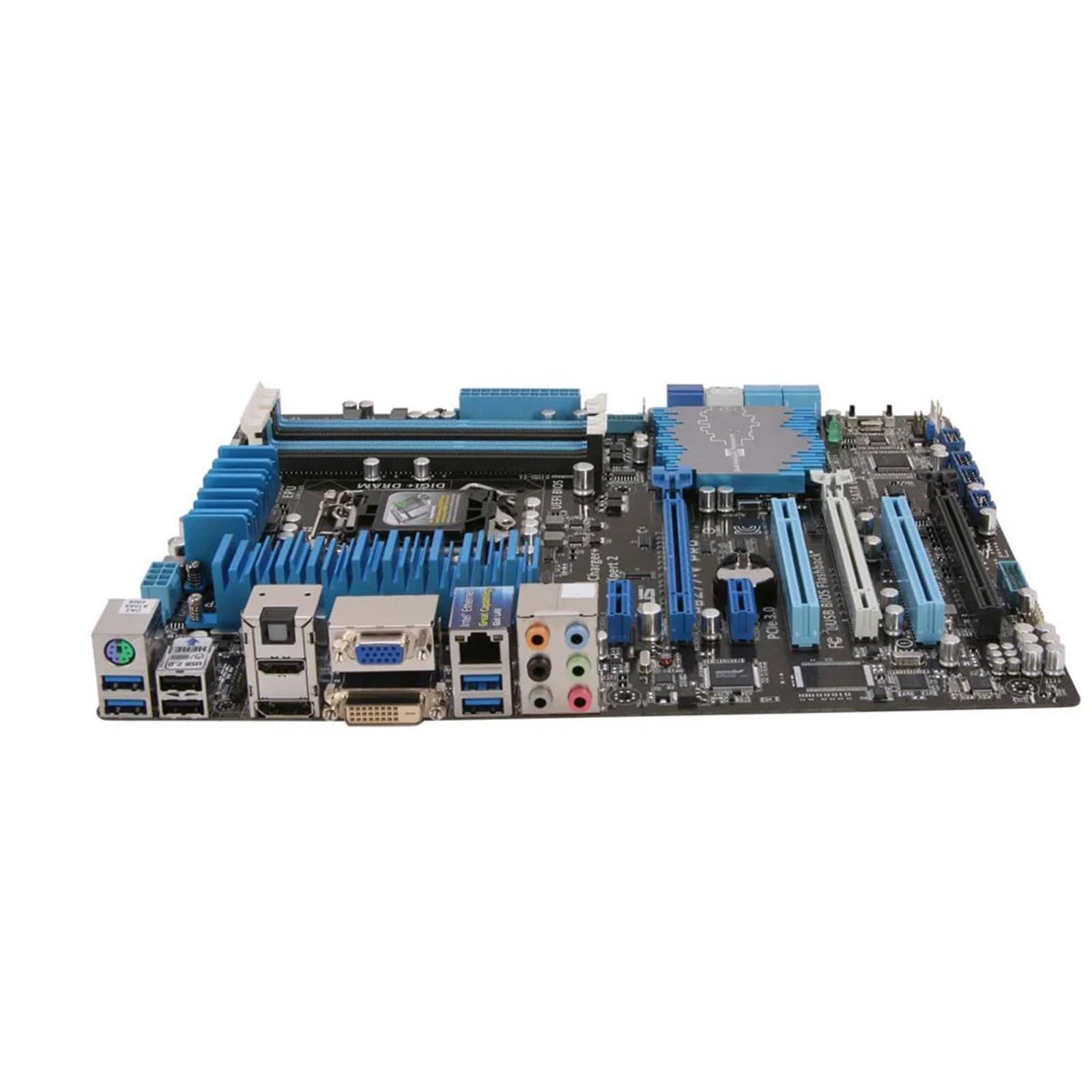

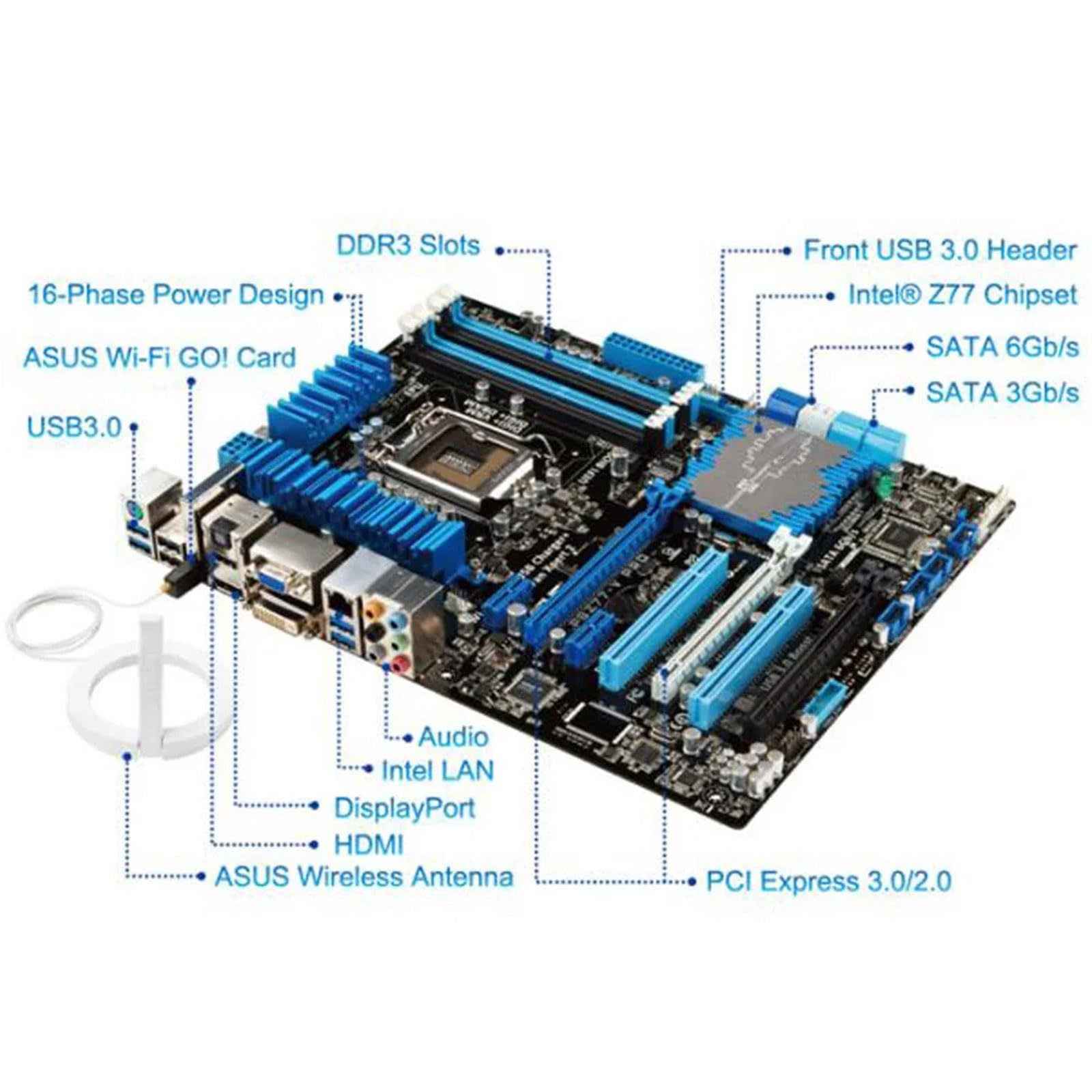

this motherboards helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. Size ATX CPU Interface LGA-1155 Chipset Intel Z77 Power Delivery 12 + 4 Memory Slots Four DDR3 DIMM slots supporting up to 32 GB Up to Dual Channel Video Outputs DisplayPort, HDMI 1.4a, DVI-D, D-Sub Onboard LAN Intel 82579V Onboard Audio Realtek ALC892 (with DTS Ultra II PC / DTS Connect support) Expansion Slots 2 x PCIe x16 Gen3 (x16, x8/8) 1 x PCIe x16 Gen2 (x4) 2 x PCIe x1 Gen2 2 x PCI Onboard SATA/RAID 2 x SATA 6 Gbps (PCH), Support for RAID 0, 1, 5, 10 2 x SATA 6 Gbps (ASMedia) 4 x SATA 3 Gbps (PCH), Support for RAID 0, 1, 5, 10 USB Four USB 3.0 at rear (2 PCH, 2 ASMedia) Two USB 3.0 headers on board (PCH, ASMedia) Ten USB 2.0 (2 back panel, 8 on board) Onboard 4 x SATA 6 Gbps 4 x SATA 3 Gbps 2 x USB 3.0 Headers 4 x USB 2.0 Headers 6 x Fan Headers 1 x SPDIF Header 1 x Front Panel Audio Header Thunderbolt Header MemOK! Button TPU/EPU Switches USB Flashback Button Power Connectors 1 x 24-pin ATX connector 1 x 8-pin 12V connector Fan Headers 1 x CPU Fan Header (4-pin) 4 x CHA Fan Headers 1 x OPT Fan Header IO Panel 1 x PS/2 Combo Port 1 x DisplayPort 1 x HDMI 1.4a 1 x DVI-D 1 x D-Sub 1 x Gigabit Ethernet 4 x USB 3.0 2 x USB 2.0 1 x Optical SPDIF 1 x WLAN Connector 6 x Audio Jacks ========== RAID Supported : No Processor compatibility : Intel 0thers Usage Scenario : Enthusiast & Overclocking Special Function : None Back I/O Ports : 1x RJ45,HDMI 1.3,Displayport,DVI-D Onboard LAN : 1x RJ45 Storage Interface Type : SATA Number of PCI : 4 PCI - E standards : PCI - E 3.0 Support Memor
