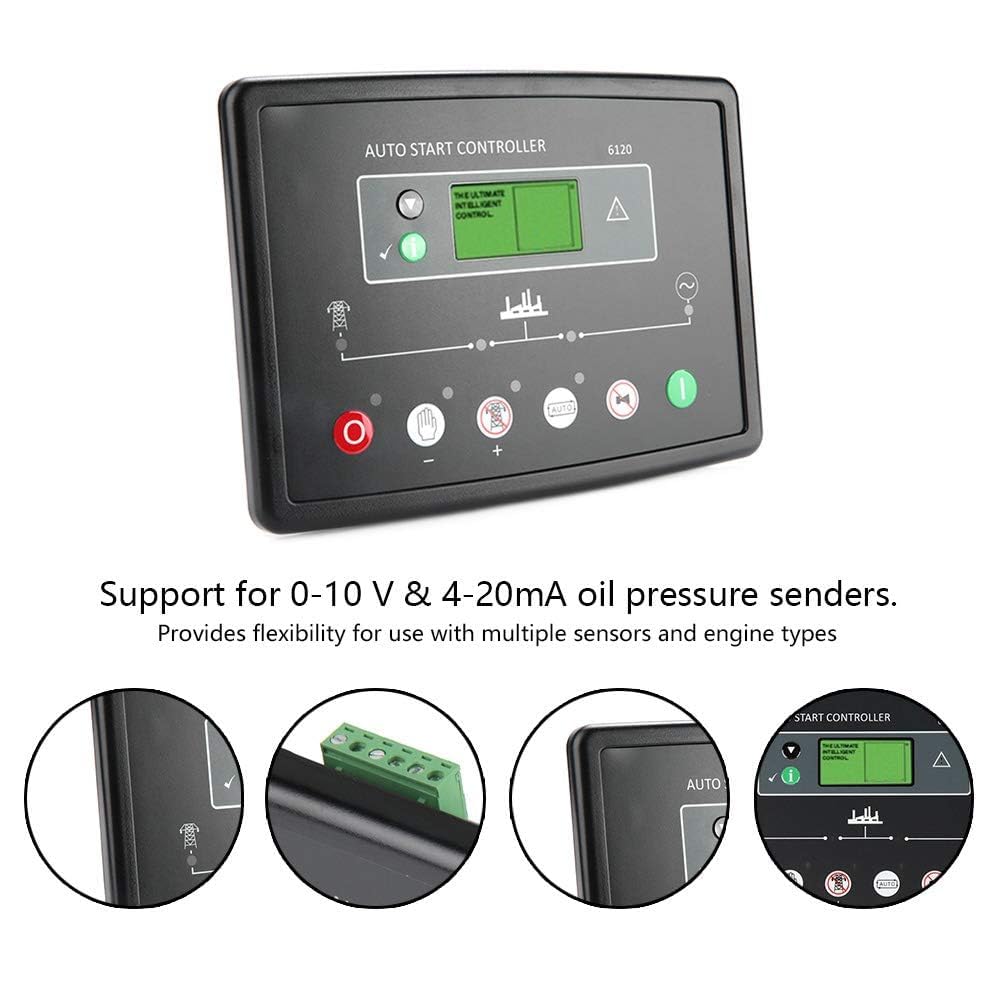

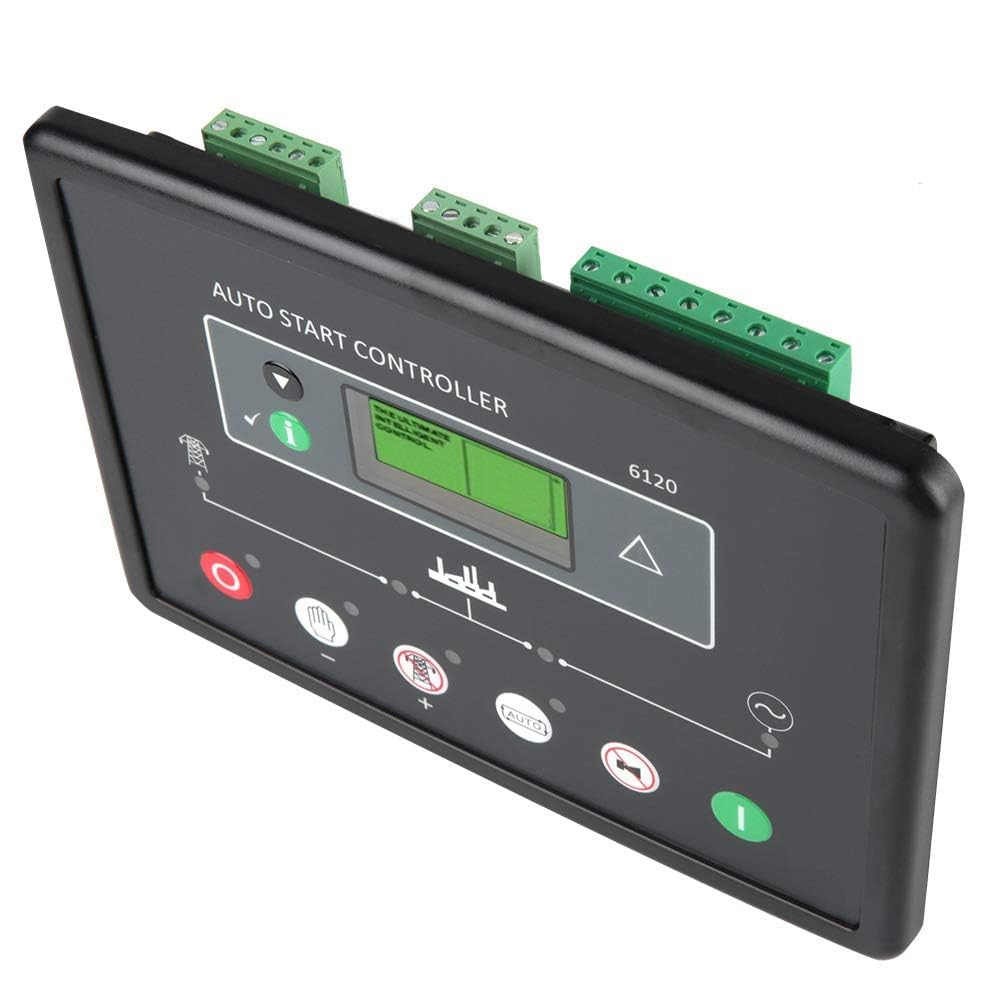

Support for 0-10 V & 4-20mA oil pressure senders. Provides flexibility for use with multiple sensors and engine types. Heated display option. Ensures the display continues to operate in extreme cold weather conditions. The module can be used in electric and non-electric regulating units to provide more advanced engine monitoring and protection functions.

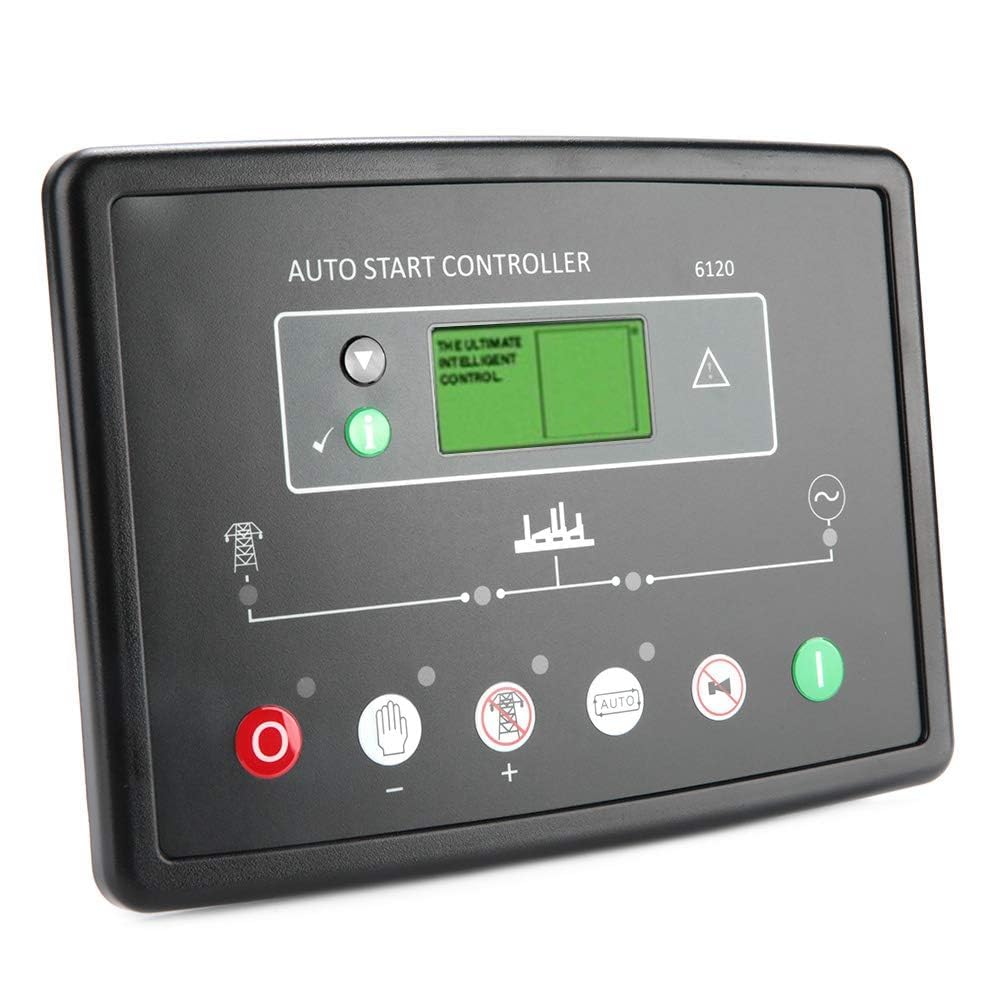

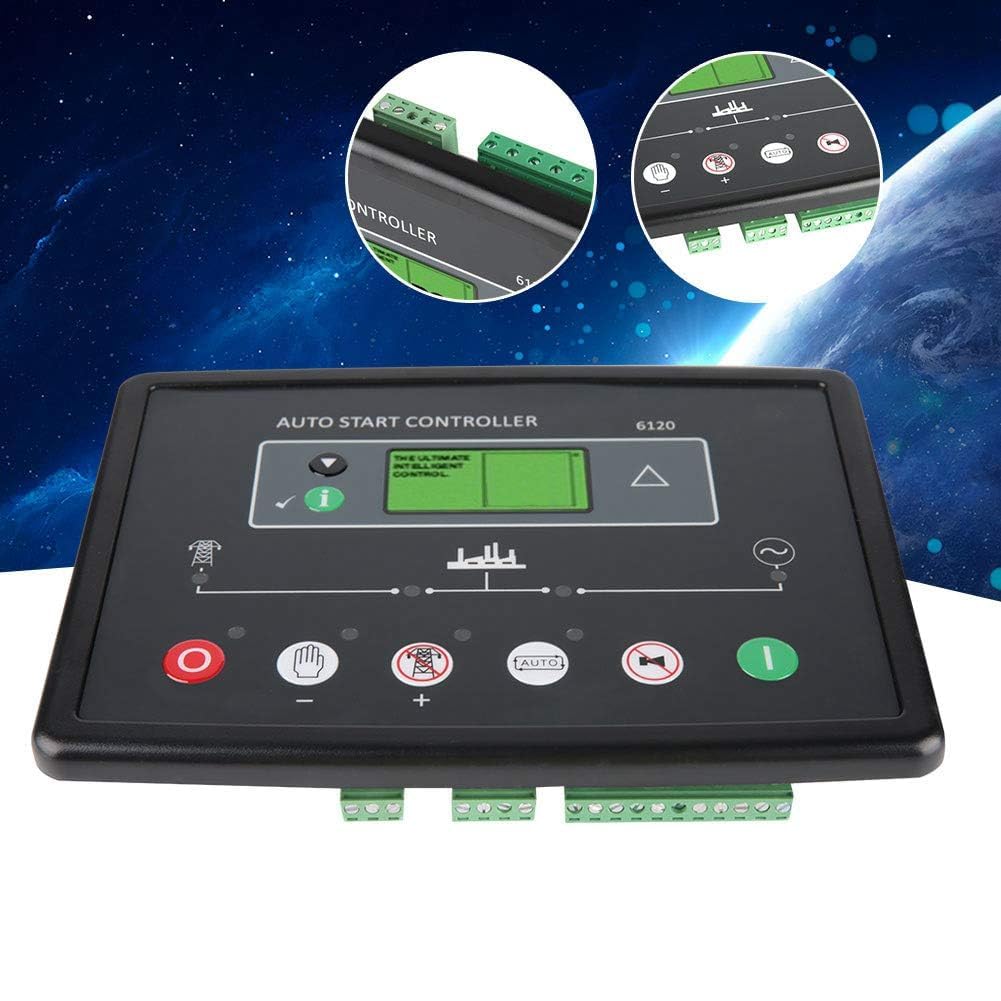

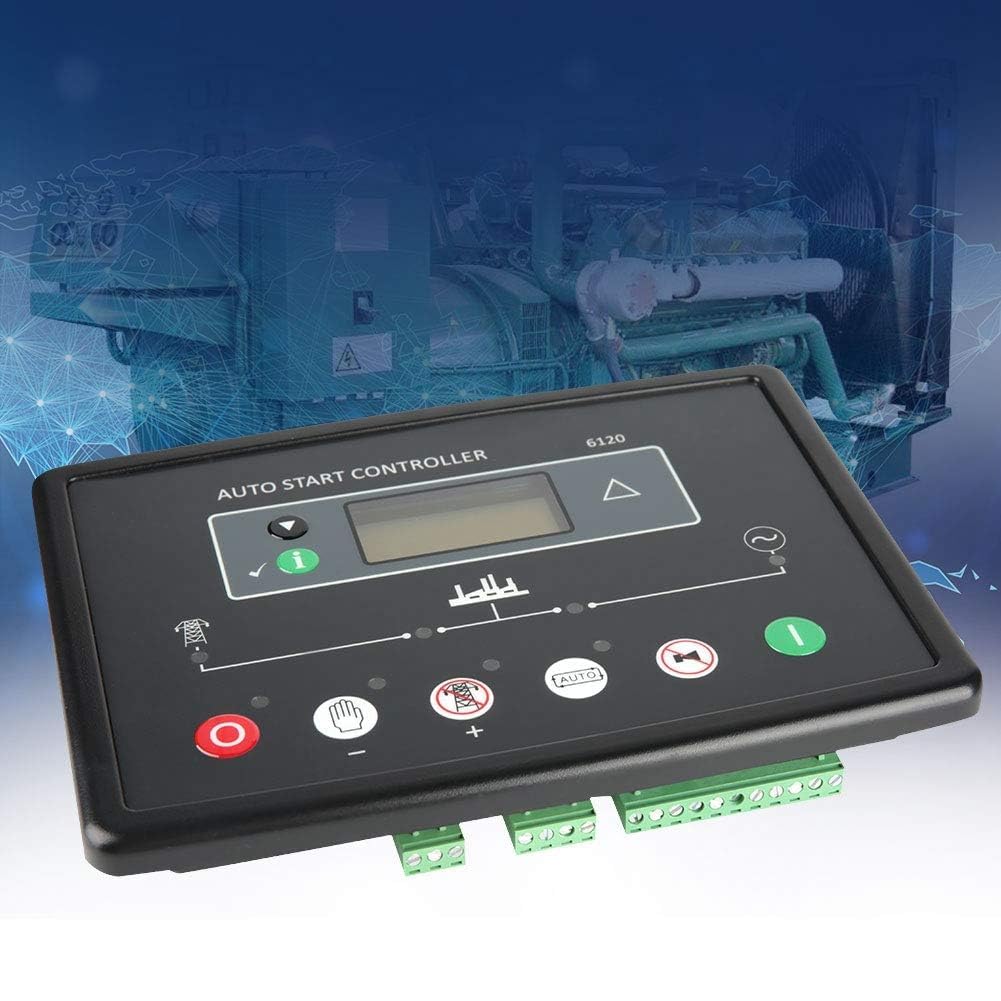

3-phase generator sensing. Provides true generator sensing. 3-phase mains (utility) monitoring. Provides true generator and mains (utility) sensing. Generator/load current monitoring & protection. DSE6120 AMF module is used for single generator set. LCD display screen can display Chinese.

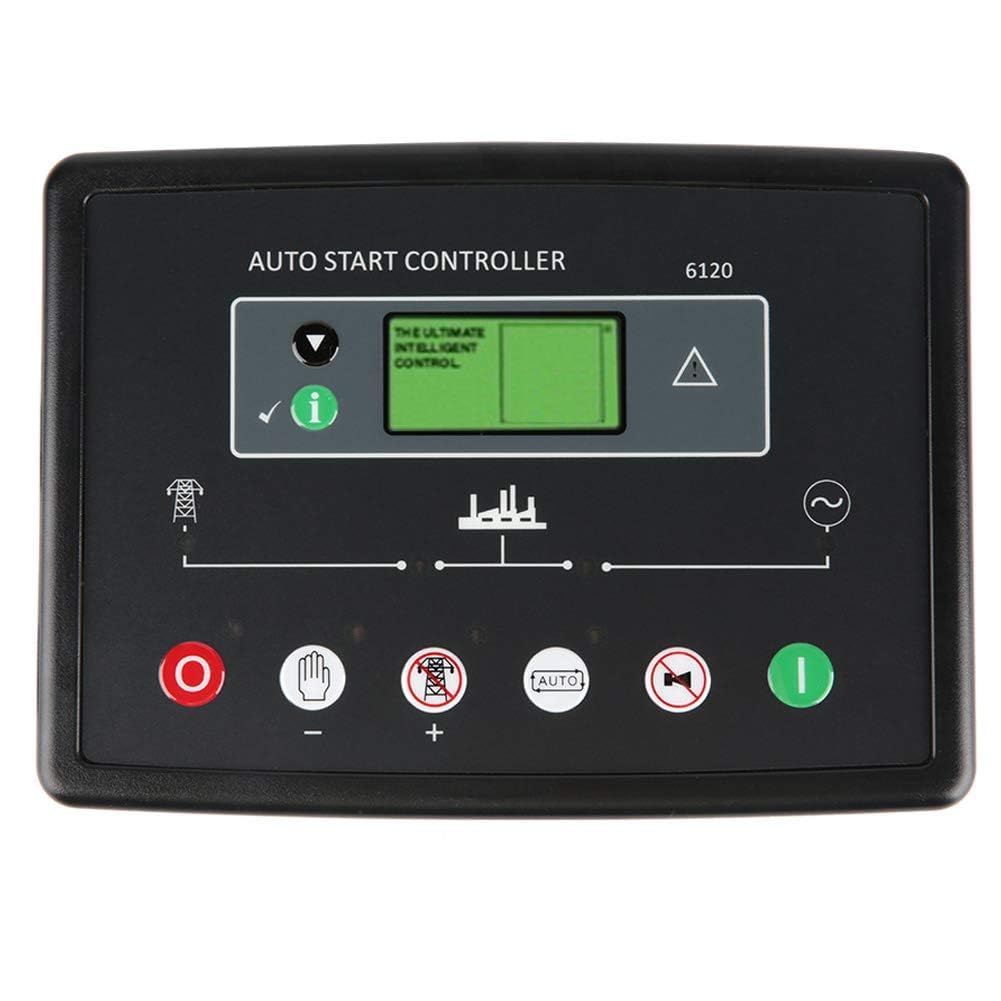

Provides convenience of monitoring and protection of the generator or monitoring of the load current. Configurable analogue/digital inputs (9). Provides multiple installation options. Configurable DC, staged loading outputs (6). The module has a backlit LCD display that clearly shows the running state of the engine at any time.
Provides full generator load control. CAN, MPU & alternator speed sensing (selectable depending on engine type). Ensures the module can be used with a wide number of engine types. Tier 4 CAN engine support. Fuel and start outputs (configurable on CAN). The module can monitor the speed, frequency, voltage, current, oil pressure, water temperature and oil level.
Ensures the control module can be used with the latest in modern electronic engine technology. Configurable event log (100). Provides access to historical alarms and operational status. DSE Configuration Suite PC Software. Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.

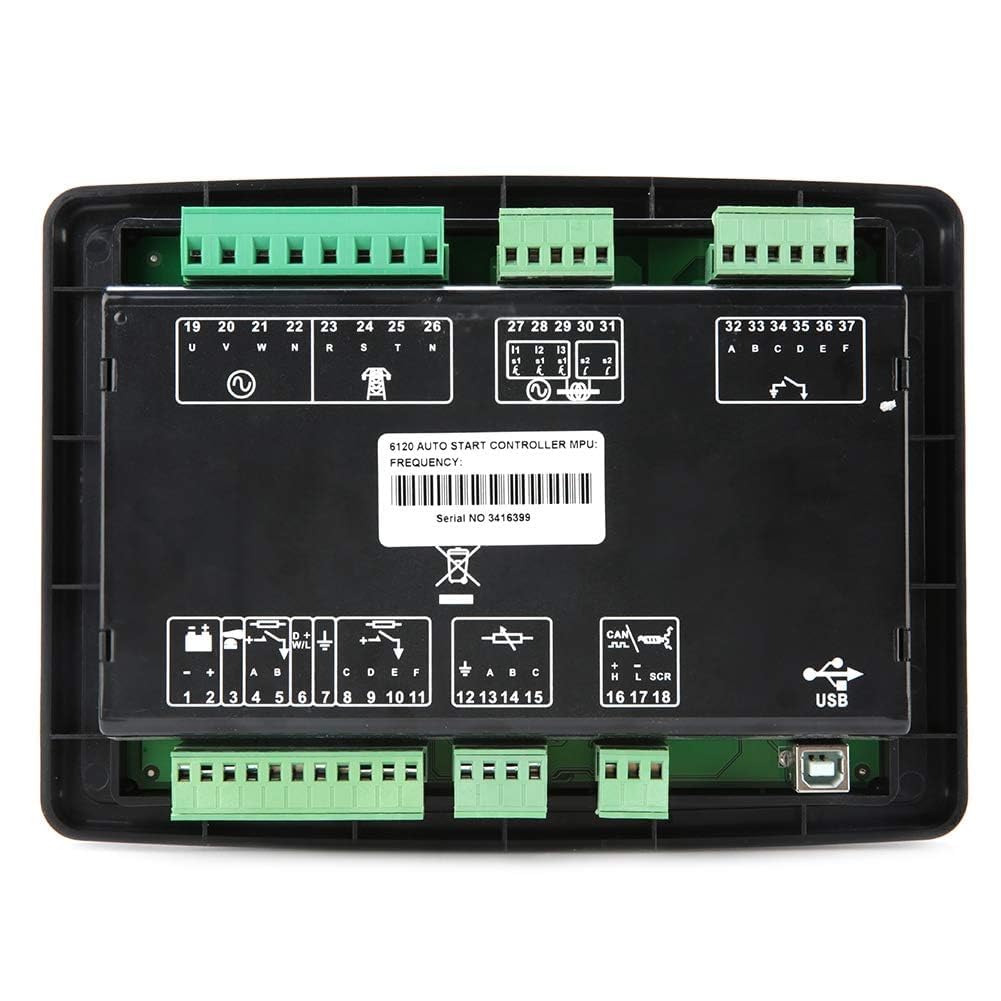

The module can display engine alarm and has automatic stop protection. The module includes 6 digital input, 3 analog input and 6 digital output. MPU version configuration 2-way output, CAN version configuration 6-way output. Users can use the front panel button to set the module's data, or other settings software to set it. Specification: Material: Plastic Weight: 526g/18.6oz Model: DSE6120 DC Supply: continuous voltage rating 8 V to 35 V Continuous Cranking Dropouts: Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking. Maximum Operating Current: 100 mA at 12 V, 105 mA at 24 V Maximum Standby Current: 60 mA at 12 V, 55 mA at 24 V Maximum Sleep Current:40 mA at 12 V, 35 mA at 24 V Generator & Mains(Utility): Voltage Range: 15 V to 415 V AC (Ph to N); 26 V to 719 V AC (Ph to Ph) Frequency Range: 3.5 Hz to 75 Hz Inputs: Digital Inputs A to F, negative switching analogue input A Configurable as: Negative switching digital input 0 V to 10 V 4 mA to 20 mA 0 Ω to 240 Ω Analogue Inputs B to D Configurable as: Negative switching digital input 0 Ω to 480 Ω Outputs: Output A (Fuel) 10 A short term, 5 A continuous, at supply voltage Output B (Start) 10 A short term, 5 A continuous, at supply voltage Auxiliary Outputs C, D, E & F 2 A DC at supply voltage Package List: 1 x Generator Controller 2 x Set Screws
