DESCRIPTIONS

Inline Poppet Check Valve 685 Series PP 1/2 FPT - BUNA 6850090. The 685 Series Inline Poppet Check Valve 1/2 FPT: The 685 Series Inline Poppet Check Valve 1/2 FPT: The 685 Series Poppet Check Valve Prevents reverse flow and incorporates a thin elastomer disc supported by a poppet that seals on the seat. Pressure in the flow direction moves the seal off the seat first before pressure builds enough to move the poppet away from the seat. The 685 Series Check Valve maximum operating pressure of 125 psi covers a wide range of air and fluid applications. The 685 Check is a compact design with a light cracking pressure high flow rate and a positive seal at very low back pressure or slight vacuum. For higher cracking pressure applications an embedded o-ring poppet is substituted for the standard elastomer disc poppet. Material Polypropylene Body & Poppet Black. Custom order: White Seal Buna-N. Custom order: Ethylene Propylene or Fluoroelastomer (Viton) Inlet x Outlet 1/2 Female NPT X 1/2 Female NPT 1/2 Female NPT x 1/2 Male NPT 1/2 Male NPT x 1/2 Female NPT 1/2 Male NPT x 1/2 Male NPT Cracking Pressure 302 Stainless Spring @ 1/3 psi. Custom order:1 3 7 psi or Hastelloy Spring @ 1/3 1 3 psi. 685 Series FP CHK 685-8F8F-B Check Valves check valve inline check valve female check valve female threaded check valve smc BUNA check valve PVC check valve 685 series check valve

RELATED PRODUCTS

SAVE 60%

Banjo HB050-025 Polypropylene Hose Fitting, Adapter, 1/2" NPT Male x 1/4" Barbed

4.6 / 5

₱1,146.00 ₱508.00

SAVE 34%

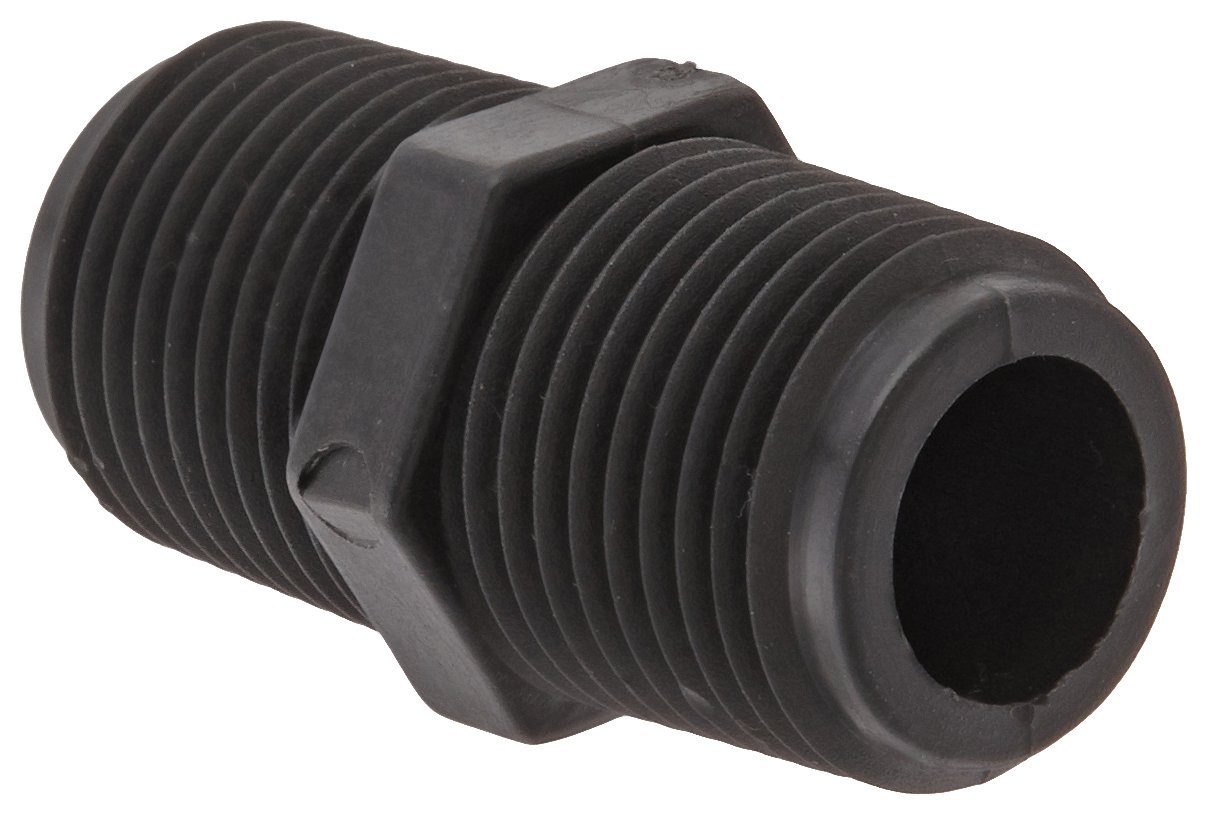

Banjo NIP050-SH Polypropylene Pipe Fitting, Short Nipple, Schedule 80, 1/2" NPT Male, 1-3/4" Length
