Chanzon AO4406 SOP-8 NMOS MOS N-Channel Power MOSFET Transistor, High Efficiency for Electronic Components (Pack of 10pcs)

3.8 / 5

Product ID:

78632

Identifier:

B08LVLLXGX

Brand:

CHANZON

Model:

Shipping Weight:

0.03 lbs

Manufacturer:

CHANZON

Shipping Dimension:

6.3 x 5.51 x 0.39 inches

Share on Social Media

Share on Facebook

Share on X

Share on Instagram

Share on Tiktok

₱525

+ ₱ 150

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2026-06-05 to 2026-06-12.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

FEATURES

Transistor Type: High-performance N-Channel Power MOSFET Transistor.

Transistor Polarity: Advanced N-Channel MOSFET technology provides optimized performance.

Specifications: Excellent power handling with VDSS up to 30V, ID up to 11.5A, PD up to 3W and low on-state resistance of 0.014 Ω.

Application: Commonly used for high-efficiency switching, amplification, and power management in various electronics.

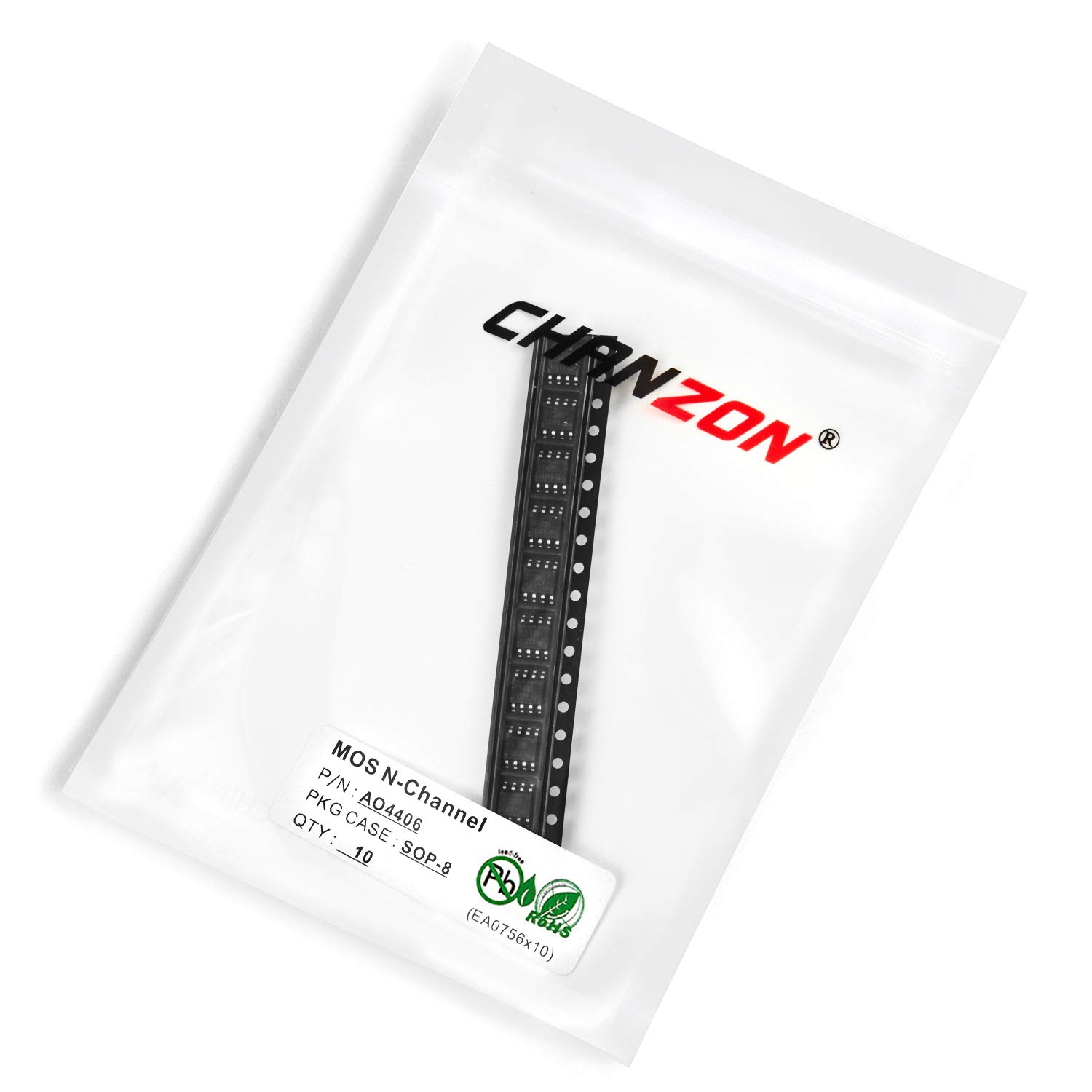

Package: Secured in an Anti-Static bag for electrostatic protection, ensures ESD safety, and guarantees long shelf life.

DESCRIPTIONS

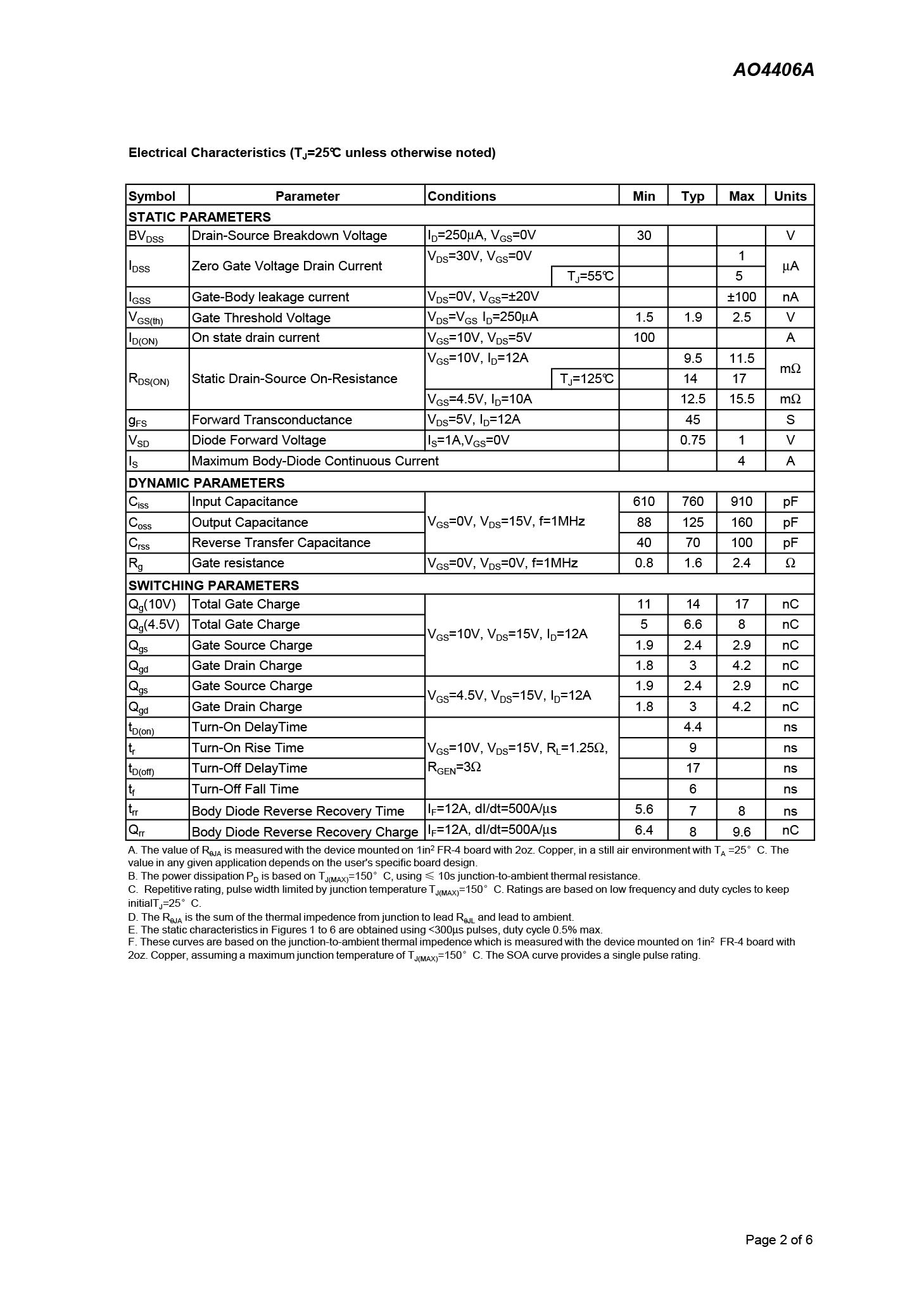

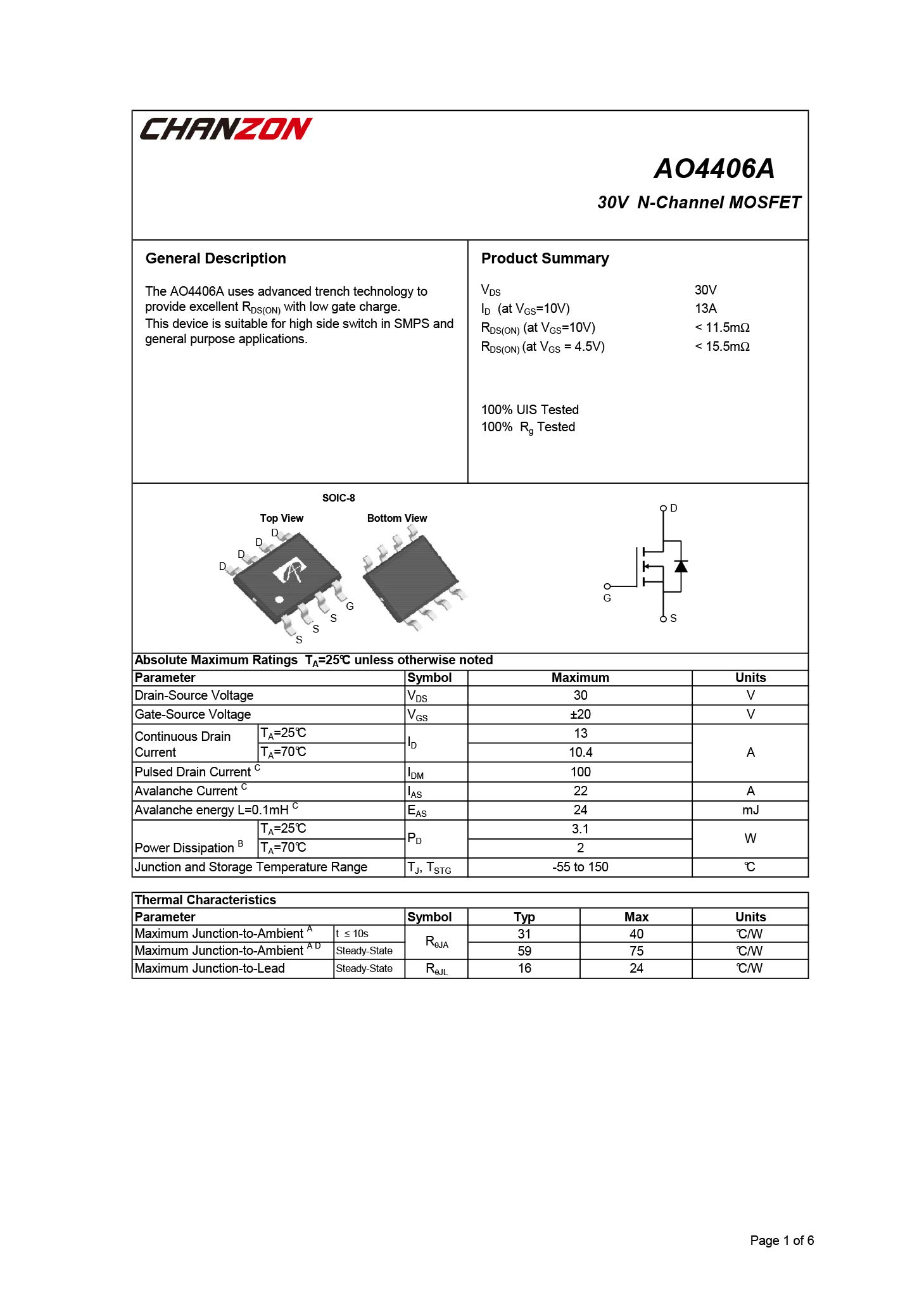

Product Description: This 30V N-Channel MOSFET is designed for high-efficiency power management in a variety of applications, including high side switches in SMPS and general-purpose use. With advanced trench technology, it offers exceptional performance and reliability. Key Features: - Drain-Source Voltage (VDS): 30V - On-State Drain Current (ID): Up to 13A at VGS=10V - Static Drain-Source On-Resistance (RDS(ON)): <11.5mΩ at VGS=10V, <15.5mΩ at VGS=4.5V - Gate Threshold Voltage (VGS(th)): 1.5V to 2.5V - Gate Charge (Qg): 11nC to 17nC at VGS=10V, 5nC to 8nC at VGS=4.5V - Input Capacitance (Ciss): 610pF to 910pF - Thermal Characteristics: Junction-to-Ambient Thermal Resistance (RθJA): 31°C/W to 59°C/W - Operating Temperature Range: -55°C to 150°C Switching Performance: - Turn-On Delay Time (td(on)): Typically 4.4ns - Turn-On Rise Time (tr): Typically 9ns - Turn-Off Delay Time (td(off)): Typically 17ns - Turn-Off Fall Time (tf): Typically 6ns Avalanche Capability: - Peak Avalanche Current (IAR): Up to 24A - Avalanche Energy (EAS): 100mJ Body Diode Characteristics: - Forward Voltage (VF): Data available in the specification - Reverse Recovery Charge (Qrr): 6.4nC to 9.6nC Package: SOIC-8 This MOSFET is UIS tested and has a 100% gate resistance test, ensuring quality and reliability in your power switching applications.
