FEATURES

DESCRIPTIONS

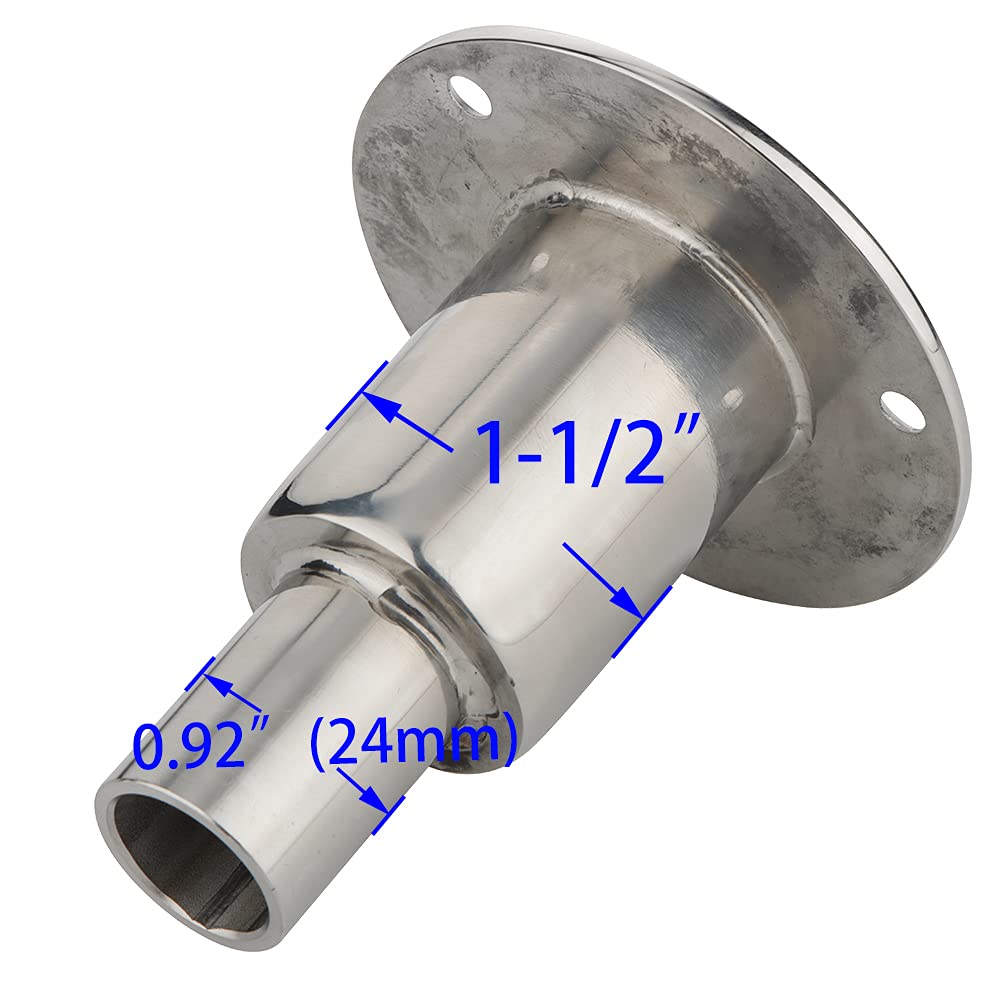

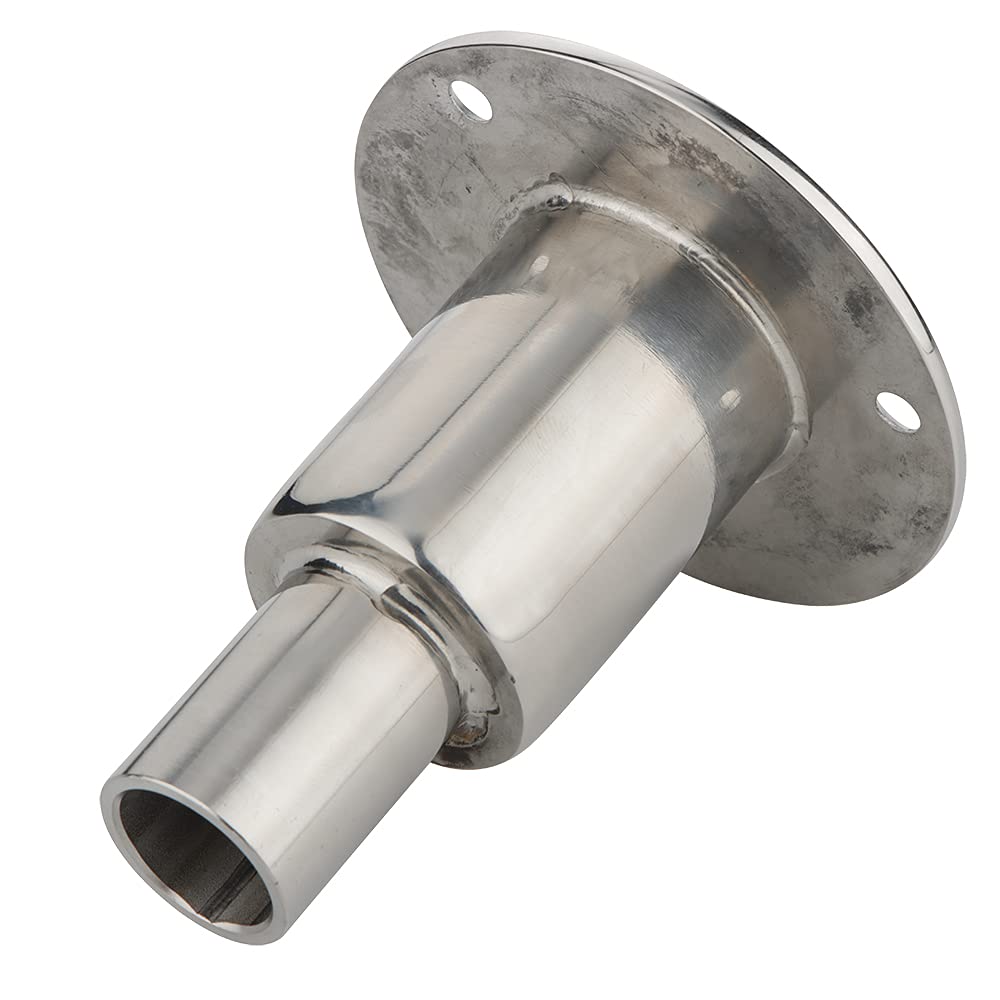

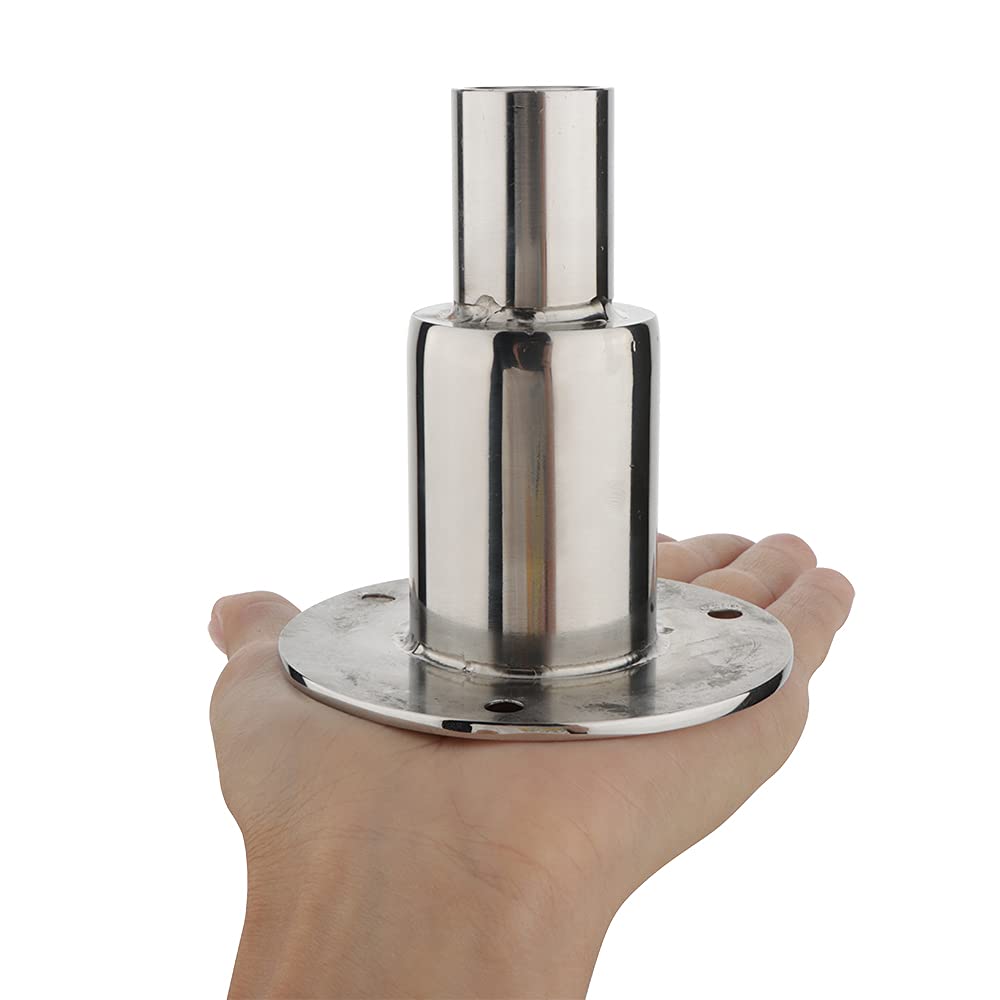

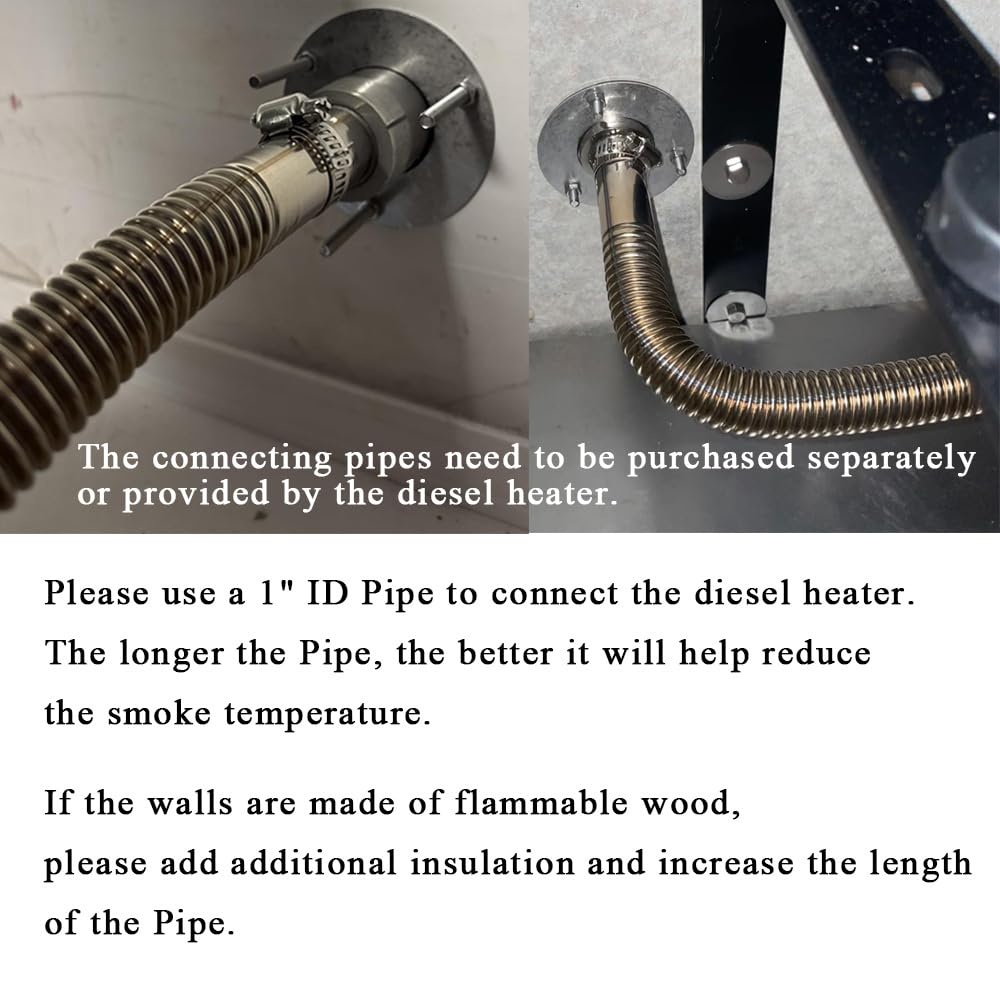

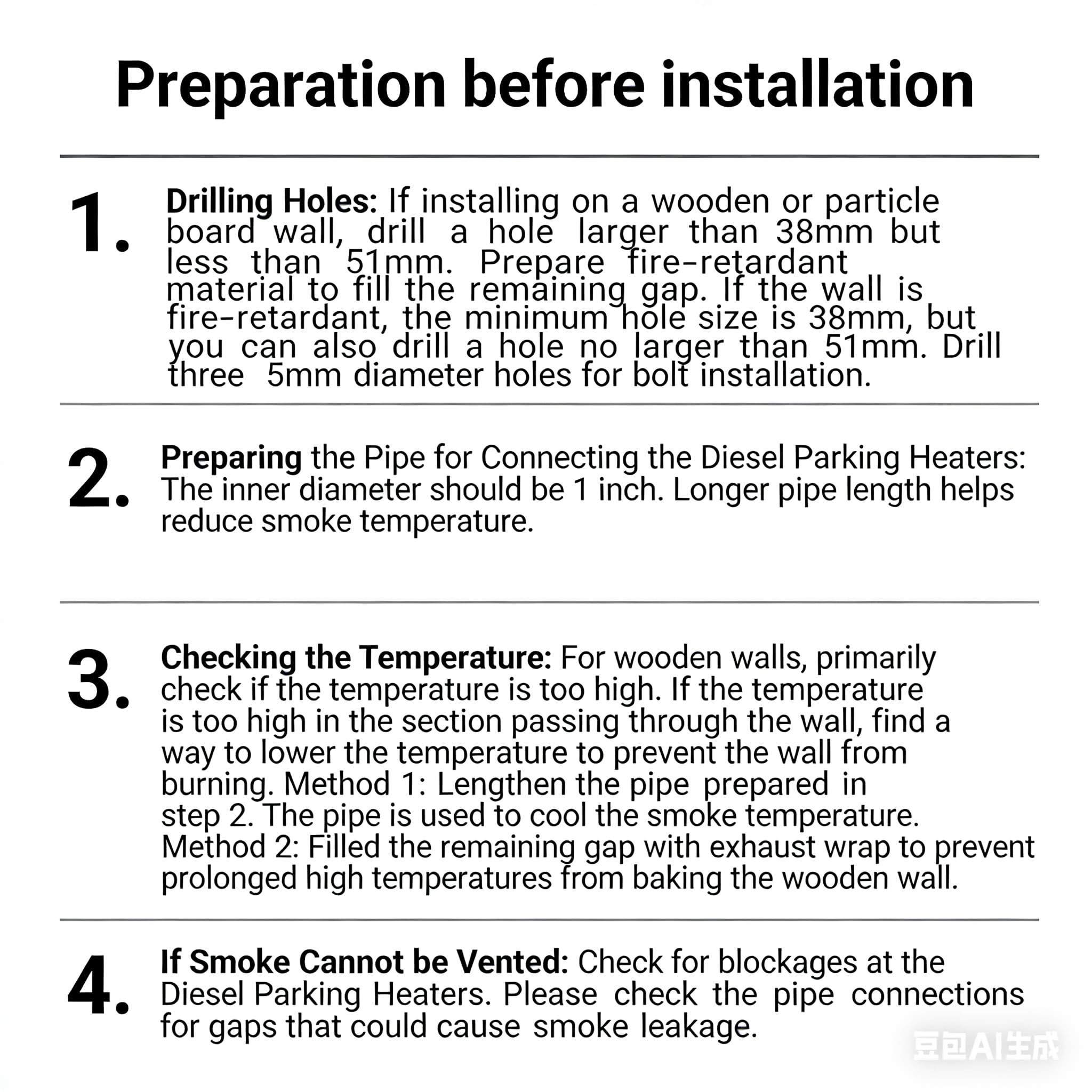

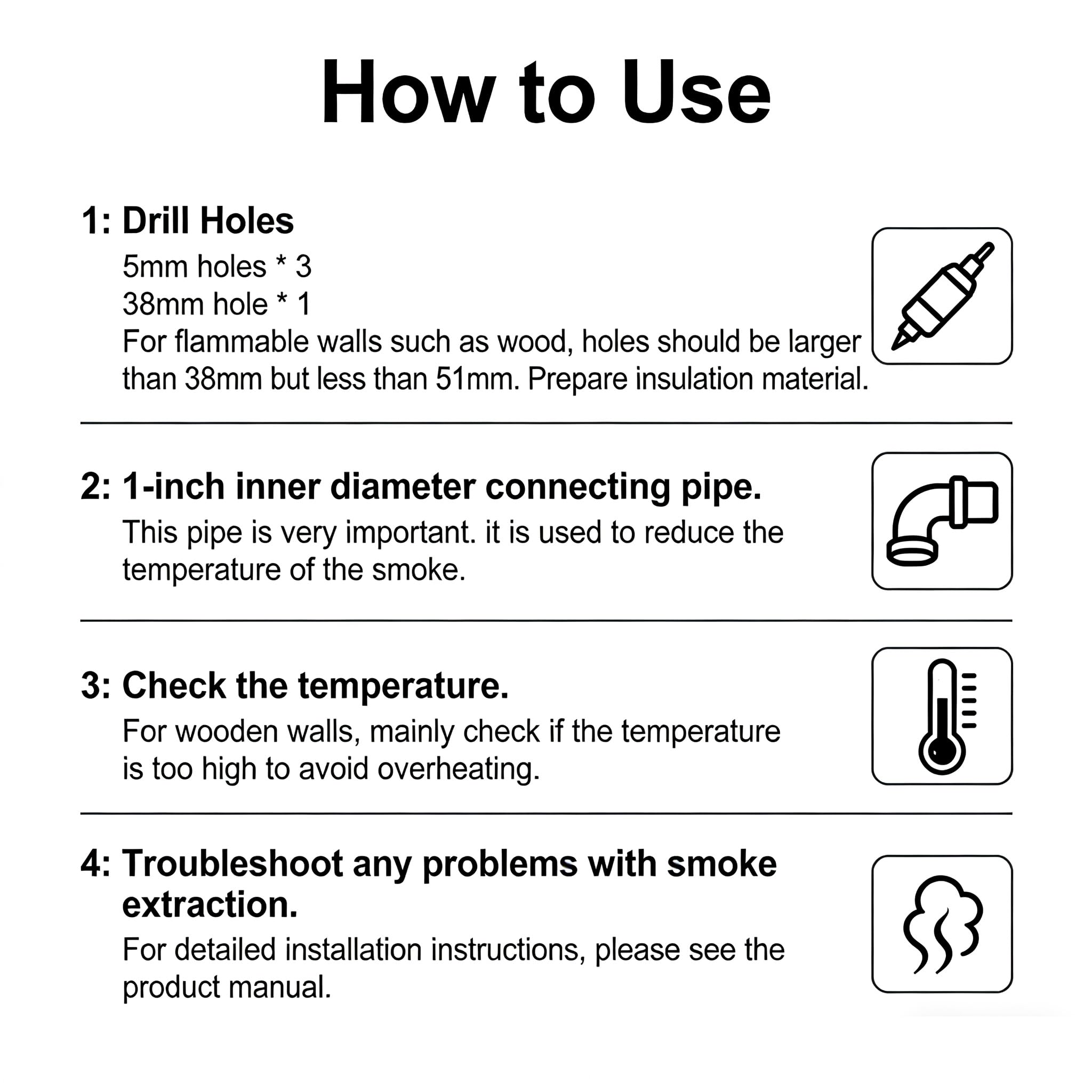

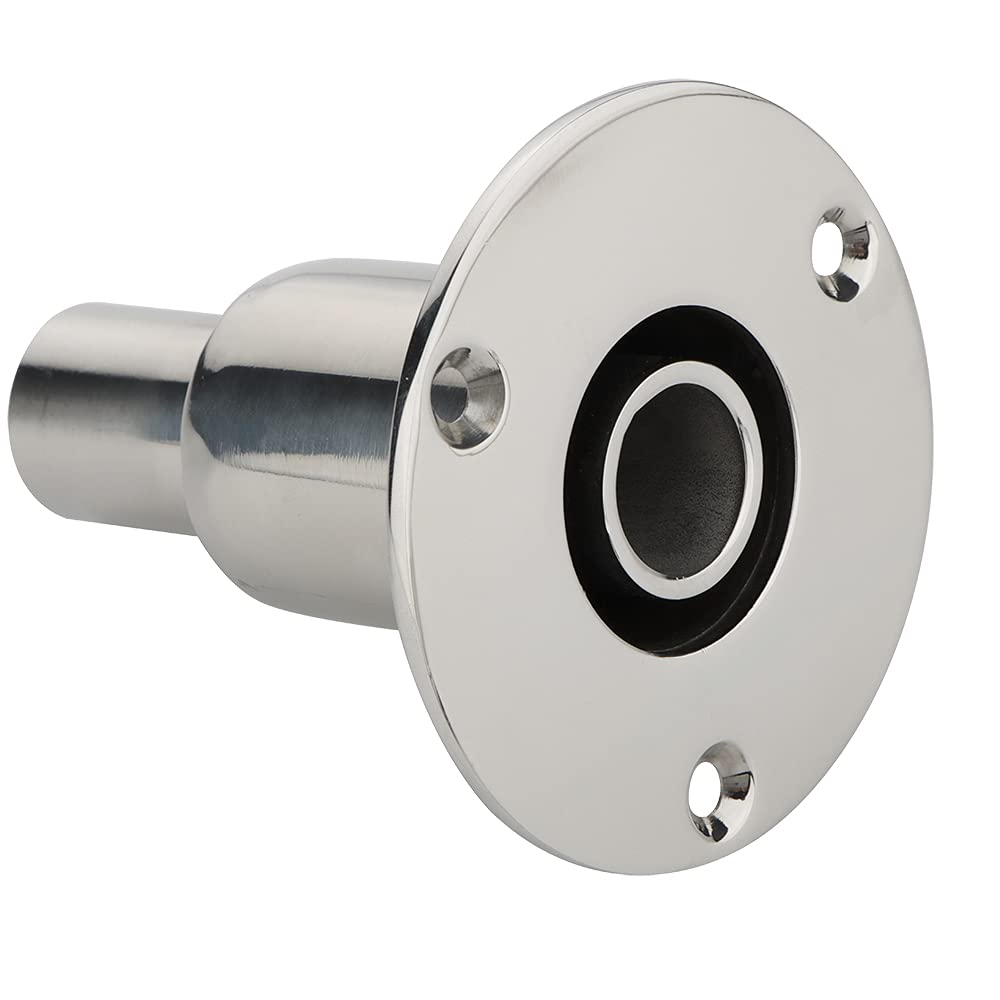

Fit for 24mm inner diameter hose pipe Fit for Webasto, Planar, Eberspacher, Chinese Diesel Parking heaters var4 Surface polishing,corrosion resistance and durability in the saltwater environment Made of Marine grade 316 stainless steel, Excellent seawater corrosion resistance and durable Easy installation With screws and Big Gasket Package Includes: 1 Pcs Thru Hull, Straight 3 Pcs screws 3 Pcs Big Gasket Preparation before installation: 1. Drilling Holes: If installing on a wooden or particle board wall, drill a hole larger than 38mm but less than 51mm. Prepare fire-retardant material to fill the remaining gap. If the wall is fire-retardant, the minimum hole size is 38mm, but you can also drill a hole no larger than 51mm. Drill three 5mm diameter holes for bolt installation. 2. Preparing the Pipe for Connecting the Diesel Parking Heaters. The inner diameter should be 1 inch. Longer pipe length helps reduce smoke temperature. 3. Checking the Temperature: For wooden walls, primarily check if the temperature is too high. If the temperature is too high in the section passing through the wall, find a way to lower the temperature to prevent the wall from burning. Method 1: Lengthen the pipe prepared in step 2. The pipe is used to cool the smoke temperature. Method 2: Filled the remaining gap with exhaust wrap to prevent prolonged high temperatures from baking the wooden wall. 4. If Smoke Cannot be Vented: Check for blockages at the Diesel Parking Heaters. Please check the pipe connections for gaps that could cause smoke leakage.

RELATED PRODUCTS

4 options

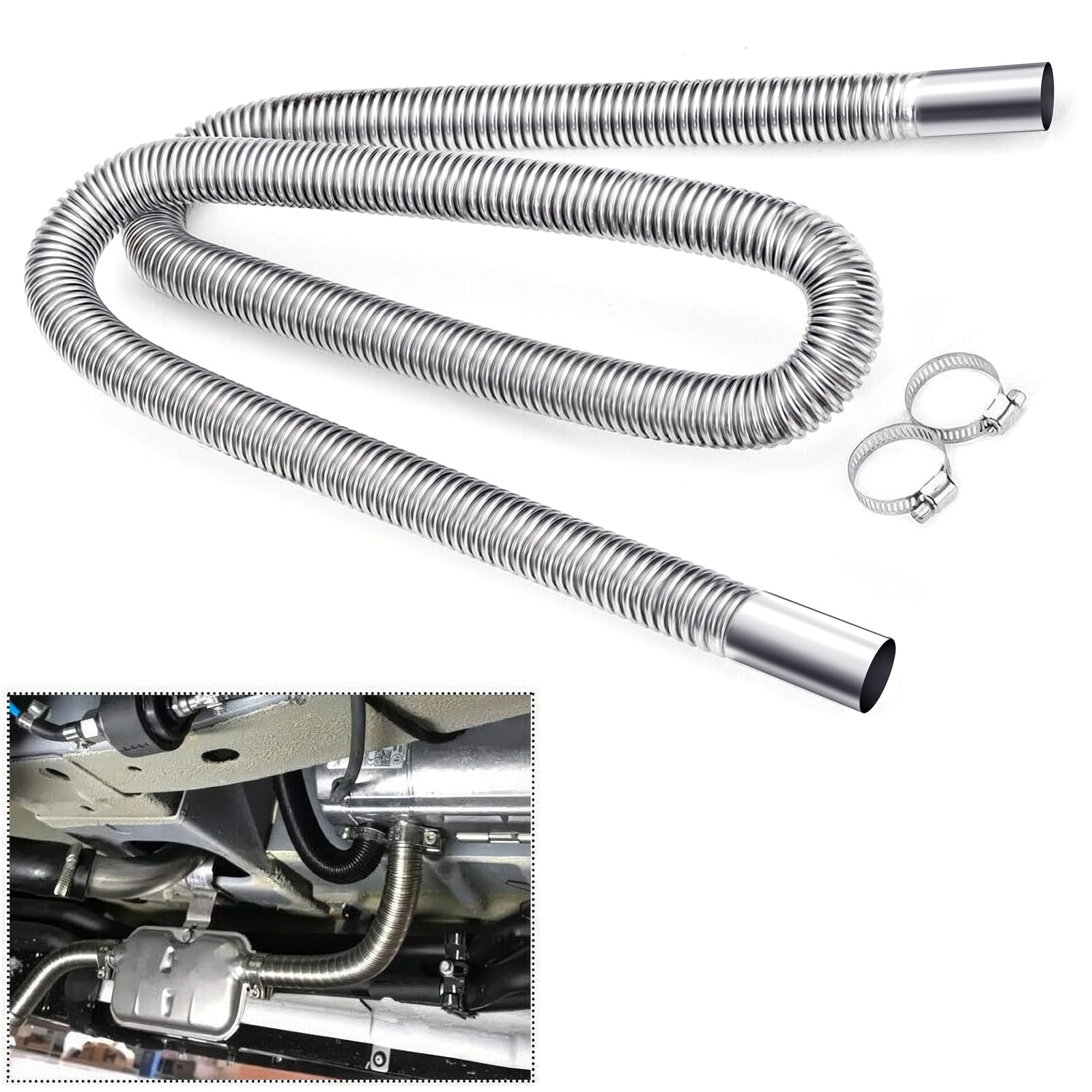

COLOR TREE 78.7inch Universal Stainless Steel Exhaust Pipe 1inch ID Parking Air Heater Tank Diesel Gas Vent Hose Length for Car Truck

4.4 / 5

₱2,083.00 ₱2,083.00

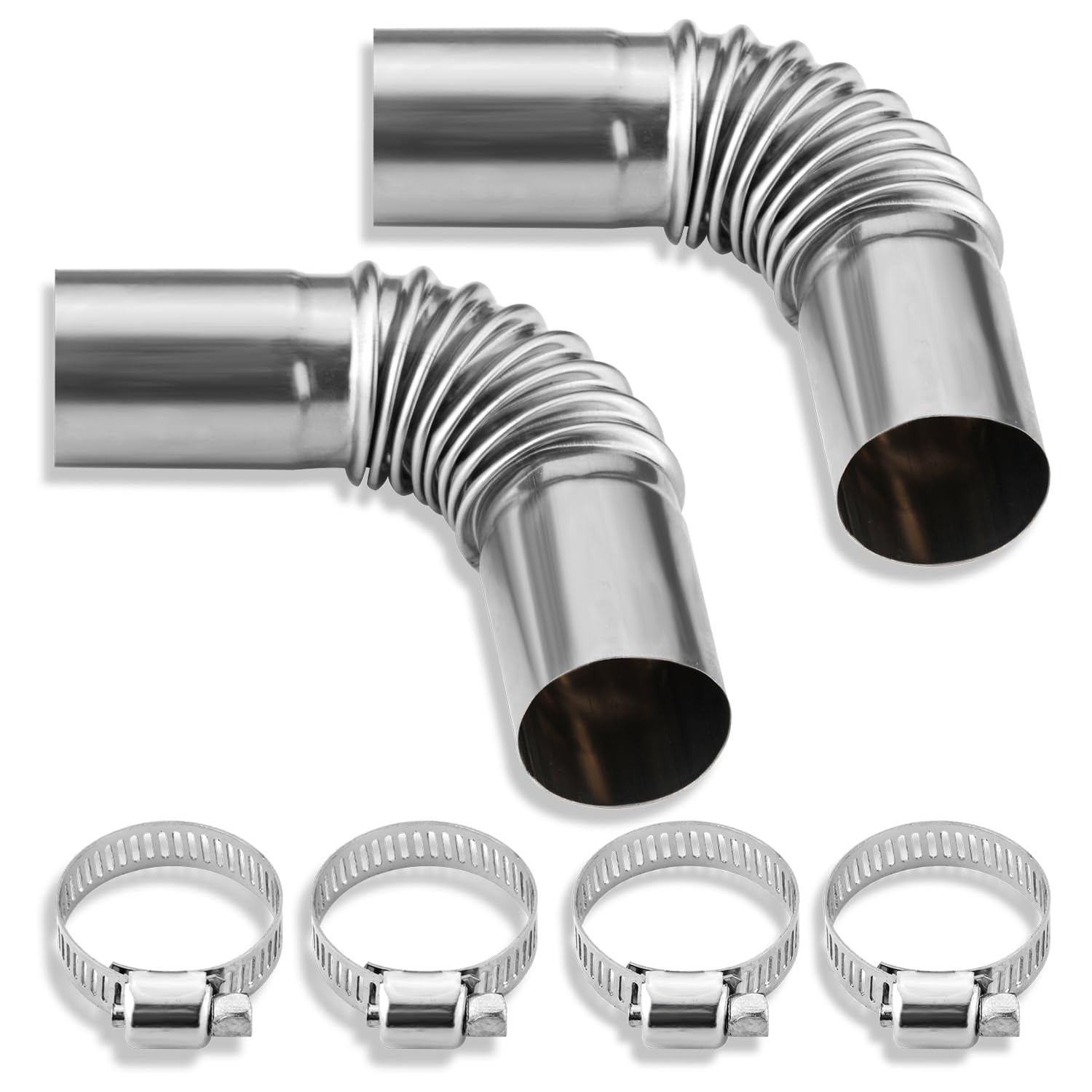

2pcs Diesel Stainless Steel 24mm Parking Air Heater Exhaust Pipe Tube Elbow Connector with 4 Clamps for Webasto Eberspacher Diesel Boat Heater 13cm Exhaust Pipes and Tips
