Max 200A 12 Volt 3 Terminal Continuous Duty Solenoid Relay for Golf Carts Heavy Duty Winch Marine in Rush 24106 SPST 12VDC 12V Solenoid Relay Zinc Plating

4.1 / 5

Available Options

12V 3 Terminal Max 200A, 12V 3 Terminal Max 200A ₱1,650.00 24V 4 Terminal Max 150A, 24V 4 Terminal Max 150A ₱1,601.00 12V 4 Terminal Max 300A, 12V 4 Terminal Max 300A ₱1,611.00 12 V 6 Terminal MAX 100A, 12 V 6 Terminal MAX 100A ₱1,974.00 36 V 4 Terminal Max 200A, 36 V 4 Terminal Max 200A ₱1,843.00 12V 4 Terminal W/ Resistor &diode, 12V 4 Terminal W/ Resistor &diode ₱1,752.00

₱1,650

+ ₱ 441

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2025-12-22 to 2025-12-29.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

DETAILS

Product ID:

412526

Copy Link

Identifier:

B0BDF4JSF5

Brand:

LDMINDA

Model:

12V 3 Terminal Max 200A

Shipping Weight:

0.88 lbs

Manufacturer:

LDMINDA

Shipping Dimension:

3.66 x 3.03 x 3.03 inches

FEATURES

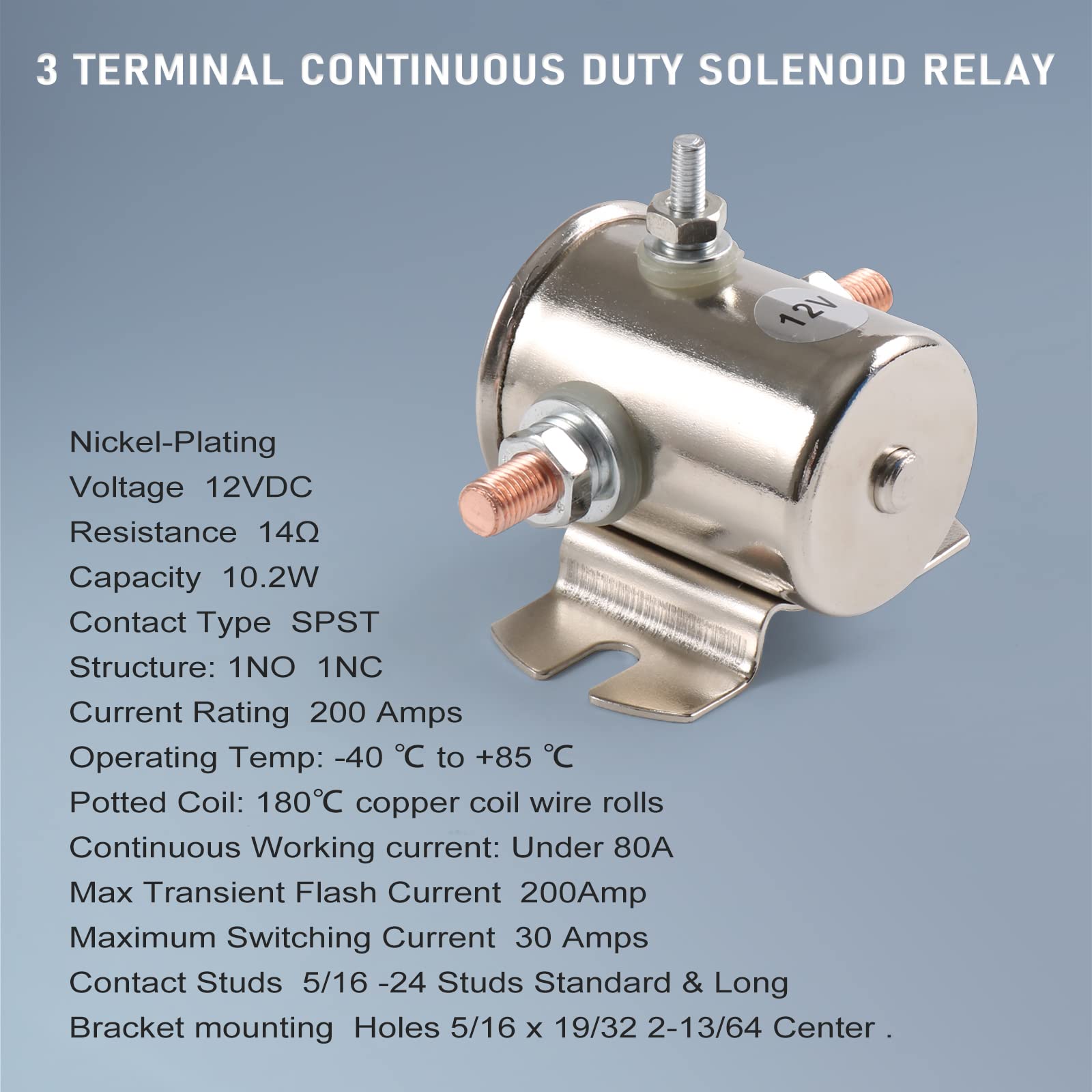

✦ 【Specification】3 Pole Battery Isolation Solenoid, 12VDC With 2 Copper Point, Housing plated Steel Case / 180Flat mounting bracket./ Voltage: 12VDC; Resistance: 14Ω; Capacity: 10.2W; Maximum transient flash current: 200Amp; Contact stud: 5/16-24 stud standard and Long; Mounting Holes: 5/16 x 19/32, 2-13/64 Center

✦ 【Contacts】Normally Open (NO)/ Flat Base Metal Case / 10-32 Terminal

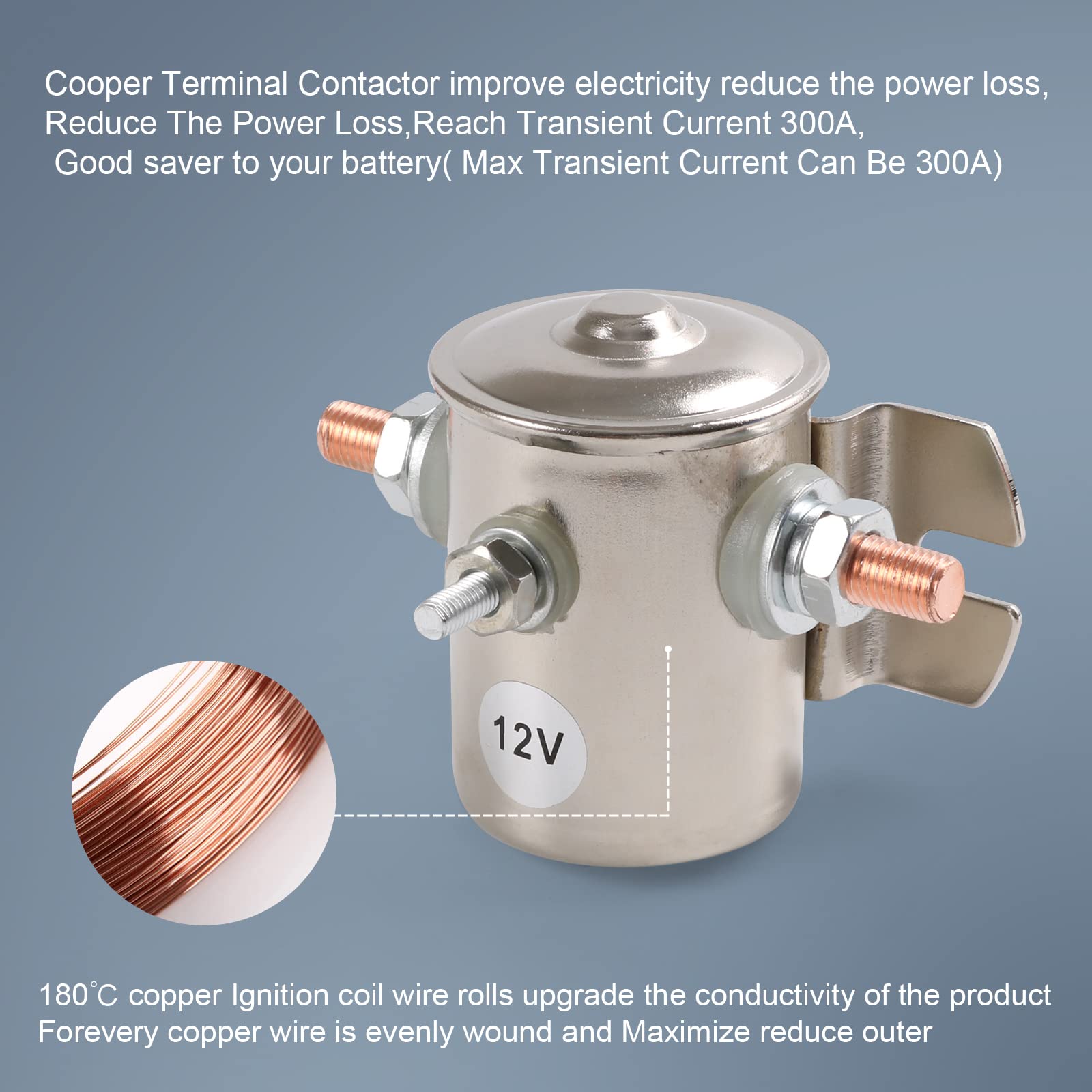

✦ 【Materials】180℃ copper coil wire rolls upgrade the conductivity of the product.the electromagnetic relay is made of high-quality components. Max Transient Current can reach 200AMP. The Rate Current: 100A .Our Cover is Environmental Plating, Sealed Unit Protects Solenoid From The Elements Helping Prevent Corrosion.The Nickel-Plating outer layer and the inside of the canned coil, suitable for use in any environment

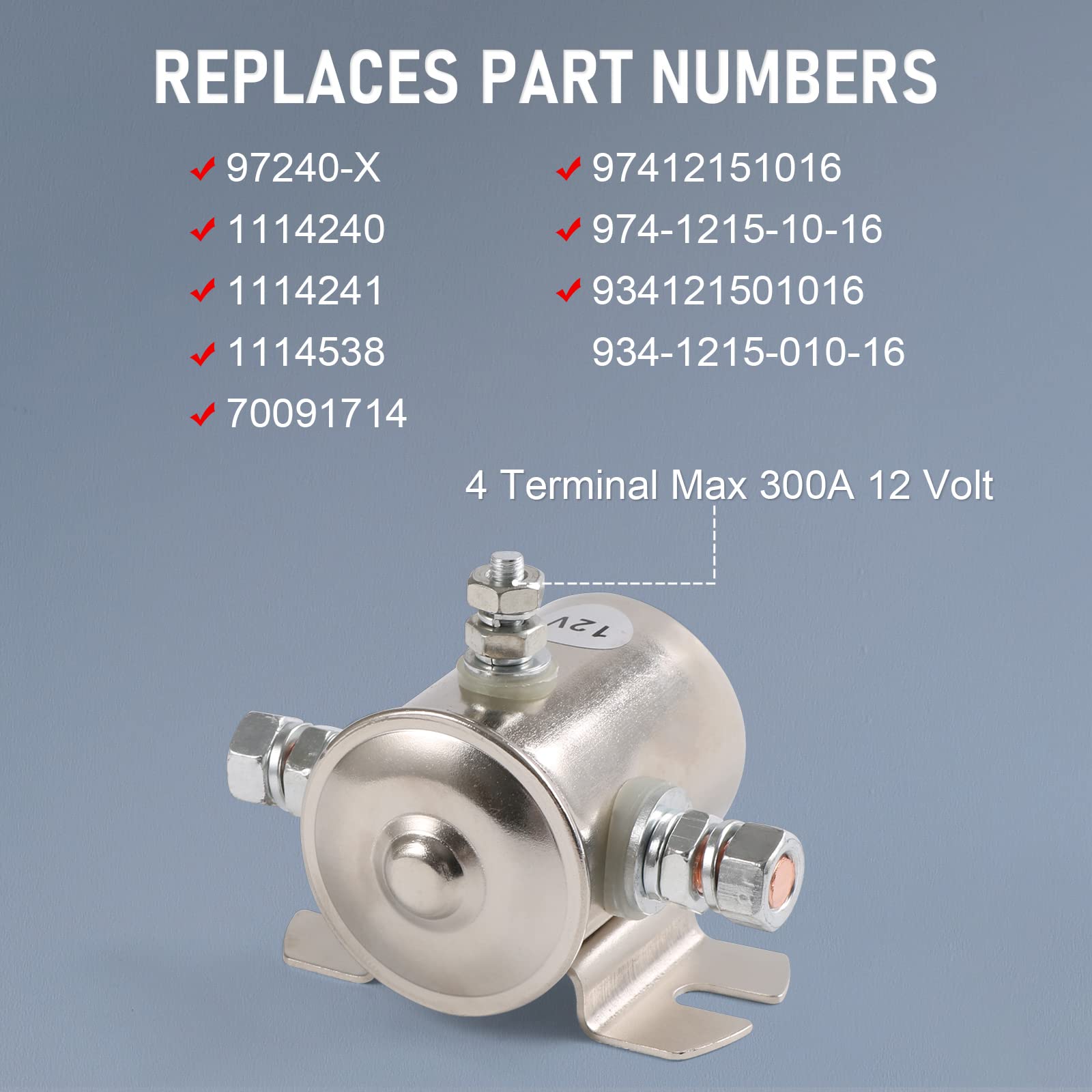

✦ 【Replaces Parts Number】This Continuous Duty Solenoid Relay Replacement For 1114240, 1114241, 1114538, 97240-X, 70091714, 97412151016, 974-1215-10-16, 934121501016,934-1215-010-16, 9341215010,1114218, 1114534 ,1114547,For Trombetta 974121501109, 9741215011

✦ 【Function 】good saver to your battery ( Max Flash Current 200A). Copper Terminal Contactor Improve Electricity - Reduce The Power Loss,Reach Transient Current 200A (if be Continuous Duty,can work 5 minutes under 150Amp, but NEED BREAK otherwise will be too hot to burned or fired)
