Product ID:
63547
Identifier:
B07KCGYQVD
Brand:
Ximimark
Model:
LY166
Shipping Weight:
0.44 lbs
Manufacturer:
Ximimark
Shipping Dimension:
6.73 x 5.16 x 1.5 inches
₱996
+ ₱ 217
Shipping Cost from USA to Philippines inclusive of custom fees.
Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.
Get it between 2025-11-05 to 2025-11-12.
Additional 3 business days for provincial shipping.
- Price and Stocks may change without prior notice
- Packaging of actual item may differ from photo shown
Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.
Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

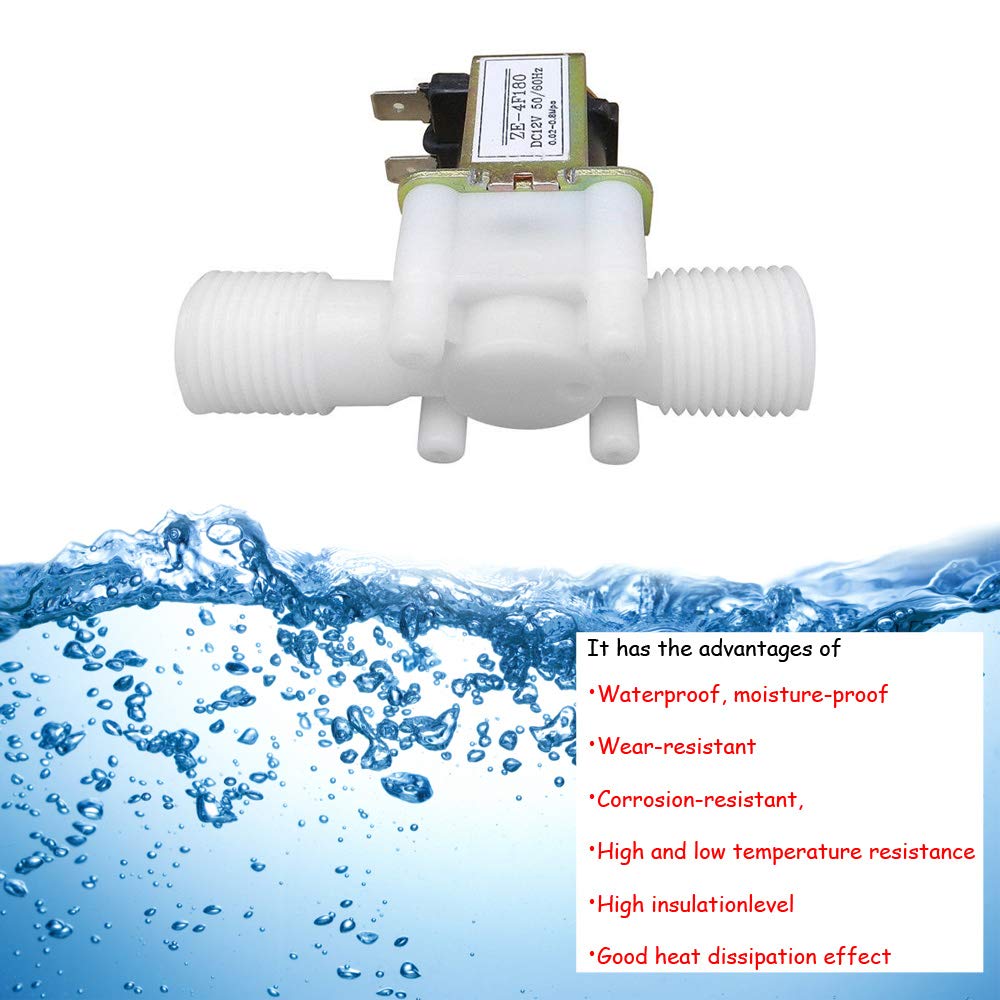

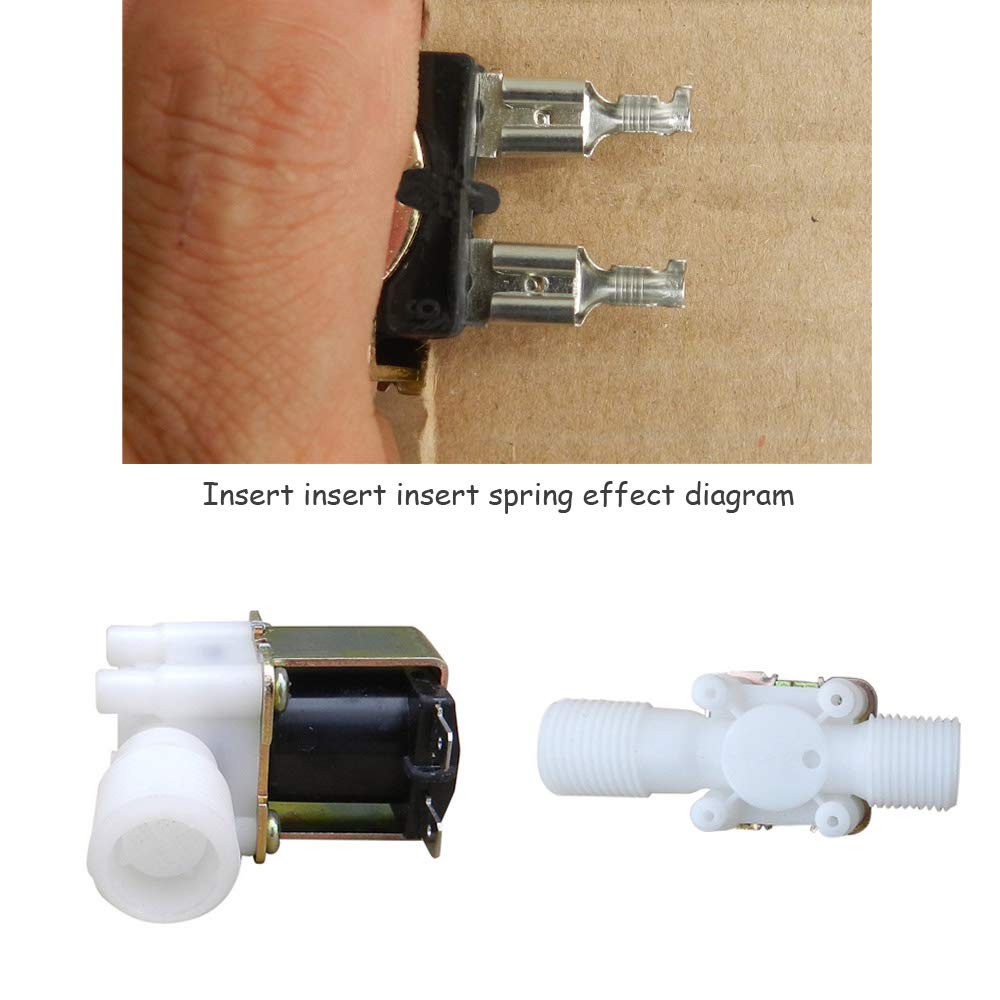

The valve body is made of all-plastic material, with 4 points of external thread on both ends of the valve body. The valve body is simple, the power terminal is insert type, and the 6.3 spring is used.
The coil is packaged by the international top-grade coil packaging material, and has the advantages of waterproof, moisture-proof, wear-resistant, corrosion-resistant, high-low temperature resistance.
The insulation grade is high and the heat dissipation effect is good. Under normal conditions, the product can be used for a long time.
This valve is a normally closed solenoid valve, that is, it is energized to turn on (water), and the power is off (water cut).
This is a micro pressure valve (pressure), suitable for 0.02-0.8MPA water pressure, please choose according to your actual needs.

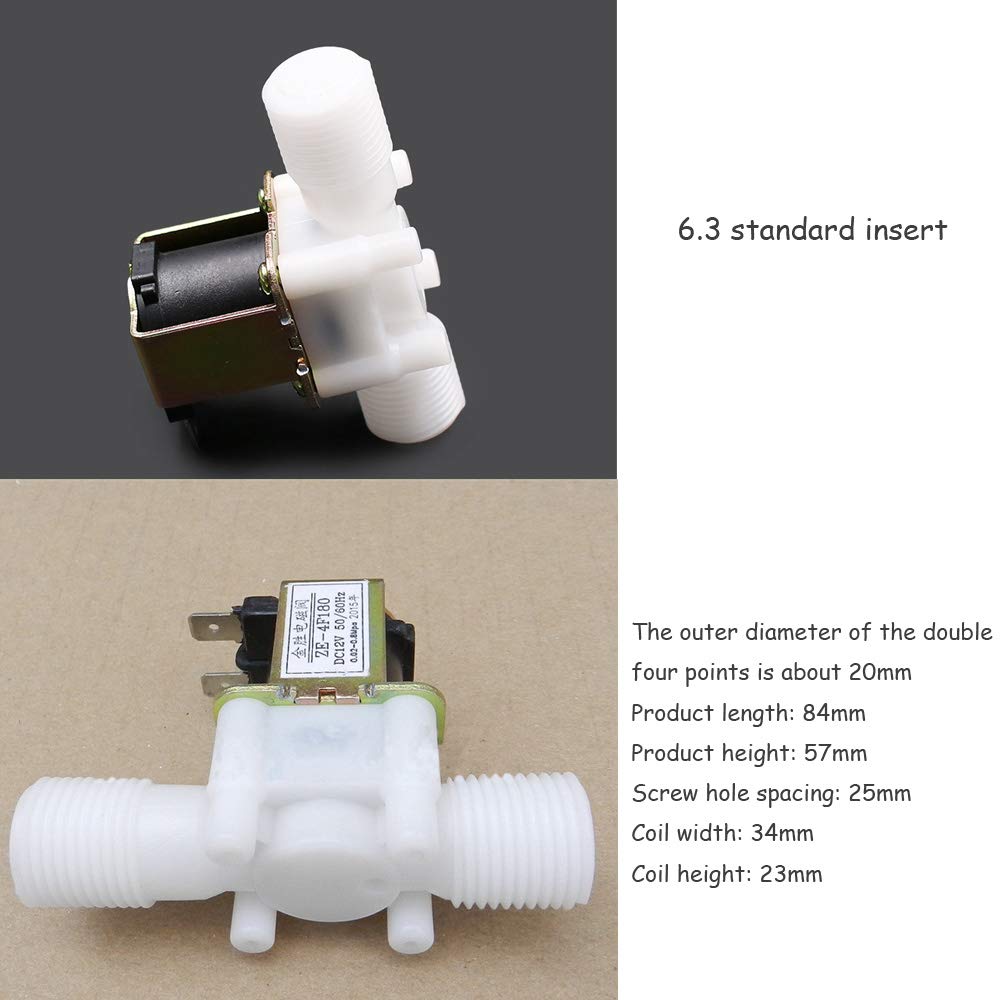

Specifications: Rated power: 5W, no need to divide the positive and negative poles Working mode: quota system (that is, intermittent cycle work system, the longest continuous work for about 4 hours, can continue to work after stopping for ten minutes, there will be danger of burning coils for more than four hours) Use fluid: (0-100 ° C) water Flow characteristics of water: 0.02Mpa>1.5L/min; 0.10Mpa>7L/min; 0.30Mpa>12L/min; 0.80Mpa>20L/min Insulation performance: The insulation resistance between the conductor and the non-conductor is greater than 100MΩ Insulation class: Class E insulation Service life: ≥500,000 times (laboratory data), ≥300,000 times (actual normal use) Valve type: diaphragm (operated by Servo) Usage: water and low viscosity fluids Material: metal + plastic External thread diameter: approx. 20mm Screw hole pitch:25mm Size: approx. 84 x 57mm (L x H) Coil size: approx. 34 x 23mm (W x H) Unit conversion: 1mm=0.039inch Note: Manual measurement, with small error. Please check size in detail before purchase. Real colors may slightly differ from the pictures, as it depends on specific monitor settings and light brightness. We highly appreciate all customers opinions to improve the selling, also if anything you unsatisfied, please contact us for probable best solution. Package Includes: 2Pcs
