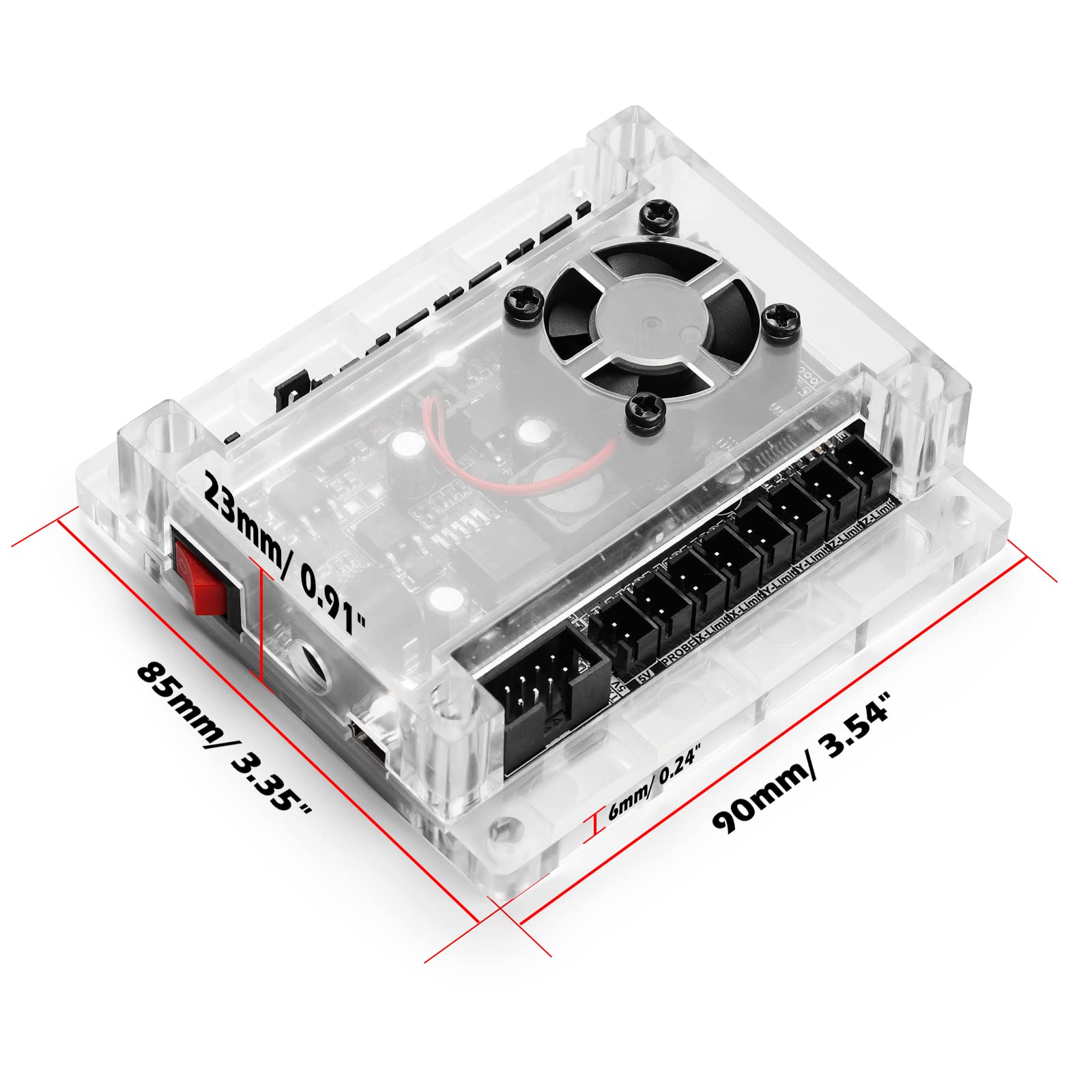

SainSmart Genmitsu CNC Router Machine Controller Board with ABS Case for CNC 1810-PRO/3018/3018-PRO

4.4 / 5

Product ID:

731714

Identifier:

B07X3F749R

Brand:

SainSmart

Model:

816550022382

Shipping Weight:

0.42 lbs

Manufacturer:

SainSmart

Shipping Dimension:

6.34 x 4.45 x 2.13 inches

Share on Social Media

Share on Facebook

Share on X

Share on Instagram

Share on Tiktok

₱4,119

+ ₱ 221

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2026-04-19 to 2026-04-26.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

FEATURES

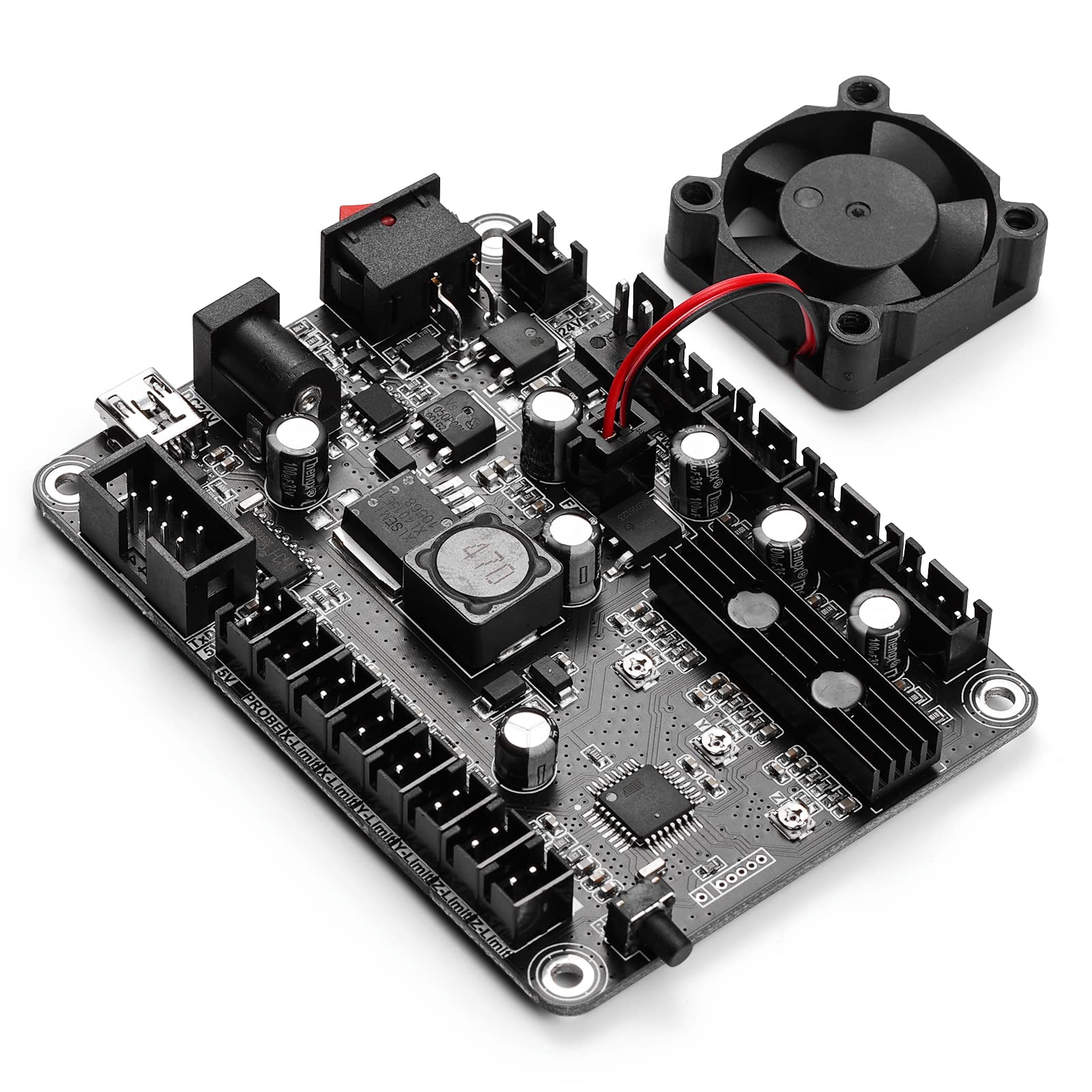

This controller board is designed for Genmitsu CNC Router 1810-PRO, 3018, and 3018-PRO. It can perfectly compatible with SainSmart Blue Laser Module.

Software: GRBL controller, UniversalGcodeSender.

Stepper motor drive: DRV8825; Spindle power: 150W; Input voltage: 24V (12-24V).

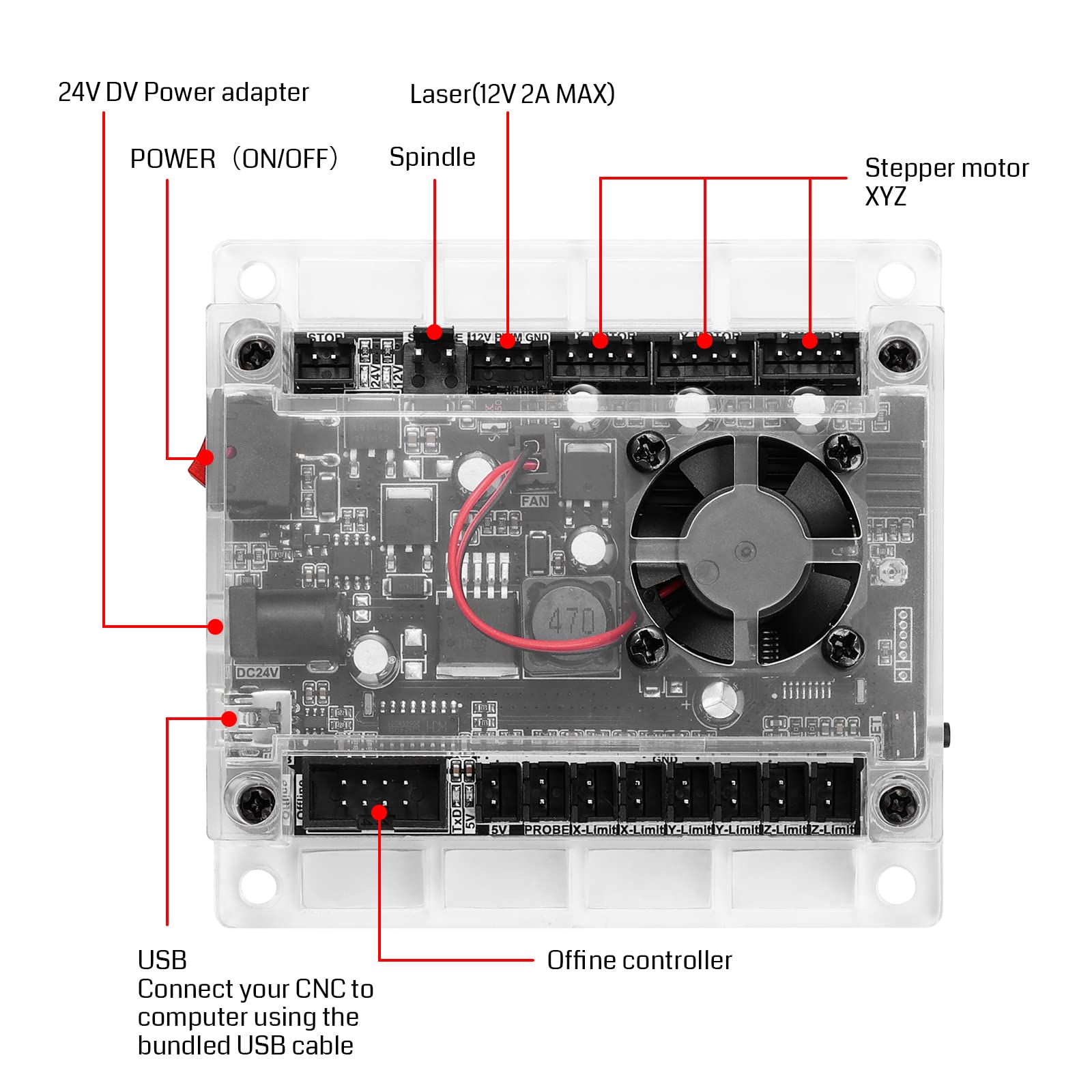

Support XYZ three-axis control, spindle and laser module. Support 3 pin and 2 pin lasers (the 2 pin lasers: please connect the white interface " + s-").

Support stepper motor: 12V, the maximum current within 2A, recommended within 1.5A and additional heat. (Any stepper motor 42, 57).

DESCRIPTIONS

Parameters: Support Laser engraving. Support spindle PWM speed control. Support XYZ triaxial control, spindle, laser module. Connection for X-Y-Z end switches, built-in fan. Connection for optional offline-controller. Spindle drive chip 1: MOSFET (recommended input voltage within 12-24V, current 10A). It can be connected to a high-power spindle motor or the laser. Spindle drive chip 2: MOSFET (current maximum 2A !!). Can only be connected within the 2A the laser module, the voltage 0-12V can be adjustable. User Manual: https://go.aws/37nvo3E WHAT'S INCLUDED? 1 x Controller Board 1 x USB Cable 　
