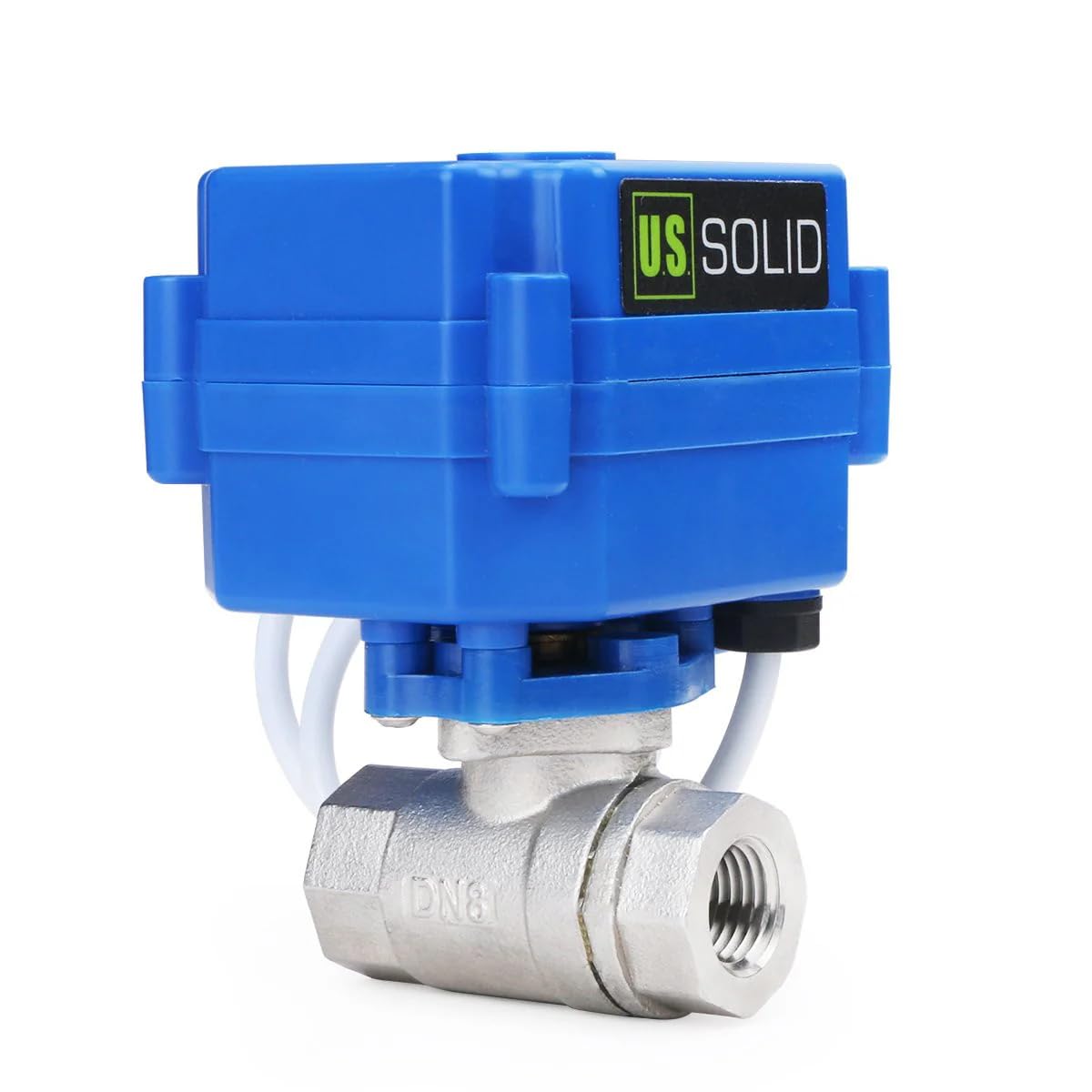

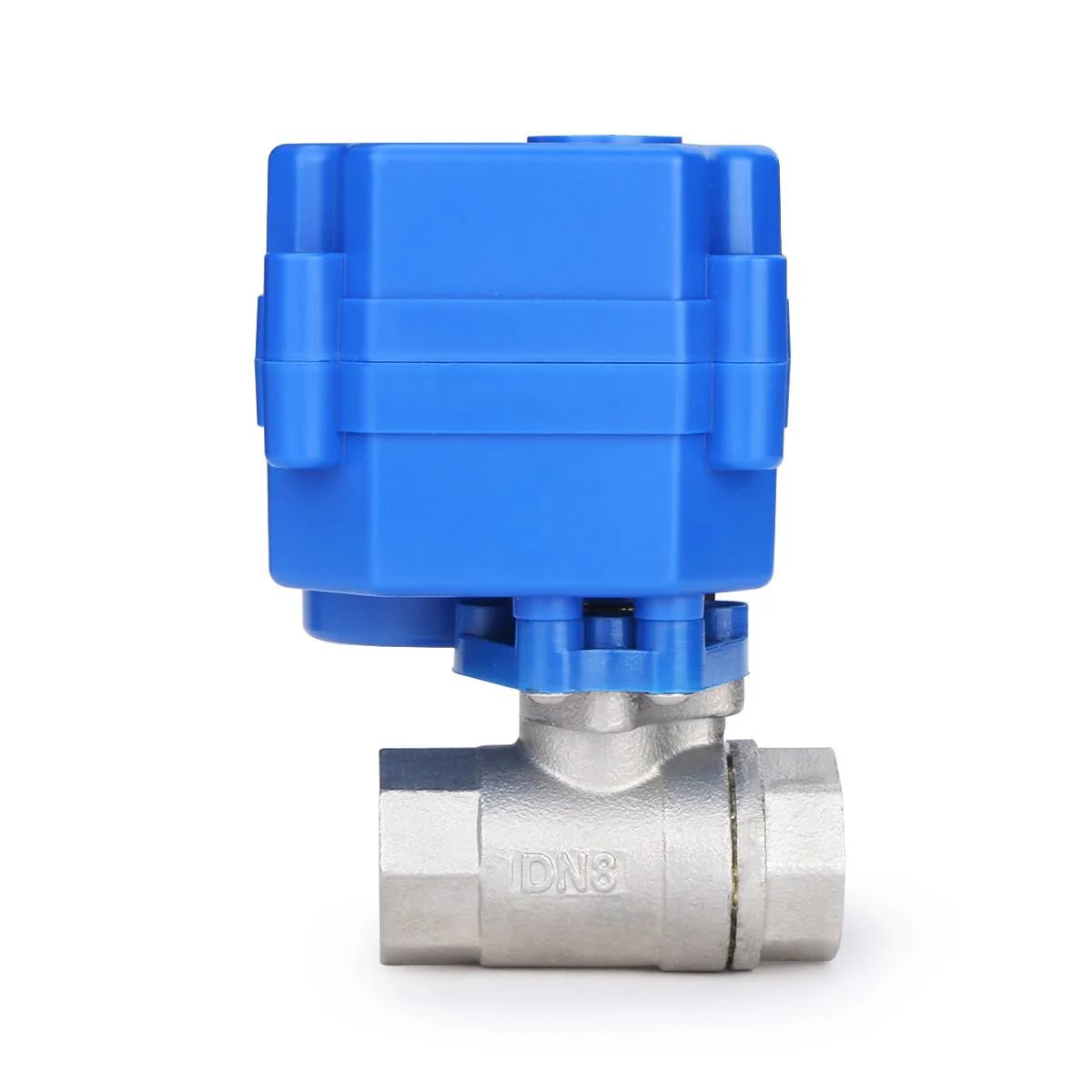

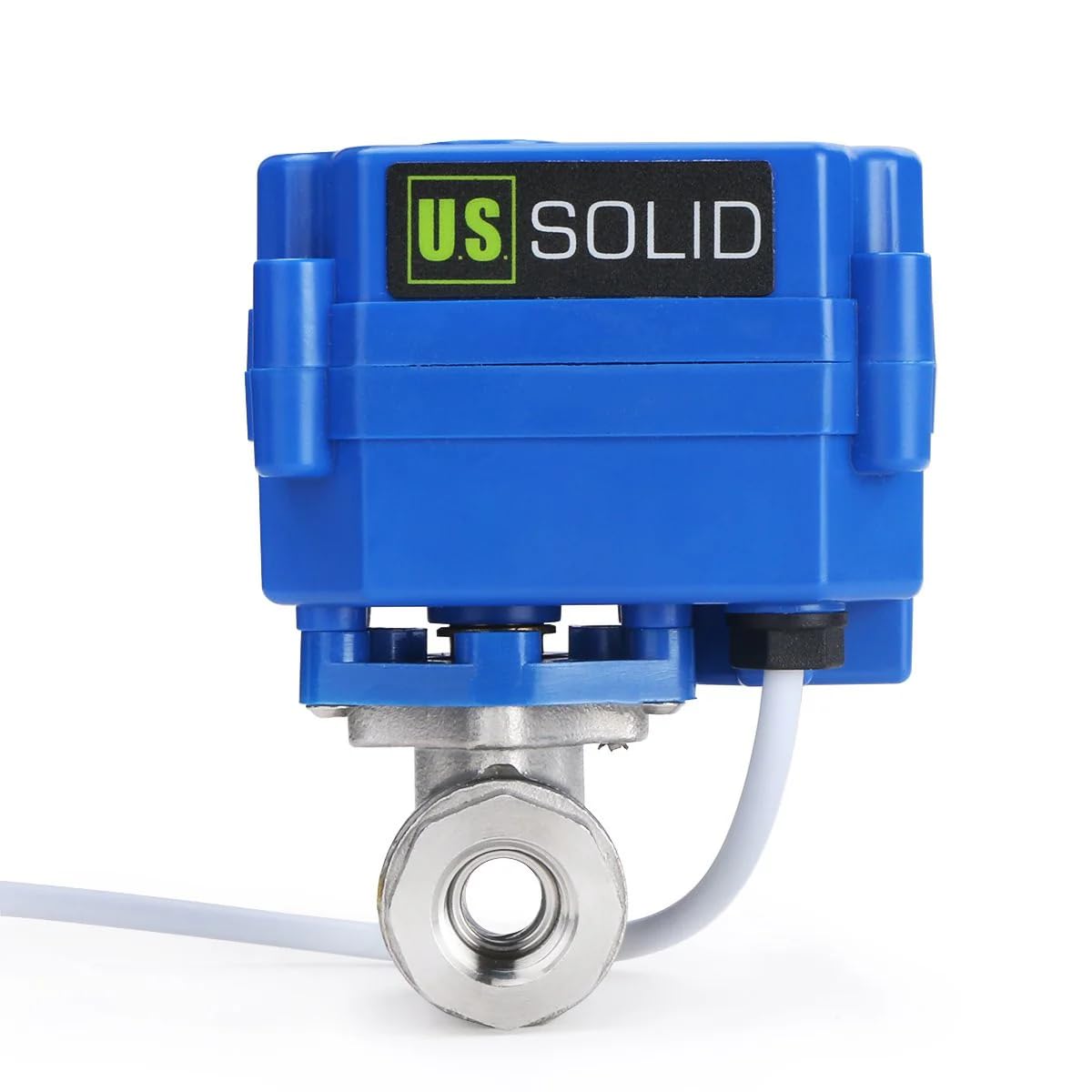

U.S. Solid Motorized Ball Valve- 1/4" Stainless Steel Ball Valve with Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup

4.4 / 5

Available Options

Steel, 1/4 Inch, USS-MSV00027 ₱3,062.00 Brass, 1 Inch, USS-MSV00018 ₱3,870.00 Steel, 1 Inch, USS-MSV00009 ₱5,307.00 Brass, 1/2 Inch, USS-MSV00010 ₱3,331.00

SAVE 6%

₱3,241

₱3,062

+ ₱ 217

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2025-11-08 to 2025-11-15.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

DETAILS

Product ID:

45469

Copy Link

Identifier:

B06XXPZHVB

Brand:

U.S. Solid

Model:

USS-MSV00027

Shipping Weight:

0.7 lbs

Manufacturer:

U.S. Solid

Shipping Dimension:

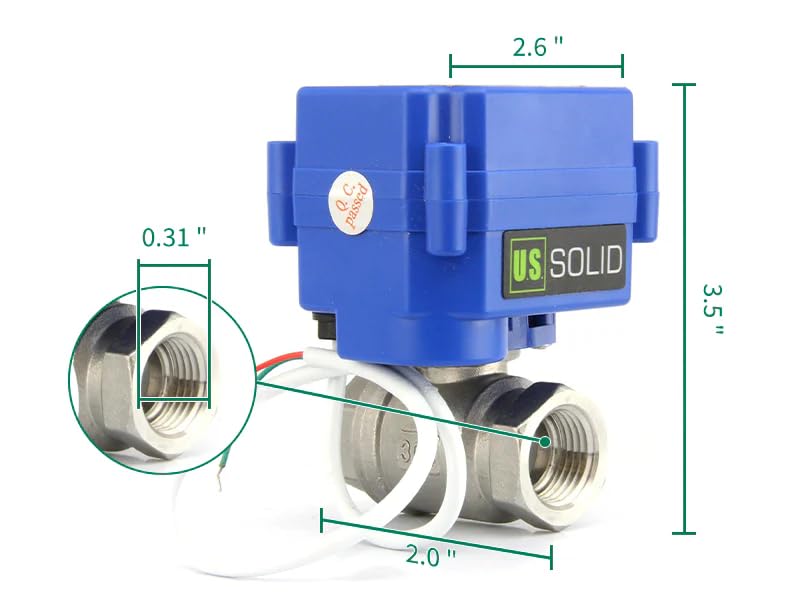

4.69 x 3.62 x 3.62 inches

FEATURES

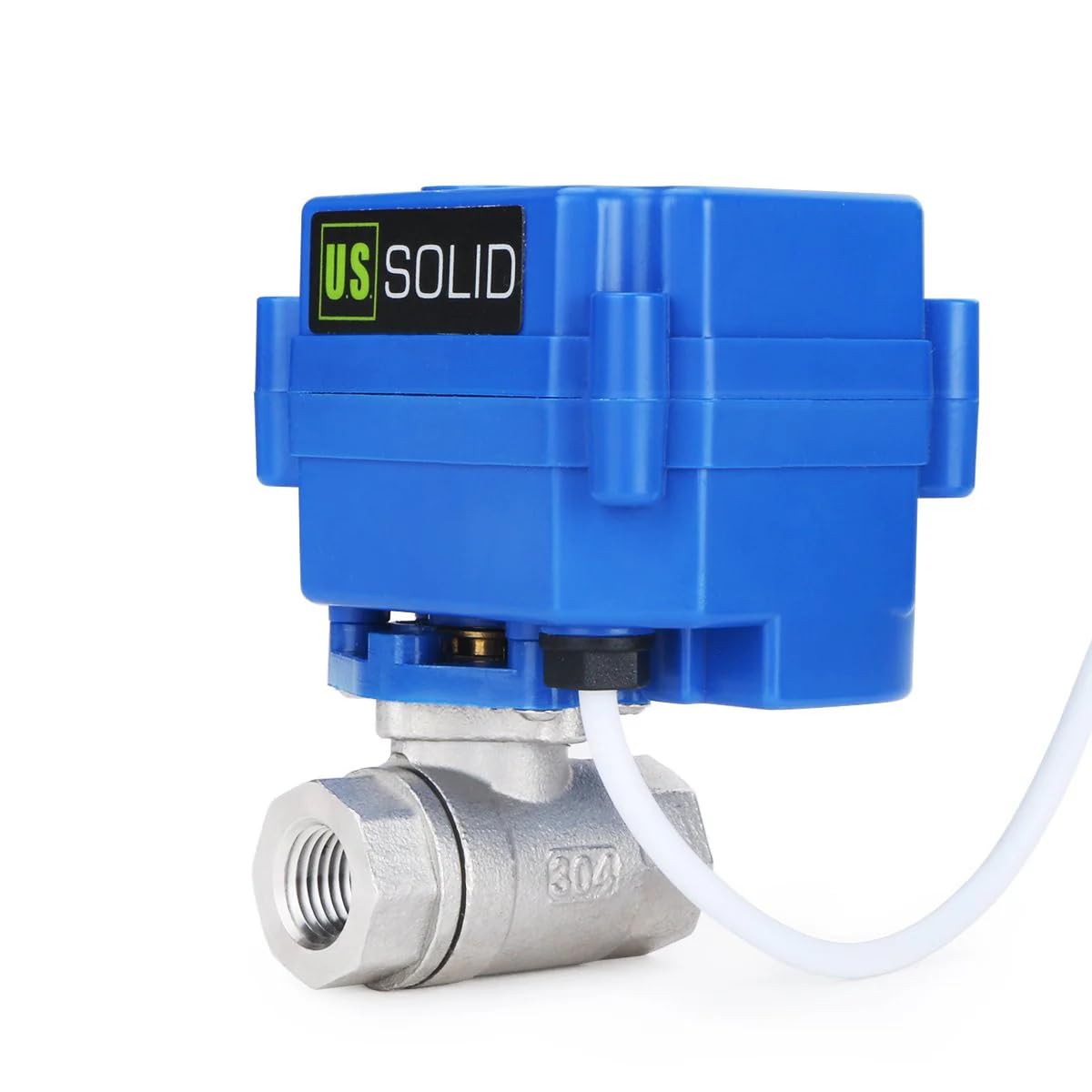

SAFE AND RELIABLE – Made from SS304 stainless steel and NSF certified, this ball valve is safe for drinking water. It has a lifespan of 80,000 to 100,000 cycles.

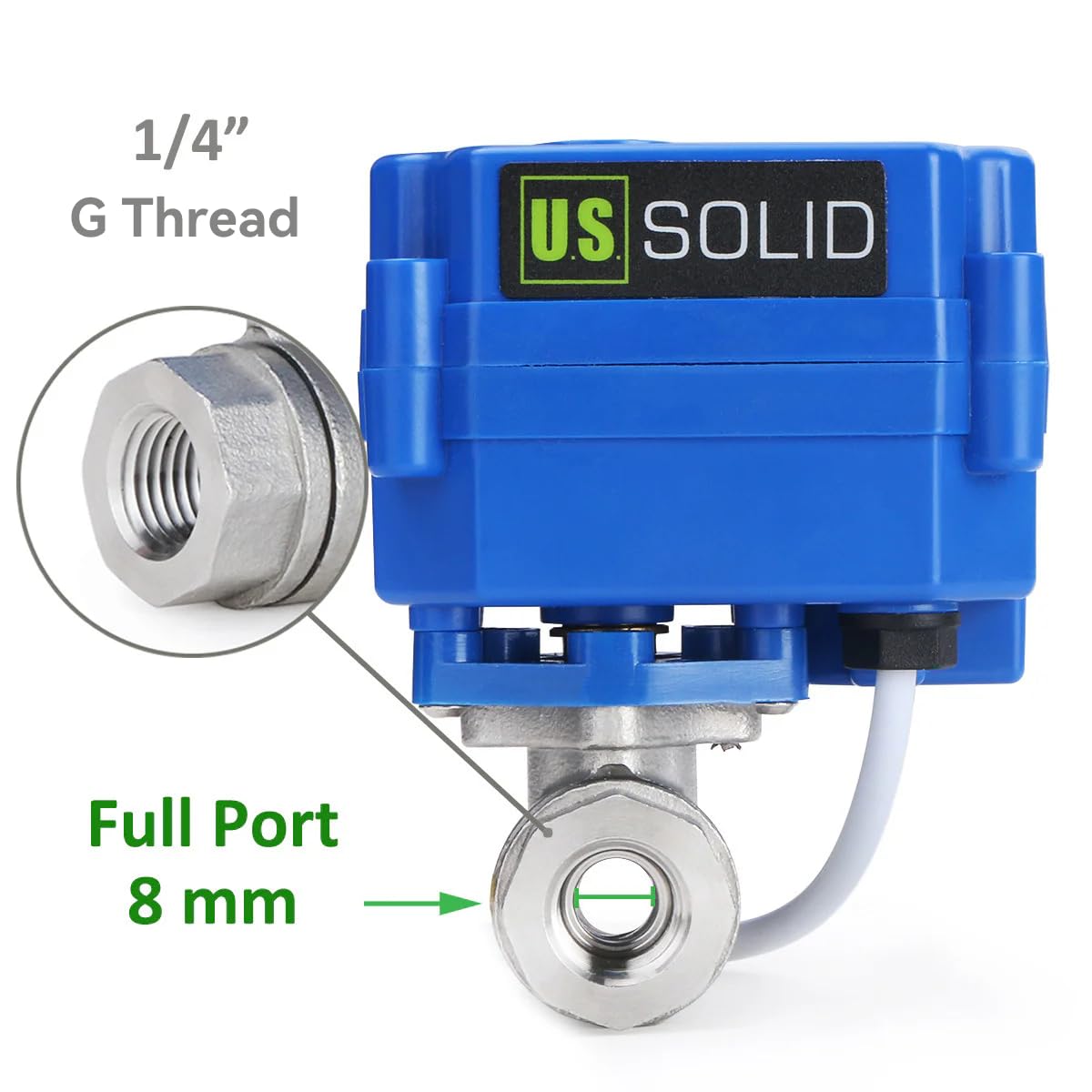

NPT THREADING – ¼" stainless steel threading, manufactured and measured according to National Pipe Thread (NPT) standards. This standard-port electrical ball valve features a bore slightly less than ¼”, minimizing pressure loss—ideal for home automation projects.

9V-24V AC/DC – Operates effectively across the entire voltage range; opens or closes the valve in 3-5 seconds. The limit switch reduces power consumption once the valve is fully open, making it ideal for projects requiring automatic return.

2-WIRE AUTOMATIC RETURN SETUP – Simple two-wire connection; the valve largely de-energizes after opening and returns to fully closed if power is removed.

ALTERNATIVE TO SOLENOID VALVES – Automatically cuts off power once fully open or closed, reducing the risk of overheating. Ideal for projects requiring a valve to remain open for extended periods. OUTDOOR INSTALLATION TIP – If permanently installed outdoors, it is recommended to place the valve under a shelter or inside a protective box to prevent prolonged exposure to rain.
