SÜA 45% Silver Brazing is a cadmium-free alloy with an intermediate melting temperature range of (145°F/63°C) with good fillet forming properties, the plastic range of this rod gives an advantage when filling loose connections. This 45% silver alloy has good joint strength and ductility at a moderately higher temperature.

Complies with ANSI/AWS A5.8 ASME SFA 5.8, QQ-B-654A Class BAg-5 specifications. It can be used for brazing of tubular assemblies, brazing of musical brass instruments, brass lamps, aircraft engine oil coolers. SÜA 45% Silver is a general-purpose, brazing filler metal for use where cadmium-free filler metal is required.

The final properties of a joint brazed with SÜA 45% Silver are dependent upon numerous factors including base metal properties, joint design and metallurgical interaction between the base metal and the filler metal.

No flux is required for copper brazing. For brazing brass or copper to brass Use white silver brazing flux

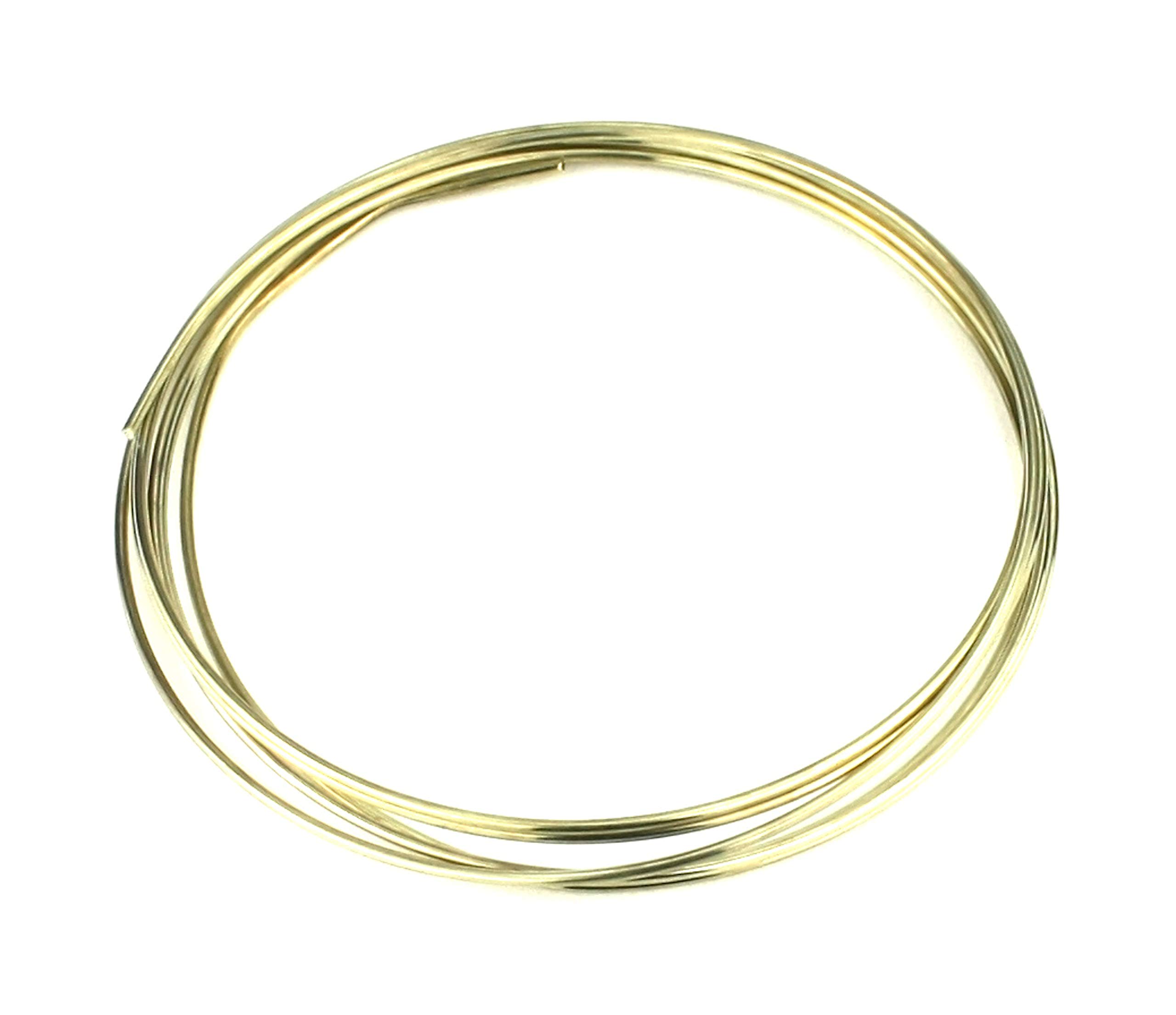

Diameter of wire: 1/16” - Weight of each coil: 1 TOz - Length of each 1 Toz coil: 6 feet - Available in 1, 3 and 5 Troy Ounces Packages. Select your option from the menu.
