FEATURES

DESCRIPTIONS

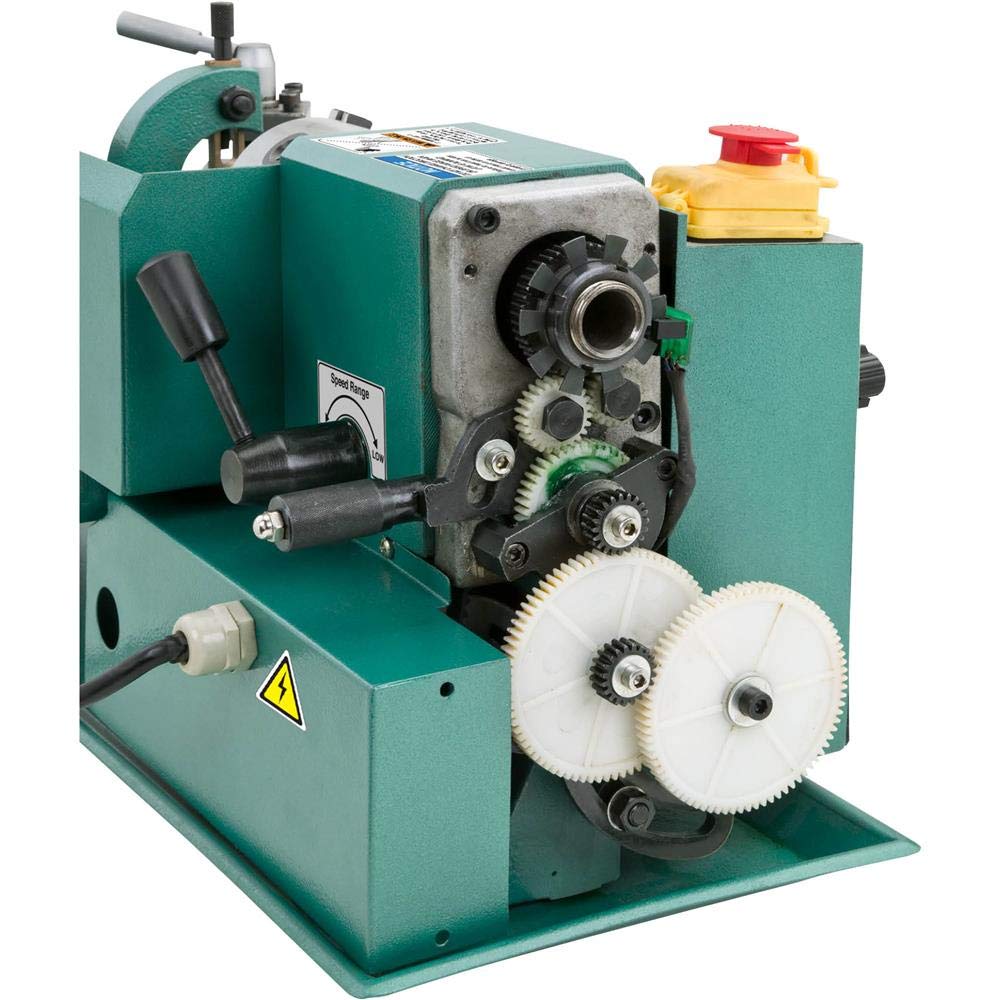

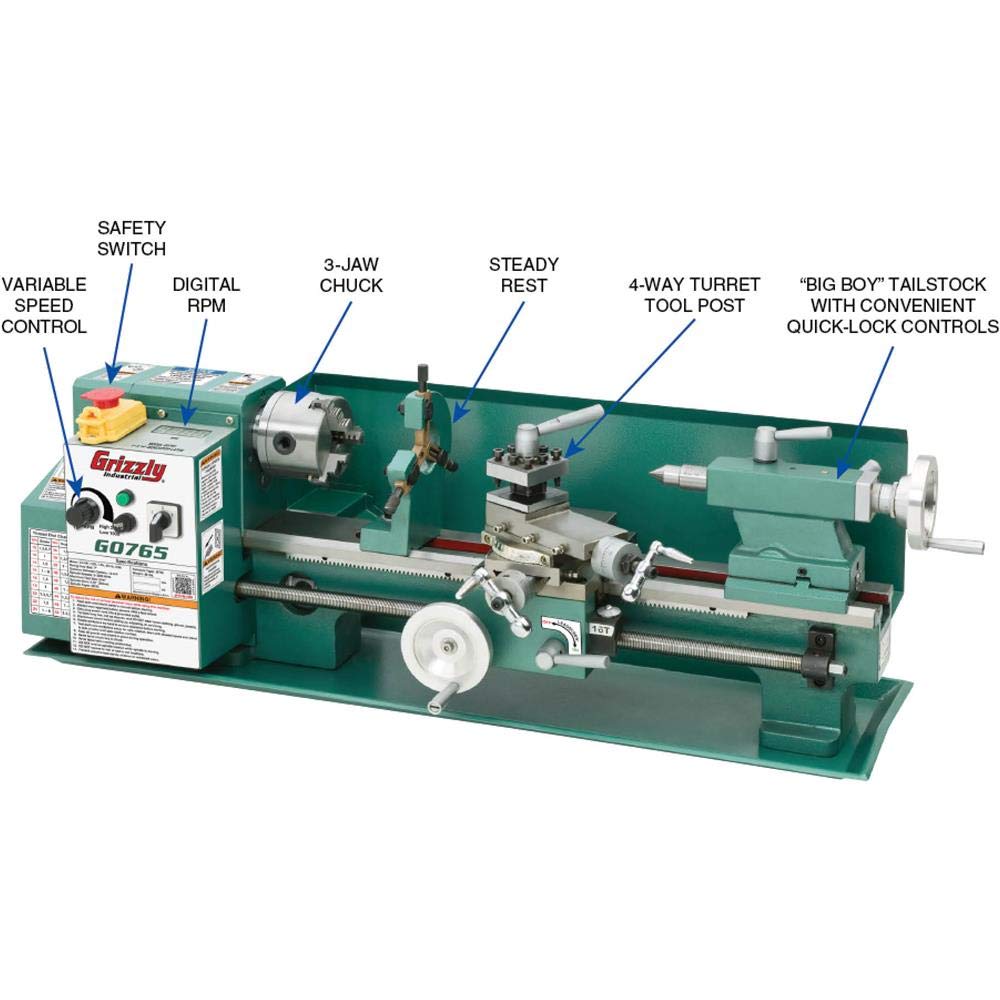

If You're In The Market For A Small Bench Lathe That Doesn't Skimp On Rigidity, And Is Priced Under 1000, Then You'll Love Our G0765. First And Foremost, It Features A Special "Big Boy" Tailstock, Designed With The Same Convenient Quick-Locking Controls And Extra-Long Footprint Previously Only Found On Our Much Larger Lathes. It Also Features Variable-Speed Spindle Controls With Digital Rpm Display For Dialing In The Perfect Cutting Speed, A Two-Speed Gearbox For Getting The Extra Torque Needed When Turning At Lower Speeds, And The Ability To Cut A Wide Range Of Inch And Metric Threads. Includes All The Essential Standard Equipment You'll Need To Get Up And Running, Including A 3-Jaw Chuck With Internal And External Jaws, 5" Faceplate, Steady Rest, 4-Way Turret Tool Post, And Mt#2 And Mt#3 Dead Centers. Specifications:, Swing Over Bed: 7", Swing Over Cross Slide: 2-1/8", Distance Between Centers: 13-3/4", Spindle Bore: 20Mm (0.78"), Spindle Nose Taper: Mt#3, Motor: 3/4 Hp, 110V, Single-Phase, Number Of Speeds: Variable, Range Of Low Speeds: 100–1000 Rpm, Range Of High Speeds: 100–2000 Rpm, Leadscrew: 5/8"–16 Tpi, Compound Rest Travel: 2-3/4", Cross Slide Travel: 2-3/4", Carriage Travel: 12-1/2", Maximum Tool Size: 5/16", Tailstock Quill Travel: 2", Tailstock Barrel Taper: Mt#2, Number Of Longitudinal Feeds: 1, Range Of Longitudinal Feeds: 0.04 Ipr, Number Of Inch Threads: 18.
