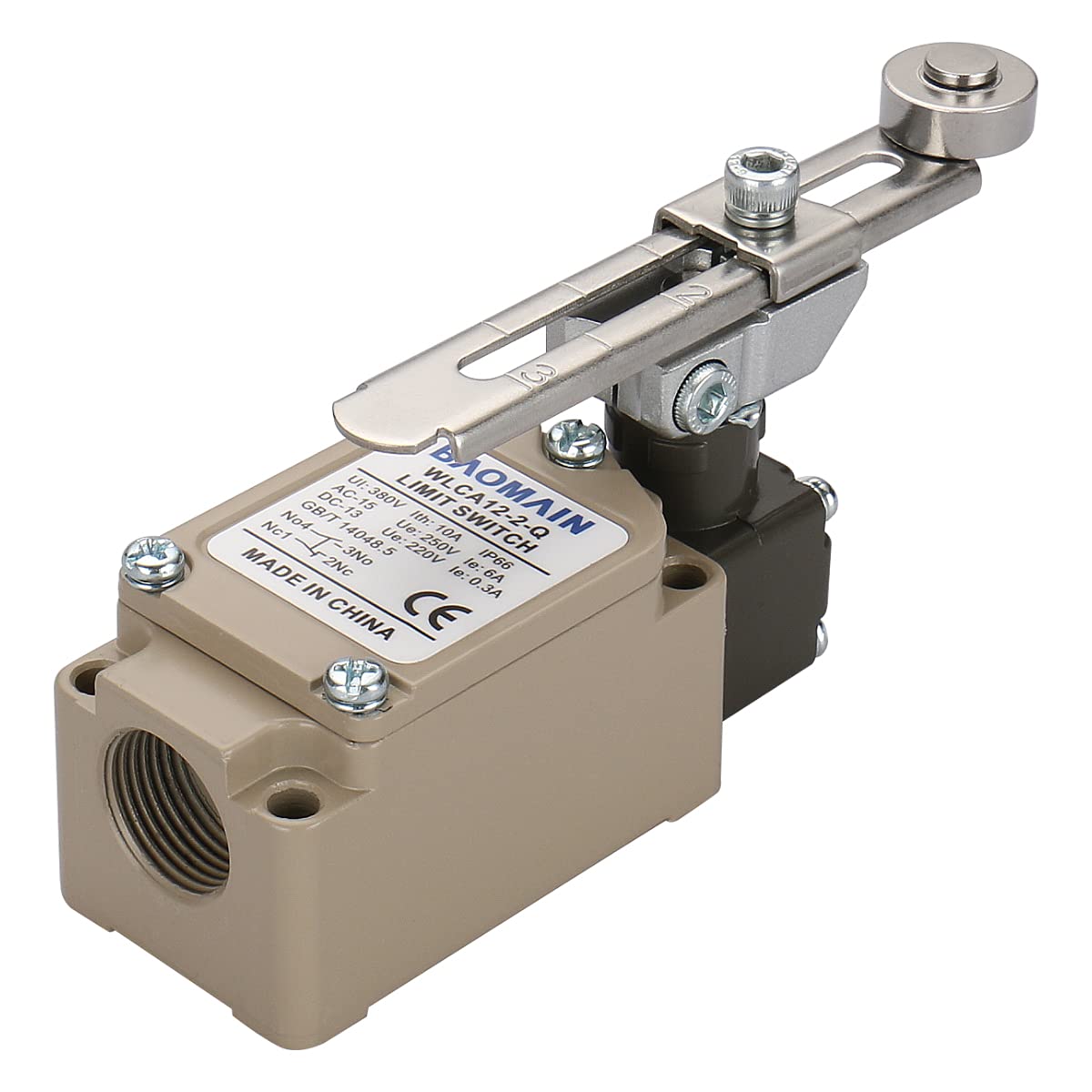

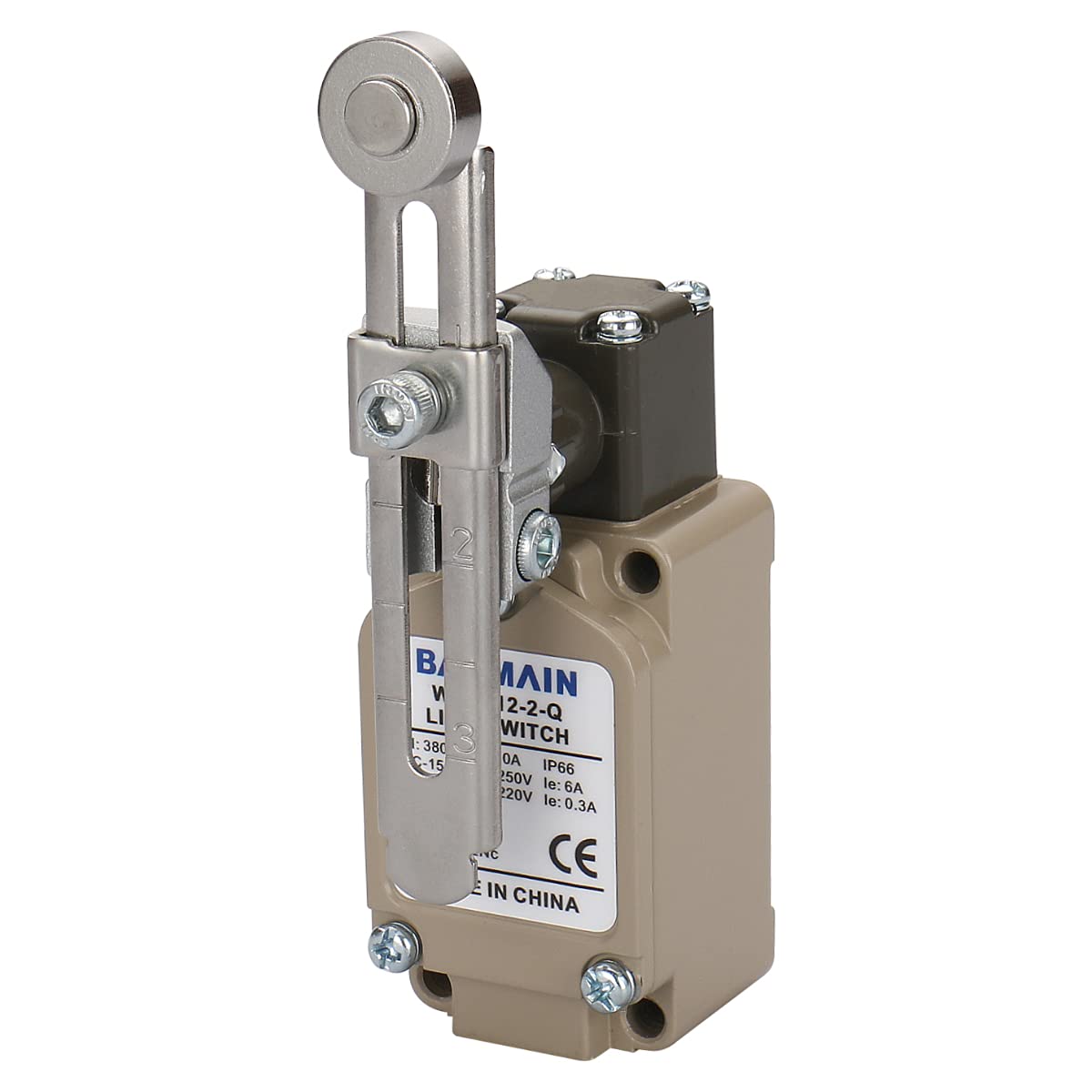

BAOMAIN WLCA12-2-Q Adjustable Roller Lever Limit Switch, SPDT 1NO 1NC Momentary Action, Waterproof IP66, 10A 380V AC for CNC Milling, Lathe, Machine Tools, Conveyors &Gate Control (with Cable Gland)

4.6 / 5

Product ID:

131607

Identifier:

B01HHN1LBY

Brand:

Baomain

Model:

WLCA12-2-Q

Shipping Weight:

0.79 lbs

Manufacturer:

BAOMAIN Electric

Shipping Dimension:

5.35 x 3.46 x 1.73 inches

Share on Social Media

Share on Facebook

Share on X

Share on Instagram

Share on Tiktok

SAVE 7%

₱1,863

₱1,753

+ ₱ 504

International Shipping

Shipping Cost from USA to Philippines inclusive of custom fees.

Cost too high? Check weight and dimension on product details and click "I think this is wrong?" link.

Get it between 2026-06-05 to 2026-06-12.

Additional 3 business days for provincial shipping.

- Price and Stocks may change without prior notice

- Packaging of actual item may differ from photo shown

Electrical items MAY be 110 volts.

See more details
7 Day Return Policy

See more details
Cash On Delivery/Cash Upon Pickup Available

Cash upon Pick-up - orders grand total must not exceed ₱5,000.00. Order will be pickup at Galleon's Office.

Cash on Delivery - orders grand total must not exceed of ₱10,000.00 and must not exceed ₱5,000.00 for provincial areas. See all payment methods

FEATURES

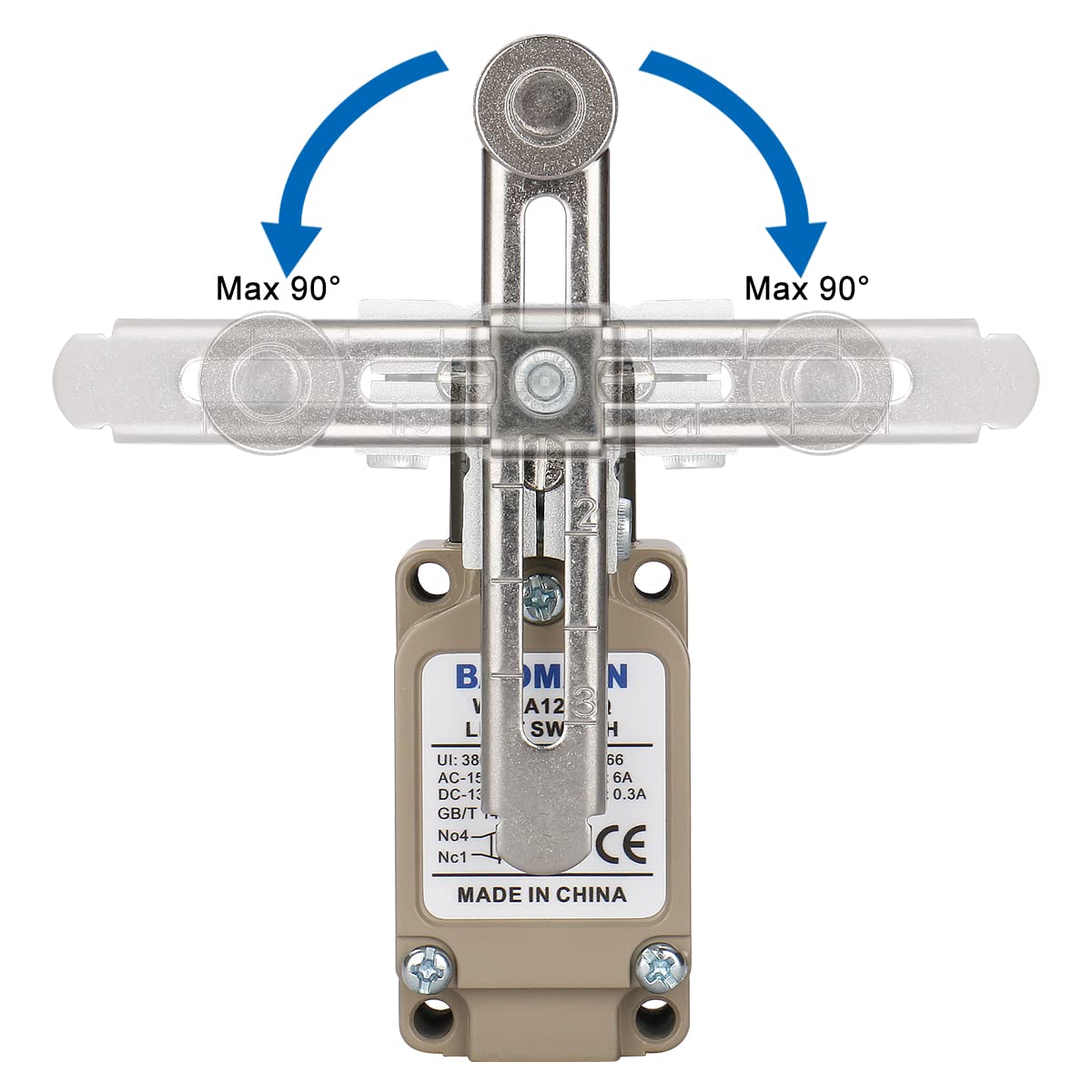

【Highly Adjustable & Precise Actuation】 Features a 180-degree rotary lever arm with an adjustable length, allowing you to customize the actuation point to fit your specific mechanical setup. The smooth steel roller ensures low friction and high repeatability for precision switching.

【Industrial Grade & IP66 Waterproof】 Built with a robust, sealed enclosure rated at IP66, this limit switch is effectively protected against dust, oil, and powerful water jets. It is engineered for stable operation in harsh industrial environments.

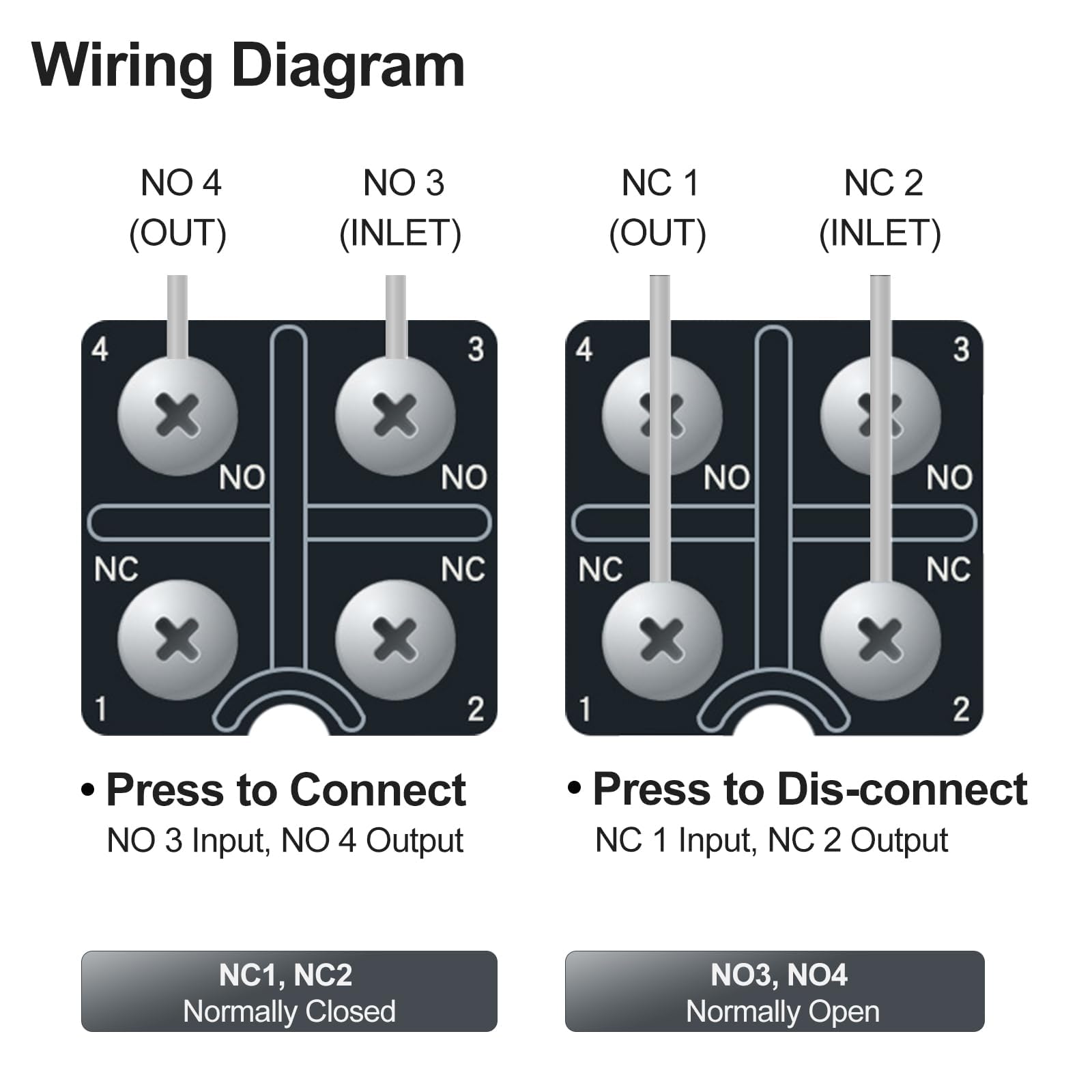

【High Load Capacity & Dual Contacts】 Supports a wide voltage range (up to 380V AC / 220V DC) with a 10A thermal current (Ith). The 1NO + 1NC (SPDT) contact arrangement provides flexible control for both Normally Open and Normally Closed circuit logic.

【Momentary Snap Action】 Designed for reliability, the momentary mechanism ensures immediate contact reset once the physical pressure is removed. This makes it perfect for position monitoring, end-of-travel sensing, and safety interlocking.

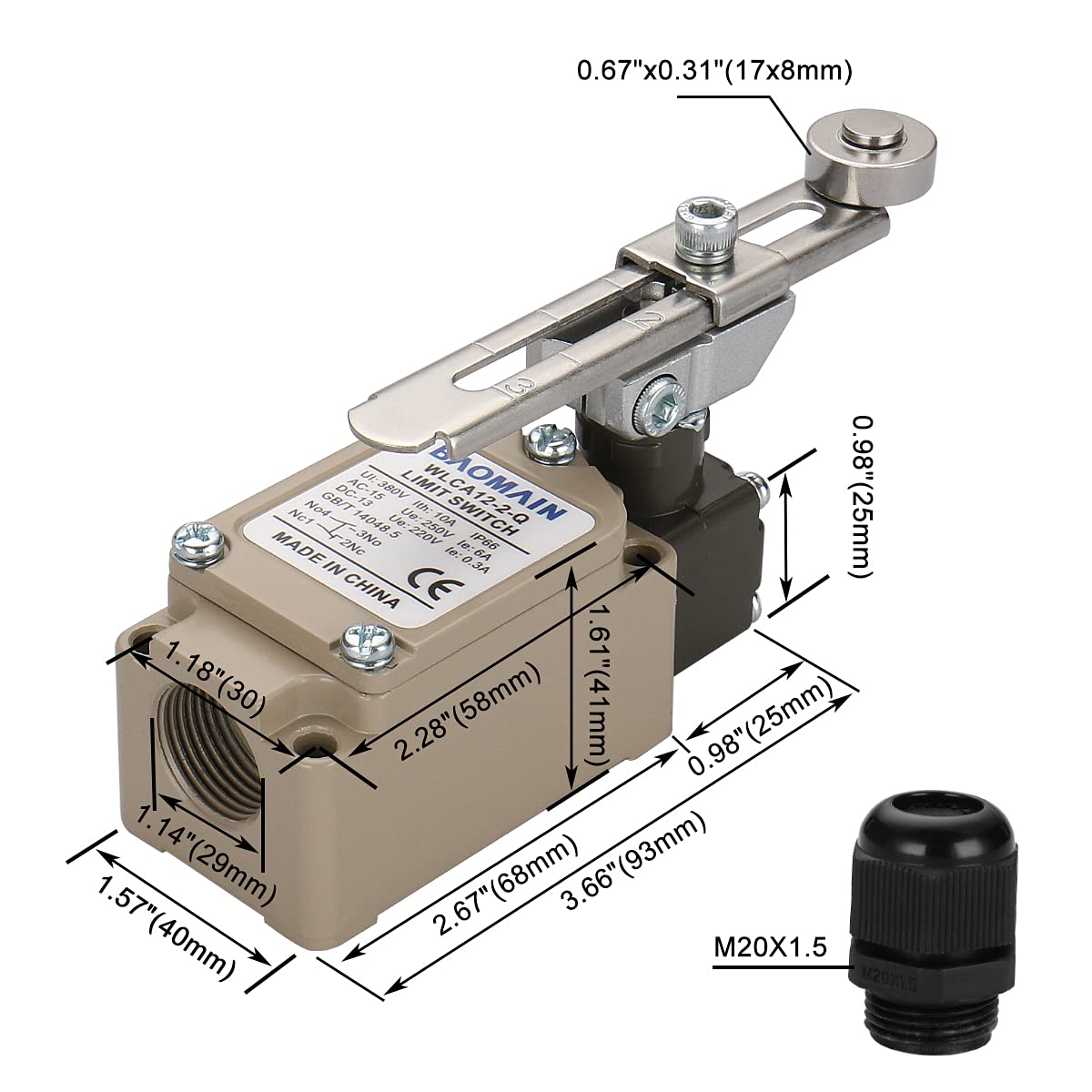

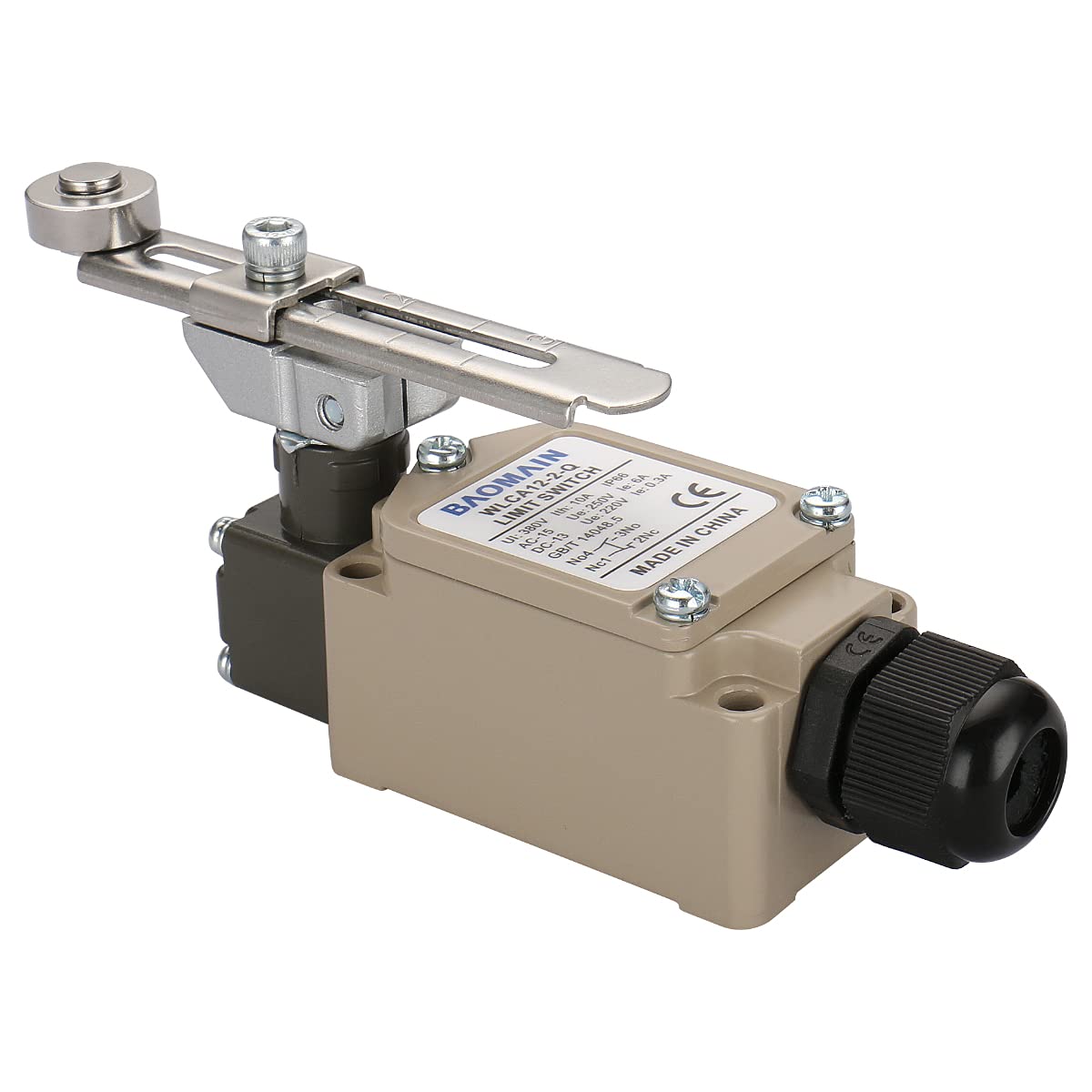

【Complete Installation Kit】 The package includes a high-quality PG13.5 cable gland, ensuring a secure and liquid-tight connection for your wiring. Standard mounting holes allow for easy integration into existing machine frames, lathes, and CNC equipment.
